BC: dimension A 1596mm, OHF: dimension C 2110mm, wheel connection 100x4, wheel brake type 1637, swing arm position 25°, axle profile 80mm. Read more...
Part no. 1942838

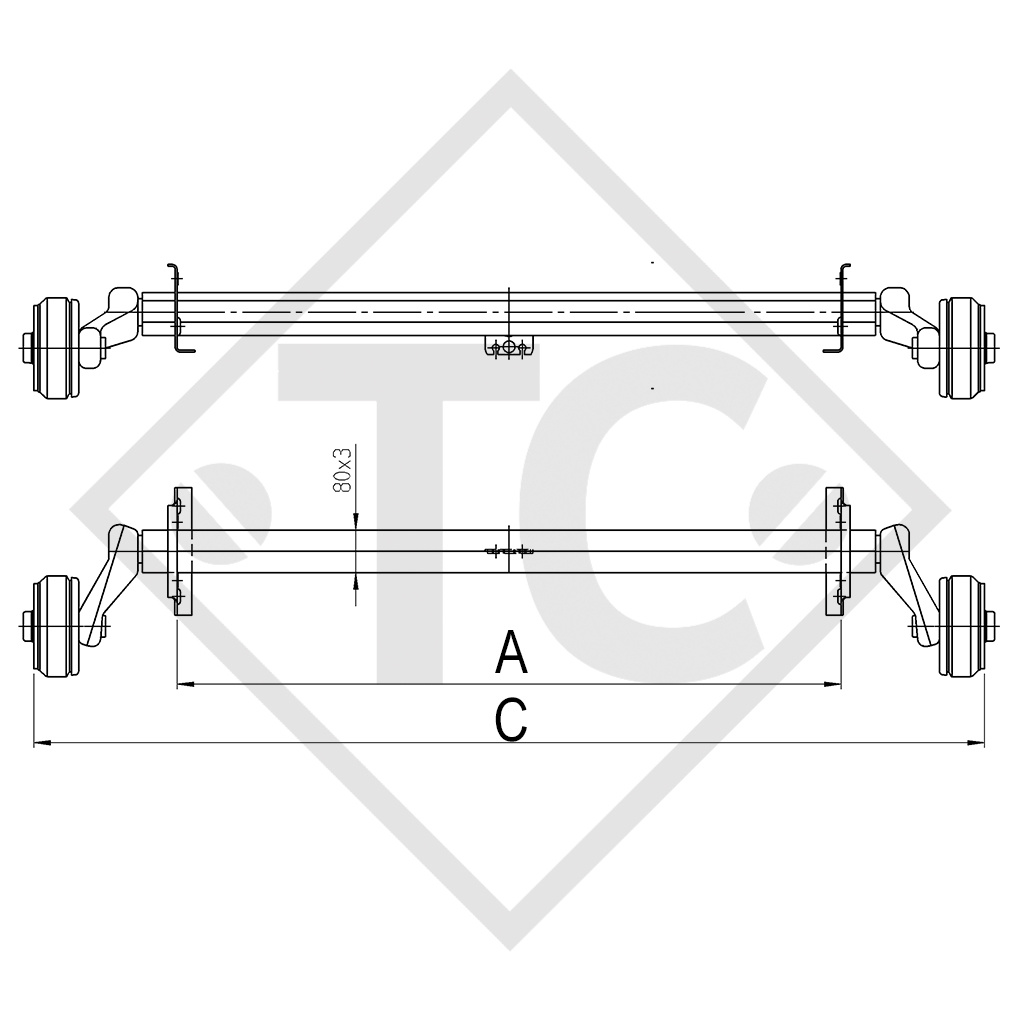

BC: dimension A 1596mm
OHF: dimension C 2110mm
Wheel connection 100x4

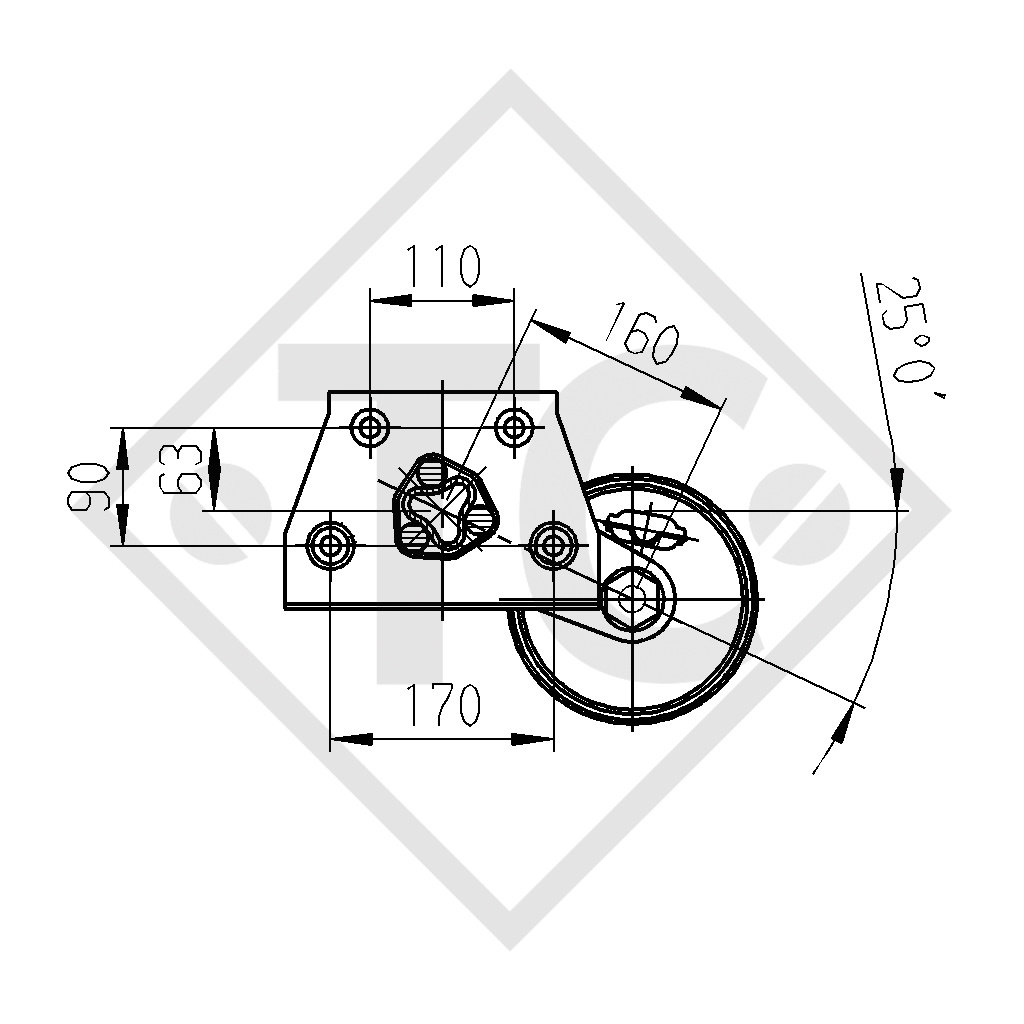

Swing arm position 25°
Axle profile 80mm
Original operating instructions
Replacement part identification number (ETI) OLD 811267
Replacement part identification number (ETI) NEW 811944
TECHNOLOGY
Model: EURO1
Axle type: B 850-3
Axle load: Single axle 800kg
Axle load: Tandem axle 1400kg
Wheel brake: 1637
Suspension: Hexagonal rubber suspension
Swing arm length: 160mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle with brake
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
