BC: dimension A 1350mm, OHF: dimension C 1790mm, wheel connection 130x4, wheel brake type 1637, offset (ET) 27-45mm, swing arm position 30°, axle profile 71mm, taper-head wheel bolts M12x1.5. Read more...
Part no. 1940899 (664137)

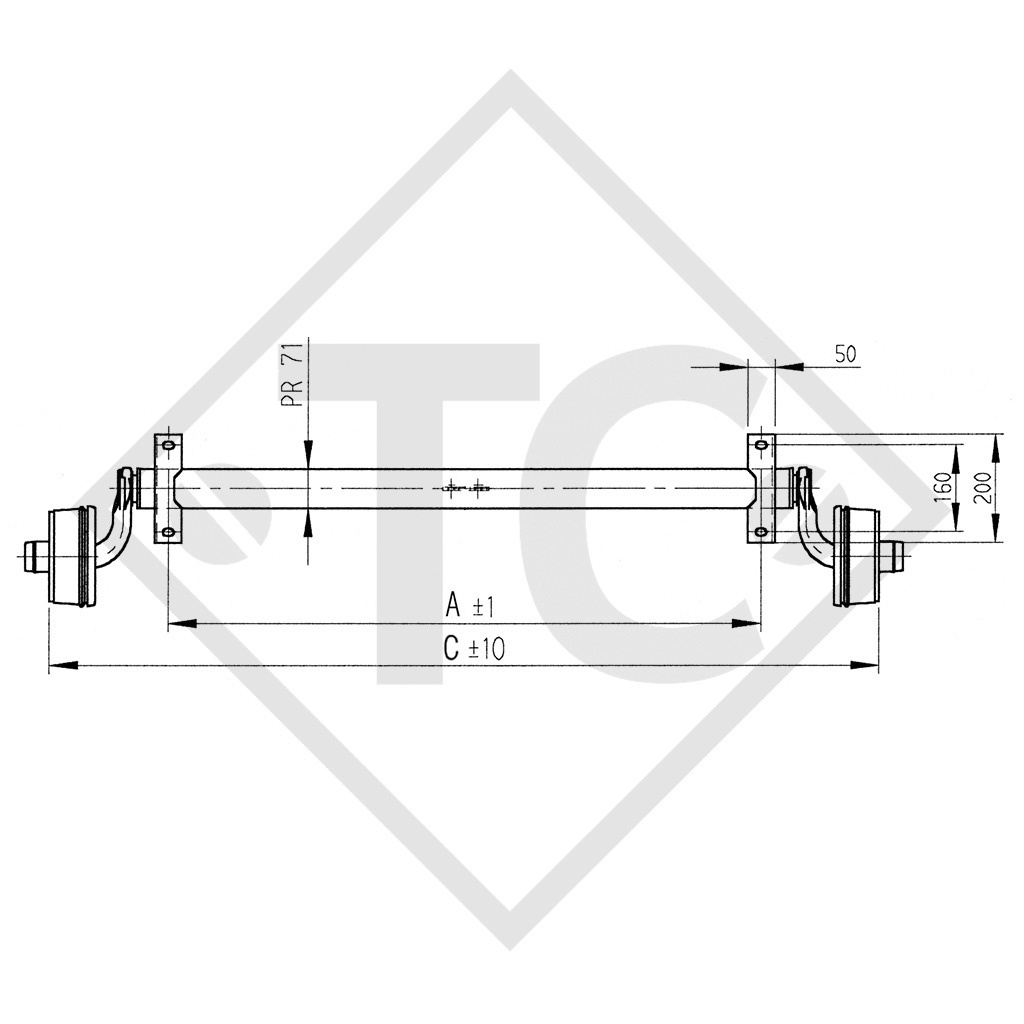

BC: dimension A 1350mm
OHF: dimension C 1790mm
Wheel connection 130x4

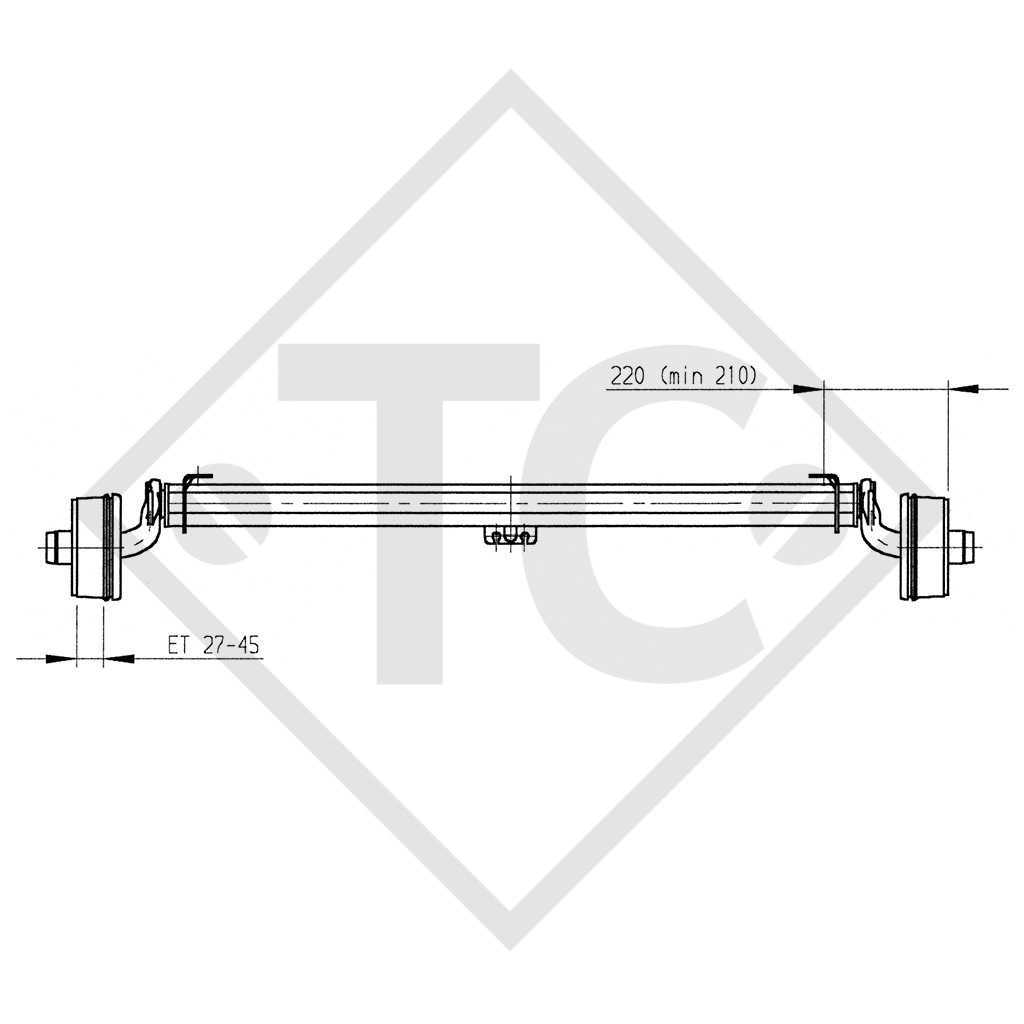

Offset (ET) 27-45mm

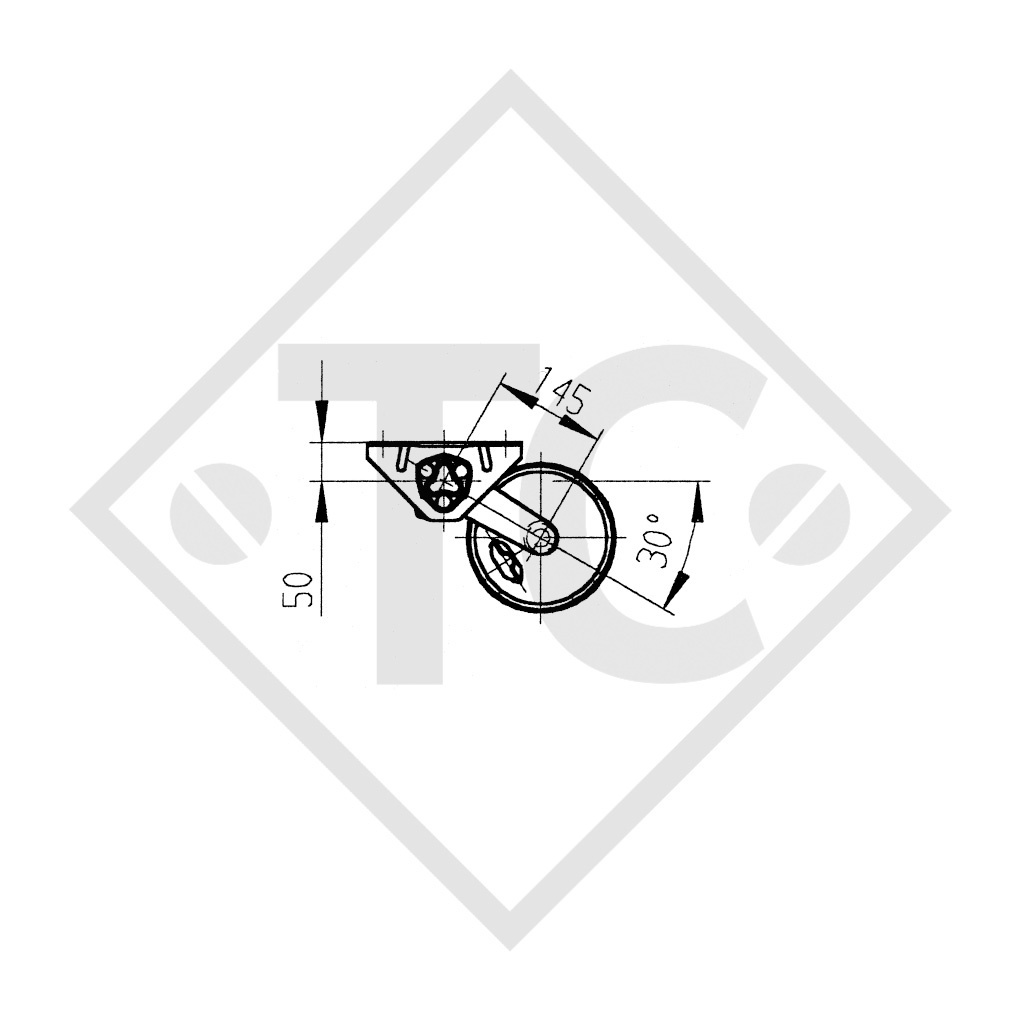

Swing arm position 30°
Axle profile 71mm
Original operating instructions
Replacement part identification number (ETI) NEW 811944
TECHNOLOGY
Model: BASIC
Axle type: B 700-5
Axle load: 750kg
Suspension: Hexagonal rubber suspension
Swing arm length: 145mm
Wheel bearing: Tapered roller bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Compensation profile for single axle supplied
Without shock absorber brackets
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake black-primed
