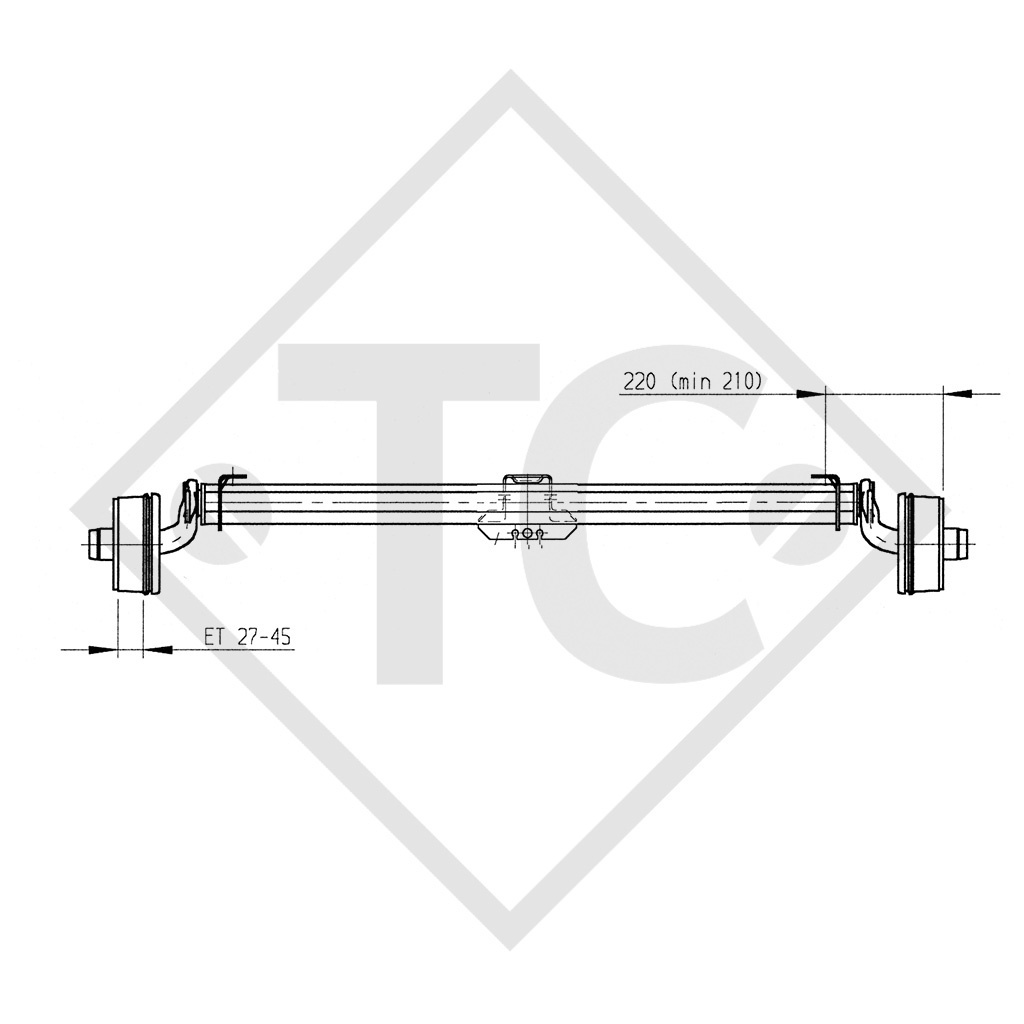

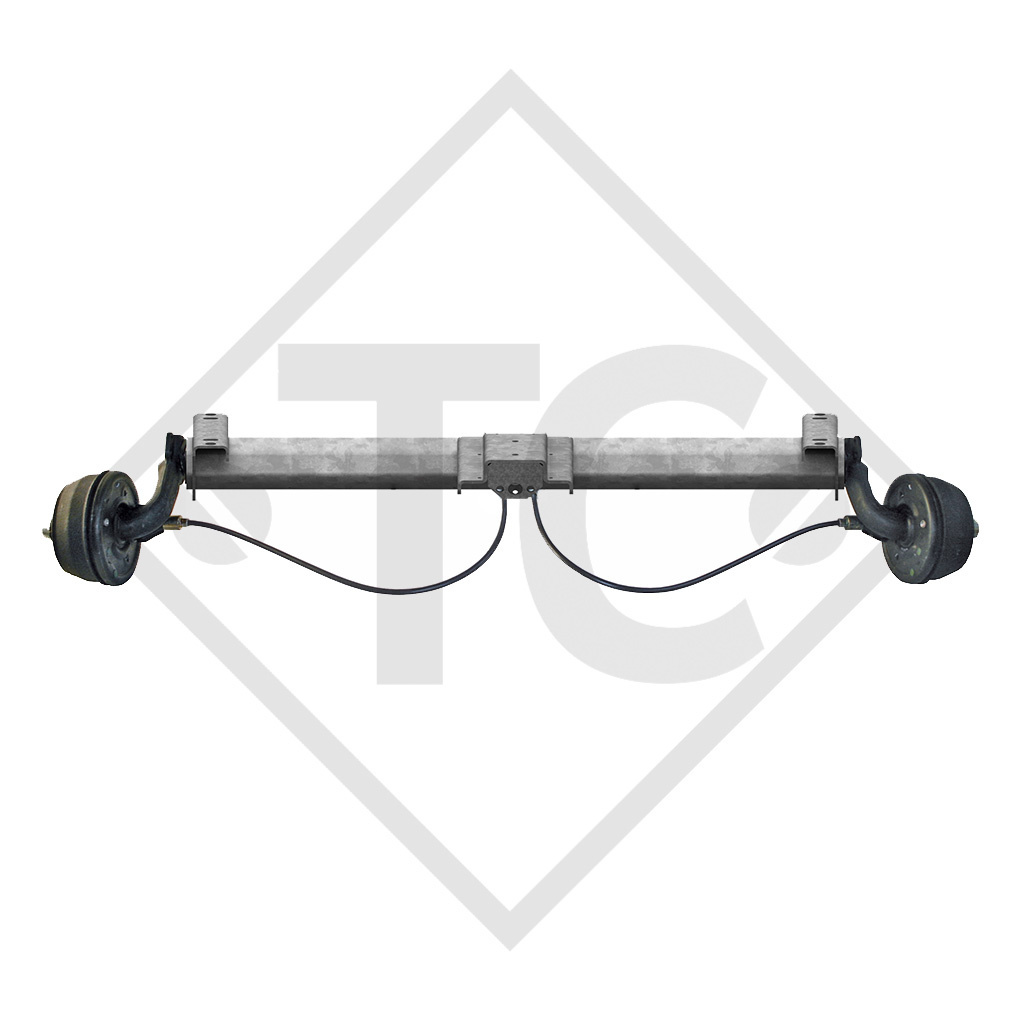

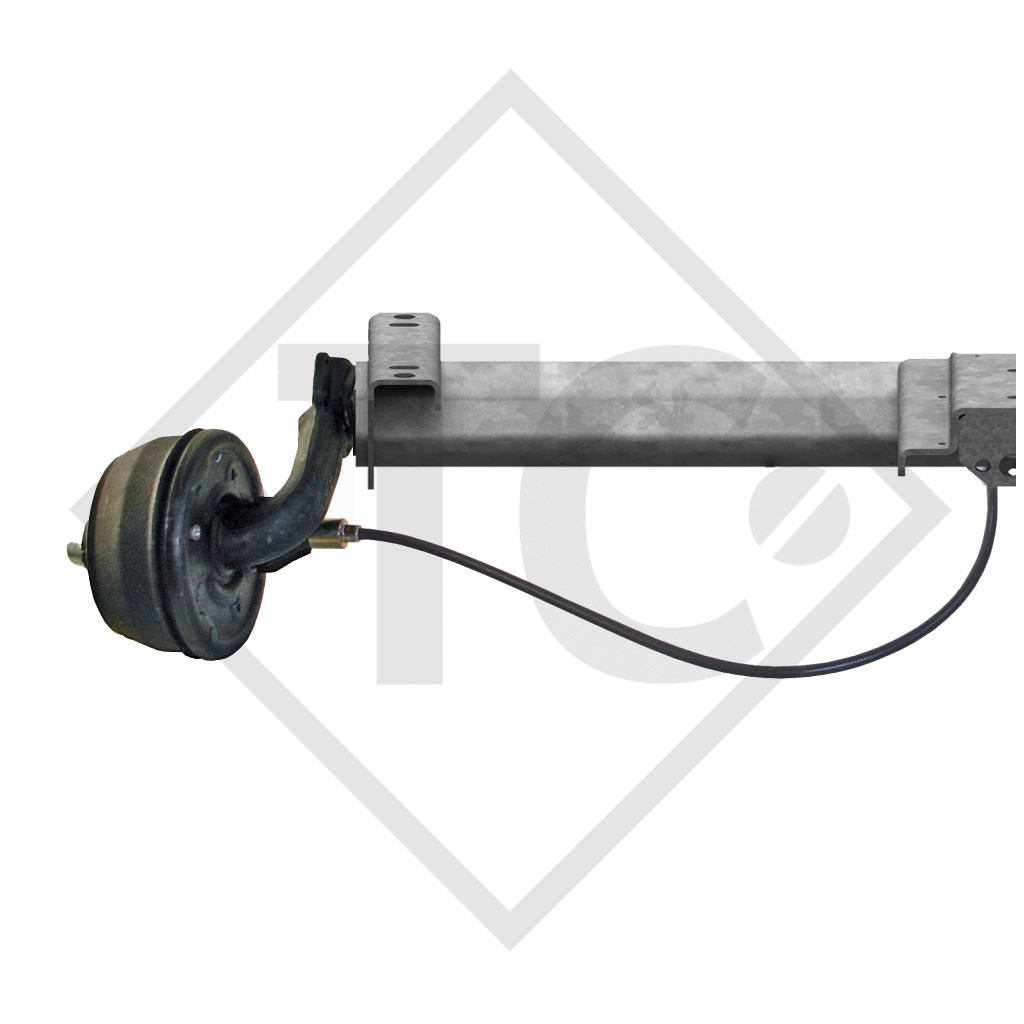

Braked axle 750kg axle type B 700-5 with top hat profile 90mm

BC: dimension A 1165mm, OHF: dimension C 1674mm, wheel connection 100x4, wheel brake type 1637, offset (ET) 27-33mm, swing arm position 30°, axle profile 71mm. Read more...

Wishlist: Add to comparison:

Price 645,00 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 20 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy. If you have any questions regarding this product please contact our sales team or send us an email to [email protected]

- +

Add to cart

Part no. 1940126_1165_1674

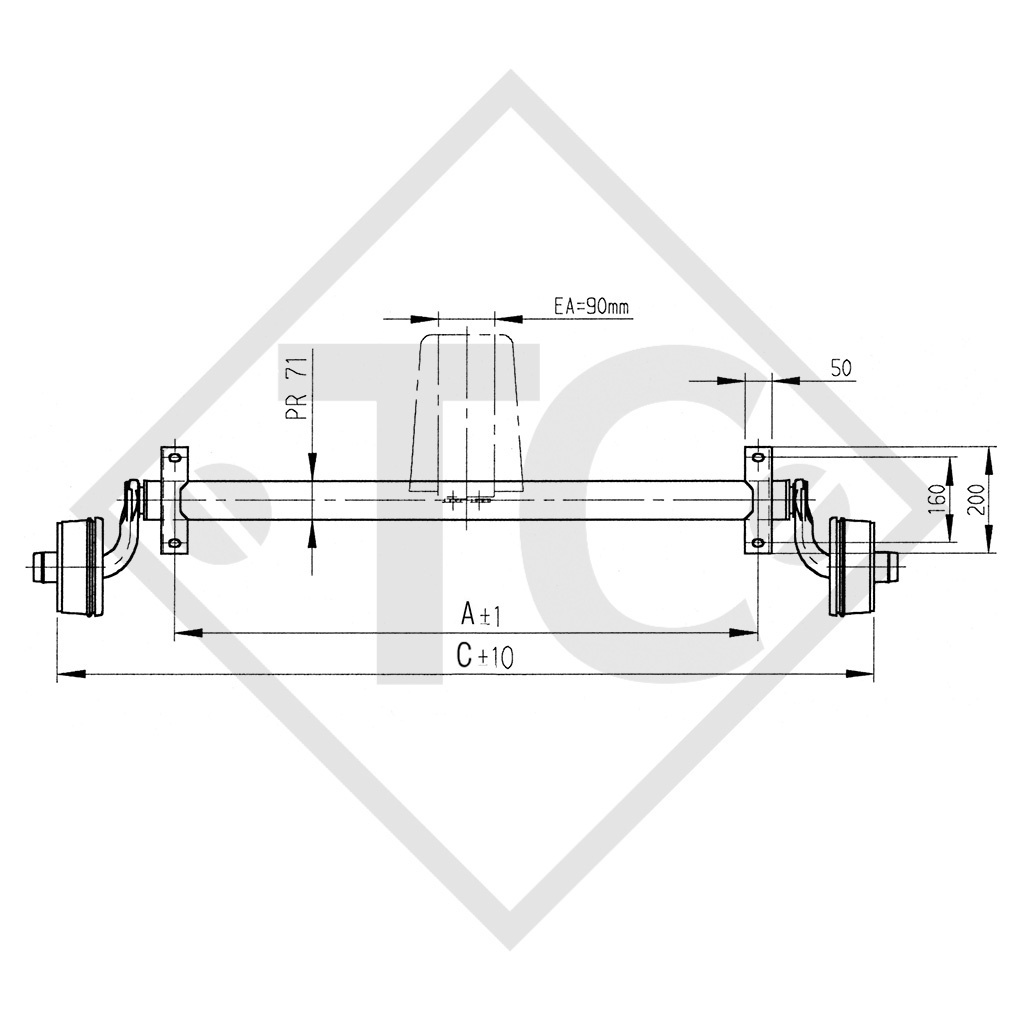

BC: dimension A 1165mm
OHF: dimension C 1674mm
EA: 90mm
Wheel connection 100x4
Offset (ET) 27-33mm

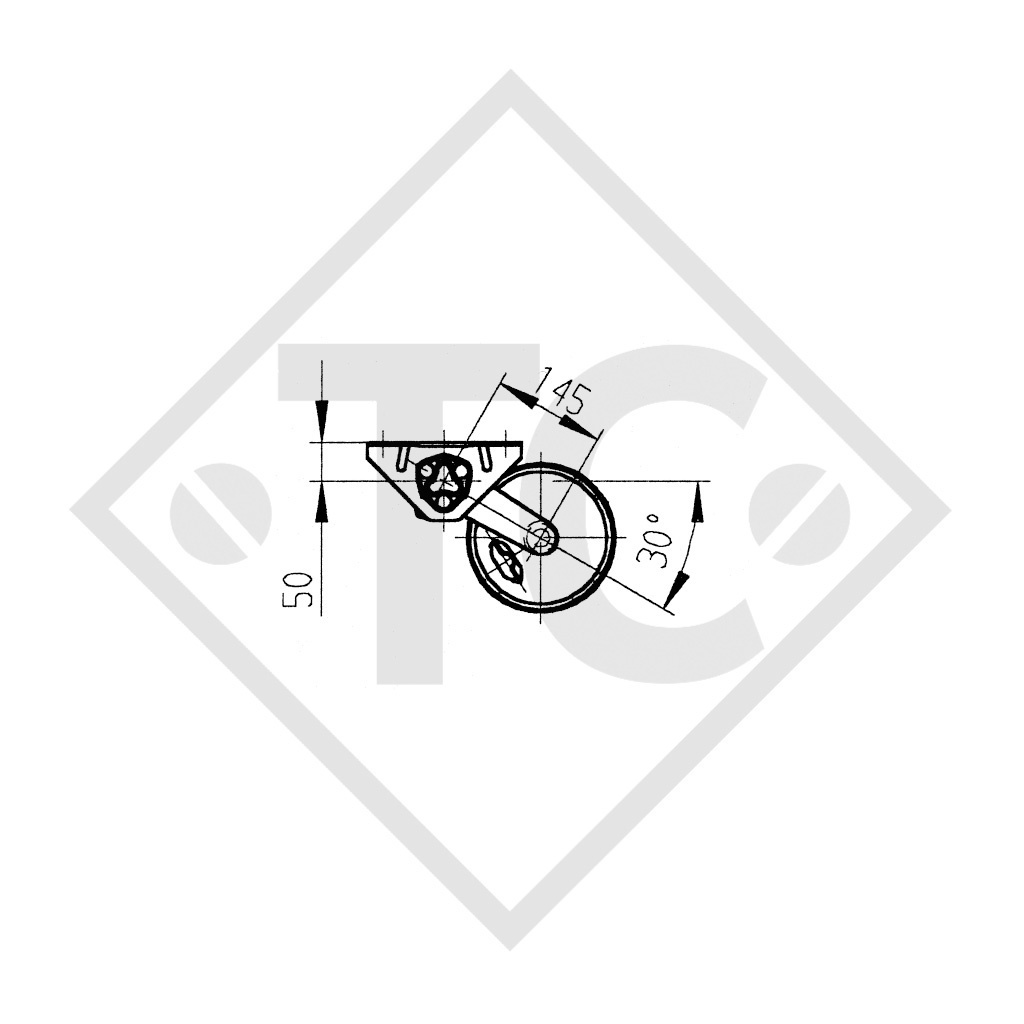

Swing arm position 30°
Axle profile 71mm

Original operating instructions
Replacement part identification number (ETI) 811285

TECHNOLOGY
Model: STANDARD
Axle type: B 700-5
Axle load: 750kg
Suspension: Hexagonal rubber suspension
Swing arm length: 145mm
Wheel bearing: Compact
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
Axle

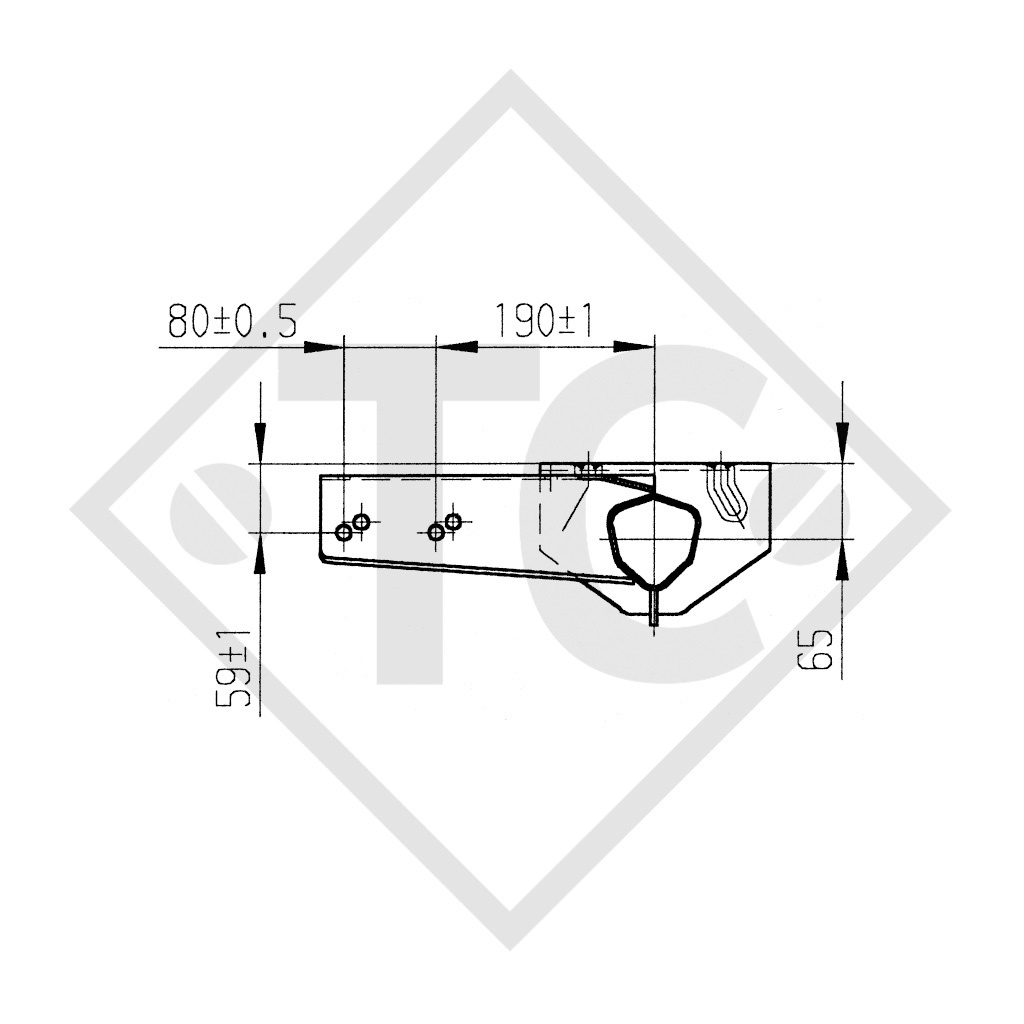

Single axle adapter bracket welded onto top hat profile (single axle and tandem adapter bracket)
Compensation profile for single axle supplied
Bowden cables loose
Without shock absorber brackets

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake black-primed

AL-KO Braked axle 750kg axle type B 700-5 with top hat profile 90mm - HYMER PAN FAMILIA
