BC: dimension A 1270mm, OHF: dimension C 1745mm, wheel connection 100x4, wheel brake type 1636G, offset (ET) 27-45mm, swing arm position 30°, axle profile 71mm, taper-head wheel bolts M12x1.5. Read more...
Part no. 1760711 (1940047)

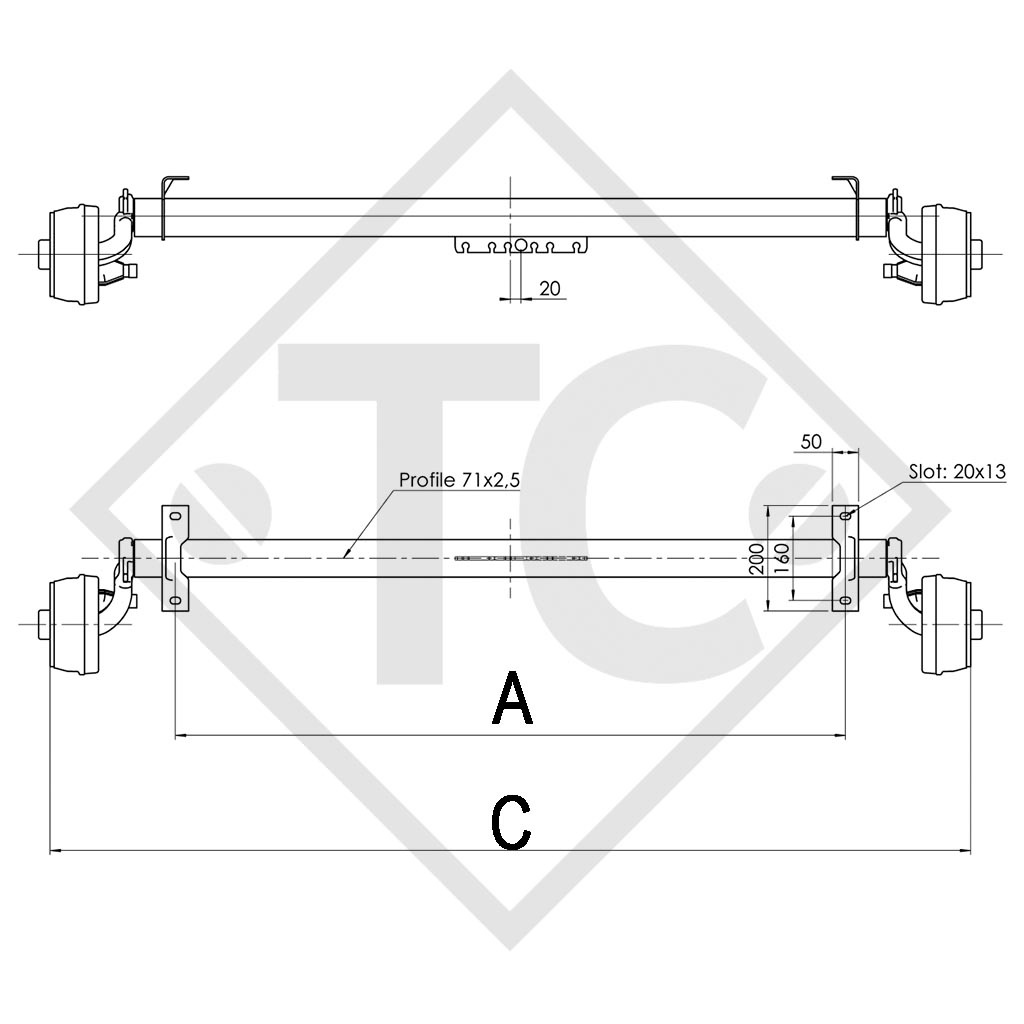

BC: dimension A 1270mm
OHF: dimension C 1745mm
Wheel connection 100x4
Offset (ET) 27-45mm
Swing arm position 30°
Axle profile 71mm
Original operating instructions
Replacement part identification number (ETI) 811285
TECHNOLOGY
Model: BASIC
Axle type: B 700-6
Axle load: 750kg
Suspension: Hexagonal rubber suspension

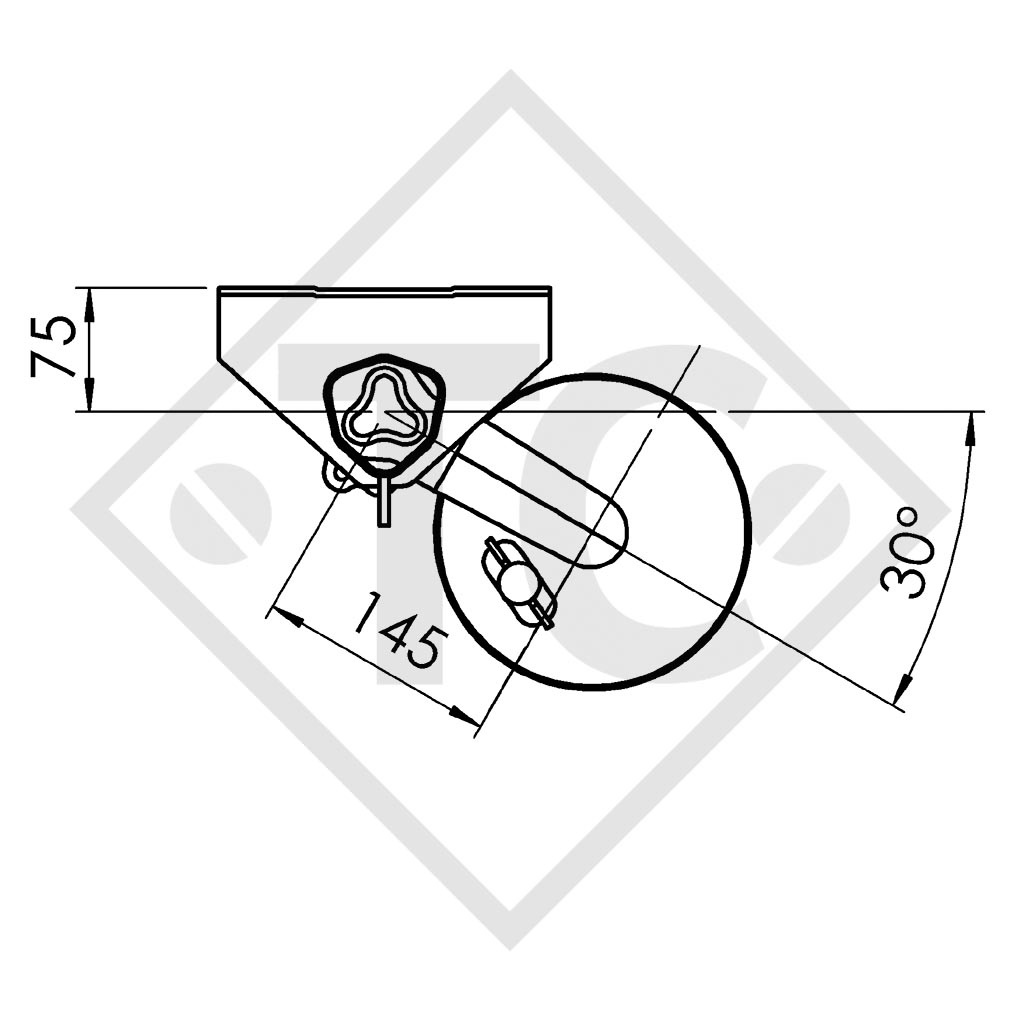

Swing arm length: 145mm
Wheel bearing: Tapered roller bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Taper-head wheel bolts M12x1.5 loose
Compensation profile for single axle supplied
Bowden cables loose
Without shock absorber brackets
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake black-primed
