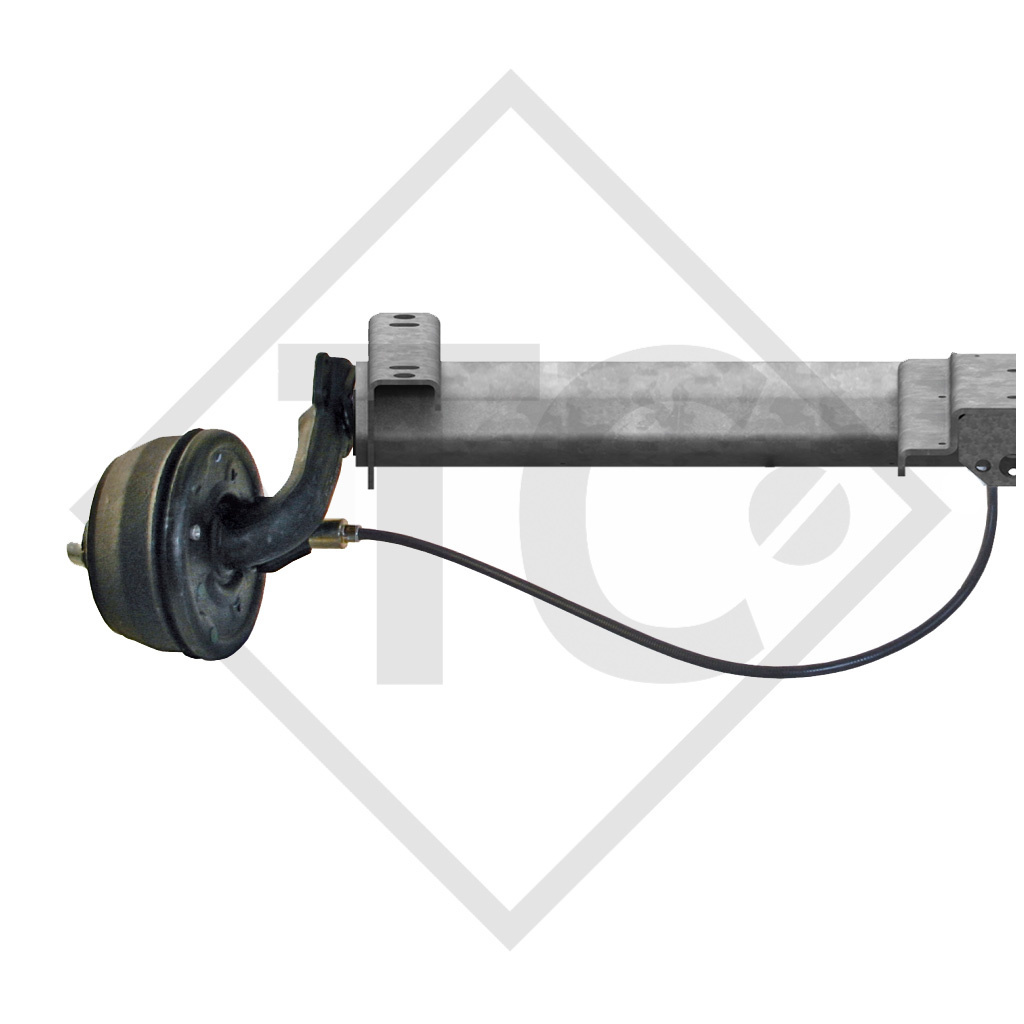

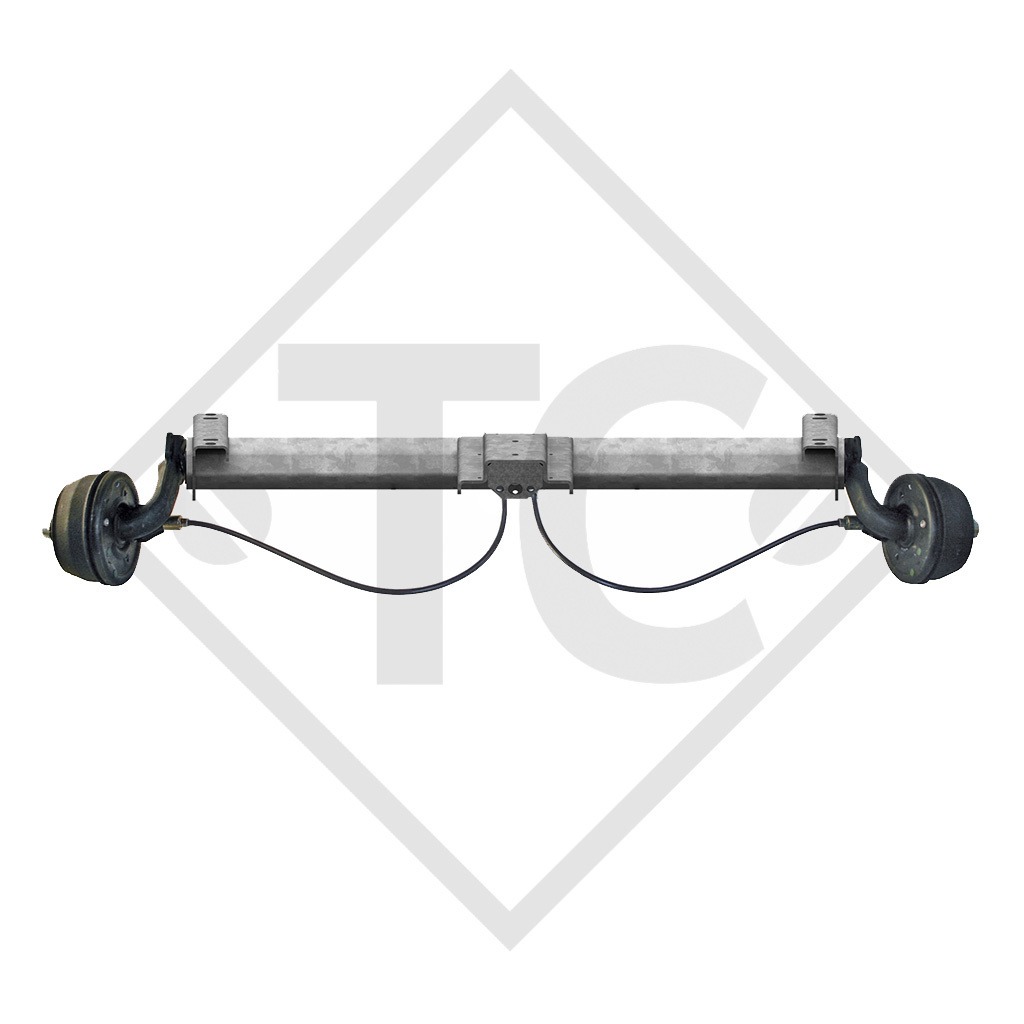

AL-KO Braked axle 750kg BASIC axle type B 700-5 with top hat profile 90mm

Part no. 20038040

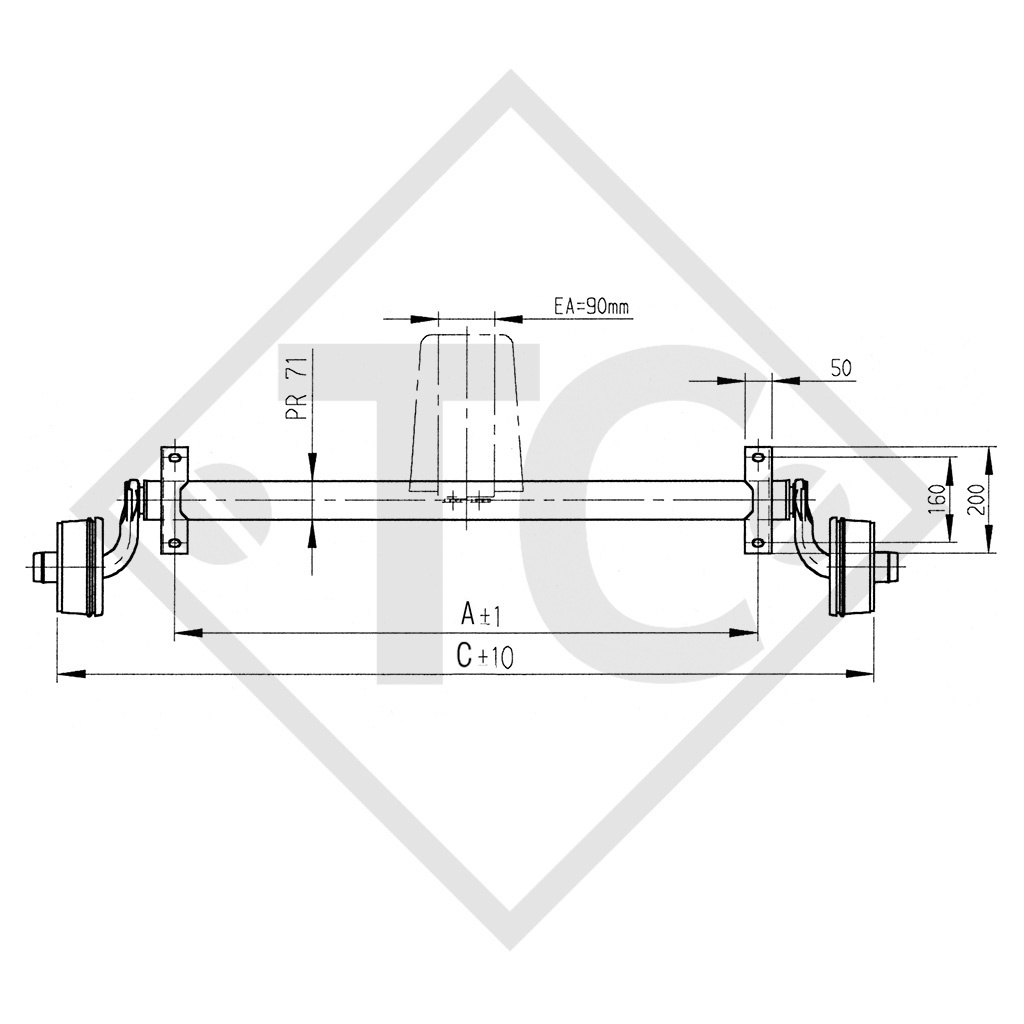

BC: dimension A 1800mm
OHF: dimension C 2240mm
EA: 90mm
Wheel connection 100x4

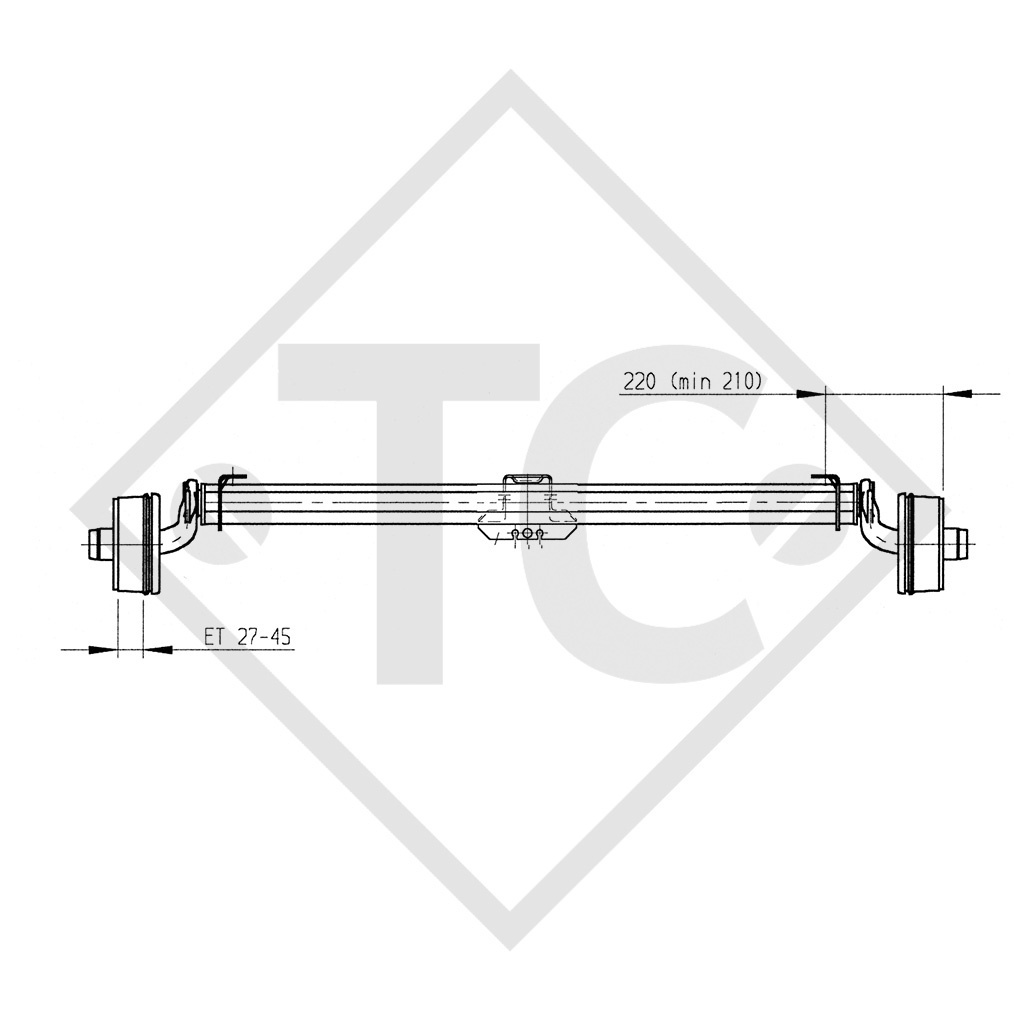

Offset (ET) 27-45mm
Swing arm position 30°
Axle profile 71mm

Original operating instructions
Replacement part identification number (ETI) 811285

TECHNOLOGY
Model: BASIC
Axle type: B 700-5
Axle load: 750kg
Suspension: Hexagonal rubber suspension
Swing arm length: 145mm
Wheel bearing: Tapered roller bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
Axle
Taper-head wheel bolts M12x1.5 loose

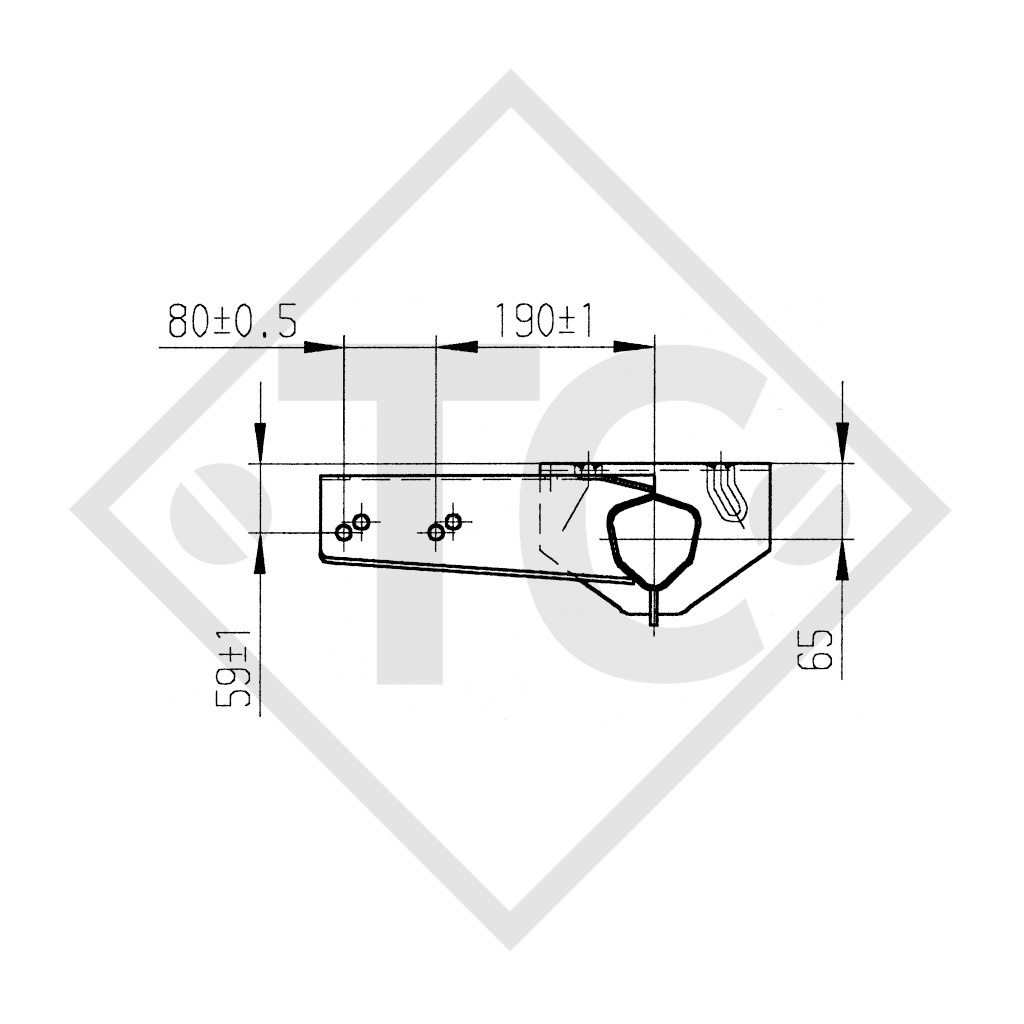

Single axle adapter bracket welded onto top hat profile (single axle and tandem adapter bracket)
Compensation profile for single axle supplied
Bowden cables loose
Without shock absorber brackets

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake black-primed
