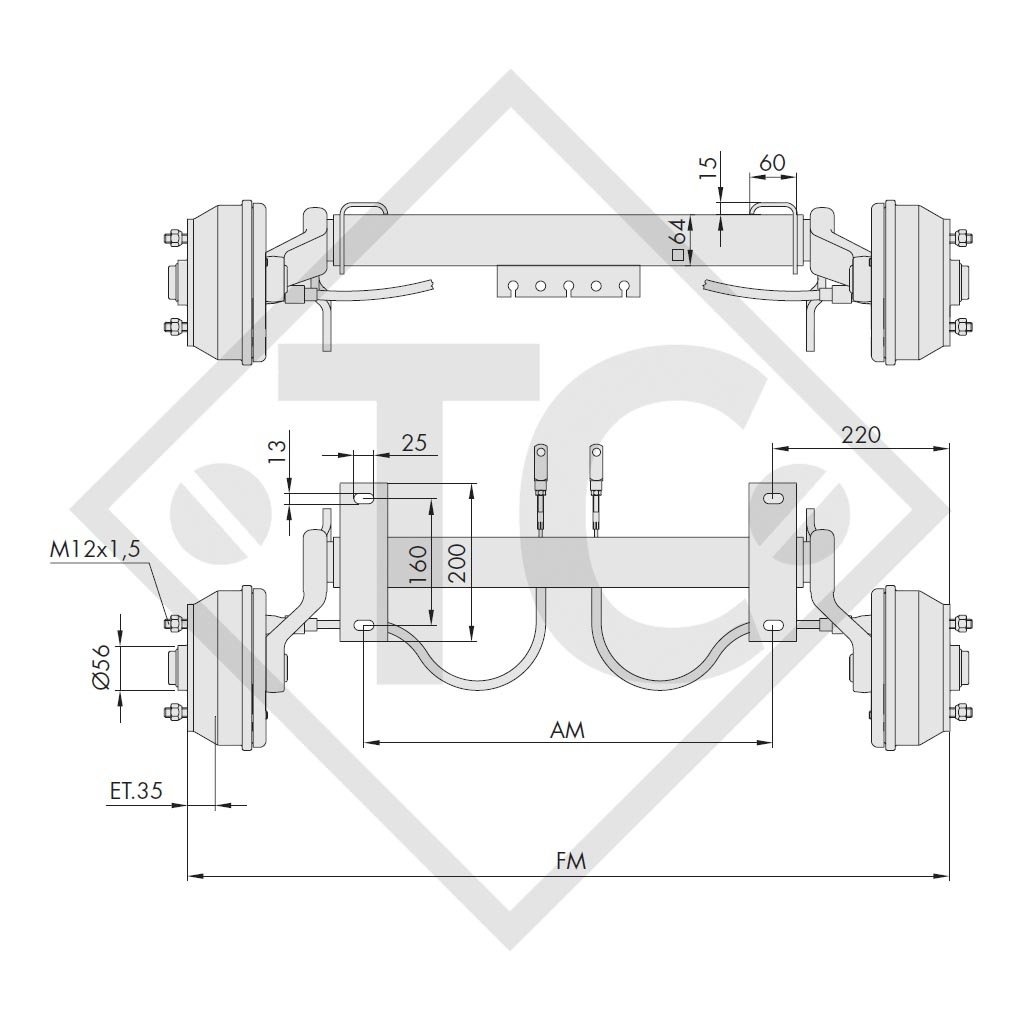

BC: dimension AM 1050mm, OHF: dimension FM 1490mm, wheel connection 112x5, wheel brake type W 184 RS, offset (ET) 35mm, ball-head wheel bolts M12x1.5. Read more...
| Part no. | WAPWAG075B078 |
| Dimension AM |
1050mm |
| Dimension FM |
1490mm |
| Wheel connection | 112x5 |
TECHNOLOGY
Model: WAG-B
Axle type: WAG 075 B
Axle load: 750kg
Suspension: Square rubber suspension
Swing arm length: 145mm
Wheel bearing: Tapered roller bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
