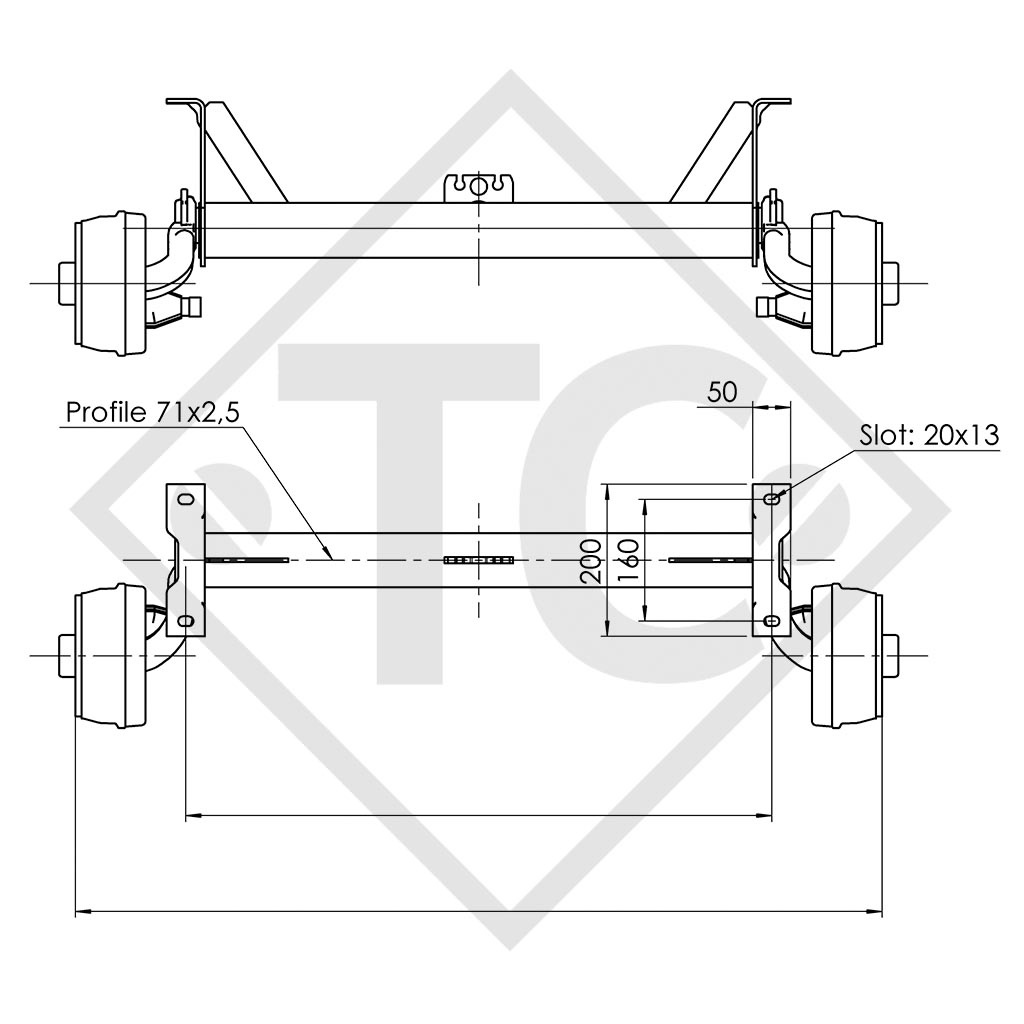

BC: dimension A 770mm, OHF: dimension C 1060mm, wheel connection 98x4, wheel brake type 1637, offset (ET) 27-45mm, swing arm position 30°, axle profile 71mm, ball-head wheel bolts M12x1.5. Read more...
Part no. 1761483
BC: dimension A 770mm
OHF: dimension C 1060mm
Wheel connection 98x4
Offset (ET) 27-45mm
Swing arm position 30°
Axle profile 71mm
Original operating instructions
Replacement part identification number (ETI) 811233
TECHNOLOGY
Model: GU LNGS GRM EA 450
Axle type: B 700-02
Axle load: 450kg
Suspension: Hexagonal rubber suspension
Swing arm length: 145mm
Wheel bearing: Tapered roller bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose
Compensation profile for single axle supplied
Bowden cables loose
Without shock absorber brackets
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake black-primed
