AL-KO Braked axle 750kg axle type B 700-5 with top hat profile 90mm

Part no. 249008  (618849)

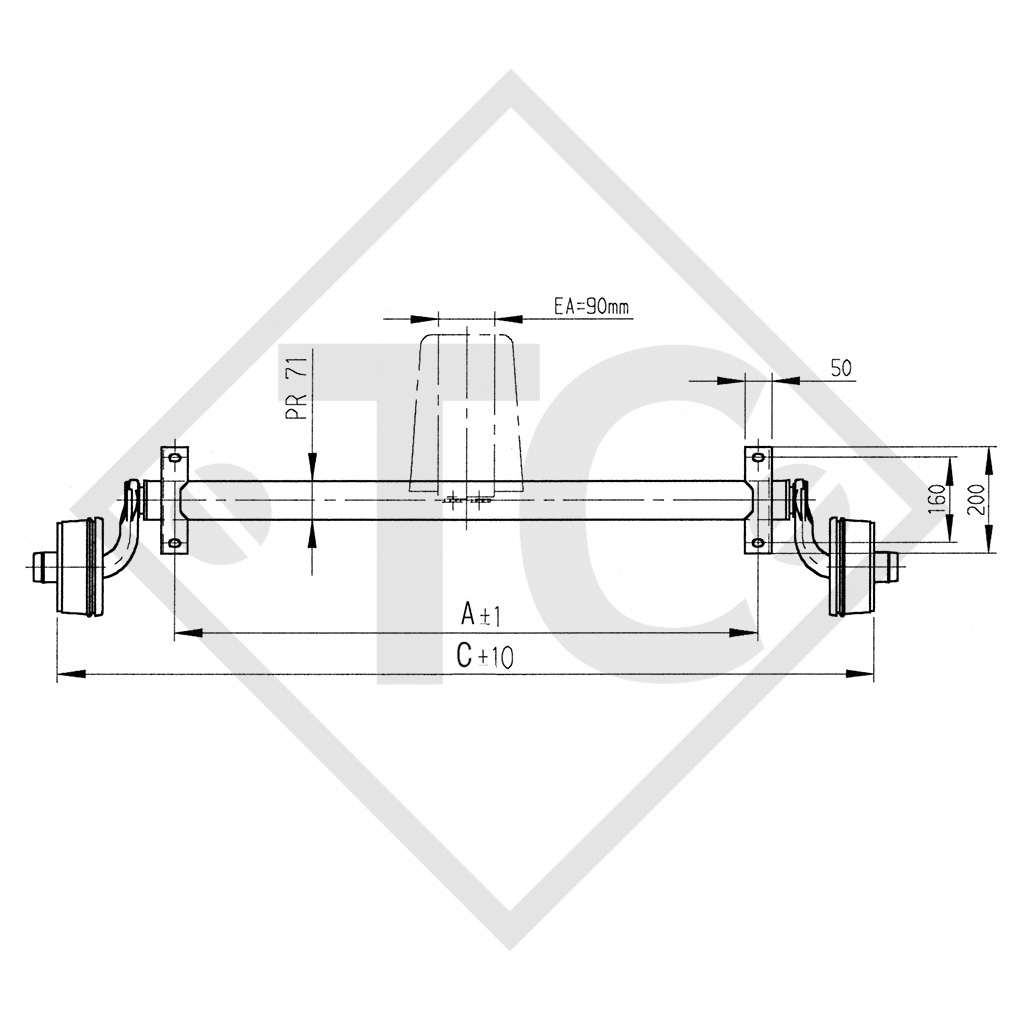

BC: dimension A 1100mm
OHF: dimension C 1540mm
EA: 90mm
Wheel connection 100x4

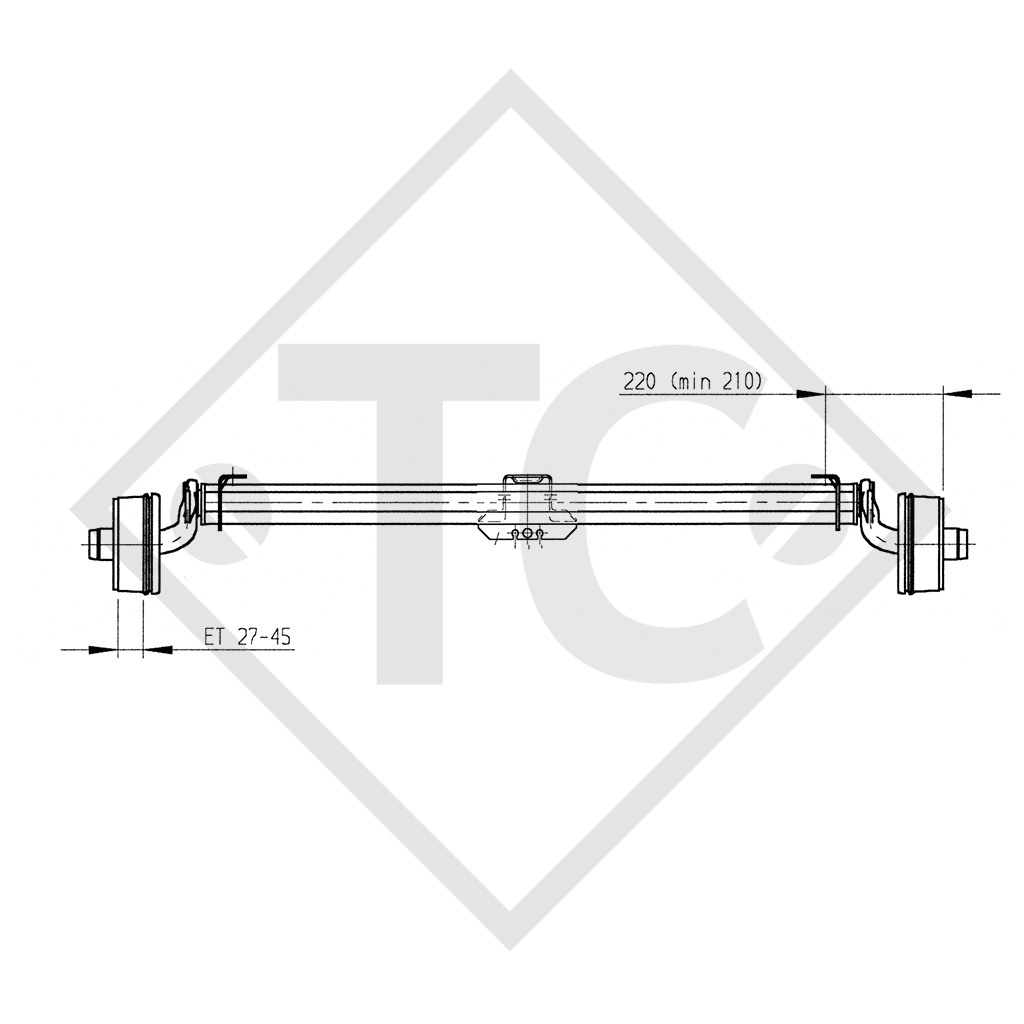

Offset (ET) 27-33mm

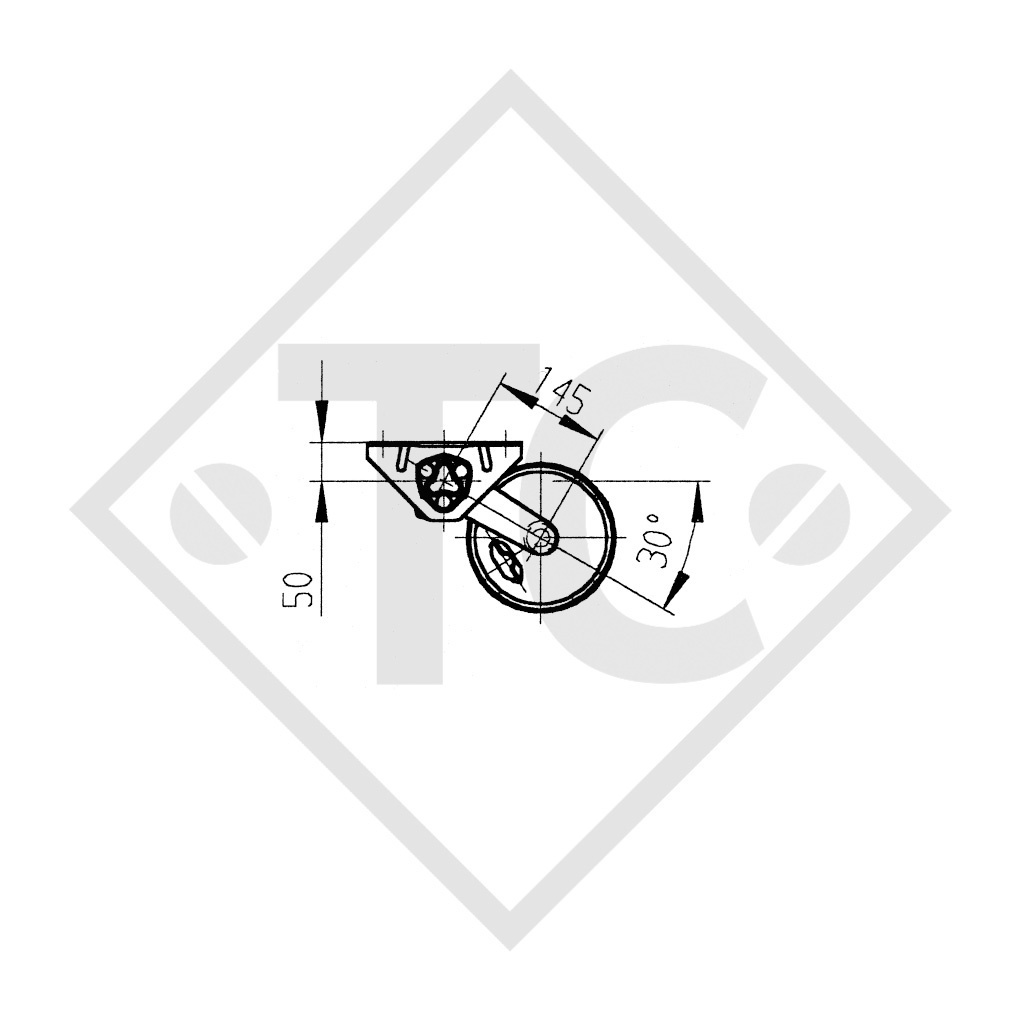

Swing arm position 30°
Axle profile 71mm

Original operating instructions
Replacement part identification number (ETI) 811285

TECHNOLOGY
Model: GU LNGS GRM EA750
Axle type: B 700-5
Axle load: 750kg
Suspension: Hexagonal rubber suspension
Swing arm length: 145mm
Wheel bearing: Compact
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY

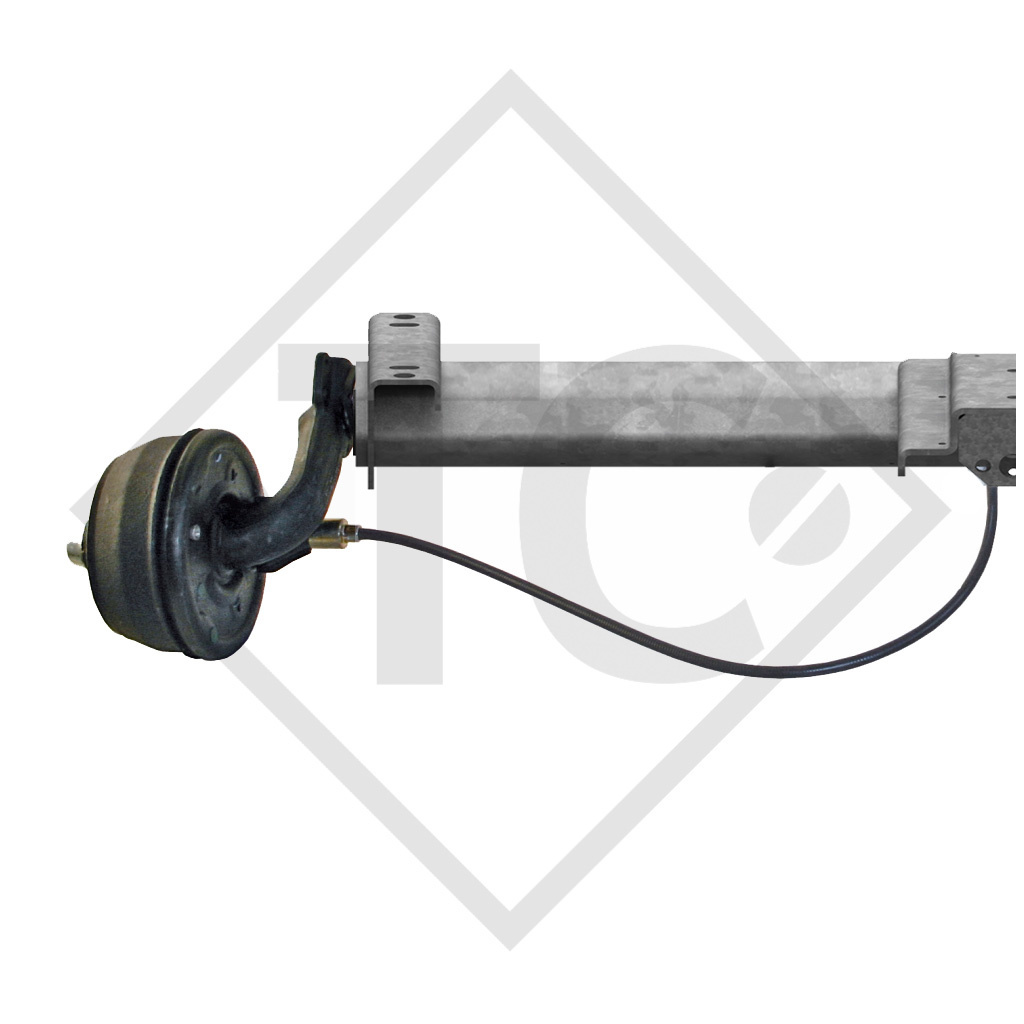

Axle with brake

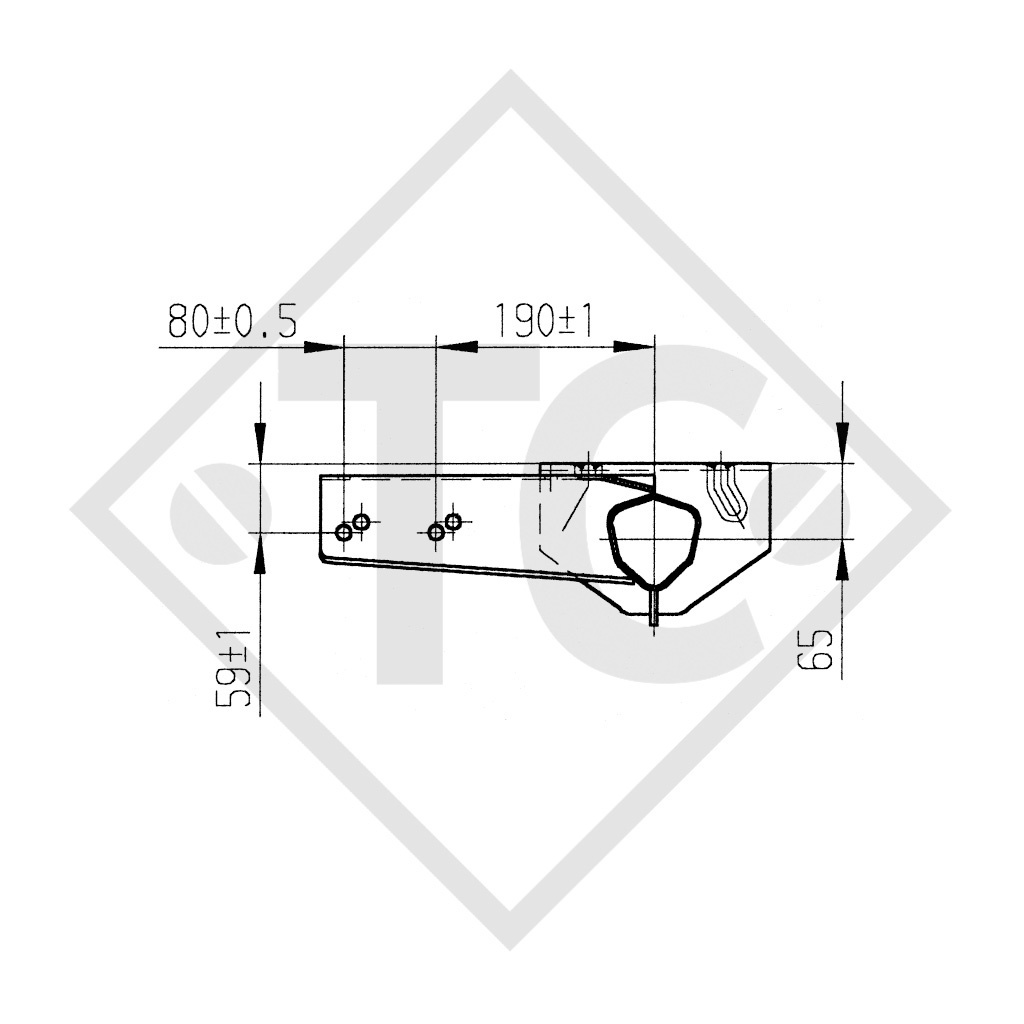

Single axle adapter bracket welded onto top hat profile (single axle and tandem adapter bracket)
Compensation profile for single axle supplied

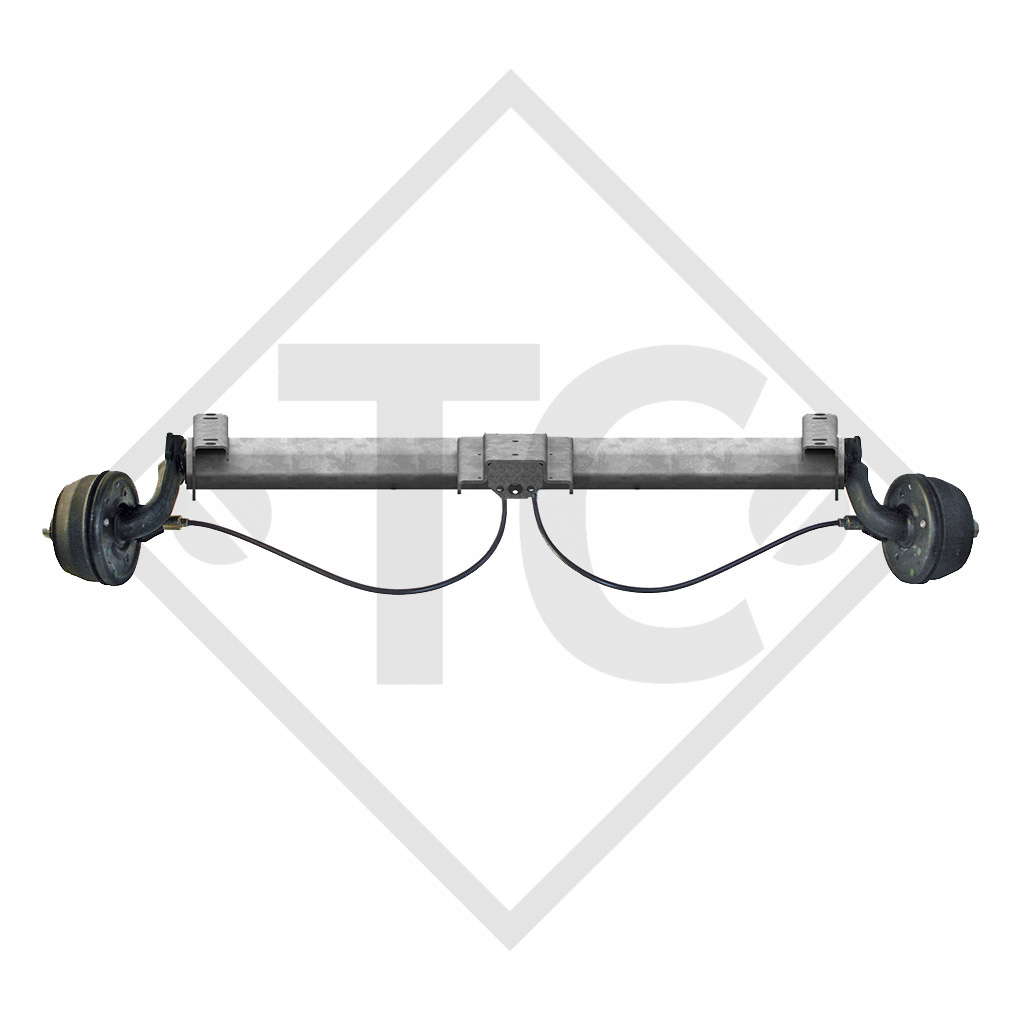

Bowden cables loose
Without shock absorber brackets

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake black-primed
