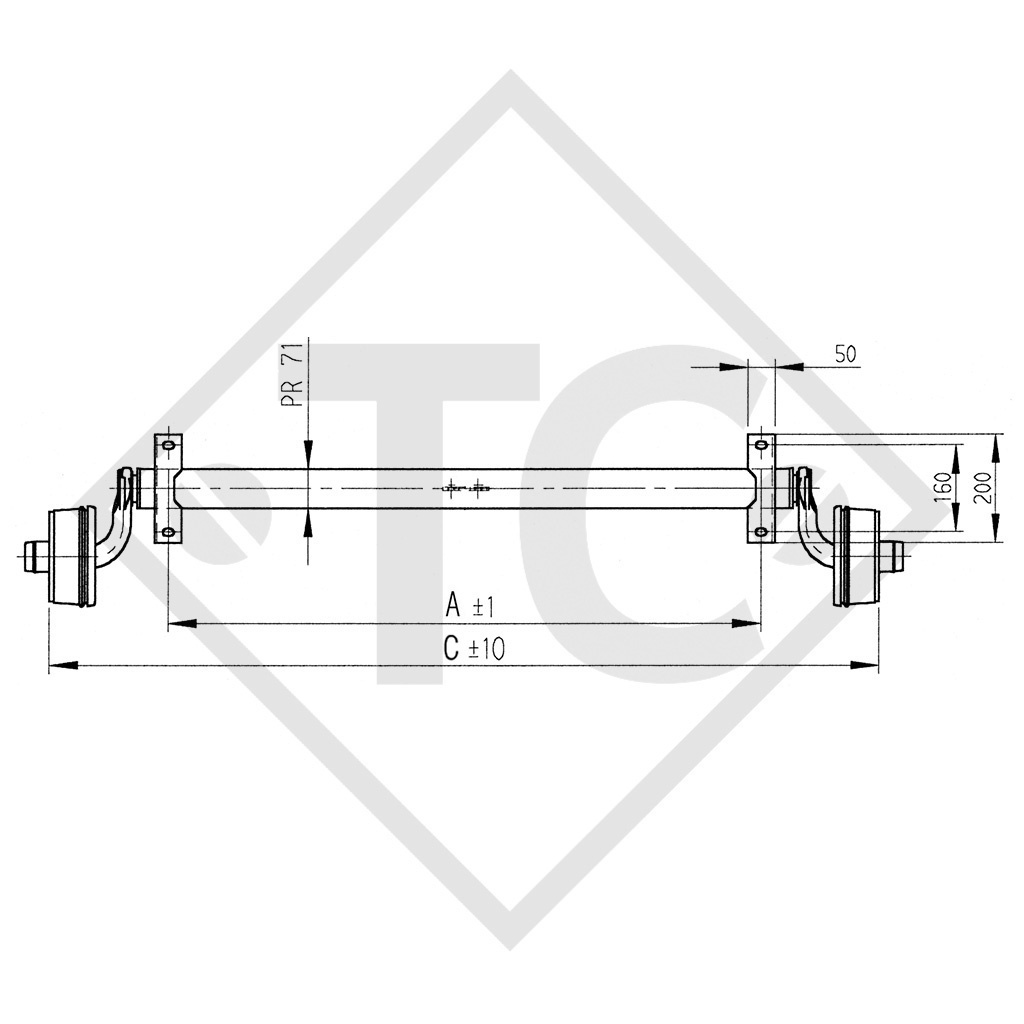

BC: dimension A 1430mm, OHF: dimension C 1770mm, wheel connection 100x4, wheel brake type 1637, offset (ET) 27-33mm, swing arm position 30°, axle profile 71mm. Read more...
Part no. 1940046
BC: dimension A 1430mm
OHF: dimension C 1770mm
Wheel connection 100x4

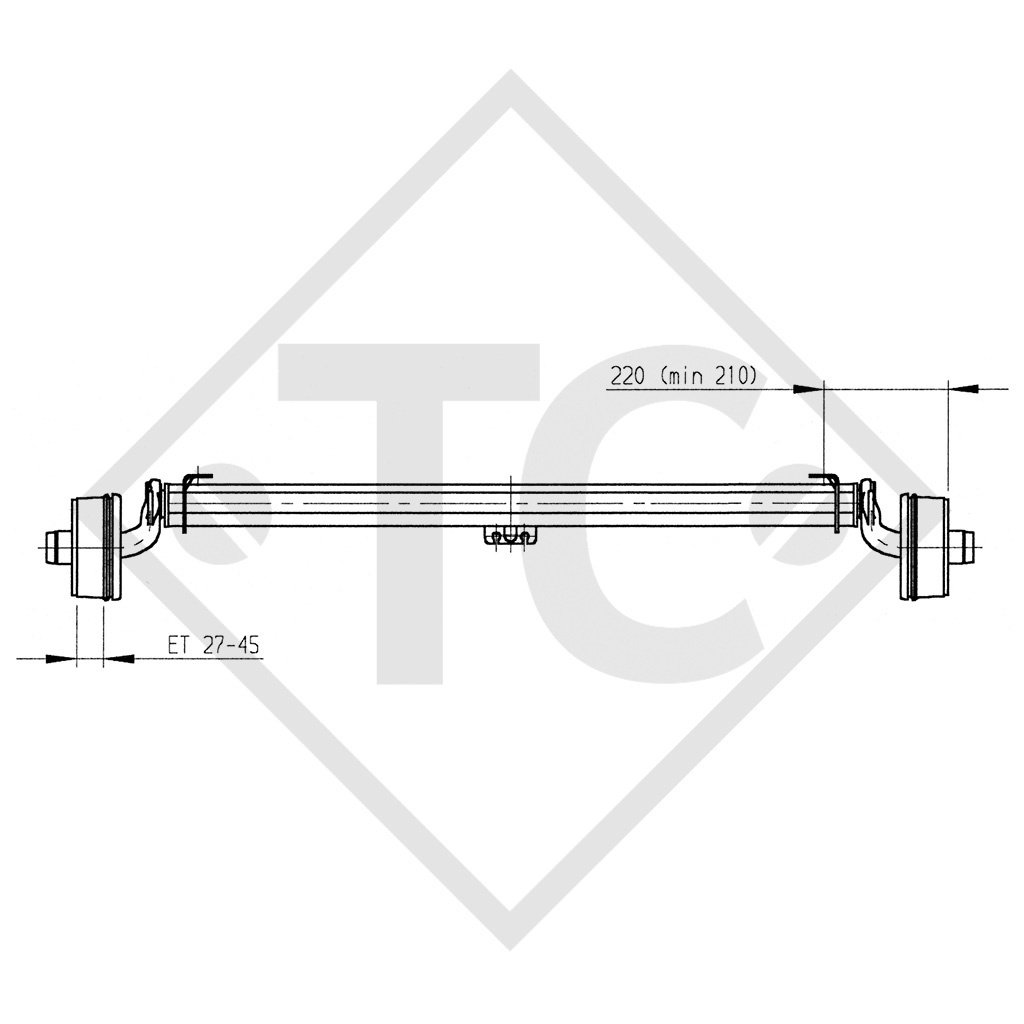

Offset (ET) 27-33mm
Swing arm position 30°
Axle profile 71mm
Original operating instructions
Replacement part identification number (ETI) OLD 811267
Replacement part identification number (ETI) NEW 811944
TECHNOLOGY
Model: GU LNGS GRM EA 750
Axle type: B 700-5
Axle load: 750kg
Suspension: Hexagonal rubber suspension
Swing arm length: 145mm
Wheel bearing: Tapered roller bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY

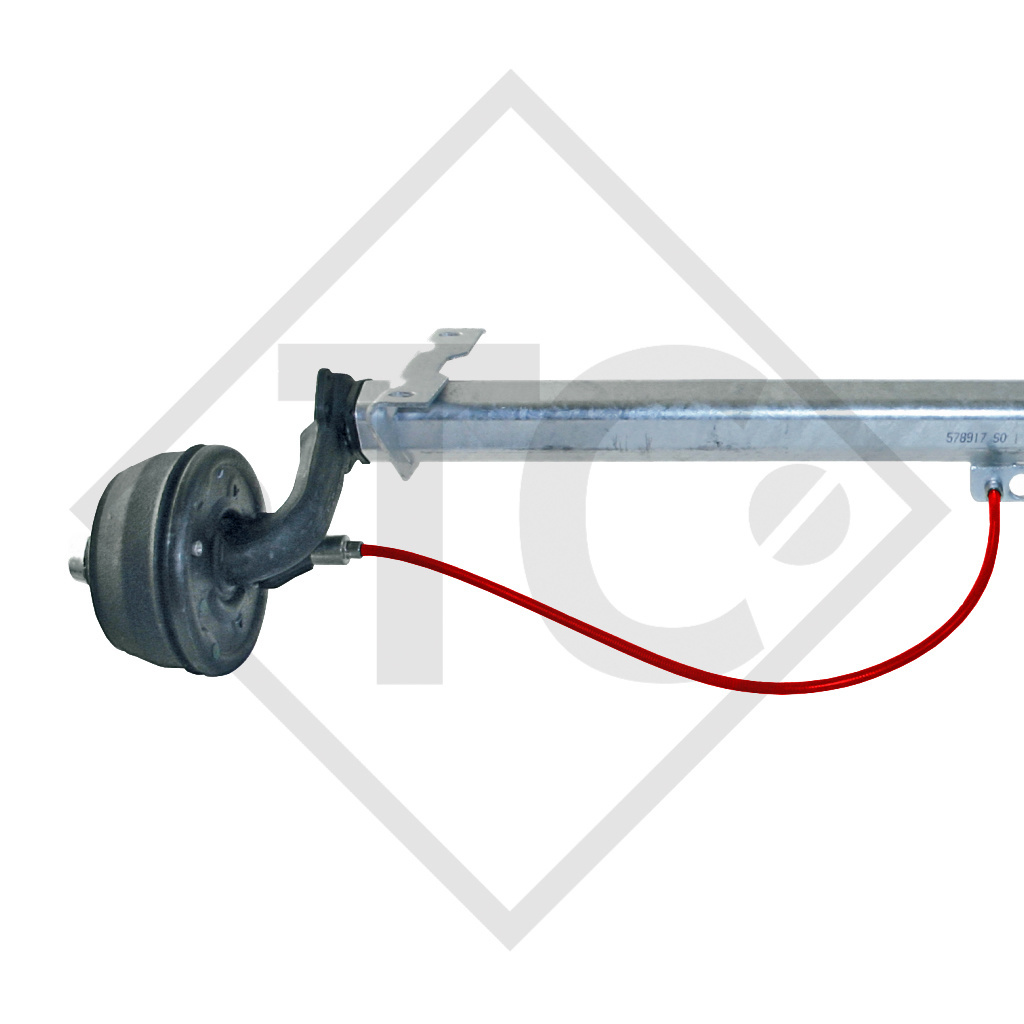

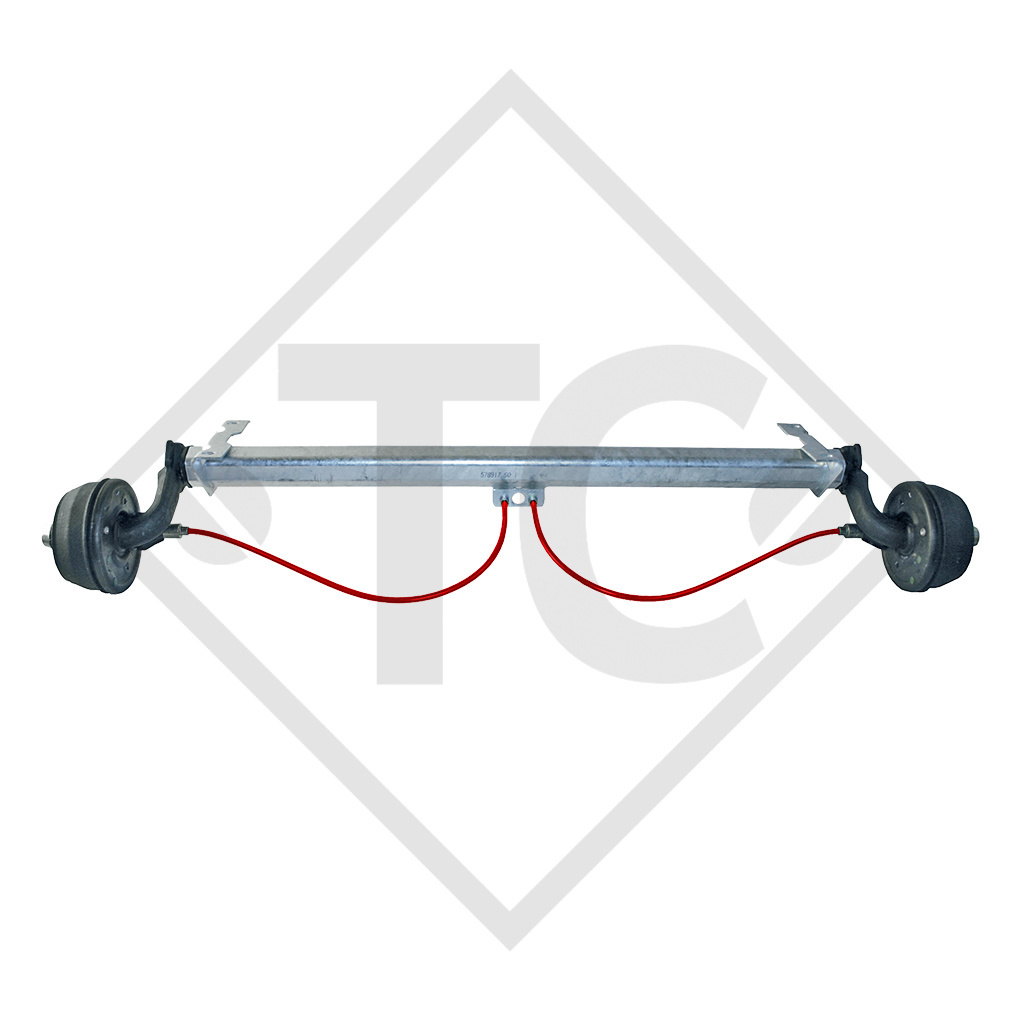

Axle with brake
Without shock absorber brackets
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake black-primed
