BC: dimension A 1165mm, OHF: dimension C 1645mm, wheel connection 112x5, wheel brake type 1637, offset (ET) 27-45mm, swing arm position 30°, axle profile 71mm. Read more...
Part no. 1762350

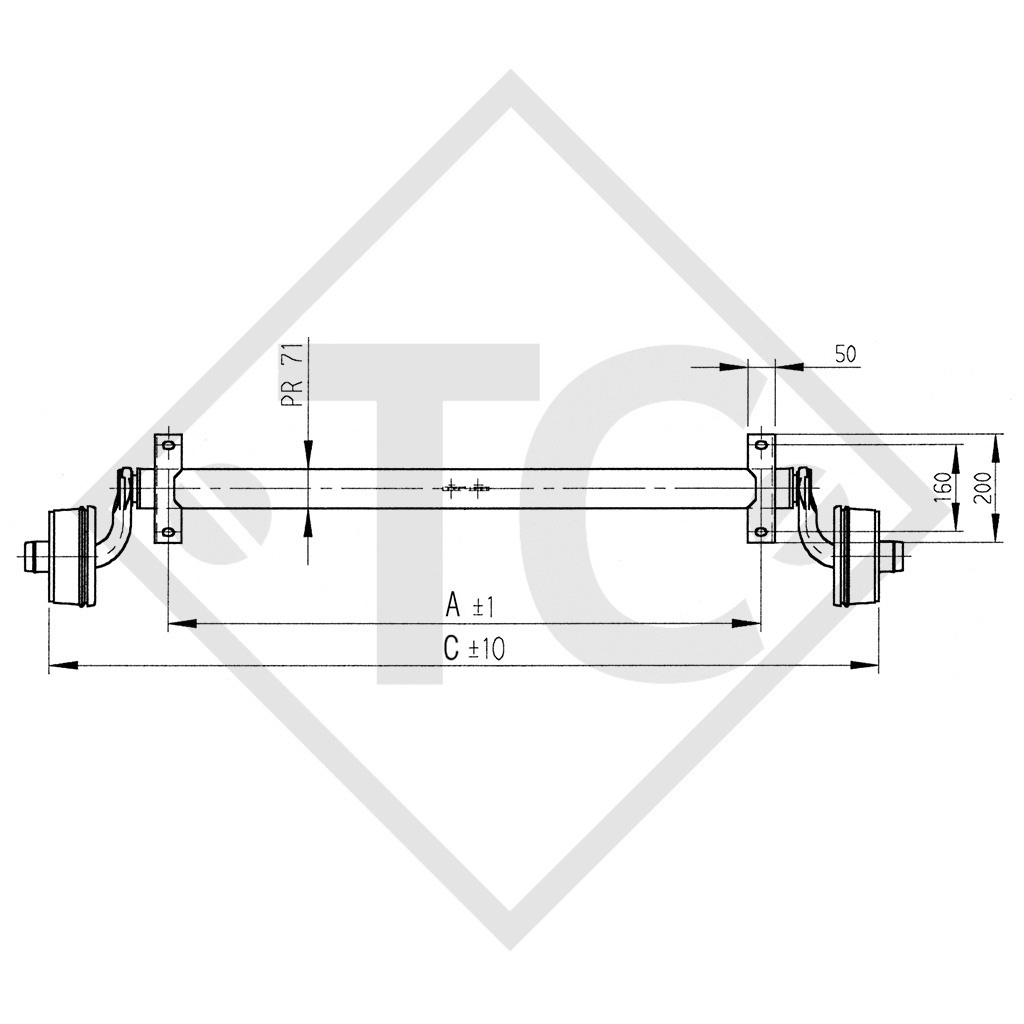

BC: dimension A 1165mm
OHF: dimension C 1645mm
Wheel connection 112x5

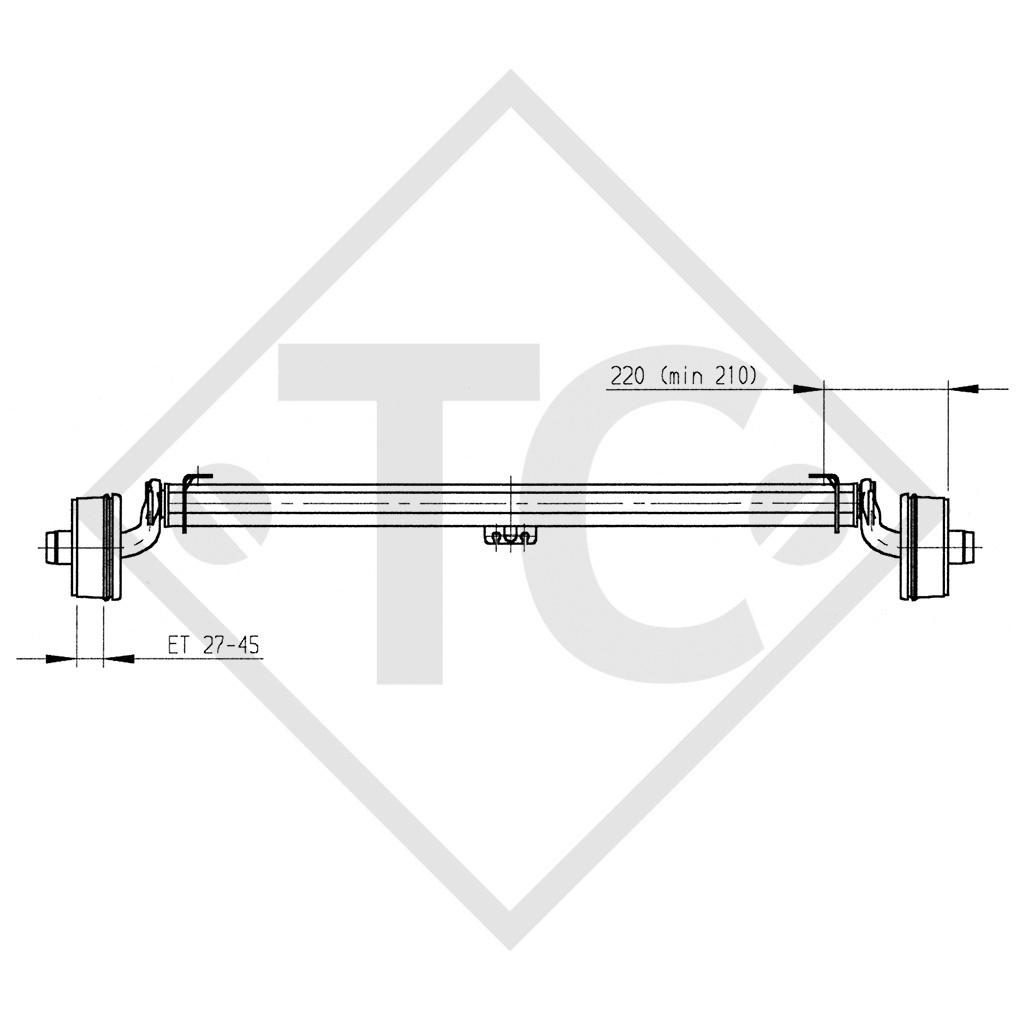

Offset (ET) 27-45mm

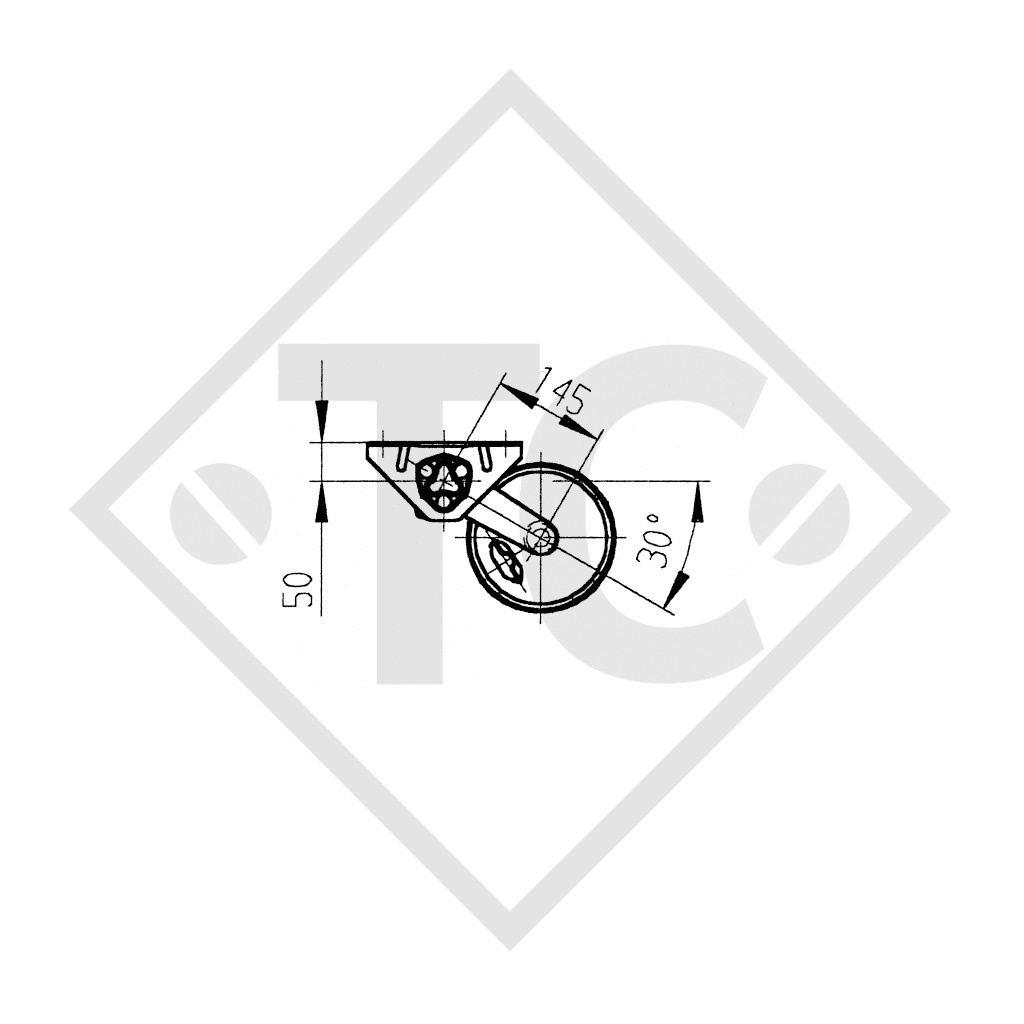

Swing arm position 30°
Axle profile 71mm
Original operating instructions
Replacement part identification number (ETI) 811285
TECHNOLOGY
Model: GU LNGS GRM EA750
Axle type: B 700-5
Axle load: 750kg
Suspension: Hexagonal rubber suspension
Swing arm length: 145mm
Wheel bearing: Tapered roller bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY

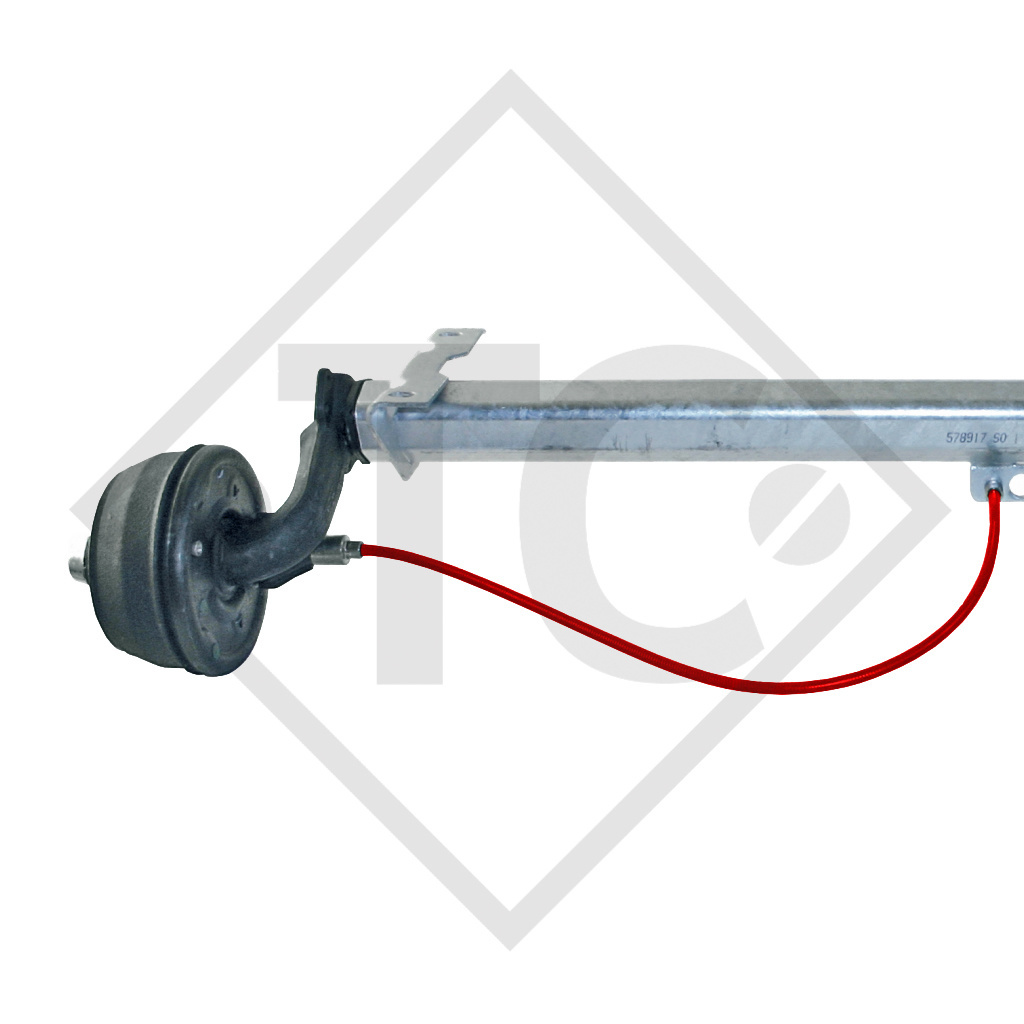

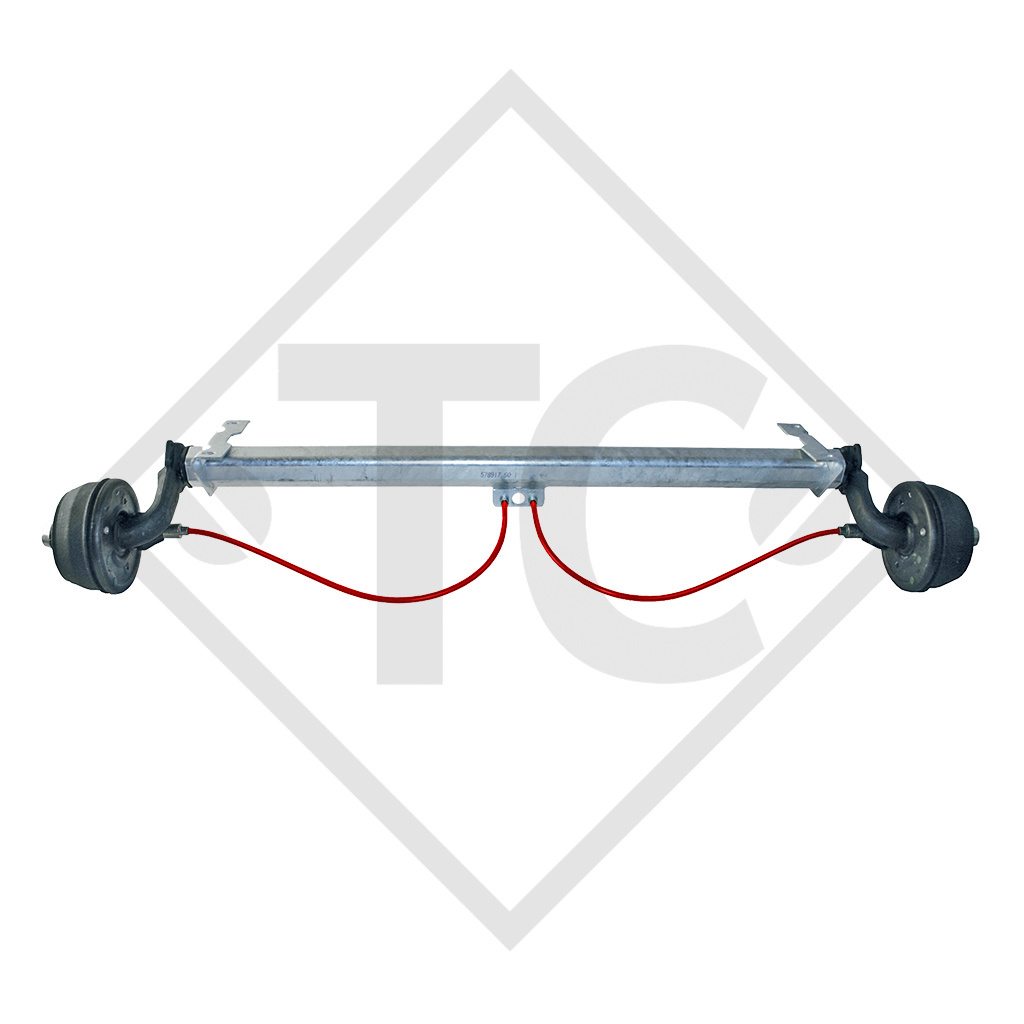

Axle with brake
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake black-primed
