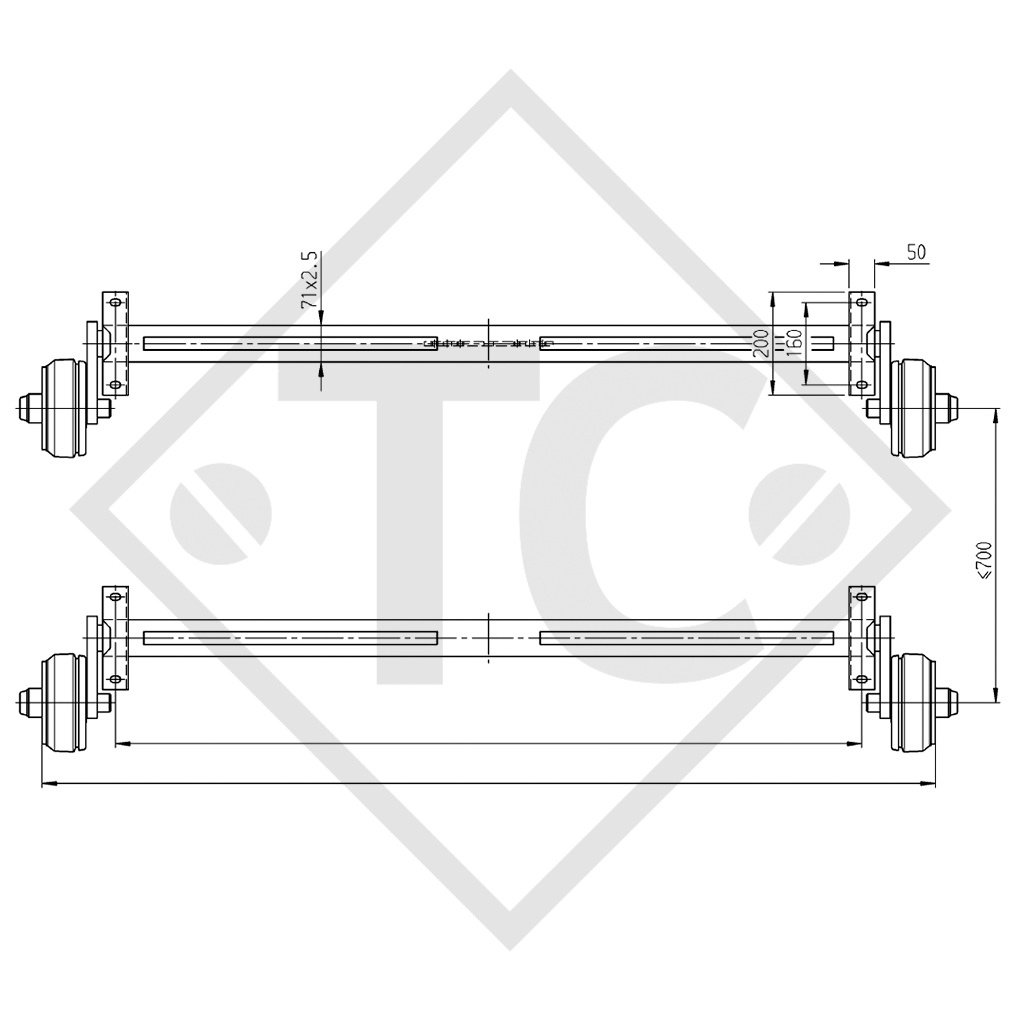

BC: dimension A 1450mm, OHF: dimension C 1790mm, wheel connection 112x5, wheel brake type 1637, offset (ET) 27-45mm, swing arm position 30°, axle profile 71mm, ball-head wheel bolts M12x1.5. Read more...
Part no. 274230112X5
BC: dimension A 1450mm
OHF: dimension C 1790mm
Wheel connection 112x5
Offset (ET) 27-45mm
Swing arm position 30°
Axle profile 71mm
Original operating instructions
Replacement part identification number (ETI) 811301
TECHNOLOGY
Model: BASIC
Axle type: 2xB 700-4
Axle load: 700kg
Suspension: Hexagonal rubber suspension

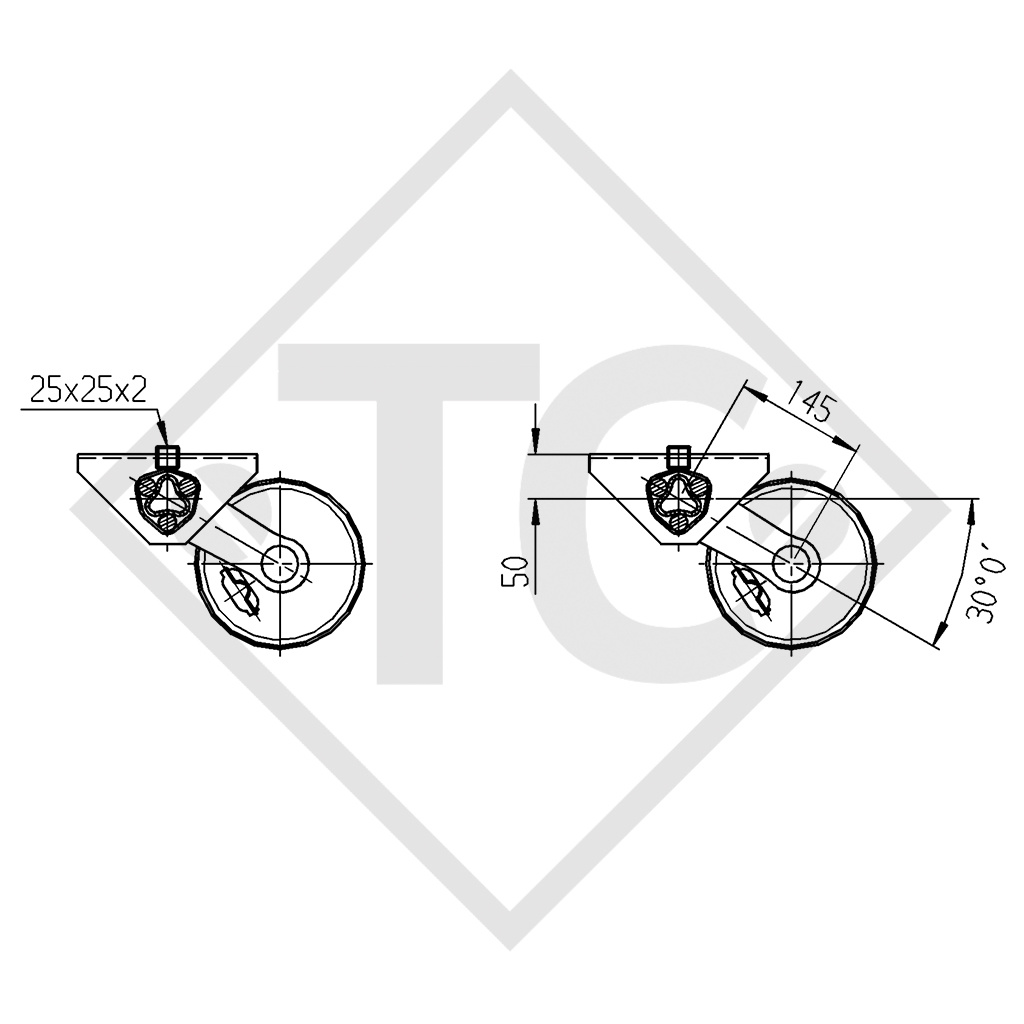

Swing arm length: 145mm
Wheel bearing: Tapered roller bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose

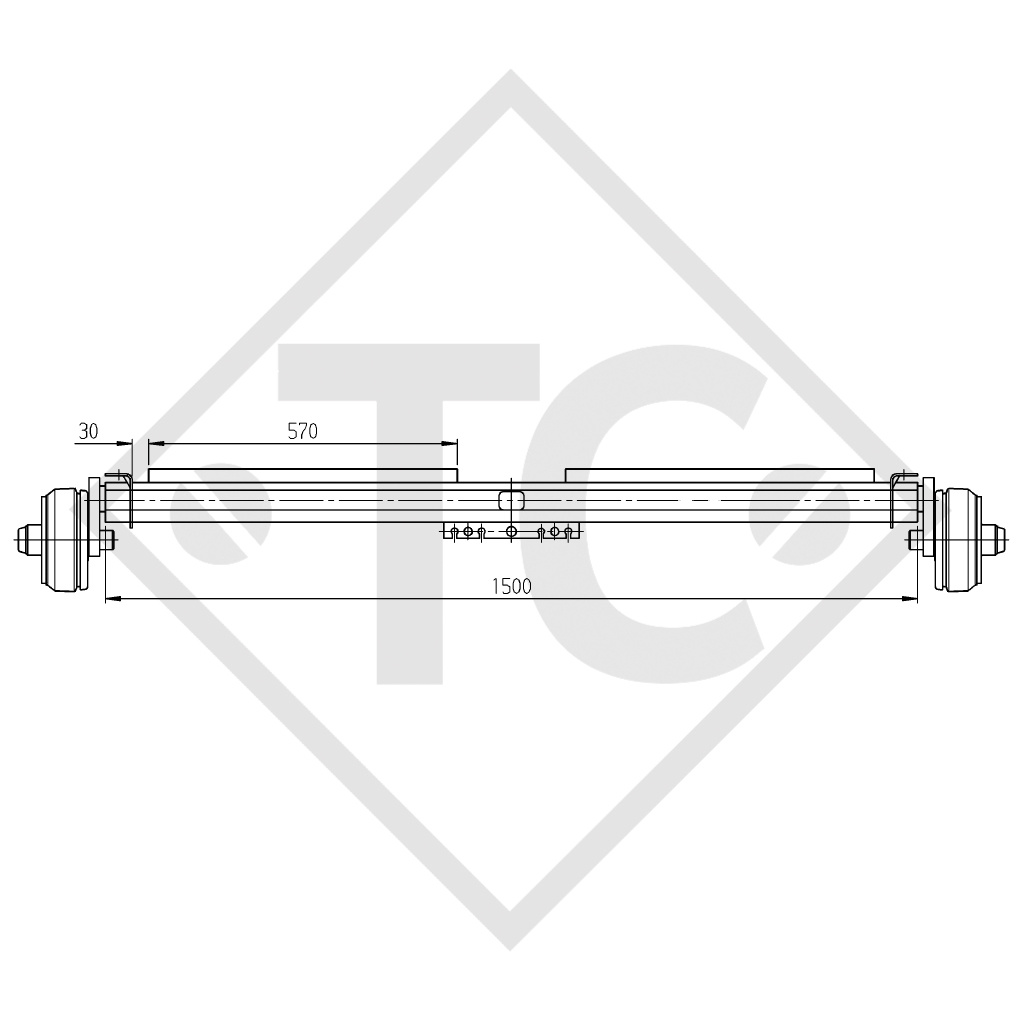

Compensation profile for single axle supplied
Bowden cables loose
Without shock absorber brackets
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake black-primed
