BC: dimension AM 1350mm, OHF: dimension FM 1790mm, wheel connection 112x5, wheel brake type W 184 RS, offset (ET) 35mm, ball-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:
Part no. WAPWAG065B084
Dimension AM
1350mm
Dimension FM
1790mm
Wheel connection 112x5



Spare part list.pdf

TECHNOLOGY
Model: WAG-B
Axle type: WAG 065 B
Axle load: 650kg
Suspension: Square rubber suspension

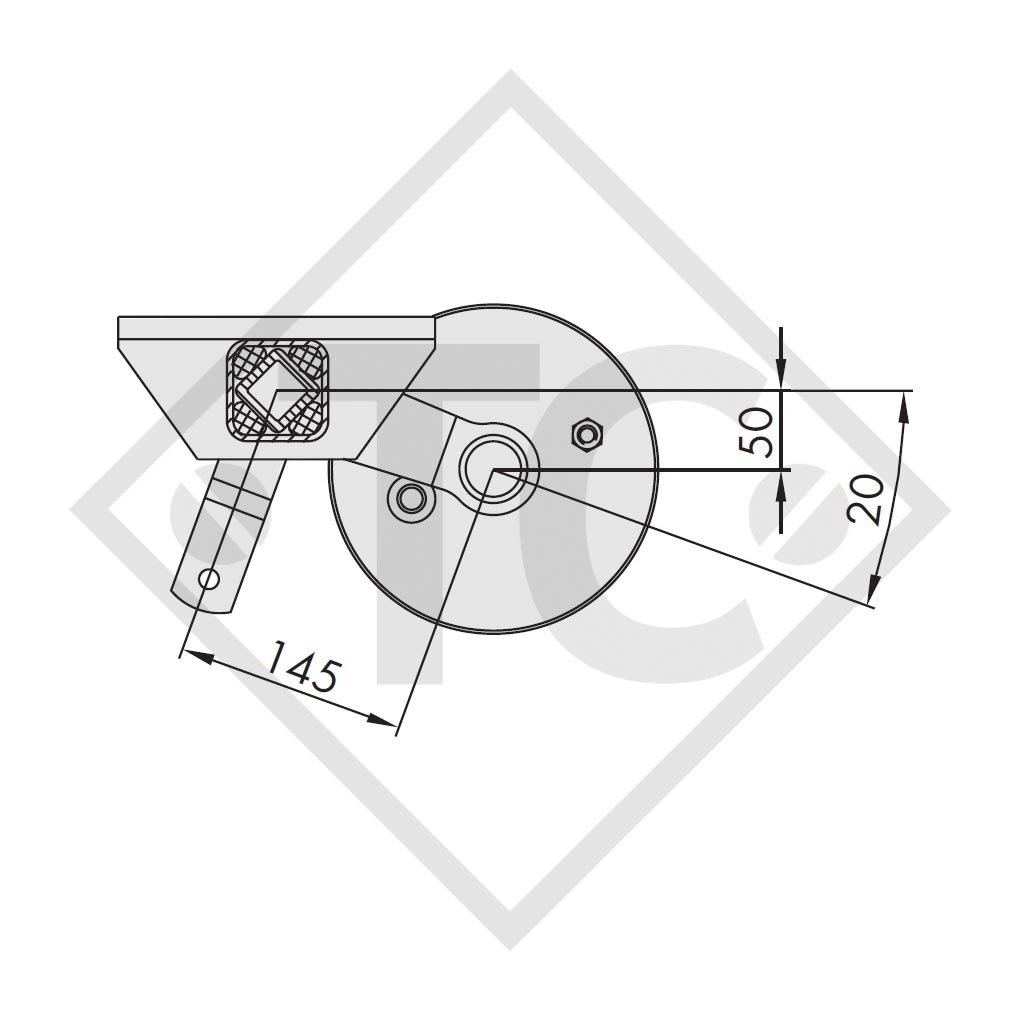

Swing arm length: 145mm
Wheel bearing: Tapered roller bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose

SURFACE TREATMENT
Axle profile hot-dip galvanised

Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
