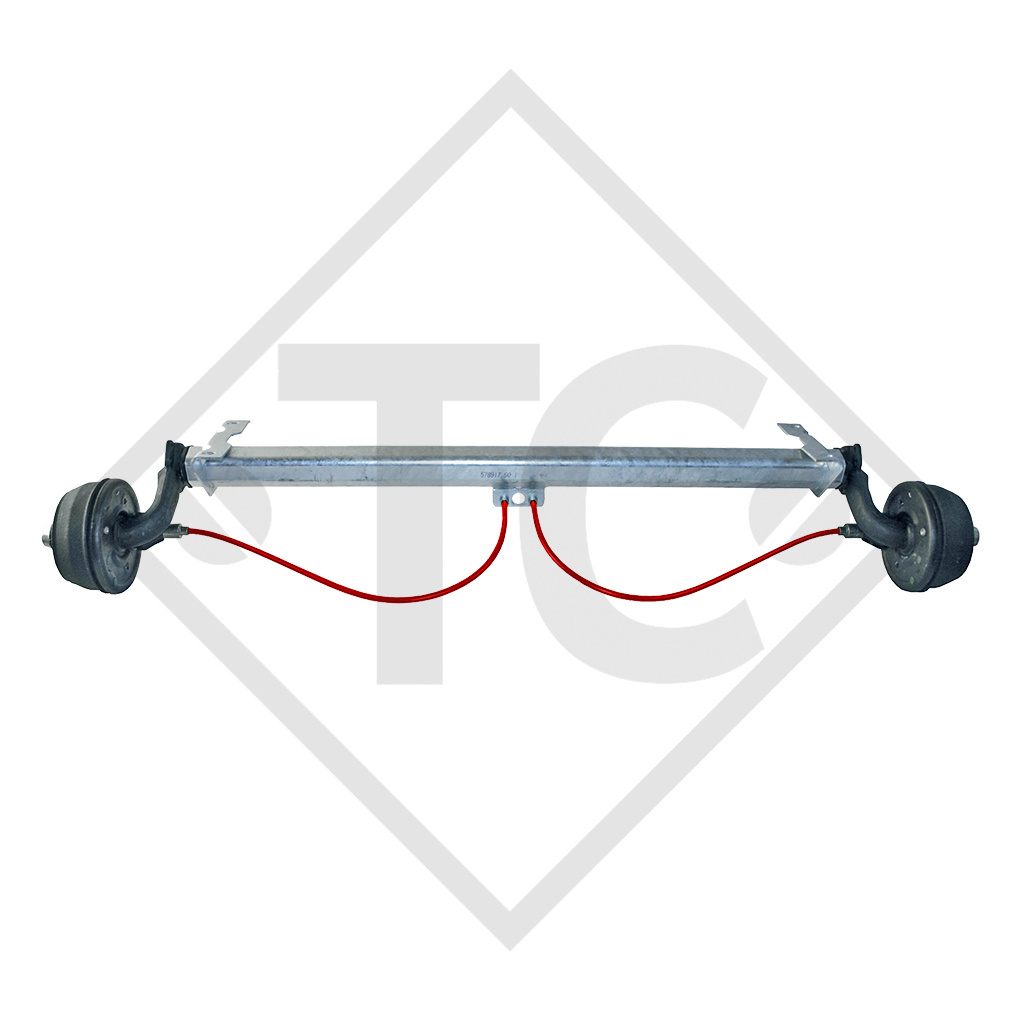

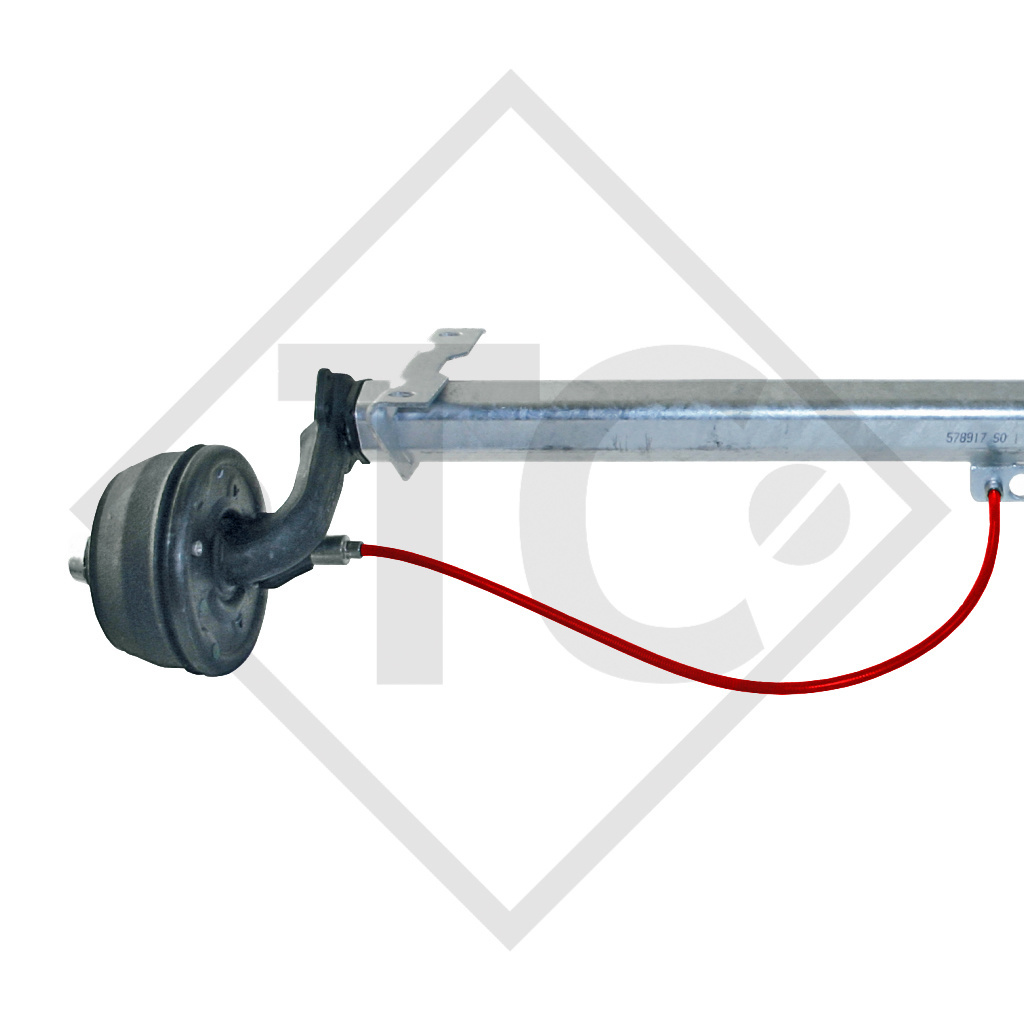

AL-KO Braked axle 650kg axle type B 700-3 - Jamet Arizona All Season CP

Part no. 1760956 (1940239)

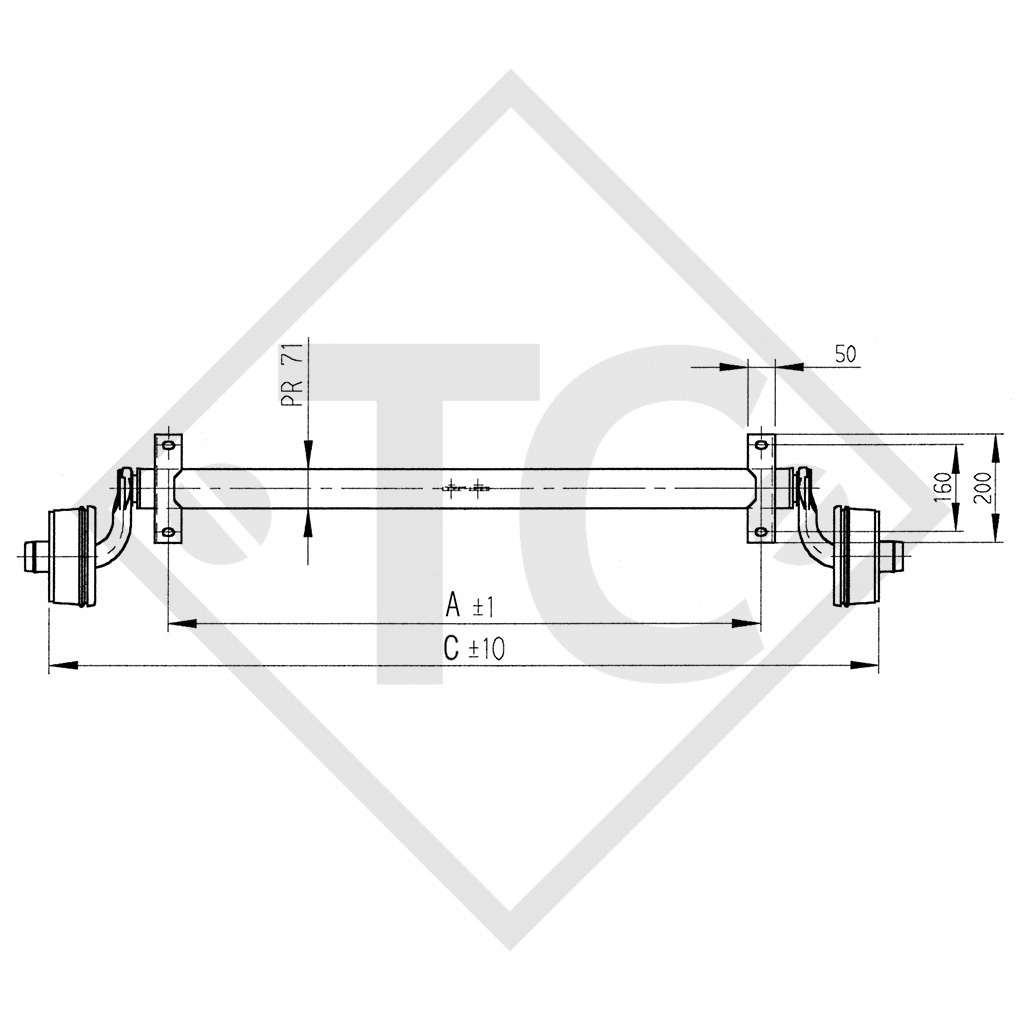

BC: dimension A 940mm
OHF: dimension C 1310mm
Wheel connection 130x4

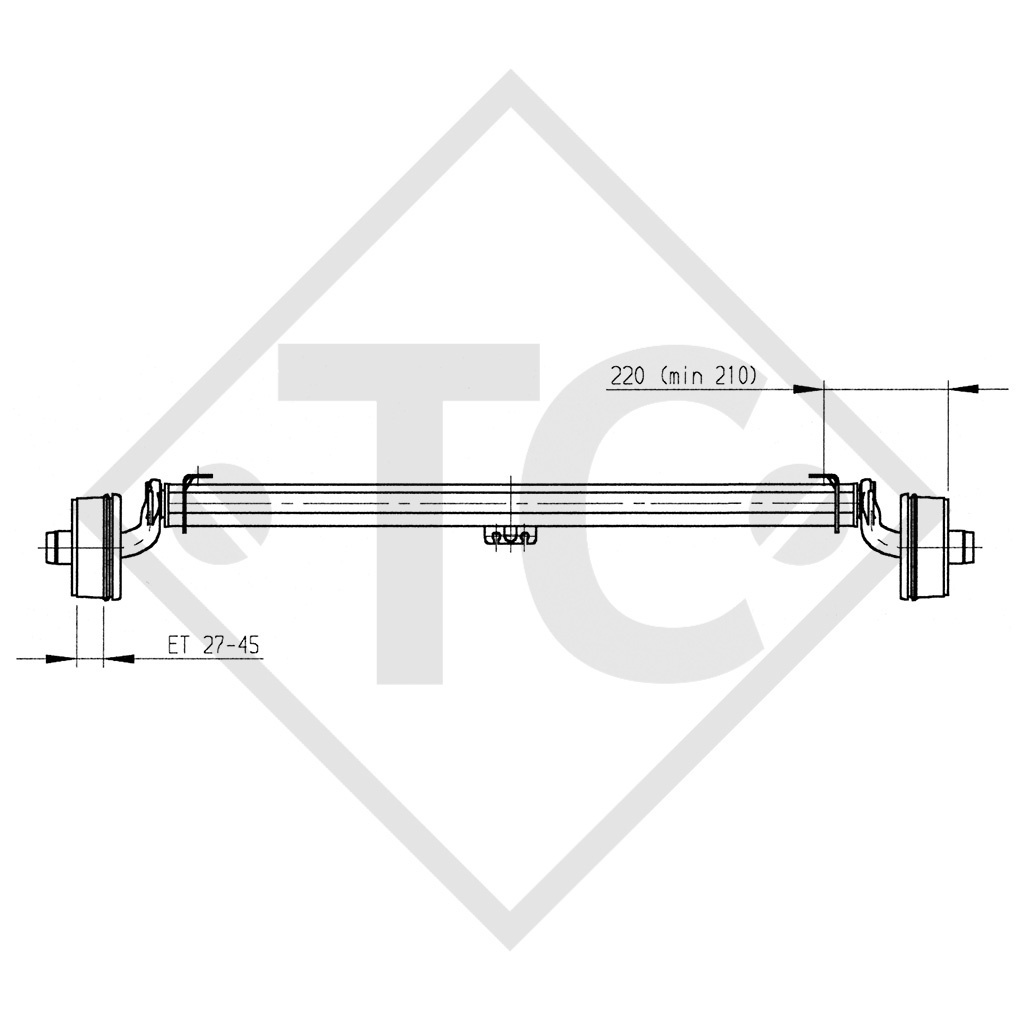

Offset (ET) 27-45mm

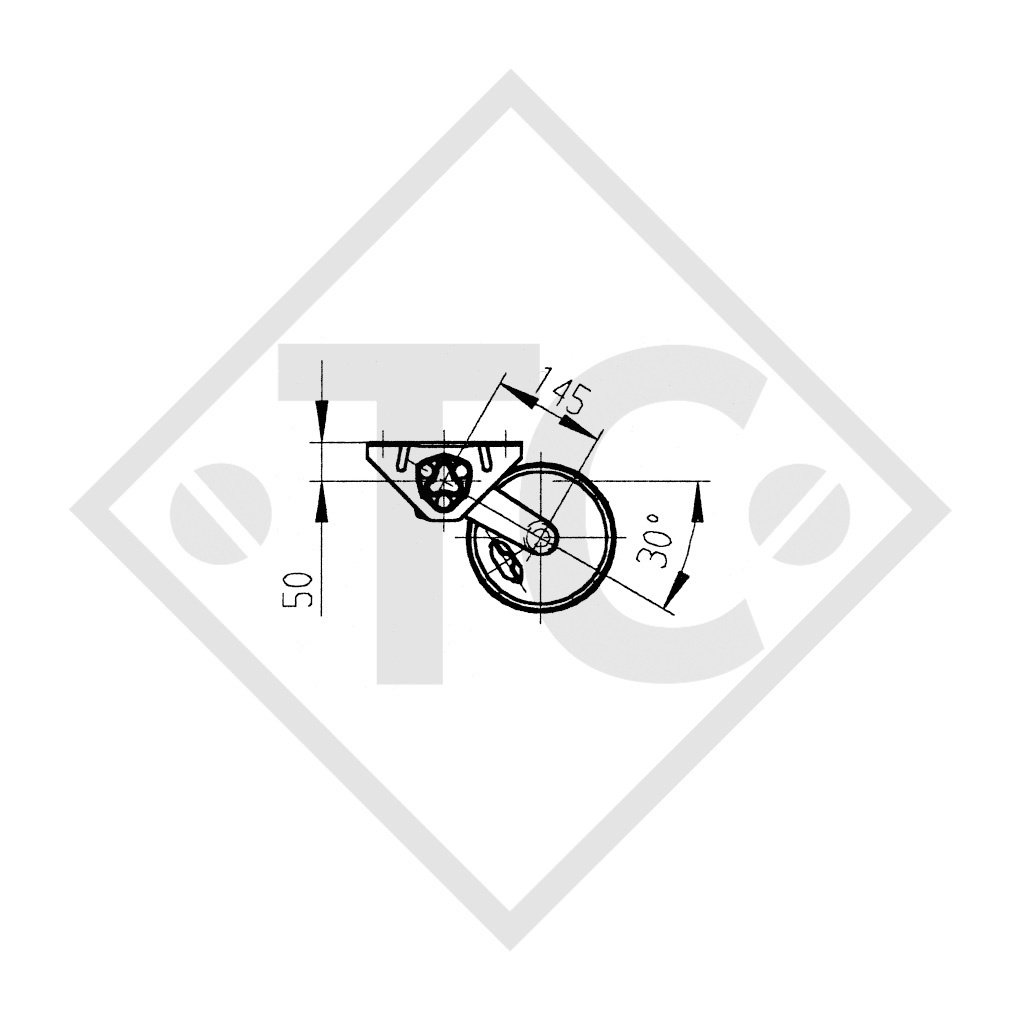

Swing arm position 25°
Axle profile 71mm

Original operating instructions
Replacement part identification number (ETI) 807065

TECHNOLOGY
Model: GU LNGS GRM EA 650
Axle type: B 700-3
Axle load: 650kg
Suspension: Hexagonal rubber suspension
Swing arm length: 145mm
Wheel bearing: Tapered roller bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M14x1.5 loose
Compensation profile for single axle supplied
Bowden cables loose
Without shock absorber brackets

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake black-primed
