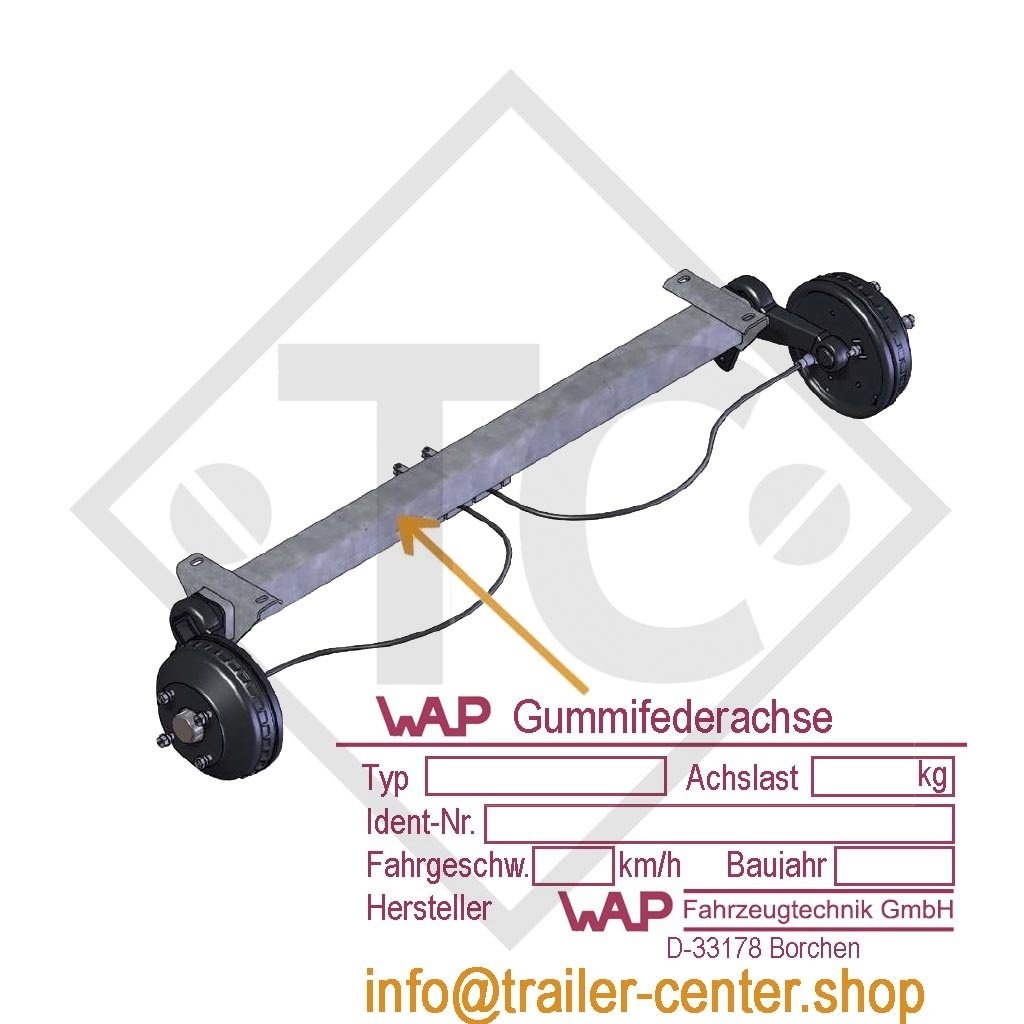

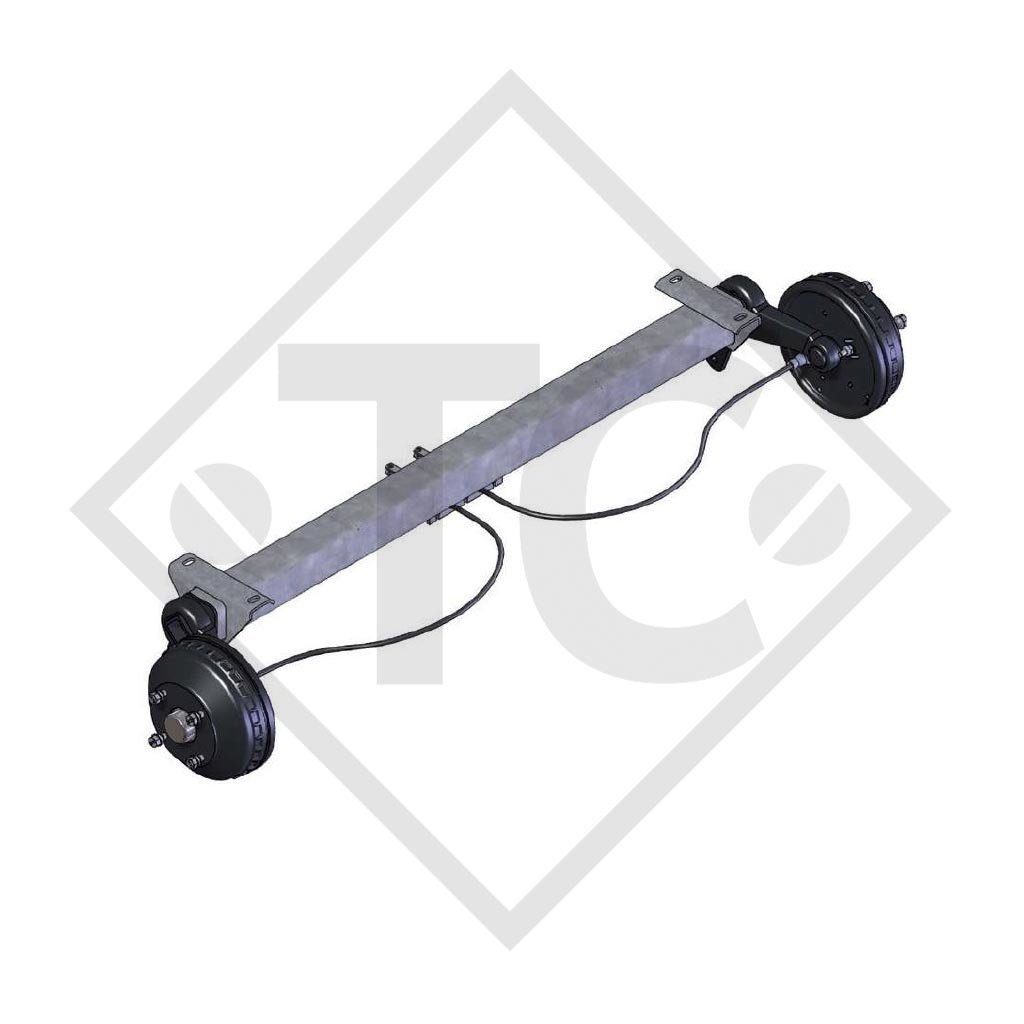

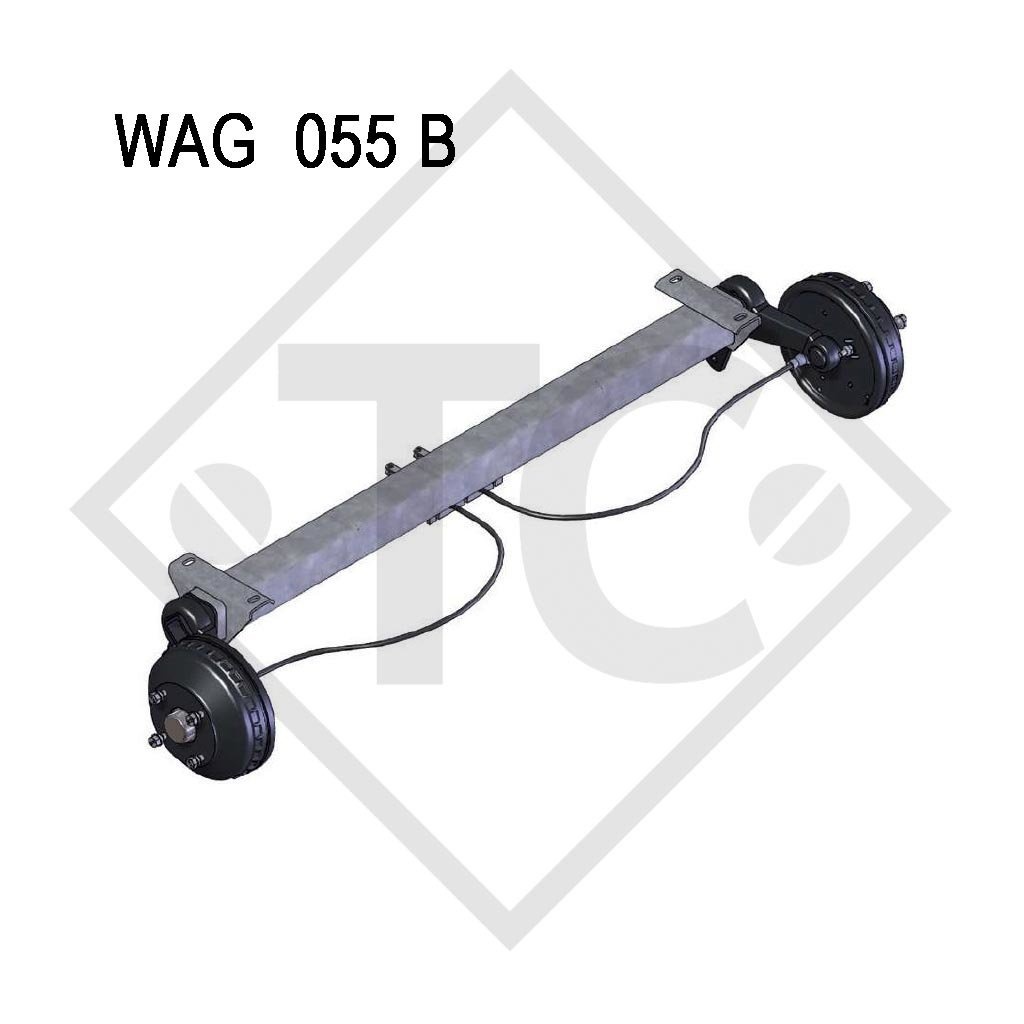

Home / Brands / MEFRO / ACCURIDE / Braked axle 550kg axle type WAG 055 B

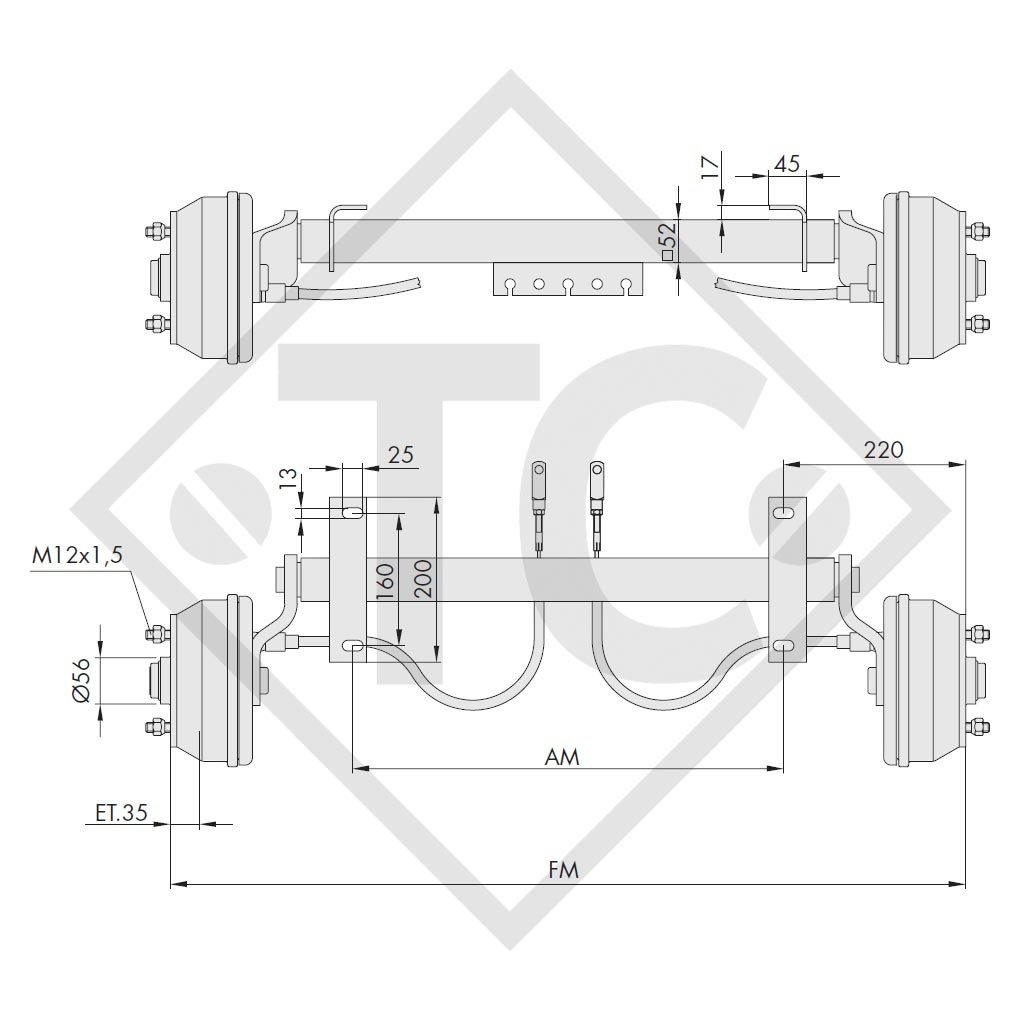

BC: dimension AM 1200mm, OHF: dimension FM 1640mm, wheel connection 112x5, wheel brake type W 184 RS, offset (ET) 35mm, ball-head wheel bolts M12x1.5. Read more...
| Part no. | WAPWAG055B089 |
| Dimension AM |
1200mm |
| Dimension FM |
1640mm |
| Wheel connection | 112x5 |
TECHNOLOGY
Model: WAG-B
Axle type: WAG 055 B
Axle load: 550kg
Suspension: Square rubber suspension

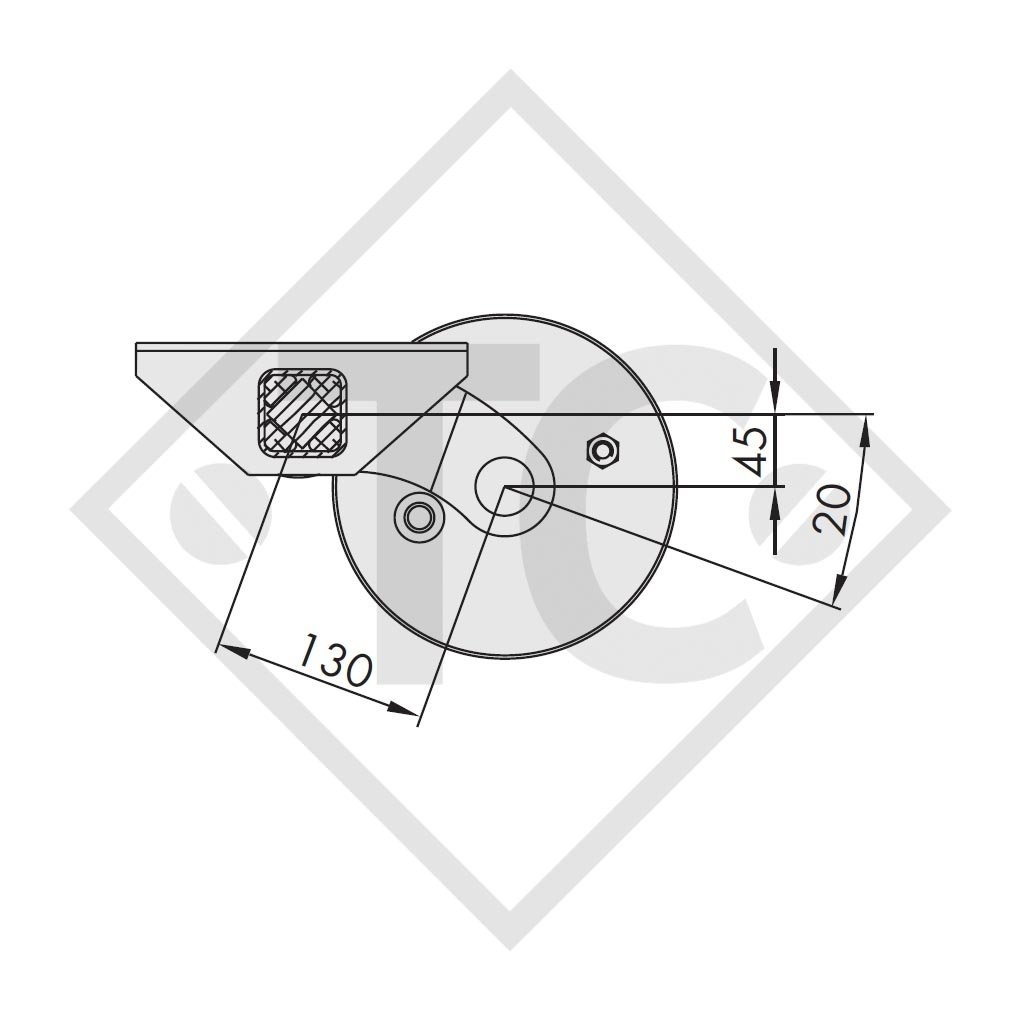

Swing arm length: 130mm
Wheel bearing: Tapered roller bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
