BC: dimension AM 1850mm, OHF: dimension FM 2290mm, wheel connection 100x4, wheel brake type W 184 RS, offset (ET) 35mm, taper-head wheel bolts M12x1.5. Read more...
Part no. | WAPWAG055B050 |
Dimension AM |
1850mm |
Dimension FM |
2290mm |
Wheel connection | 100x4 |
TECHNOLOGY
Model: WAG-B
Axle type: WAG 055 B
Axle load: 550kg
Suspension: Square rubber suspension

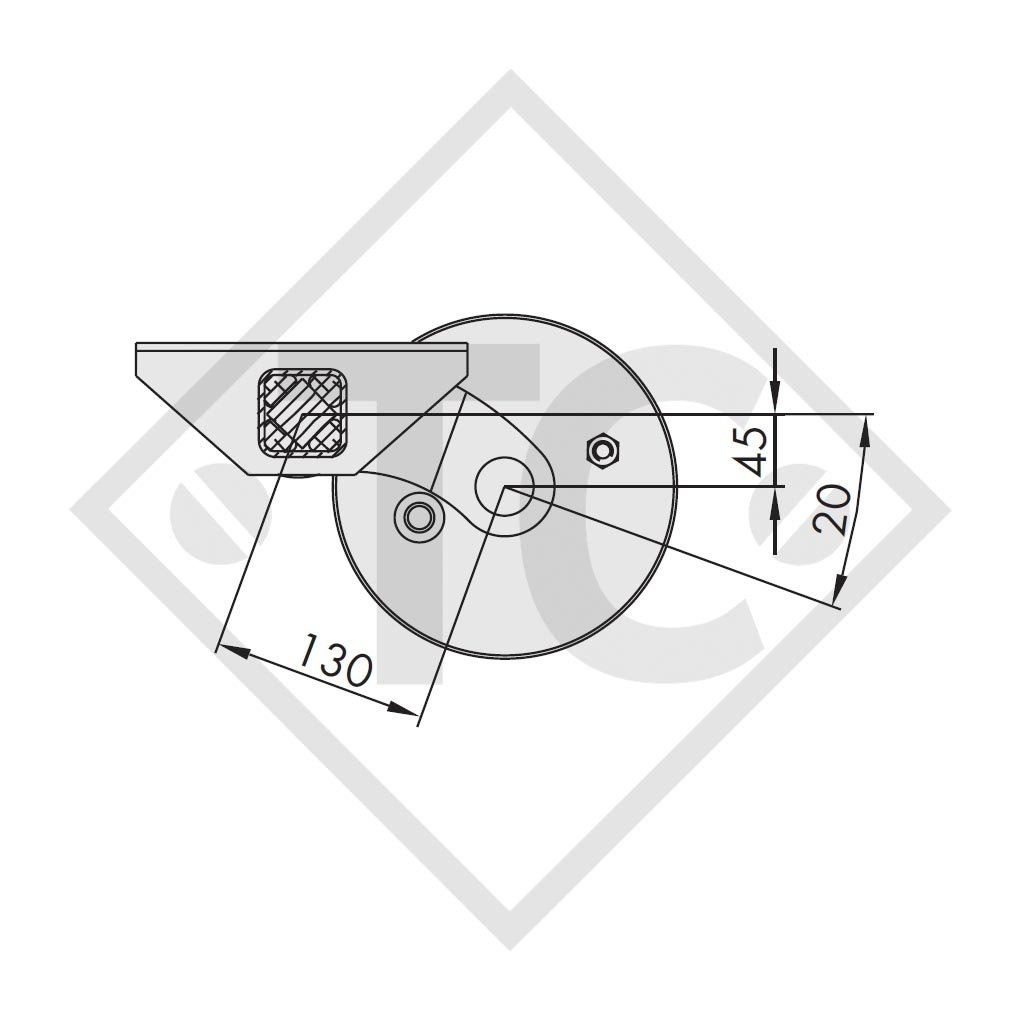

Swing arm length: 130mm
Wheel bearing: Tapered roller bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Taper-head wheel bolts M12x1.5 loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
