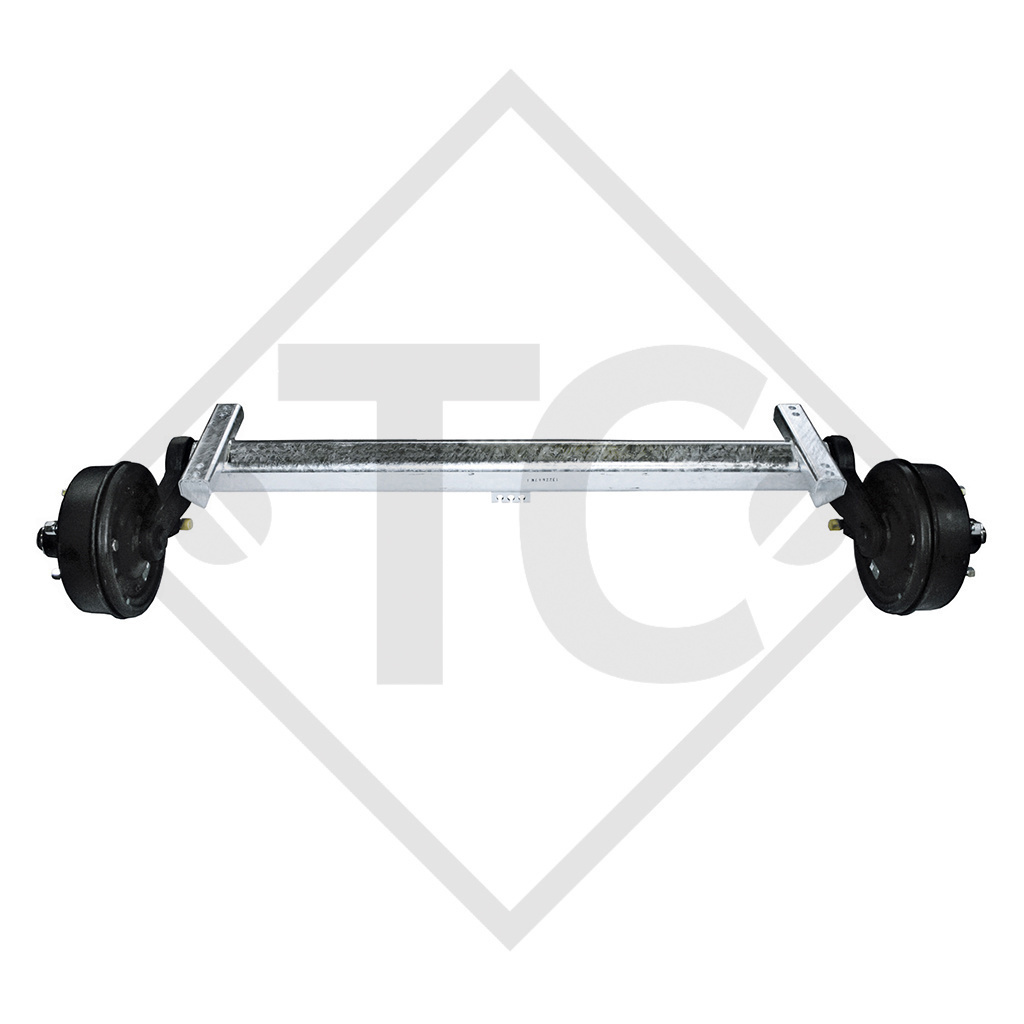

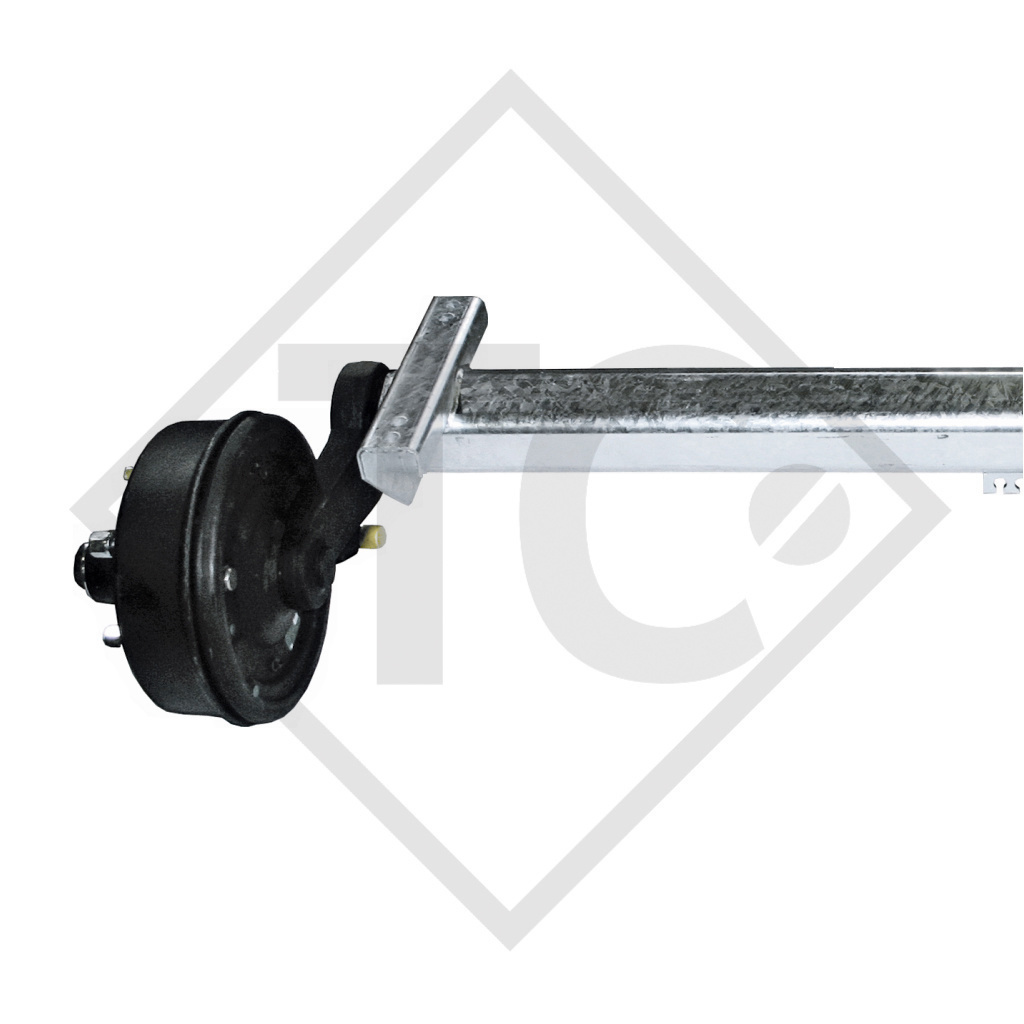

AL-KO Braked axle 3000kg PLUS Achstyp B 3000-2

Part no. 1213663

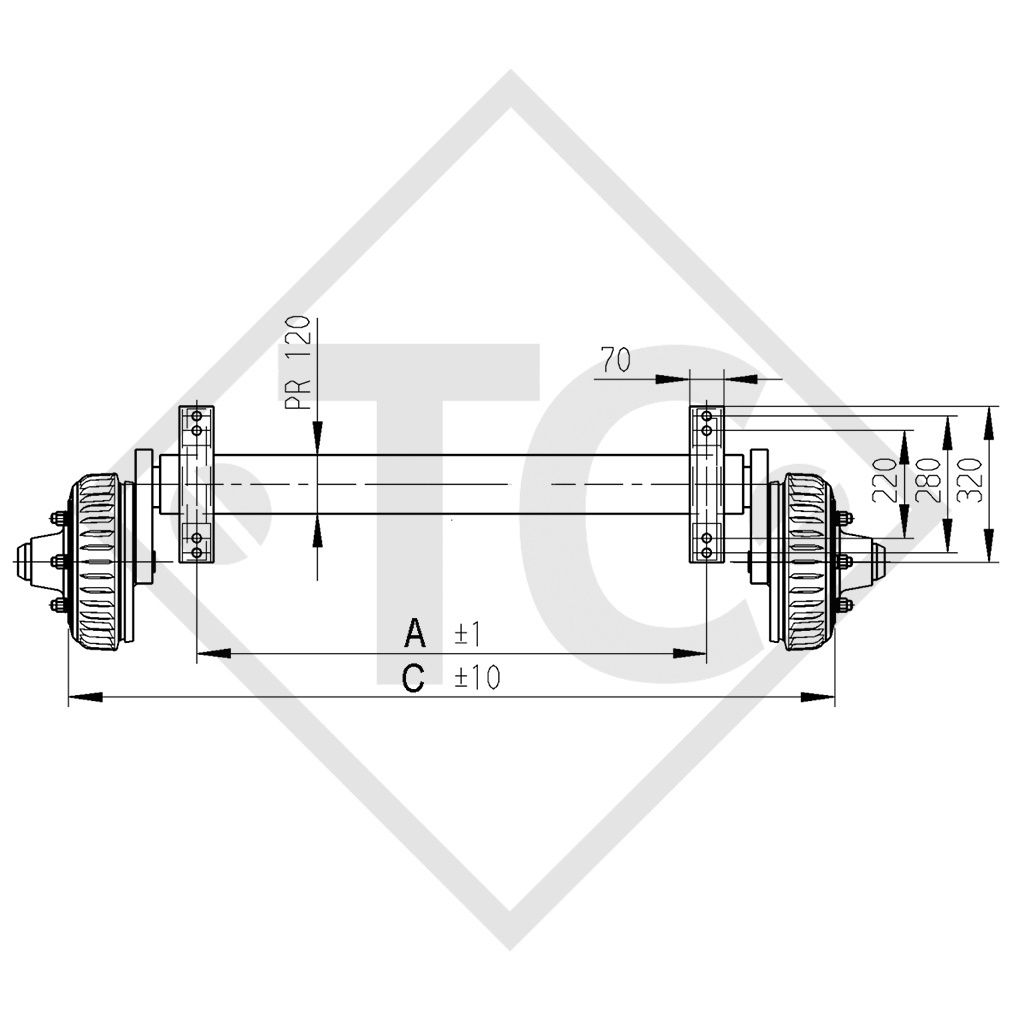

BC: dimension A 1100mm
OHF: dimension C 1570mm
Wheel connection 205x6

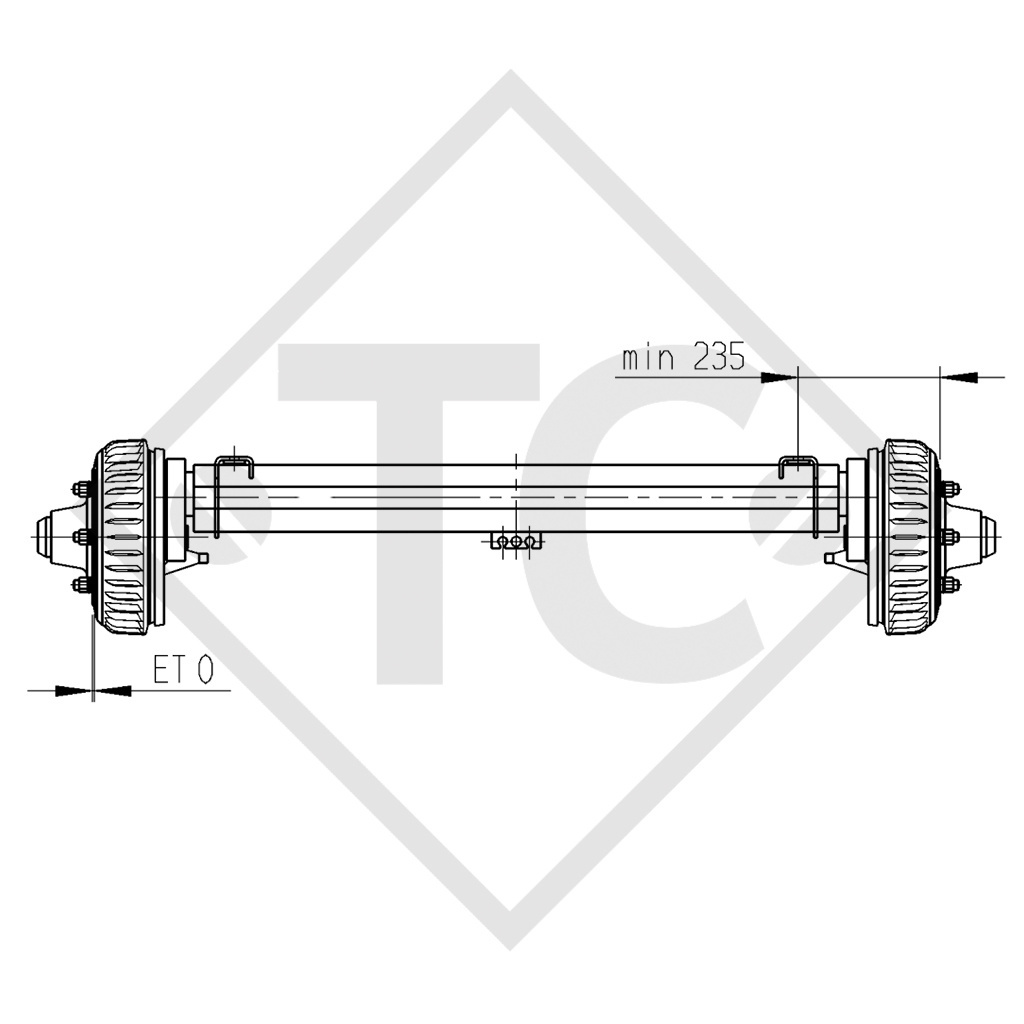

Offset (ET) 0mm

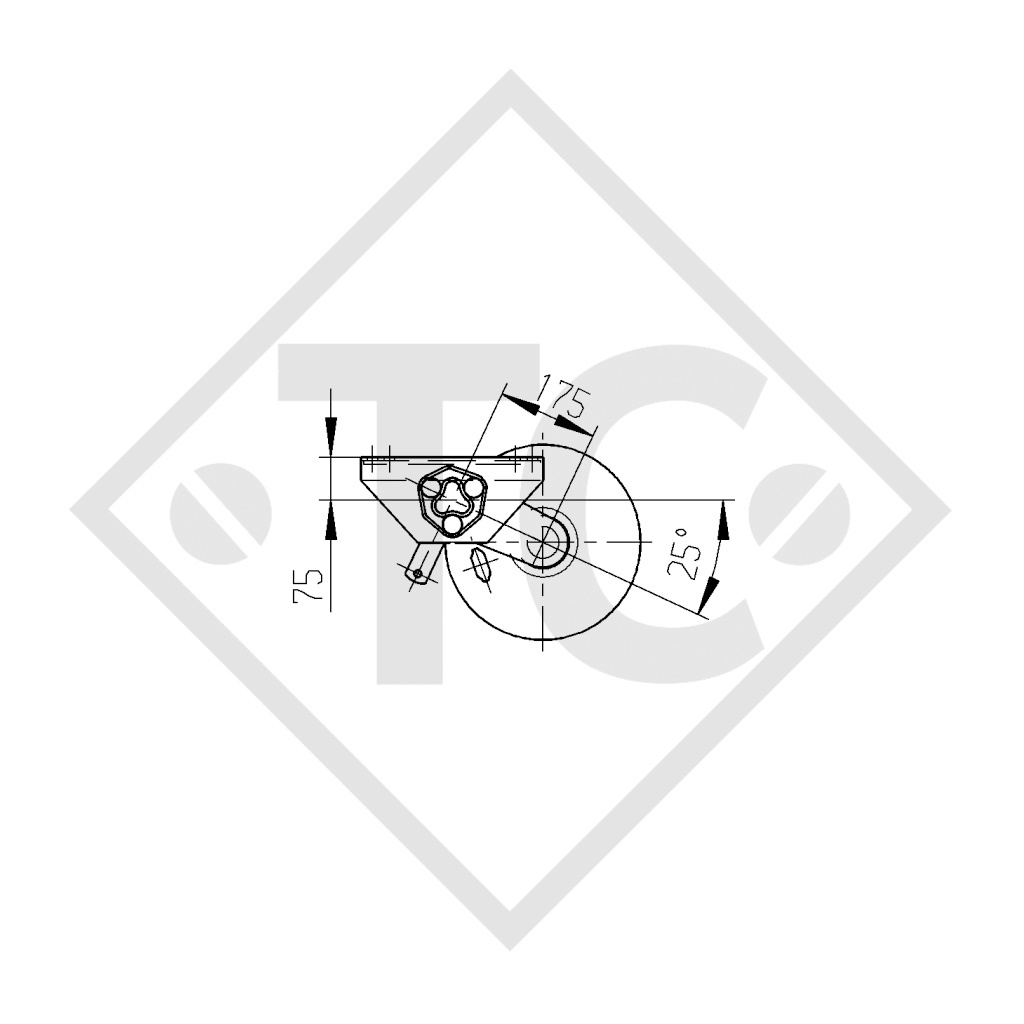

Swing arm position 25°
Axle profile 120mm

Original operating instructions
Replacement part identification number (ETI) 811401

TECHNOLOGY
Model: PLUS
Axle type: B 3000-2
Axle load: 3000kg
Wheel brake: 3062
Suspension: Hexagonal rubber suspension
Swing arm length: 175mm
Wheel bearing: Tapered roller bearing
Rim centre hole: Min. 161mm

SCOPE OF DELIVERY
Axle
Wheel nuts ball mounted M18x1.5
Single axle adapter bracket welded on
Compensation profile
Bowden cables loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brakes dip primed black

ACCESSORIES (not included in scope of delivery)
Shock absorber
