Braked axle 2500kg SWING axle type CS 2506, 46.41.373.100 Braked axle 2500kg SWING axle type CS 2506, 46.41.373.100 Braked axle 2500kg SWING axle type CS 2506, 46.41.373.100
Braked axle 2500kg SWING axle type CS 2506, 46.41.373.100
Braked axle 2500kg SWING axle type CS 2506, 46.41.373.100
Braked axle 2500kg SWING axle type CS 2506, 46.41.373.100

BPW Braked axle 2500kg SWING axle type CS 2506, 46.41.373.100

Home / CHASSIS PARTS / CHASSIS PARTS BPW / ACCESSORIES / CLAMPING MOUNTS FOR CLAMPING AND FOR WELDING ON / Braked axle 2500kg SWING axle type CS 2506, 46.41.373.100

BC: dimension AM 1000mm, OHF: dimension SP 1500mm, wheel connection 205x6, wheel brake type S 3006-7 RASK, offset (ET) 0mm, swing arm position 20°, axle profile 110mm, ball-head wheel bolts M18x1.5. Read more...

Wishlist: Add to comparison:

Product description

Part no. OLD 46.41.373.100
Part no. NEW 4021164

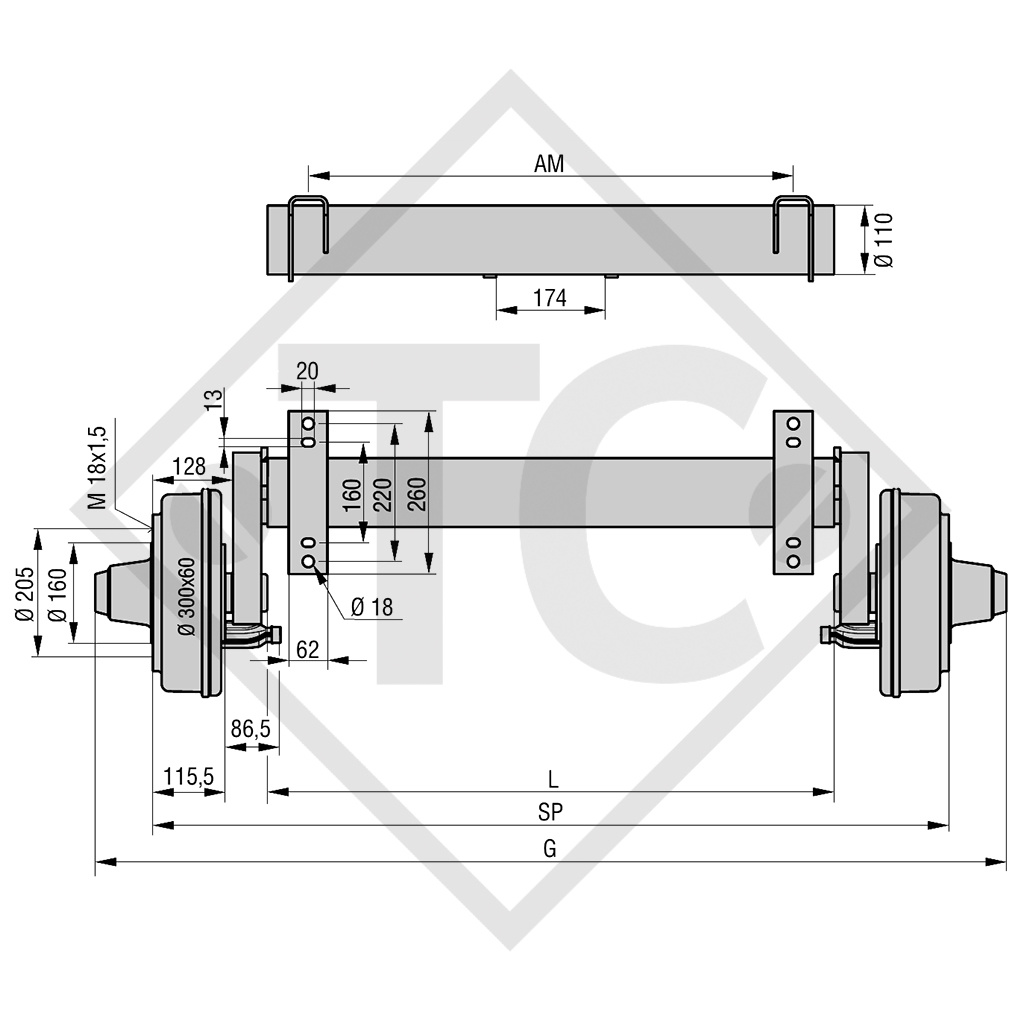

Dimension SP
 1500mm
Dimension AM
 1000mm
Dimension L
 1133mm
Dimension G 1684mm
Model SWING
Axle type CS2506
Axle load single axle 2500kg
Axle load: Tandem axel 3500kg
Wheel brake S 3006-7 RASK
Suspension Square rubber suspension

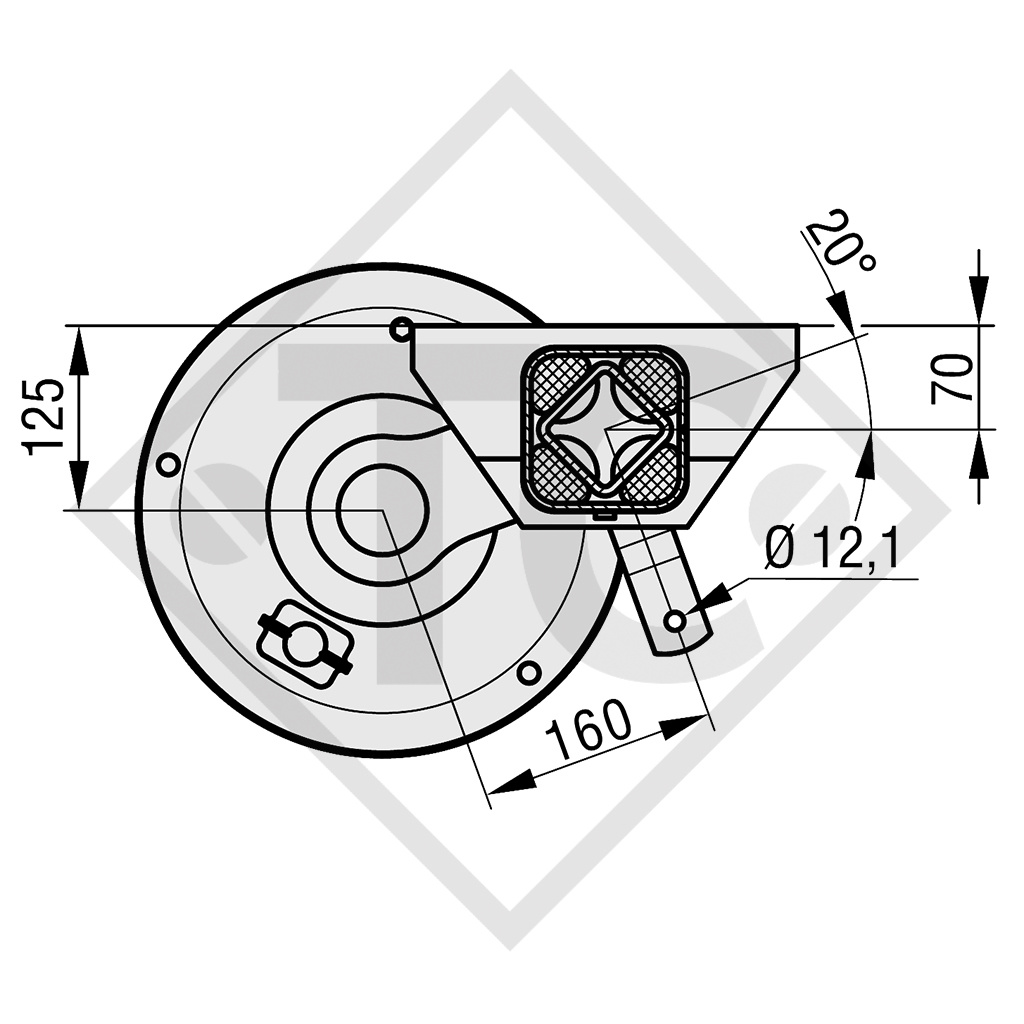

Swing arm 160mm
Wheel connection 205x6
Wheel bearing Tapered roller bearing
Centre hole rim min. 160mm



Original operating instructions
Replacement part identification number (ETI) OLD XX.XX.373.XXX
Replacement part identification number (ETI) NEW 827040

SCOPE OF DELIVERY
Axle incl. bowden cables loose
Welded-on shock absorber brackets
M18x1.5 loose

DETAILS

  • Speed up to 140 km/h
  • Drawbar connection: Clamping shells see Accessories
  • Axle shock absorber see Accessories
  • Wheel connections: 140x5 on demand
  • Special axle mounts and drawbar connections on demand
  • Also available with watertight bearings
  • Axle body fully hop-dip galvanised: Permanent surface protection
  • Independent wheel suspension: Optimum compensation of uneven road surfaces
  • Maintenance-free suspension: Lower maintenance costs
  • Sturdy axle construction: Suitable for extreme loads such as off-road or construction sites
  • Sturdy, maintenance-free spreadlever brakes with auto-reverse: Simple adjustment of the brake from outside the wheel, subsequent connection of the brake cables possible without removal of the brake drum
  • Incl. shock absorber bracket
  • Tapered roller bearing
