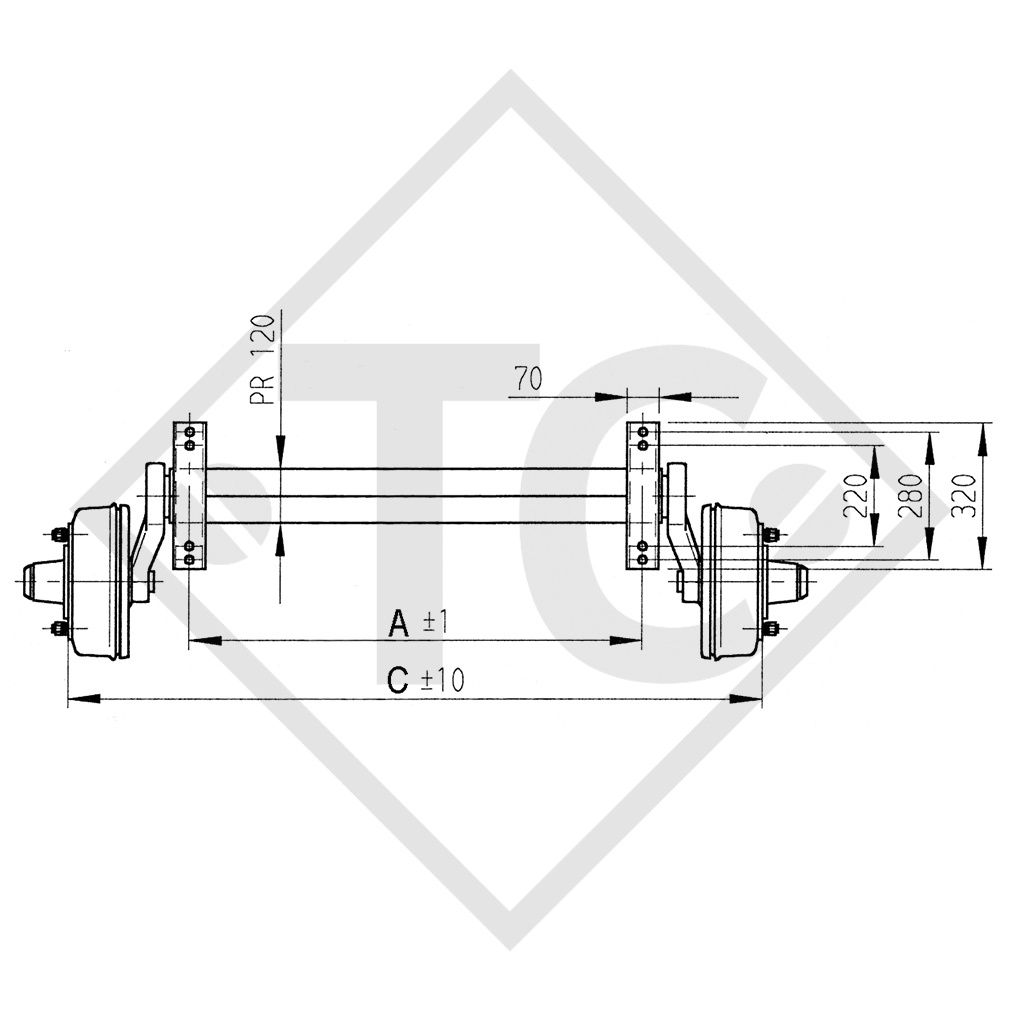

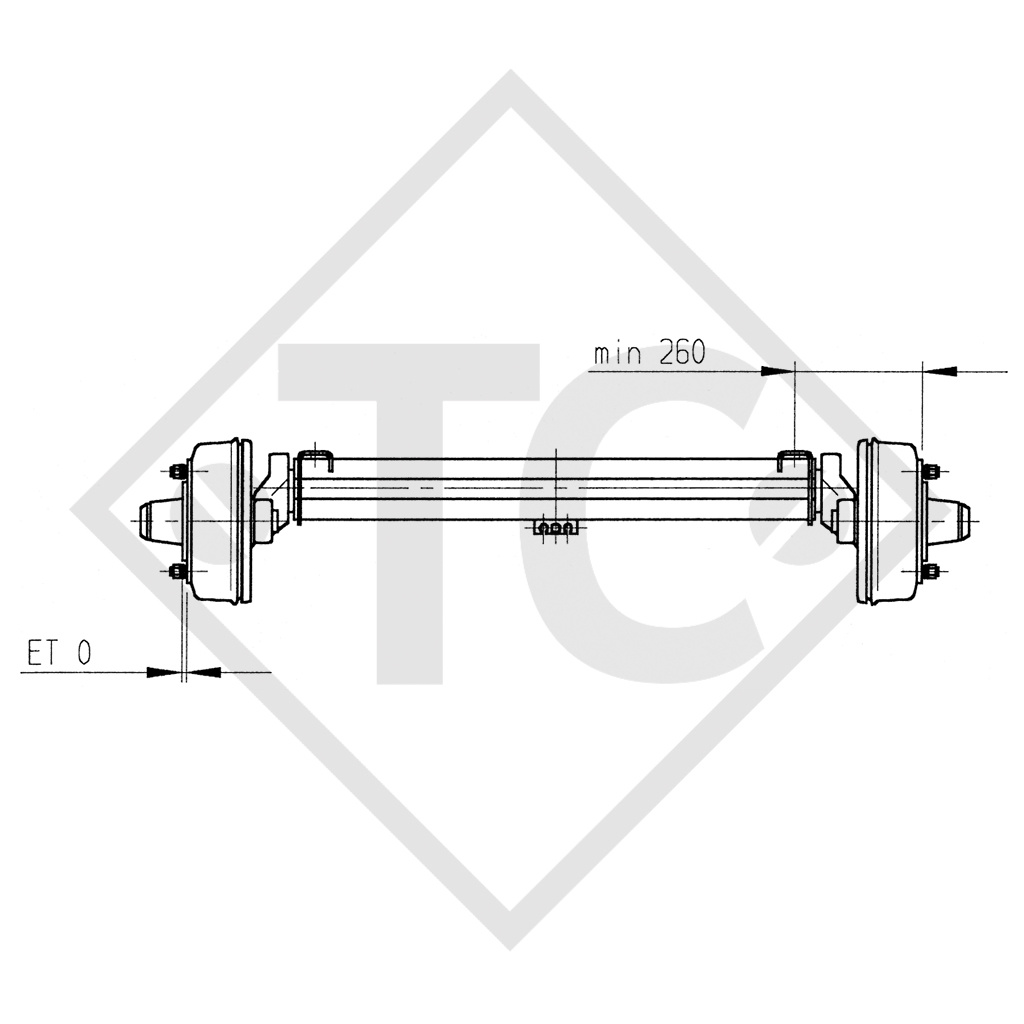

BC: dimension A 900mm, OHF: dimension C 1430mm, wheel connection 205x6, wheel brake type 3081 A, offset (ET) 0mm, swing arm position 20°, axle profile 120mm, wheel nuts M18x1.5 ball. Read more...
TECHNOLOGY
Model: PLUS
Axle type: B 2500-8
Axle load: 2500kg
Wheel brake: 3062 or 3081A
Suspension: Hexagonal rubber suspension

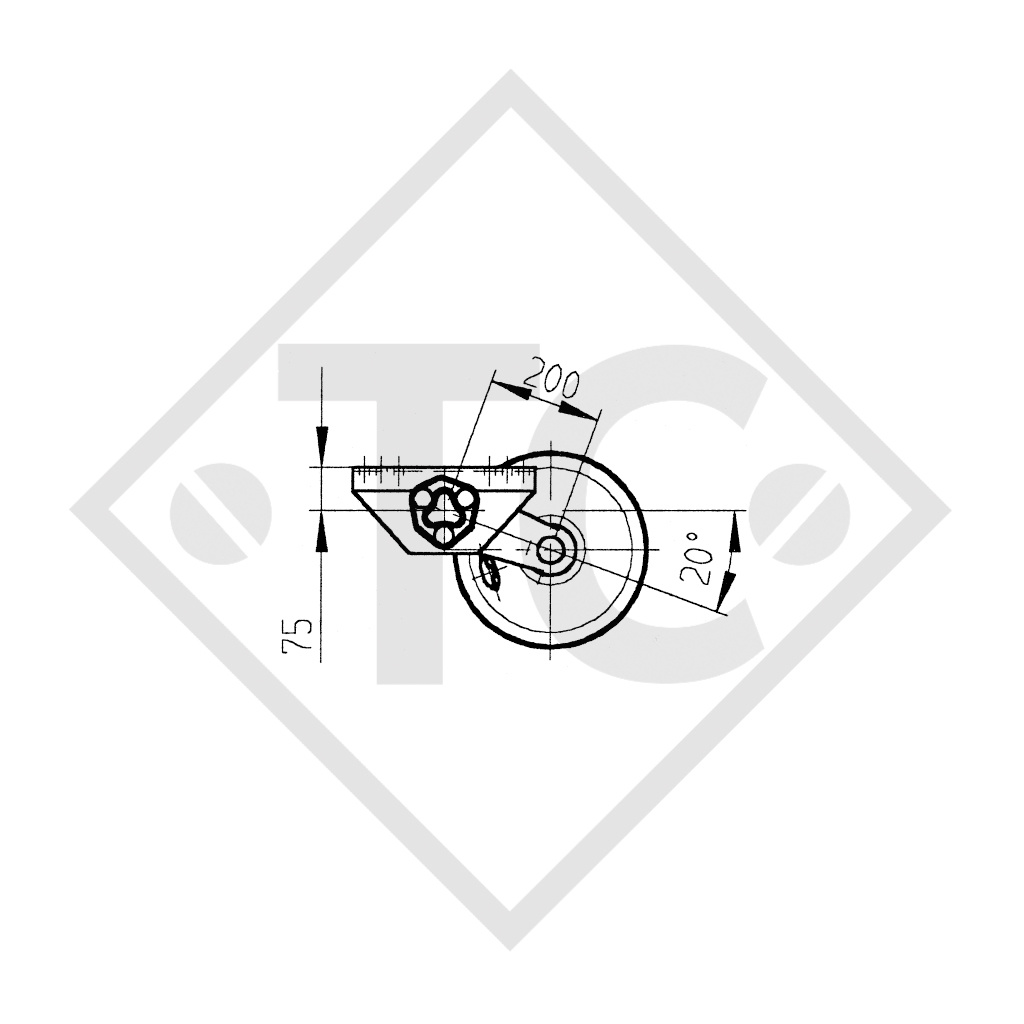

Swing arm: 200mm
Wheel connection: 205x6
Wheel bearing: Tapered roller bearing
Rim centre hole: Min. 161mm
SCOPE OF DELIVERY
Single axle adapter bracket welded on
Compensation profile
Bowden cable loose
Wheel nuts loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brakes dip primed black
ACCESSORIES (not included in scope of delivery)
Shock absorber
Original operating instructions
Wheel brake: 3081A
Replacement part identification number (ETI) 811161
Wheel brake: 3062
Replacement part identification number (ETI) 811401
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.

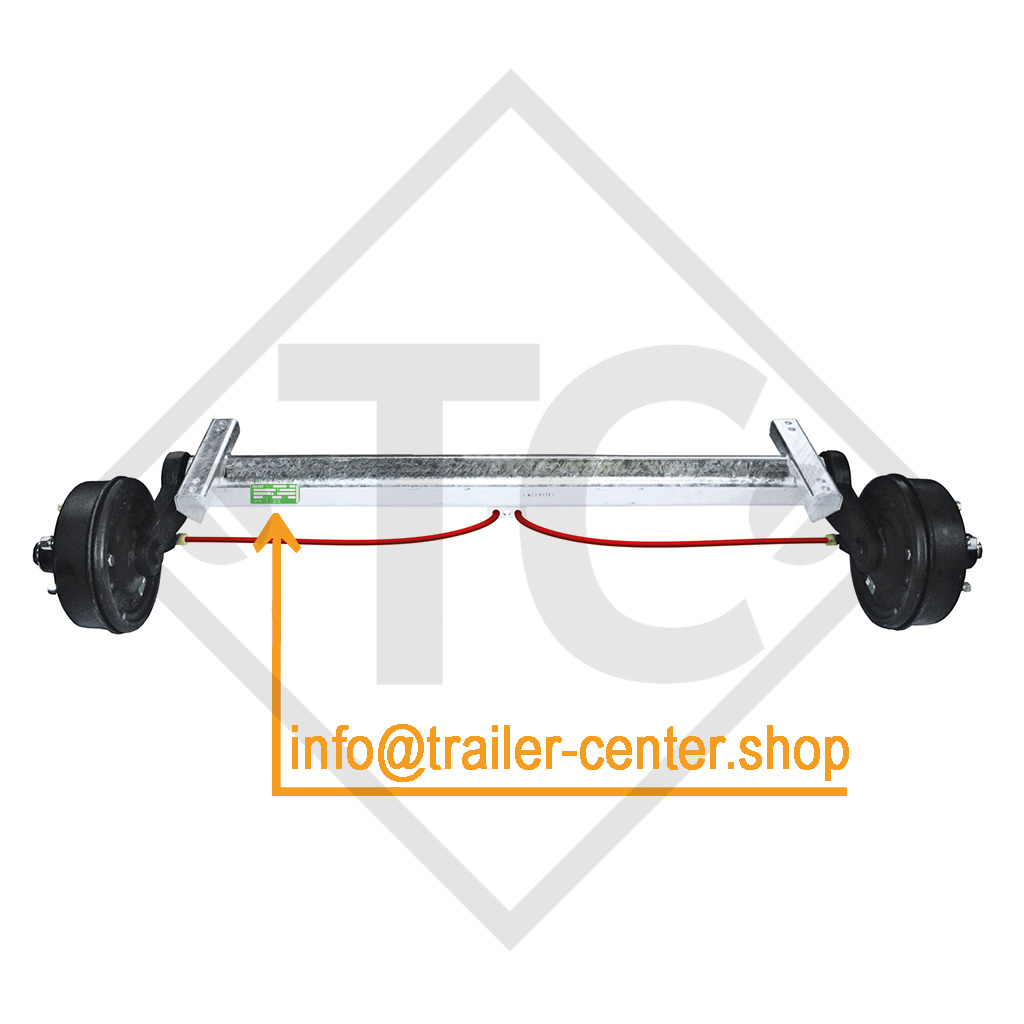

Simply send us a photo of your axle type plate, together with your address and telephone number to
[email protected]
|
