AL-KO Braked axle 2500kg PLUS axle type B 2500-8 with top hat profile 130mm

Part no. 1702781
BC: dimension A 840mm
OHF: dimension C 1440mm
EA: 130mm
EA: 130mm
Wheel connection 205x6
Offset (ET) 0mm
Swing arm position 20°
Axle profile 120mm

Original operating instructions
Replacement part identification number (ETI) 811161

TECHNOLOGY
Model: PLUS
Axle type: B 2500-8
Axle load: 2500kg
Wheel brake: 3081A
Suspension: Hexagonal rubber suspension
Swing arm length: 200mm
Wheel bearing: Tapered roller bearing
Rim centre hole: Min. 161mm

SCOPE OF DELIVERY
Axle
Wheel nuts ball mounted M18x1.5

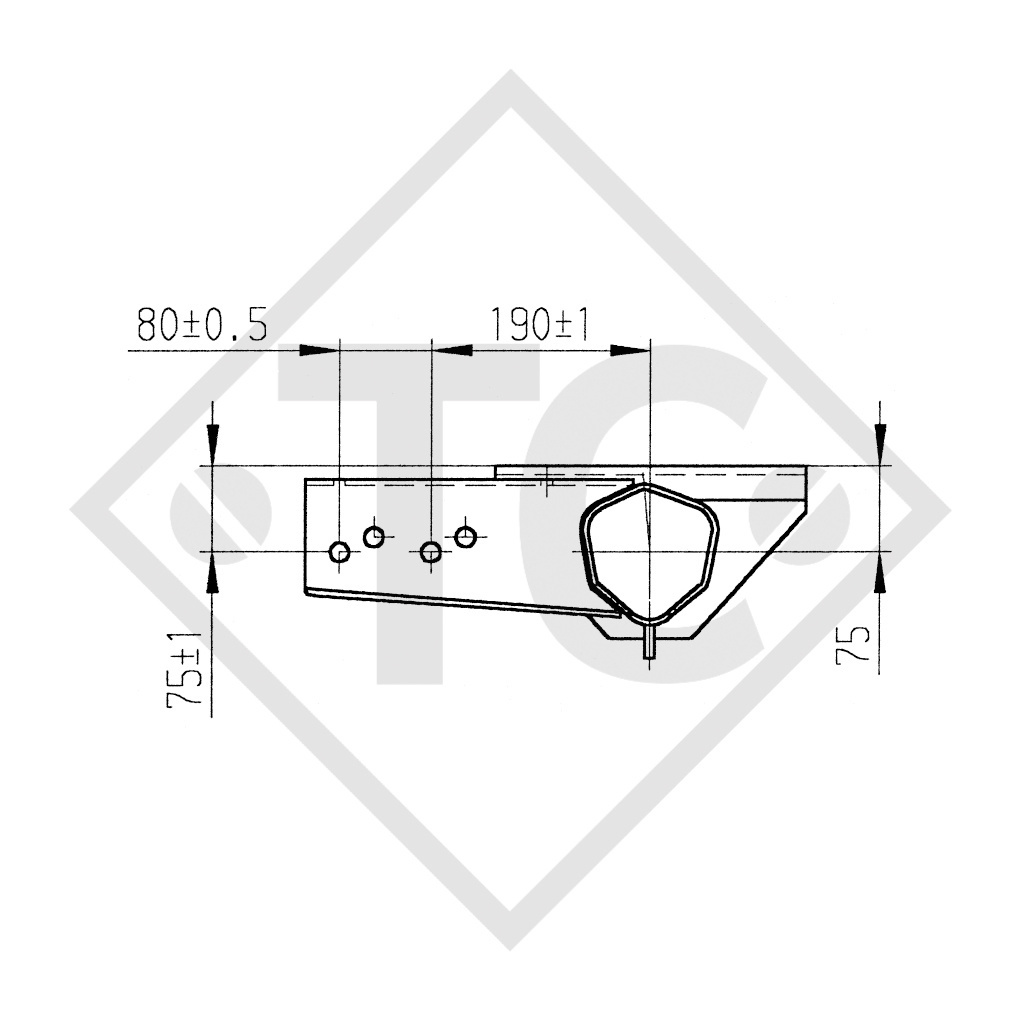

Single axle adapter bracket welded on
Compensation profile
Bowden cables loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brakes dip primed black

ACCESSORIES (not included in scope of delivery)
Shock absorber
