BC: dimension A 1350mm, OHF: dimension C 1880mm, wheel connection 205x6, wheel brake type 3062, offset (ET) 0mm, swing arm position 20°, axle profile 120mm, wheel nuts M18x1.5 ball. Read more...
Part no. 20054211

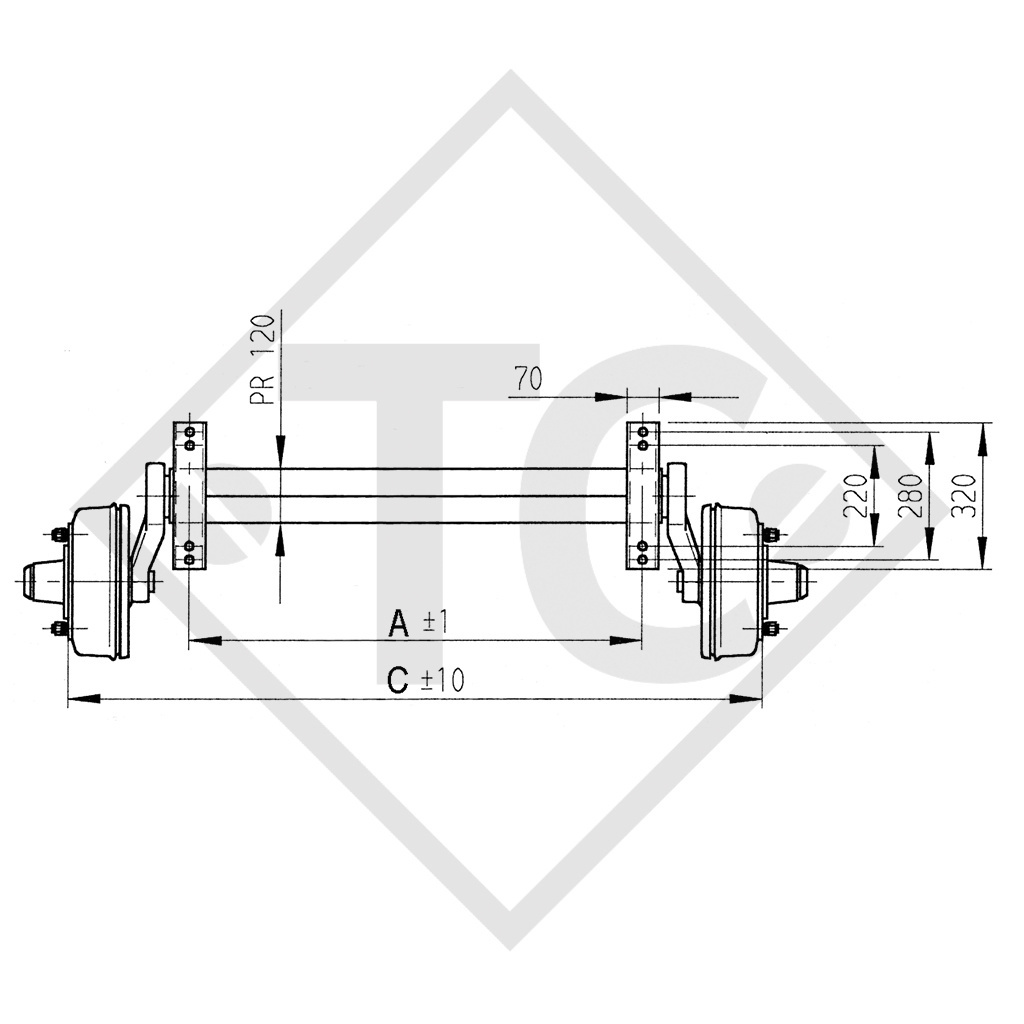

BC: dimension A 1350mm
OHF: dimension C 1880mm
Wheel connection 205x6

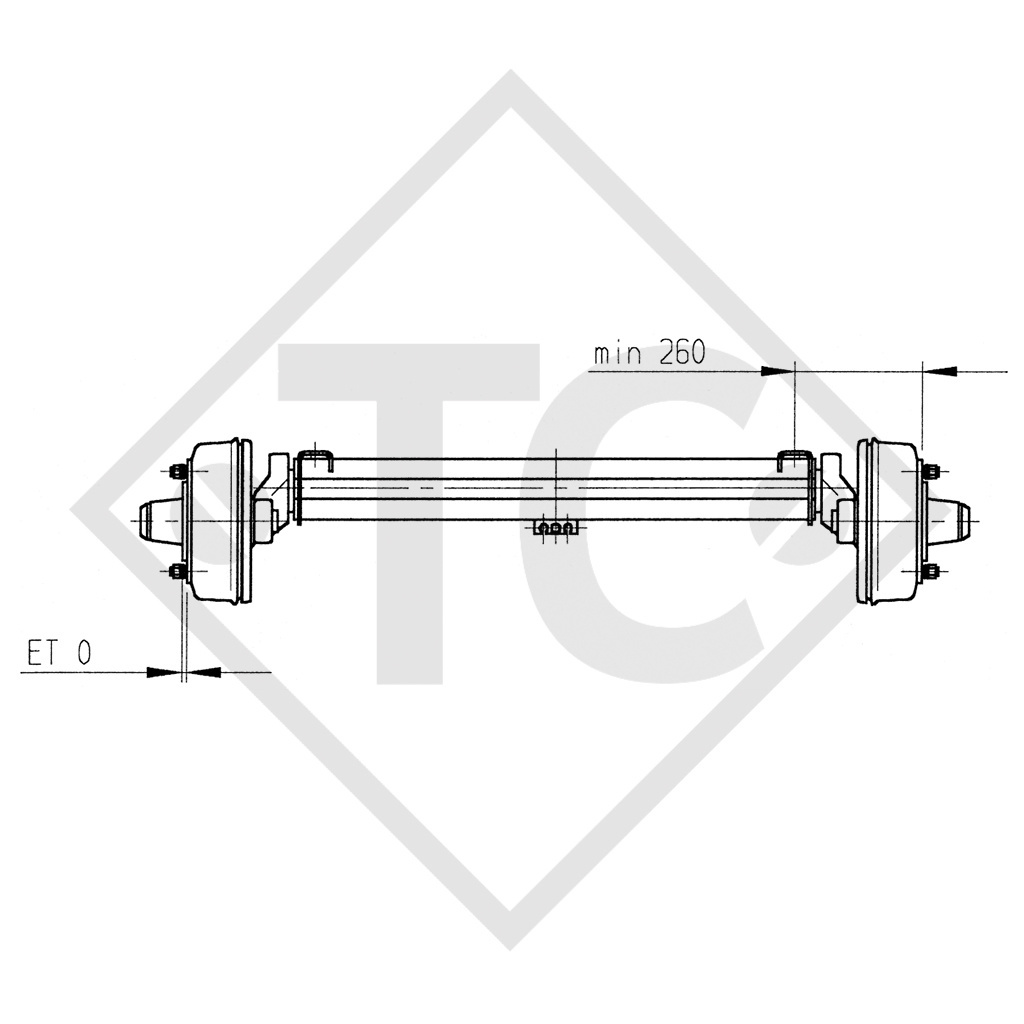

Offset (ET) 0mm

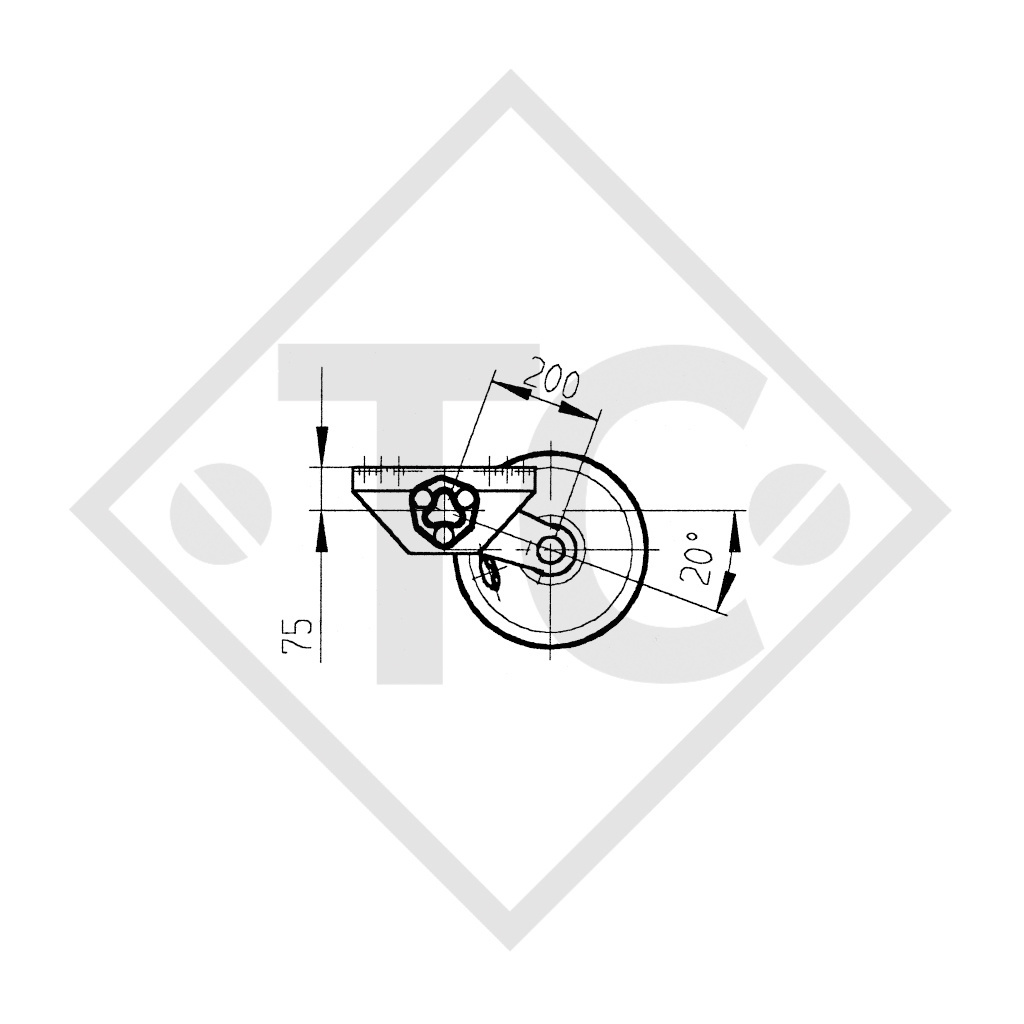

Swing arm position 20°
Axle profile 120mm
Original operating instructions
Replacement part identification number (ETI) 811161
TECHNOLOGY
Model: PLUS

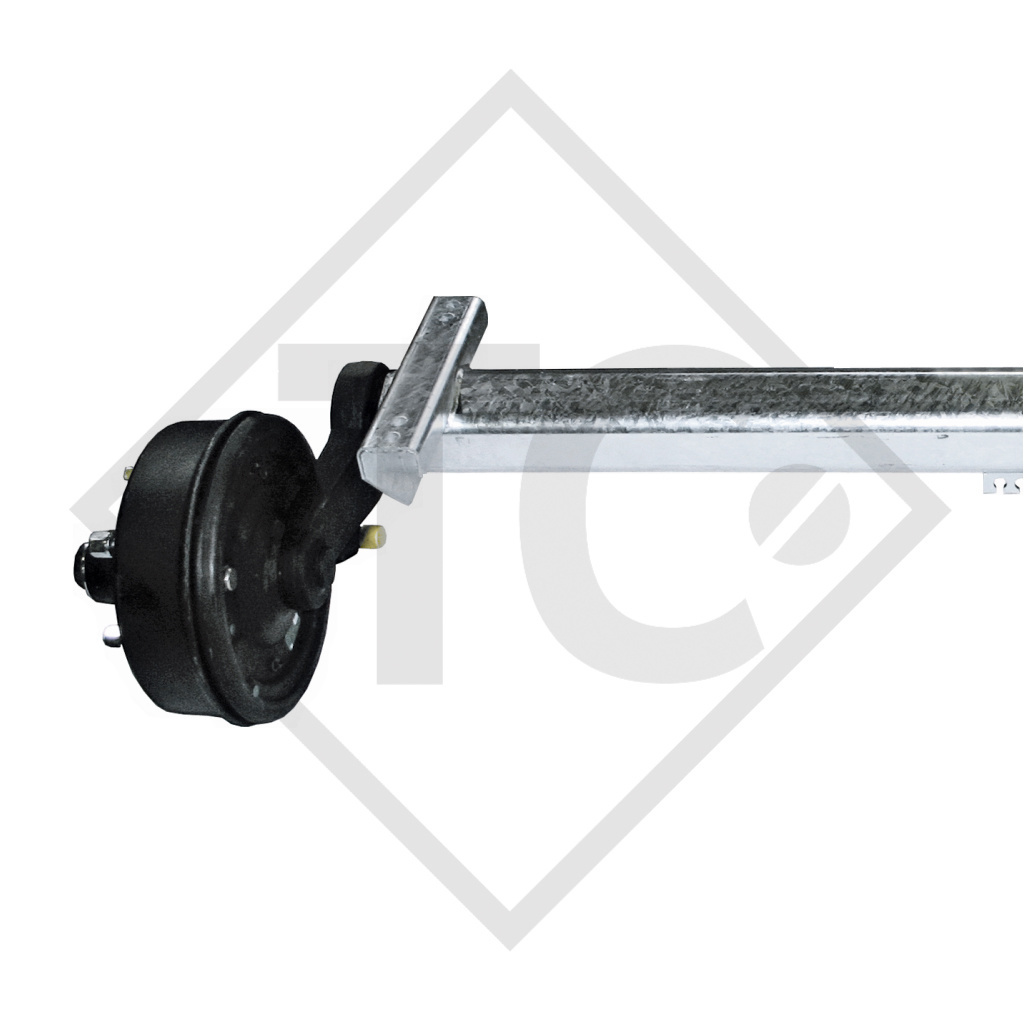

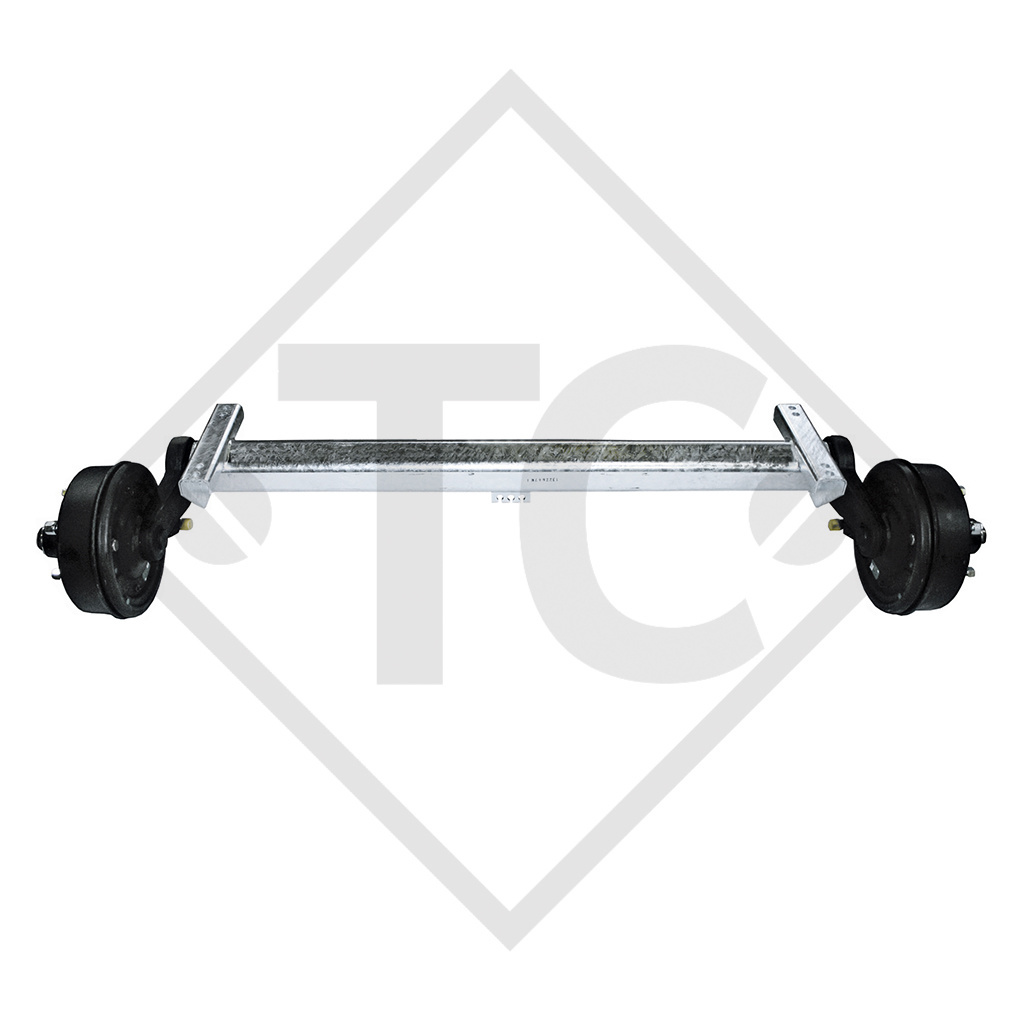

Axle type: B 2500-8
Axle load: 2500kg
Wheel brake: 3081A
Suspension: Hexagonal rubber suspension
Swing arm length: 200mm
Wheel bearing: Tapered roller bearing
Rim centre hole: Min. 161mm
SCOPE OF DELIVERY
Axle
Wheel nuts ball mounted M18x1.5
Single axle adapter bracket welded on
Compensation profile
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brakes dip primed black
ACCESSORIES (not included in scope of delivery)
Shock absorber
