BC: dimension A 1683mm, OHF: dimension C 2270mm, wheel connection 112x5, wheel brake type 2361, offset (ET) 30mm, swing arm position 16°, axle profile 110mm, ball-head wheel bolts M12x1.5. Read more...
Part no. 1421528 (1524070)

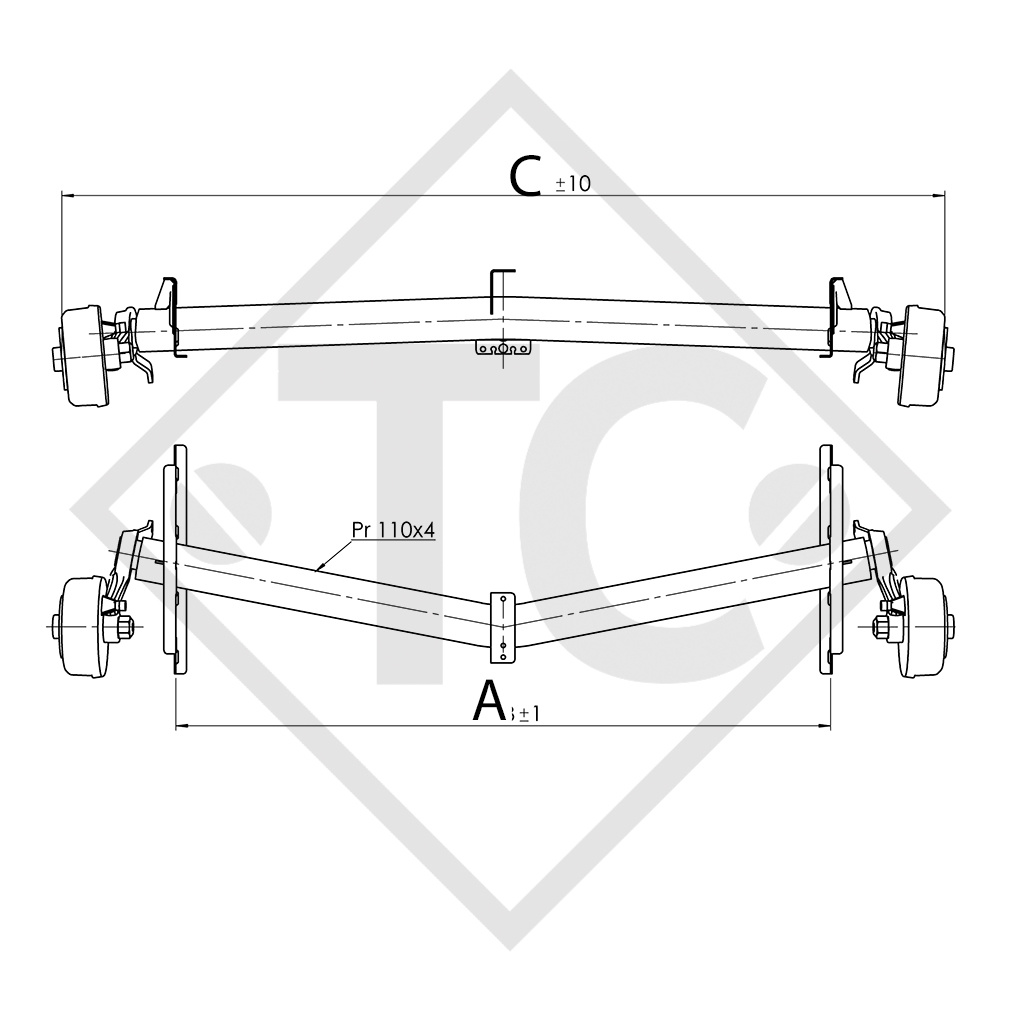

BC: dimension A 1683mm
OHF: dimension C 2270mm
Wheel connection 112x5
Offset (ET) 30mm

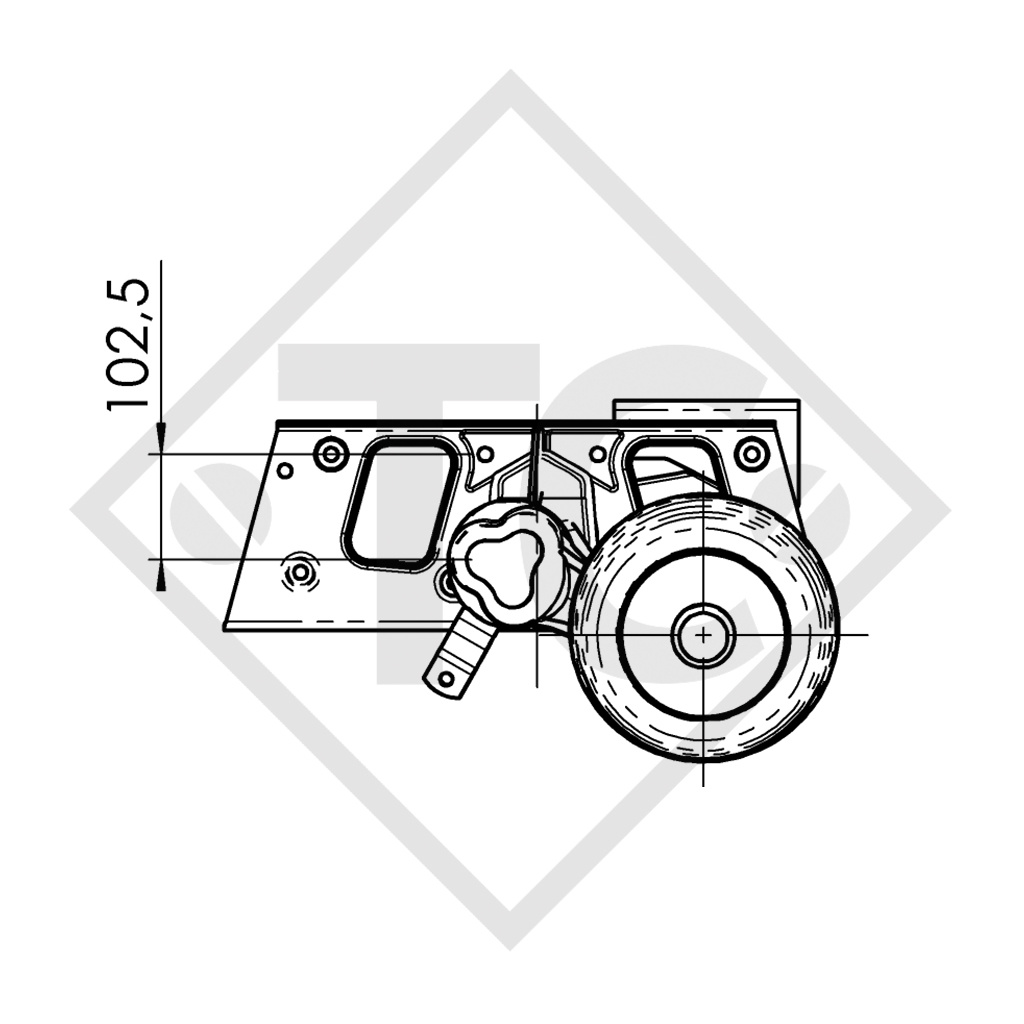

Swing arm position 16°
Axle profile 110mm
Original operating instructions
Replacement part identification number (ETI) 811136
TECHNOLOGY
Model: EURO1
Axle type: DELTA SI-18-2
Axle load: Single axle 1900kg
Axle load: Tandem axle 3500kg
Wheel brake: 2361
Suspension: Hexagonal rubber suspension
Swing arm length: 185mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 63mm
SCOPE OF DELIVERY
Axle with brake
Ball-head wheel bolts M12x1.5 loose
Single axle adapter bracket welded on
Compensation profile for single axle supplied
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
