AL-KO Braked axle 2000kg EURO1 axle type DELTA SI-18-3 with AAA (automatic adjustment of the brake pads) KNAUS Tabbert Puccini

Part no. 1425429 (1528690)

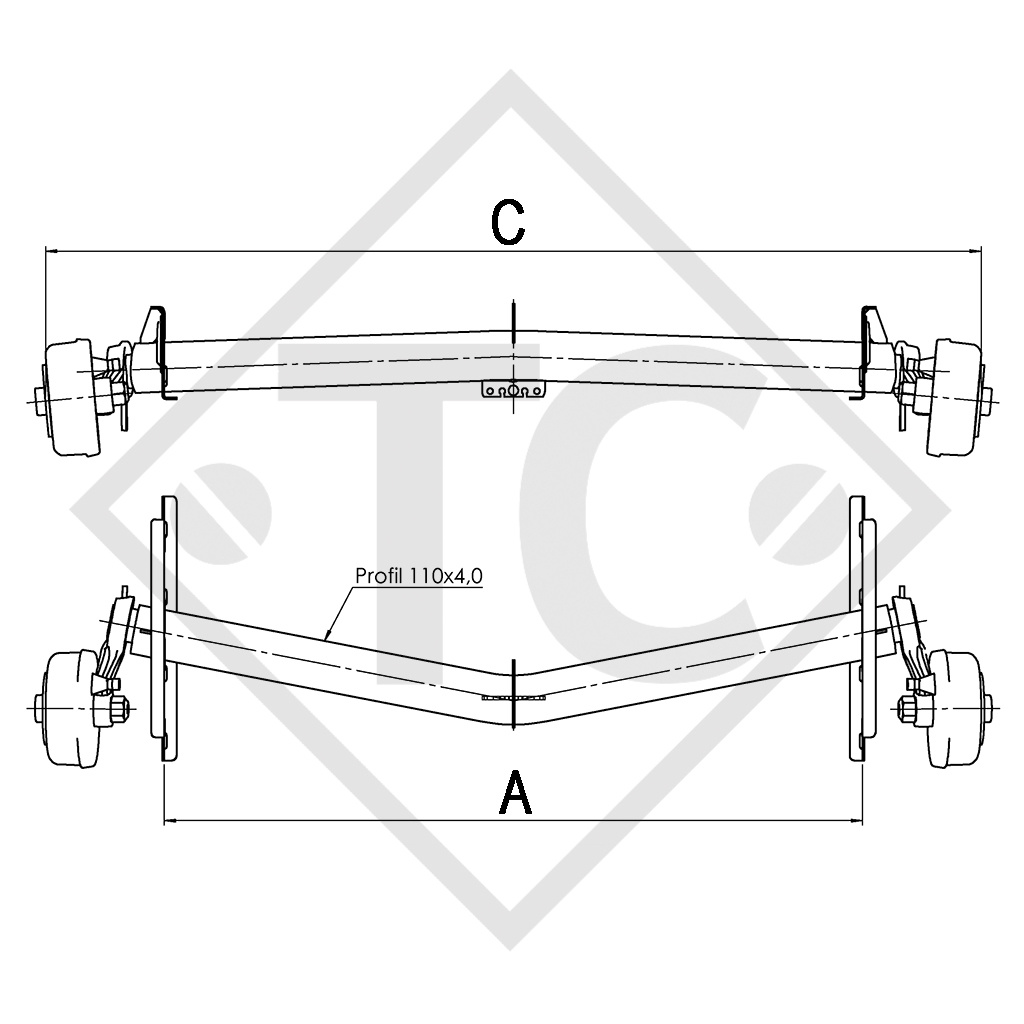

BC: dimension A 1733mm
OHF: dimension C 2260mm
Wheel connection 112x5
Offset (ET) 30mm
Axle profile 110mm

Original operating instructions
Replacement part identification number (ETI) 811731

TECHNOLOGY
Model: EURO1
Axle type: DELTA SI 18-3
Axle load: Single axle 2000kg
Axle load: Tandem axle 4000kg
Wheel brake: 2361 with AAA (automatic adjustment of the brake pads)
Suspension: Hexagonal rubber suspension

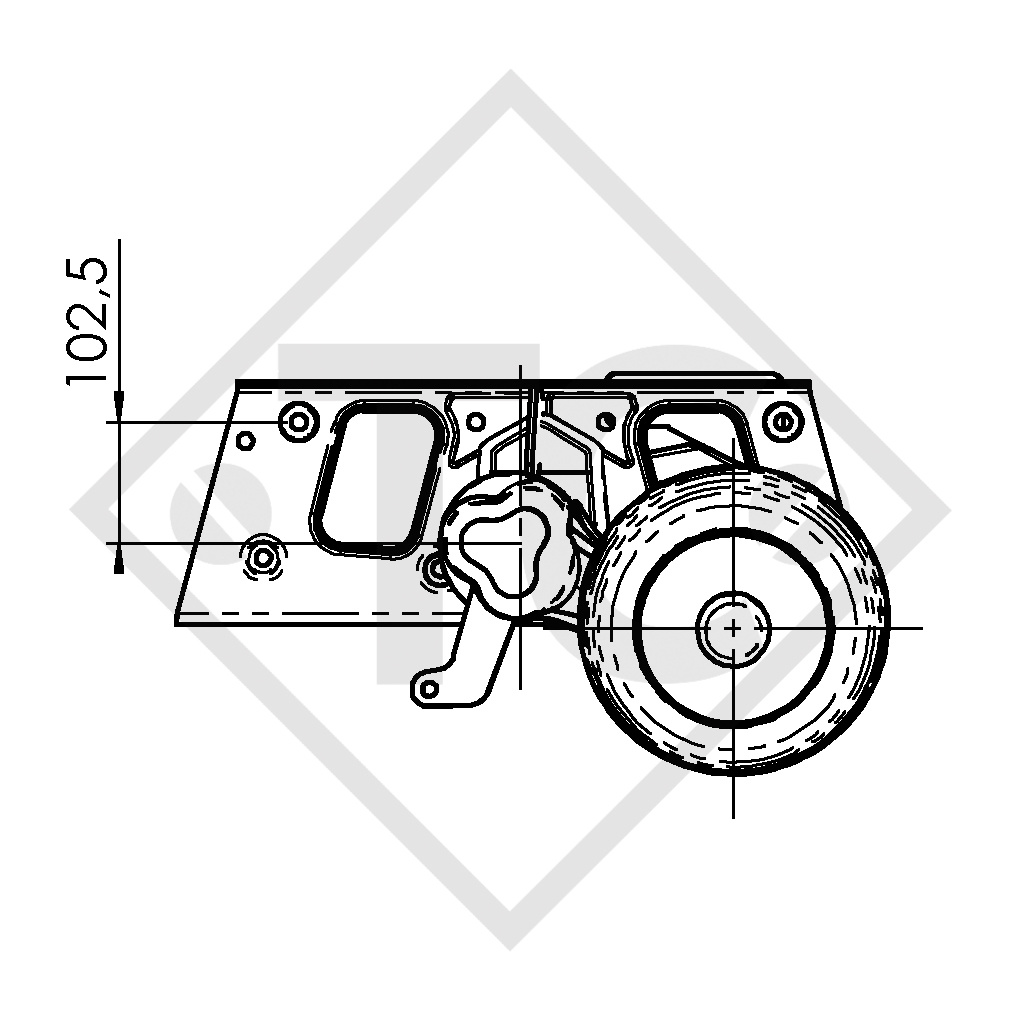

Swing arm length:
Wheel bearing: Compact bearing
Rim centre hole: Min. 63mm

SCOPE OF DELIVERY
Axle

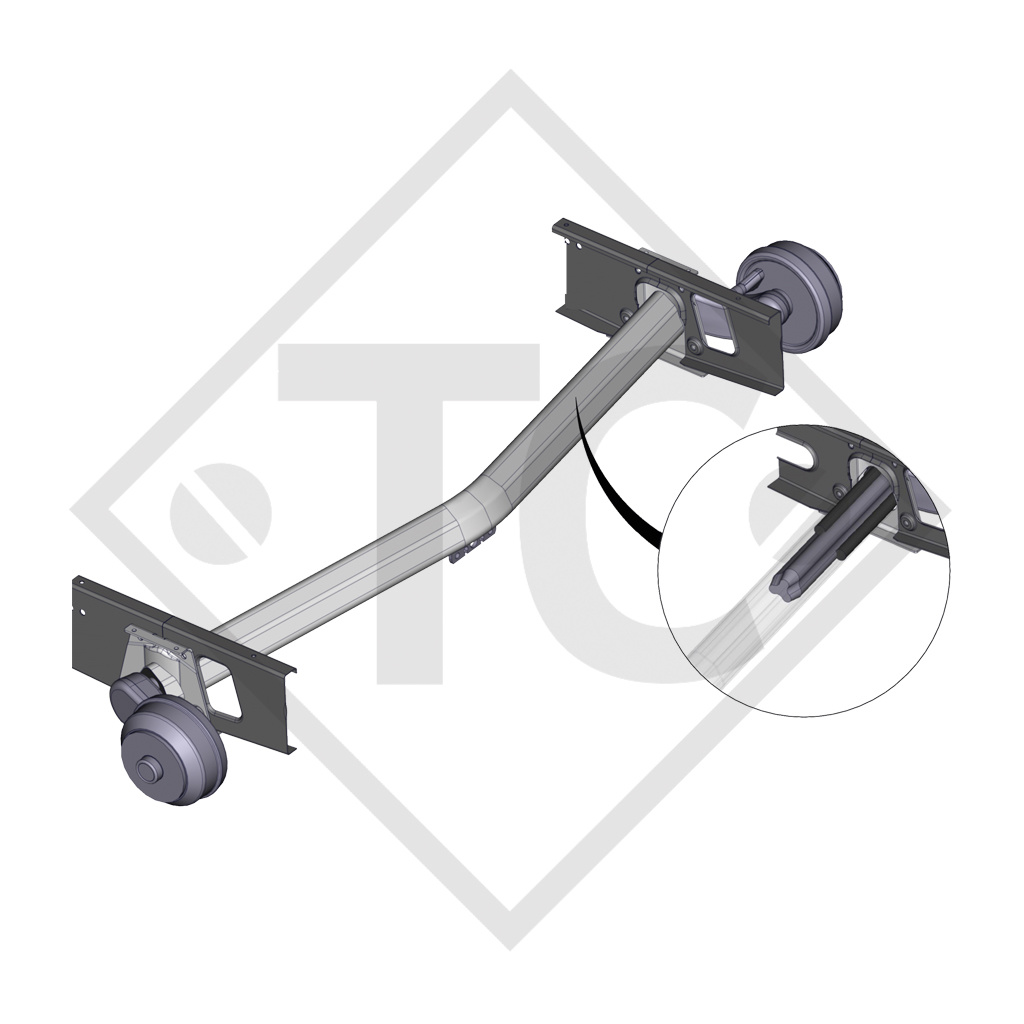

Tandem axle adapter bracket welded on
Compensation profile for single axle supplied
Bowden cables loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

ACCESSORIES (not included in scope of delivery)
Shock absorber
