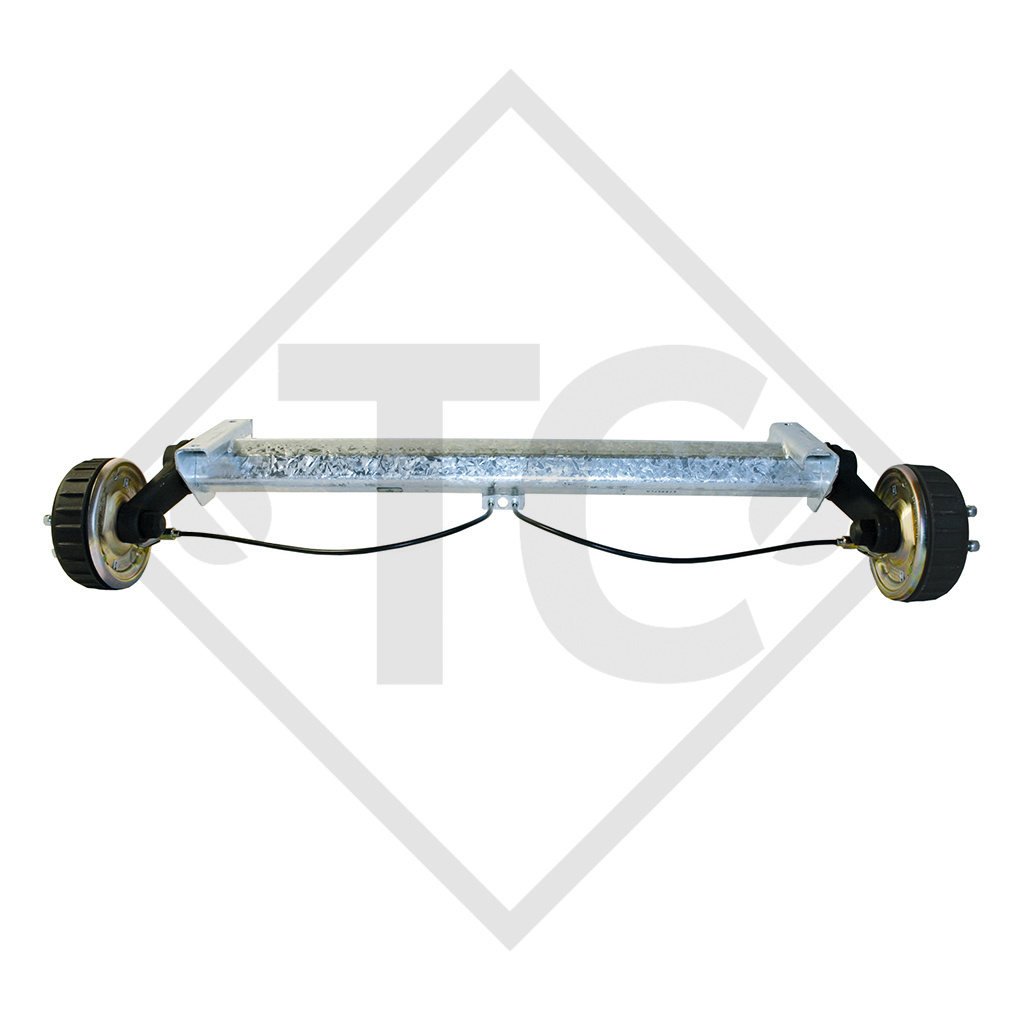

Home / Braked axle 1800kg EURO1 axle type B 1800-9, BÖCKMANN
BC: dimension A 1880mm, OHF: dimension C 2350mm, wheel connection 112x5, wheel brake type 2361, offset (ET) 30mm, swing arm position 12°, axle profile 110mm, ball-head wheel bolts M12x1.5. Read more...
Part no. 1903414
Part no. Böckmann 1131641

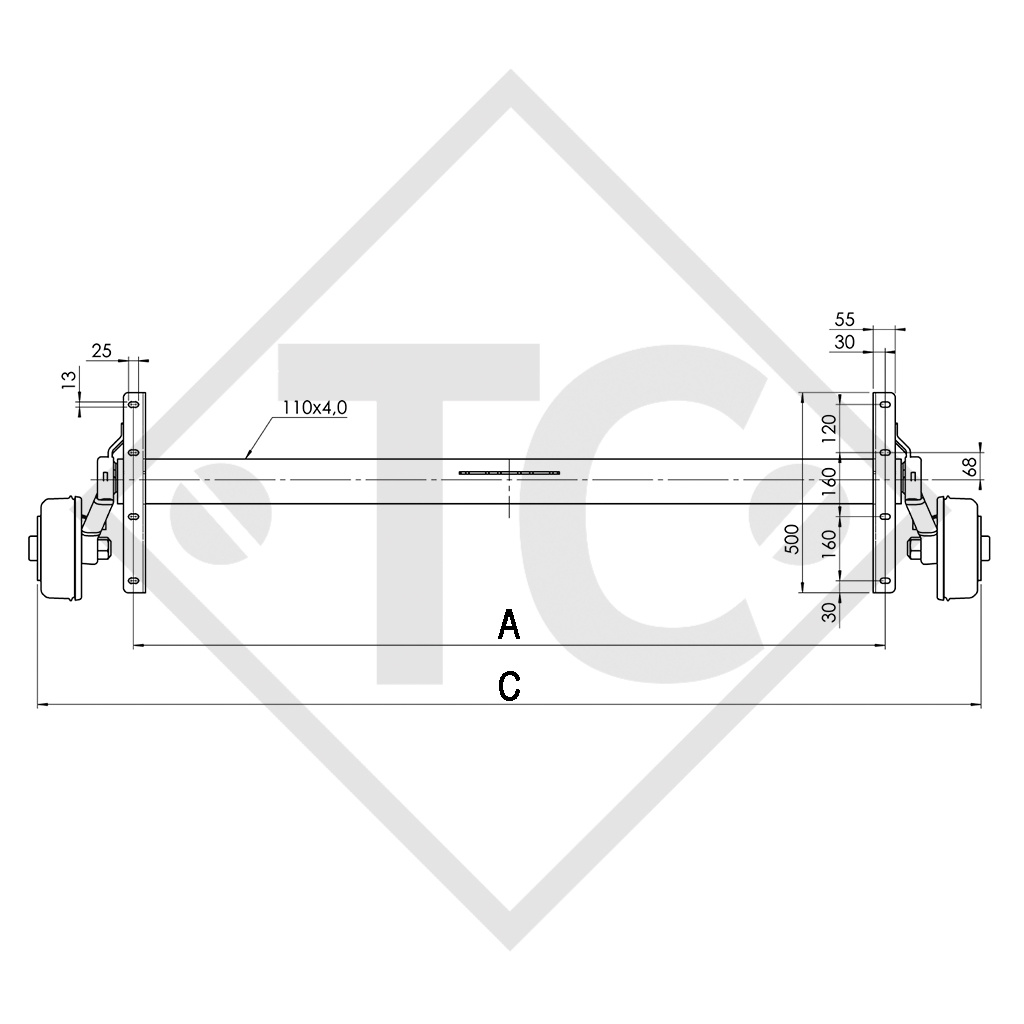

BC: dimension A 1880mm
OHF: dimension C 2360mm
Wheel connection 112x5
Offset (ET) 30mm
Swing arm position 12°
Axle profile 110mm
Original operating instructions
Replacement part identification number (ETI) 811136
TECHNOLOGY
Model: EURO1
Axle type: B 1800-9
Axle load: Single axle 1800kg
Axle load: Tandem axle 3500kg
Wheel brake: 2361
Suspension: Hexagonal rubber suspension

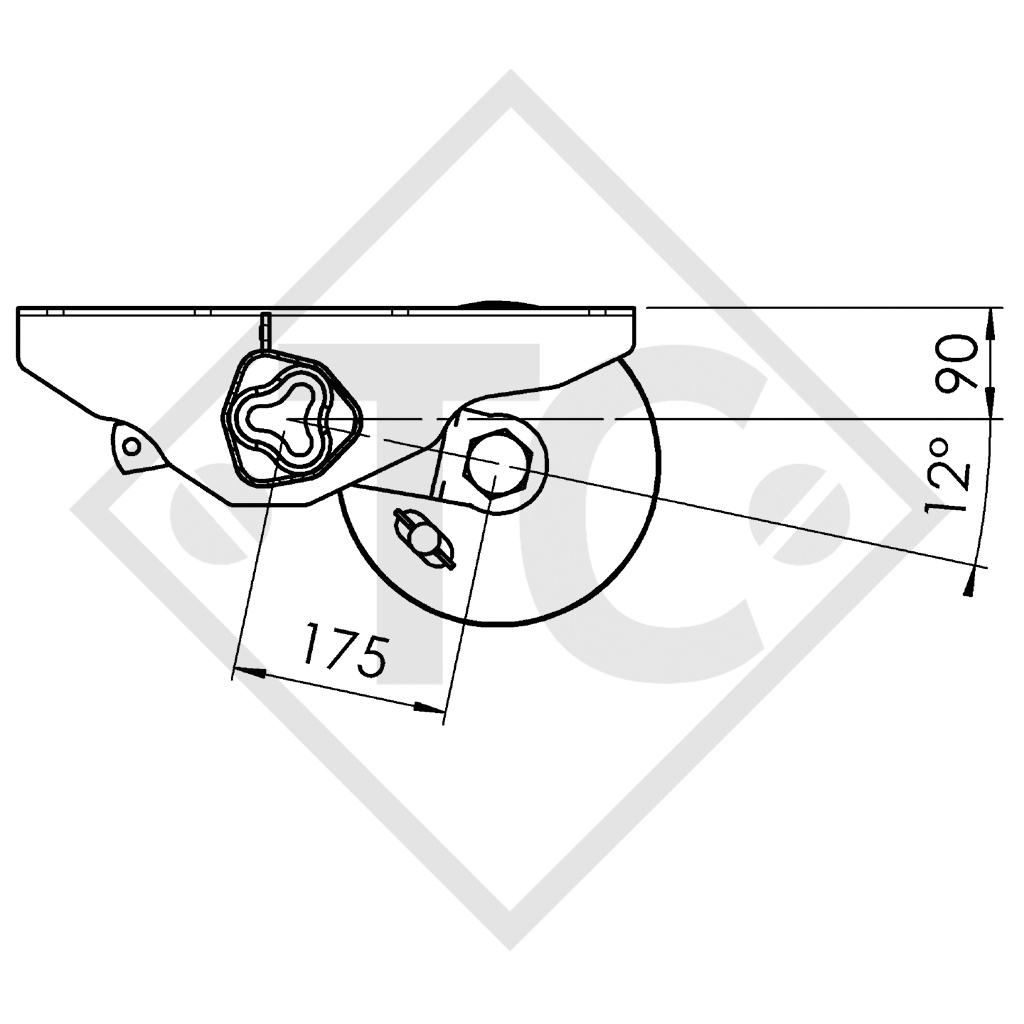

Swing arm length: 175mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 63mm
SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose
Single axle adapter bracket welded on
Compensation profile for single axle supplied
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
