Braked axle 2000kg axle type B 2000-4 with AAA

BC: dimension A 1200mm, OHF: dimension C 1700mm, wheel connection 112x5, wheel brake type 2361 with AAA, offset (ET) 30mm, swing arm position 20°, axle profile 120mm. Read more...

Wishlist: Add to comparison:

Price 1.785,00 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 20 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy. If you have any questions regarding this product please contact our sales team or send us an email to [email protected]

- +

Add to cart

Part no. 1941567_1200_1700

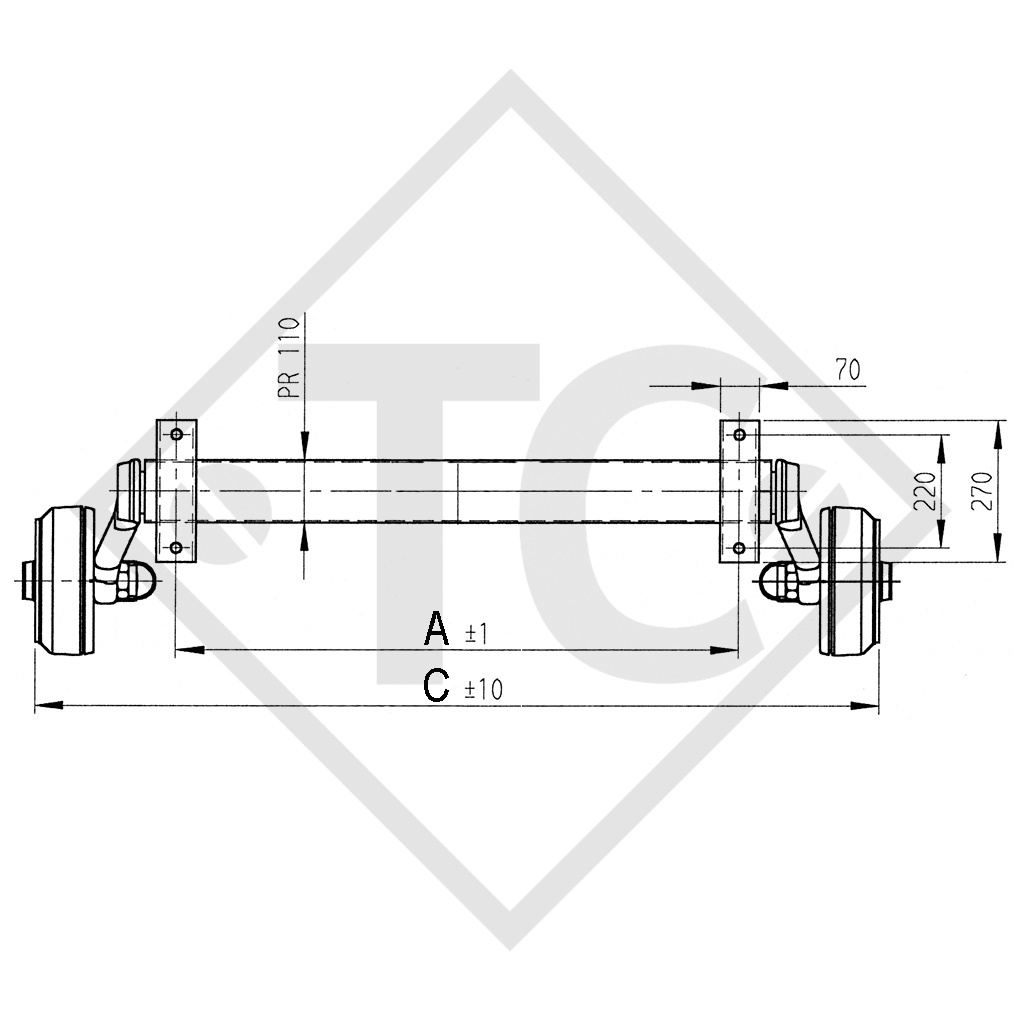

BC: dimension A 1200mm
OHF: dimension C 1700mm
Wheel connection 112x5
Offset (ET) 30mm
Swing arm position 20°
Axle profile 120mm

Original operating instructions
Replacement part identification number (ETI) 811731

TECHNOLOGY
Model: PLUS AAA
Axle type: B 2000-4
Axle load: Single axle 2000kg
Axle load: Tandem axle 3500kg
Wheel brake: 2361 with AAA (automatic adjustment of the brake pads)
Suspension: Hexagonal rubber suspension
Swing arm length: 200mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 63mm

SCOPE OF DELIVERY
Axle with brake

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

ACCESSORIES (not included in scope of delivery)
Shock absorber

AL-KO Braked axle 2000kg axle type B 2000-4 with AAA (automatic adjustment of the brake pads)
