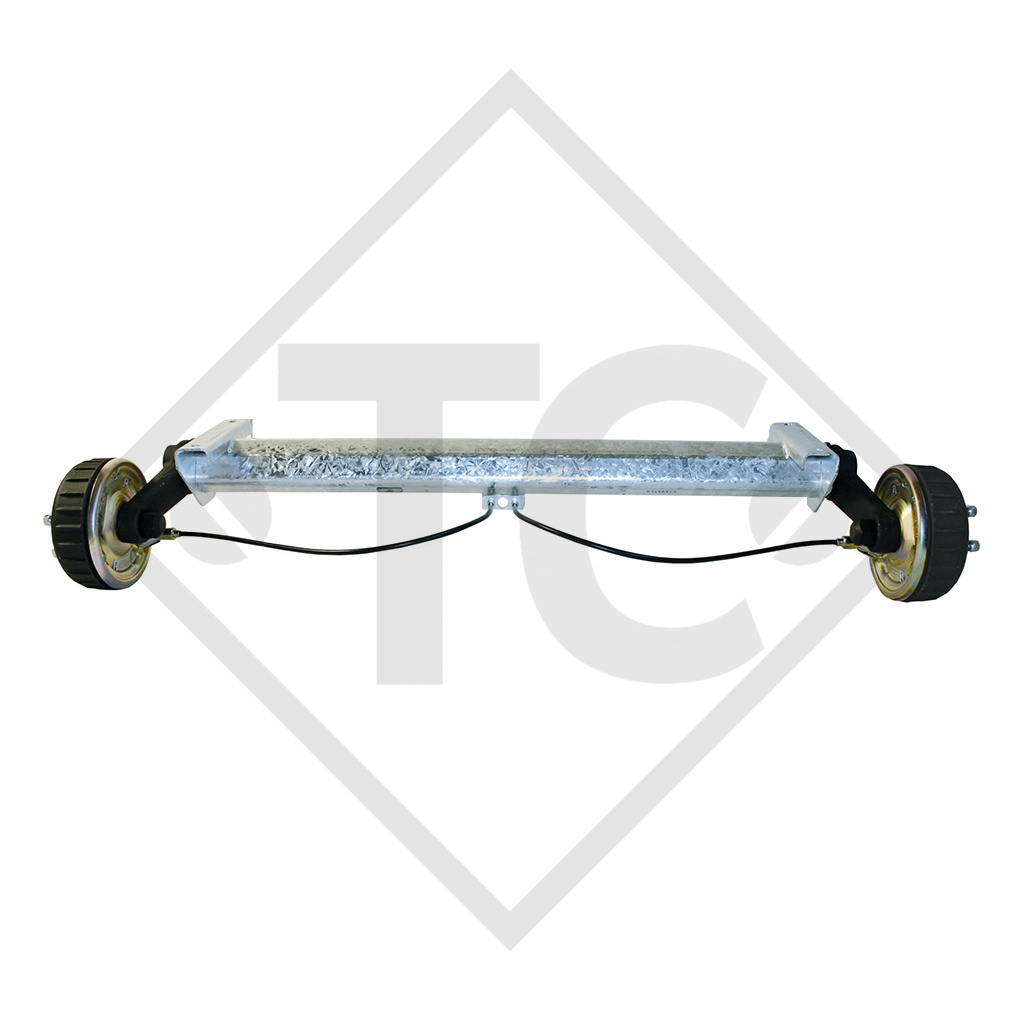

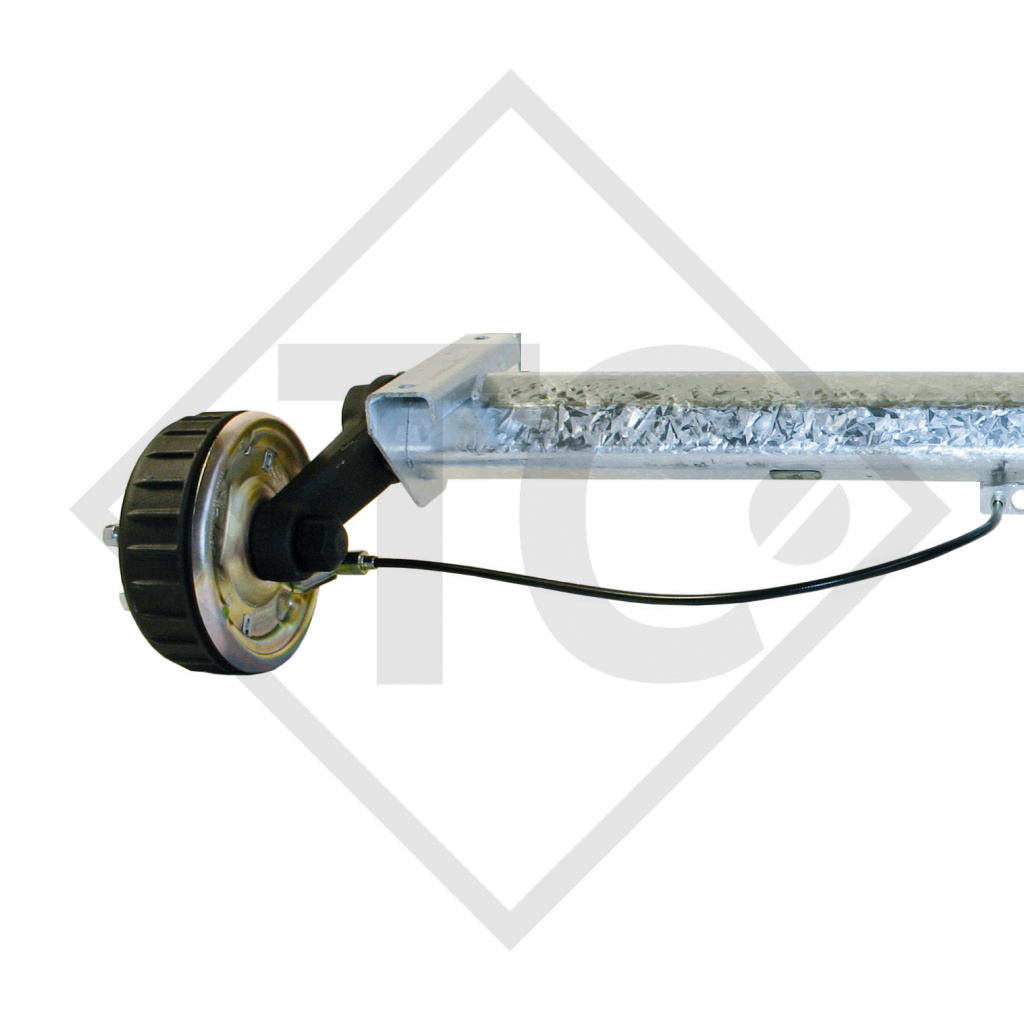

AL-KO Braked axle 1800kg PLUS axle type B 1800-9 586772

Part no. 20005401 (586772)

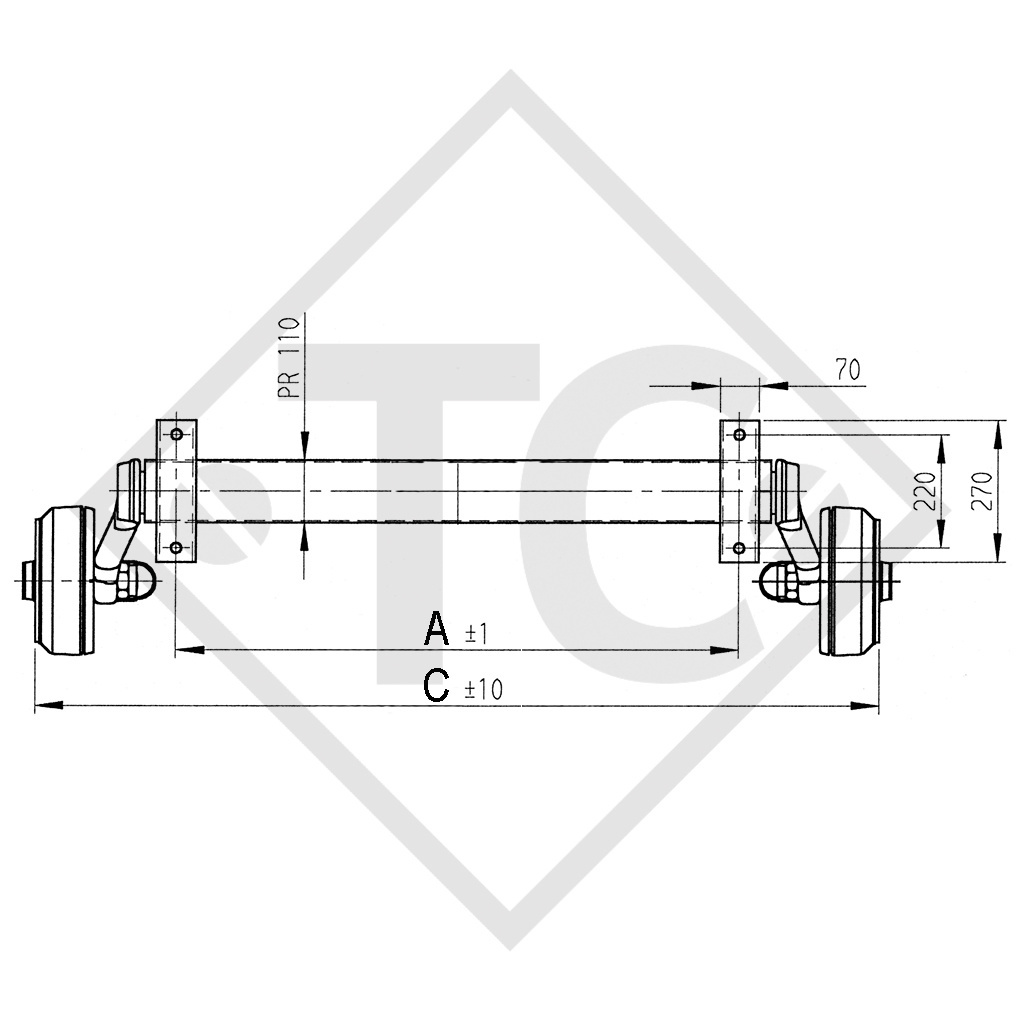

BC: dimension A 1150mm
OHF: dimension C 1650mm
Wheel connection 112x5

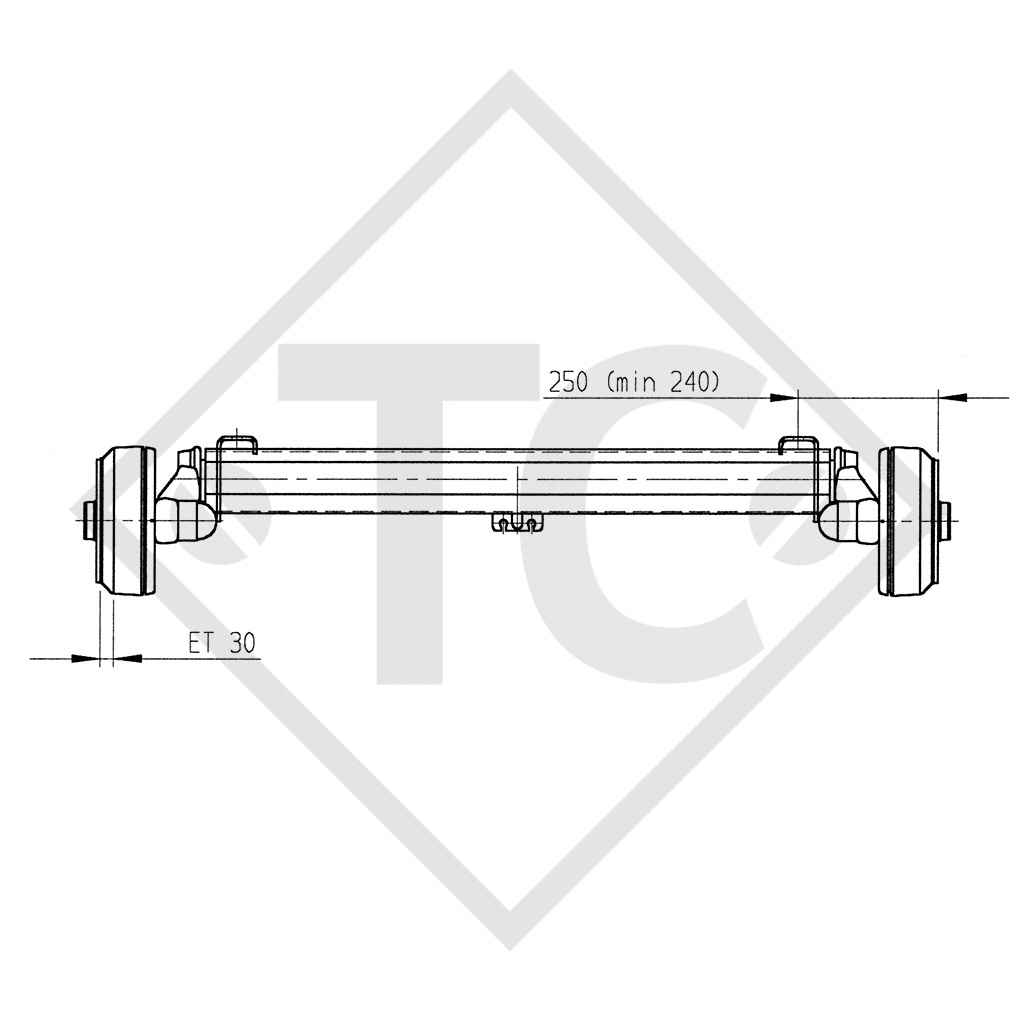

Offset (ET) 30mm

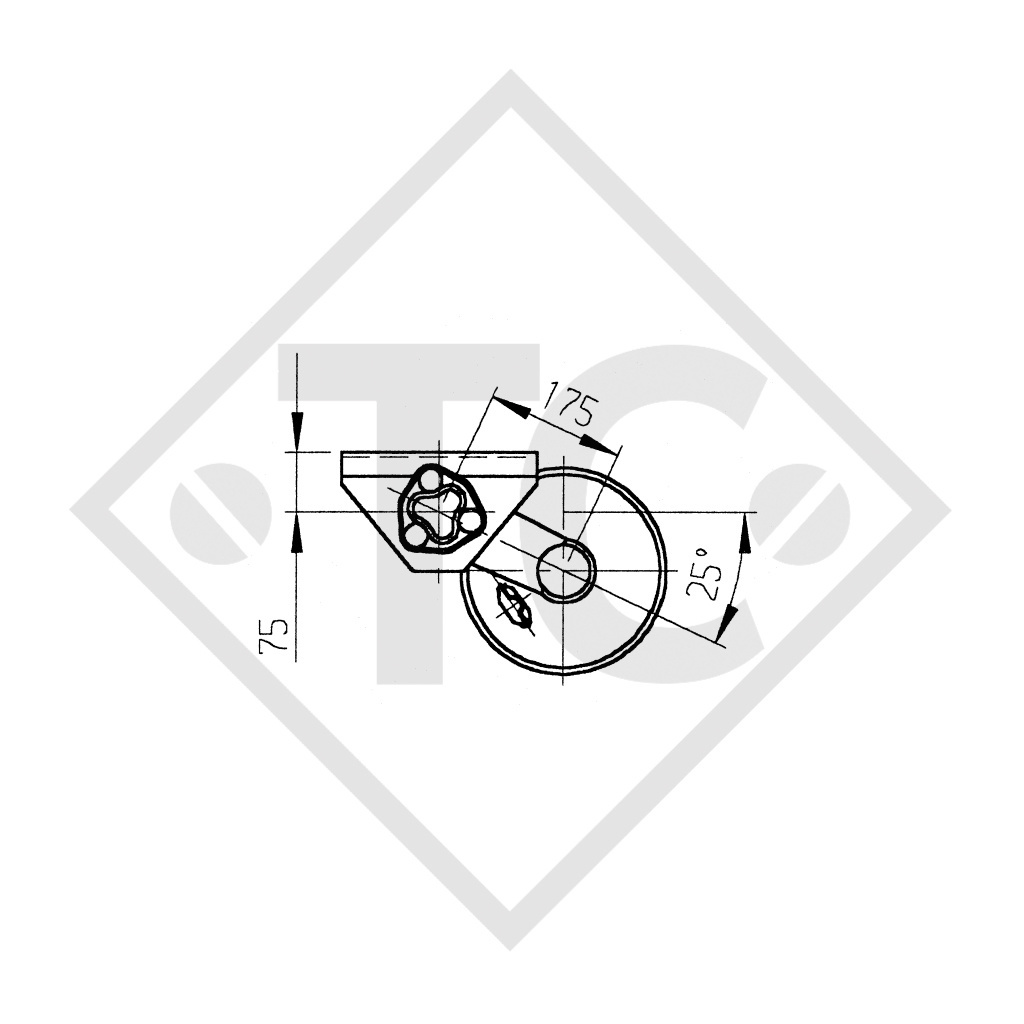

Swing arm position 25°
Axle profile 110mm

Original operating instructions
Replacement part identification number (ETI) 811136

TECHNOLOGY
Model: PLUS
Axle type: B 1800-9
Axle load: Single axle 1800kg
Axle load: Tandem axle 3500kg
Wheel brake: 2361
Suspension: Hexagonal rubber suspension
Swing arm length: 175mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 63mm

SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose
Single axle adapter bracket welded on
Compensation profile for single axle supplied
Bowden cables loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

ACCESSORIES (not included in scope of delivery)
Shock absorber

Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
