Braked axle 1800kg EURO1 axle type DELTA SI 18-1 + AAA Fendt 515

Braked axle 1800kg EURO1 axle type DELTA SI 18-1 with AAA (automatic adjustment of the brake pads), FENDT Bianco 495 und 515

BC: dimension A 1570mm, OHF: dimension C 2080mm, wheel connection 112x5, wheel brake type 2361 AAA, offset (ET) 30mm, swing arm position 15°, axle profile 110mm, ball-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:

Price 2.050,00 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 20 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy. If you have any questions regarding this product please contact our sales team or send us an email to [email protected]

- +

Add to cart

Part no. 1424459

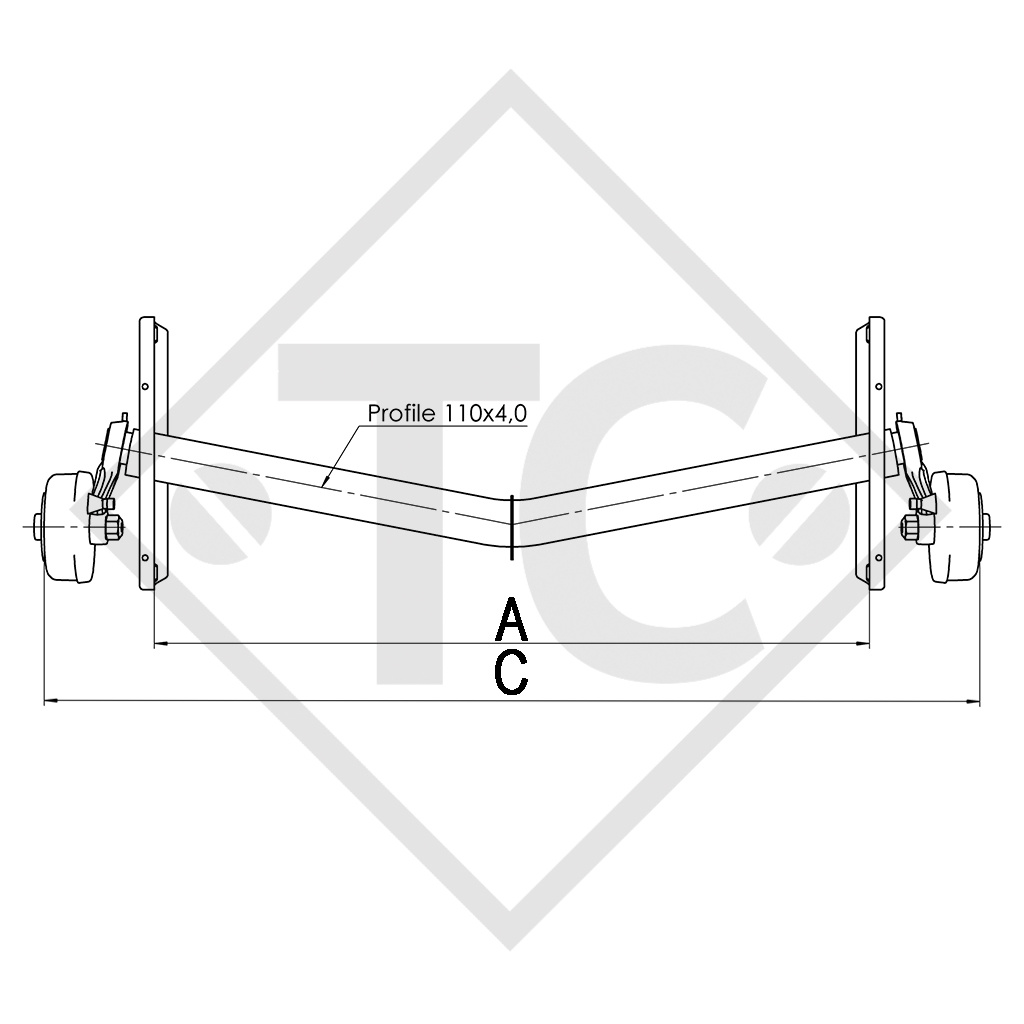

BC: dimension A 1570mm
OHF: dimension C 2080mm
Wheel connection 112x5
Offset (ET) 30mm
Swing arm position 15°
Axle profile 110mm

Original operating instructions
Replacement part identification number (ETI) 811731

TECHNOLOGY
Model: EURO1
Axle type: DELTA SI 18-1
Axle load: Single axle 1800kg
Axle load: Tandem axle 3500kg
Wheel brake: 2361 with AAA
Suspension: Hexagonal rubber suspension
Swing arm length: 185mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 63mm

SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose

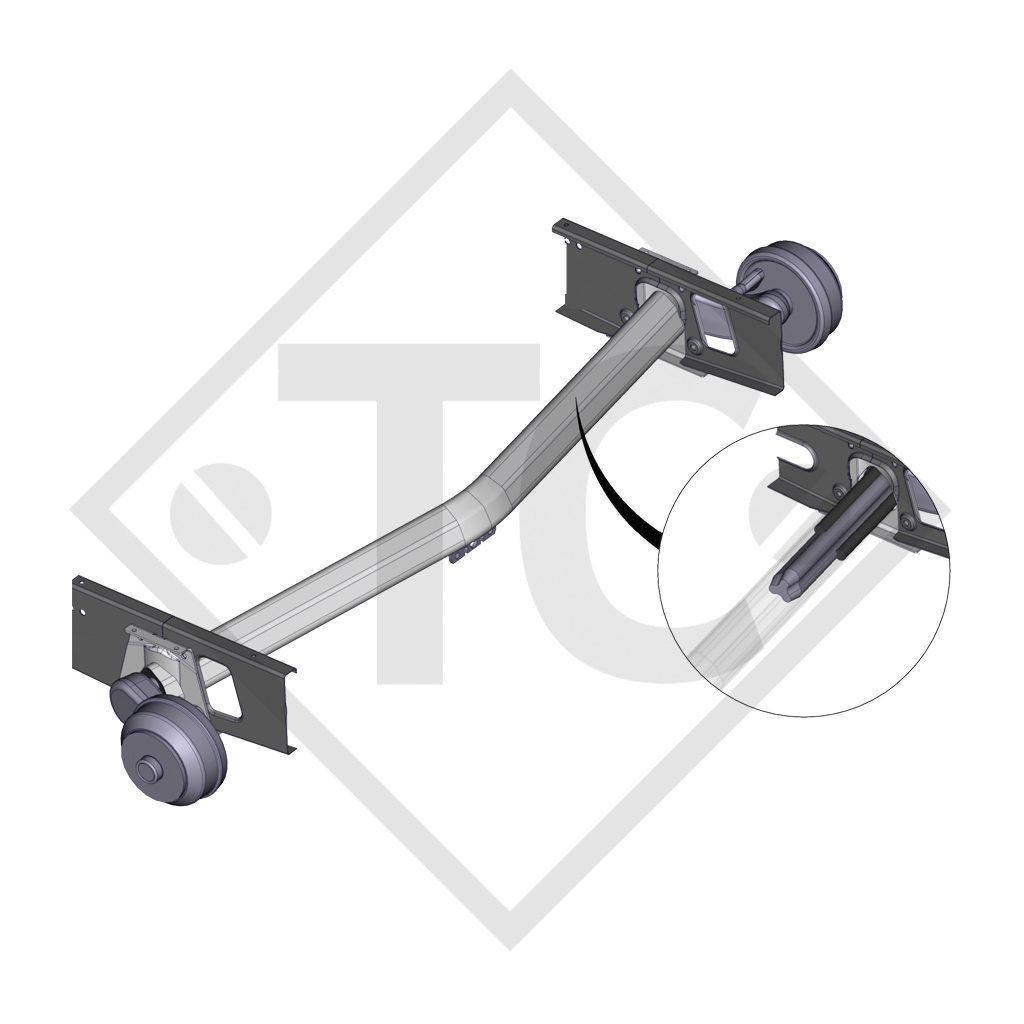

Tandem axle adapter bracket welded on
Compensation profile for single axle supplied
Bowden cables loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

ACCESSORIES (not included in scope of delivery)
Shock absorber
