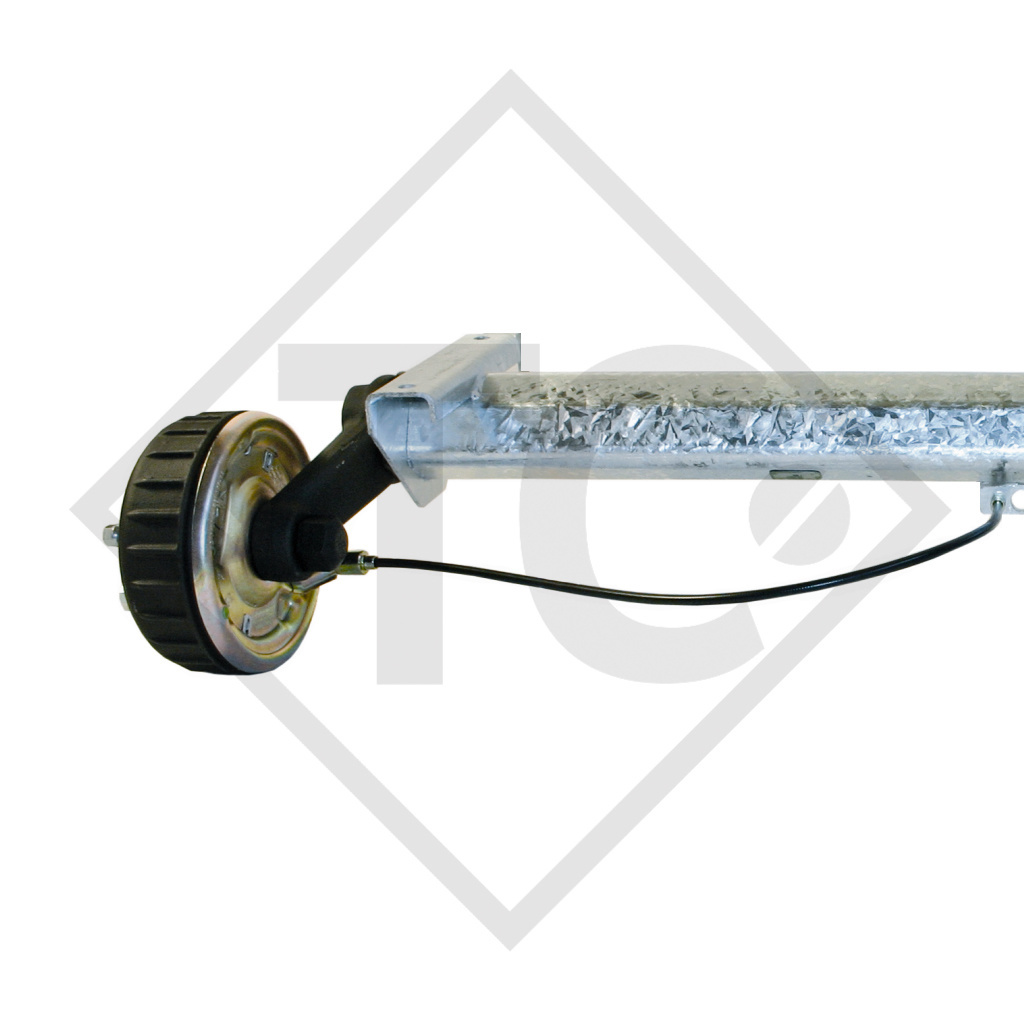

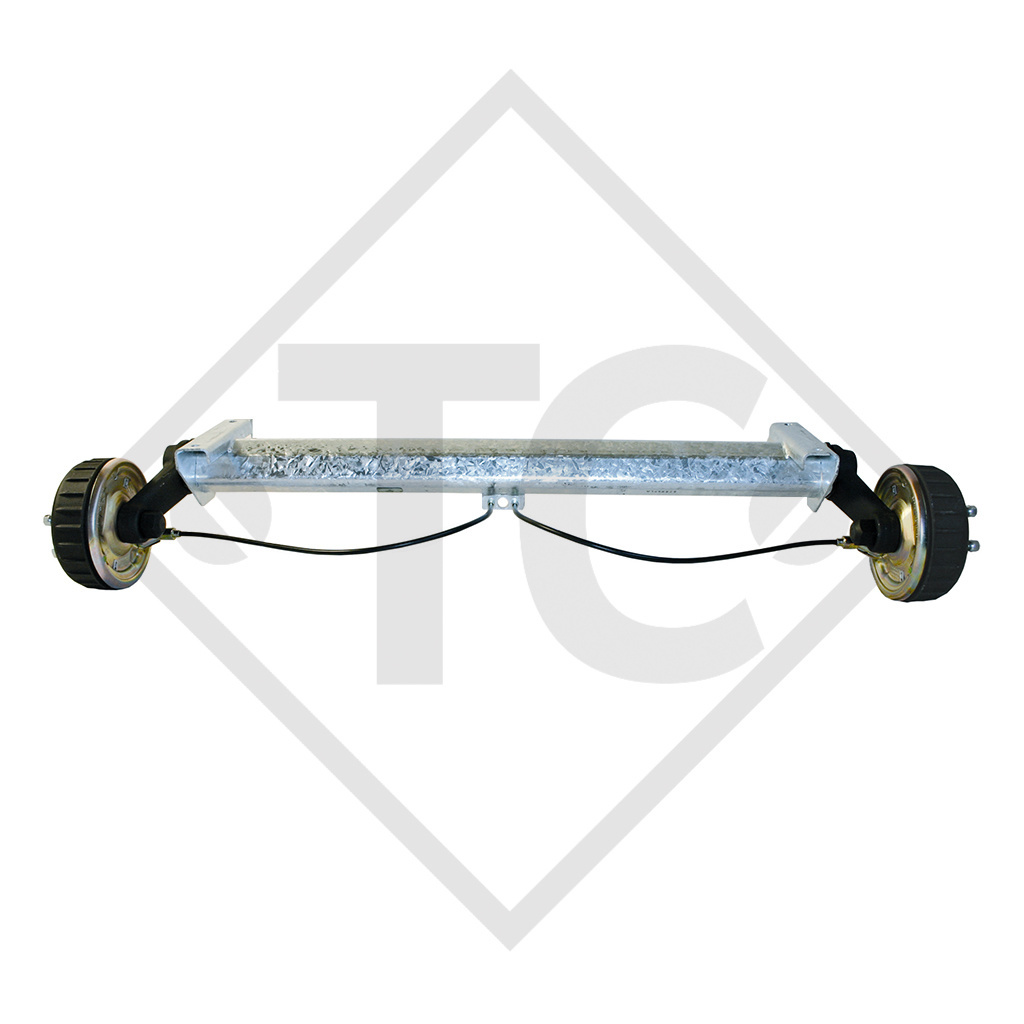

AL-KO Braked axle 1800kg EURO1 axle type B 1800-9, La Mancelle Liberty 440 PC

Part no. 1272486

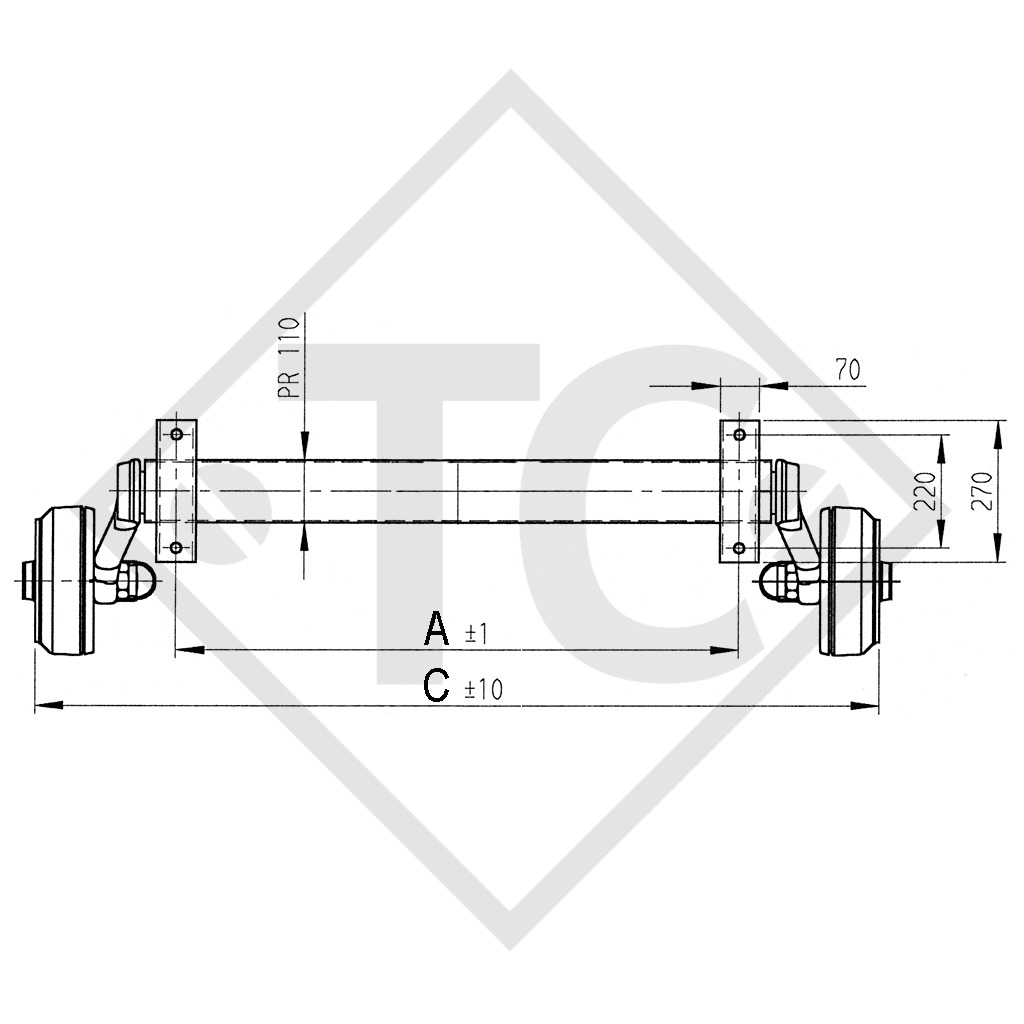

BC: dimension A 1545mm
OHF: dimension C 2010mm
Wheel connection 112x5

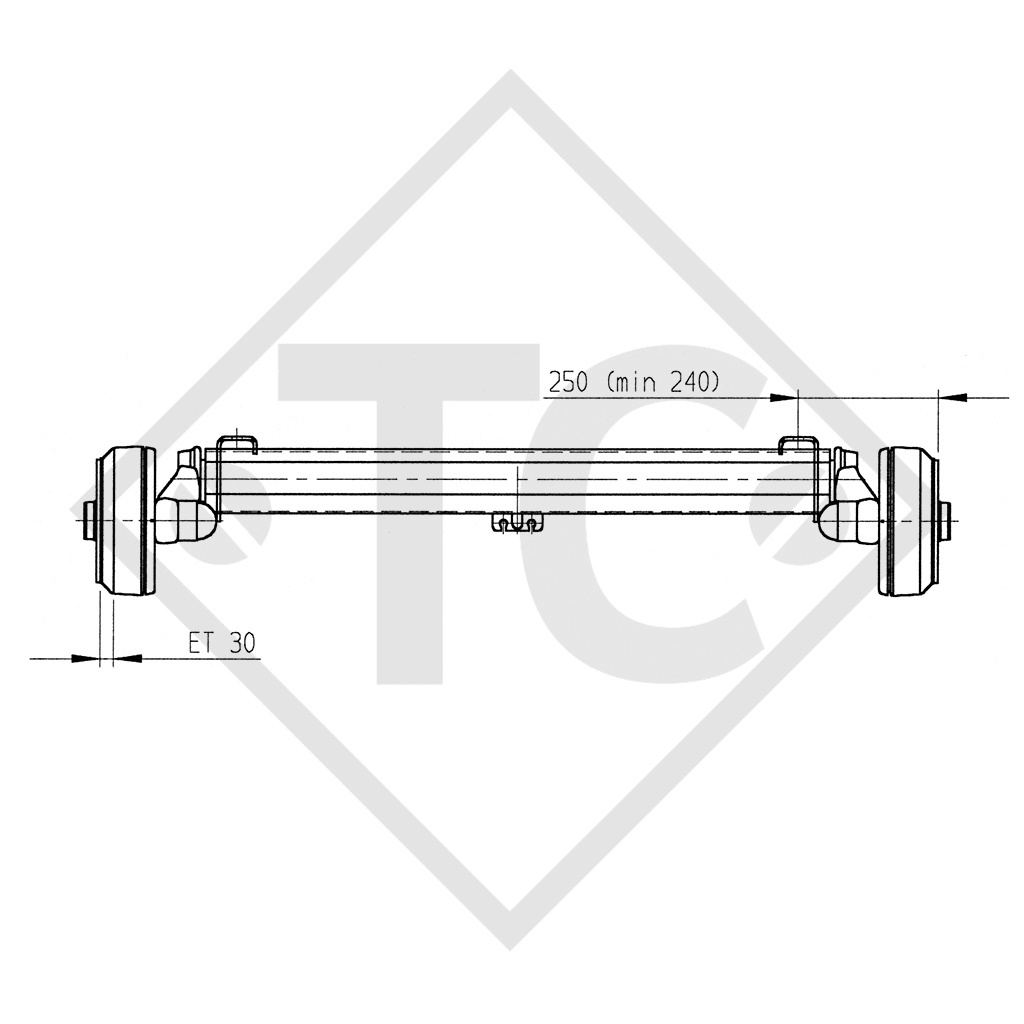

Offset (ET) 30mm

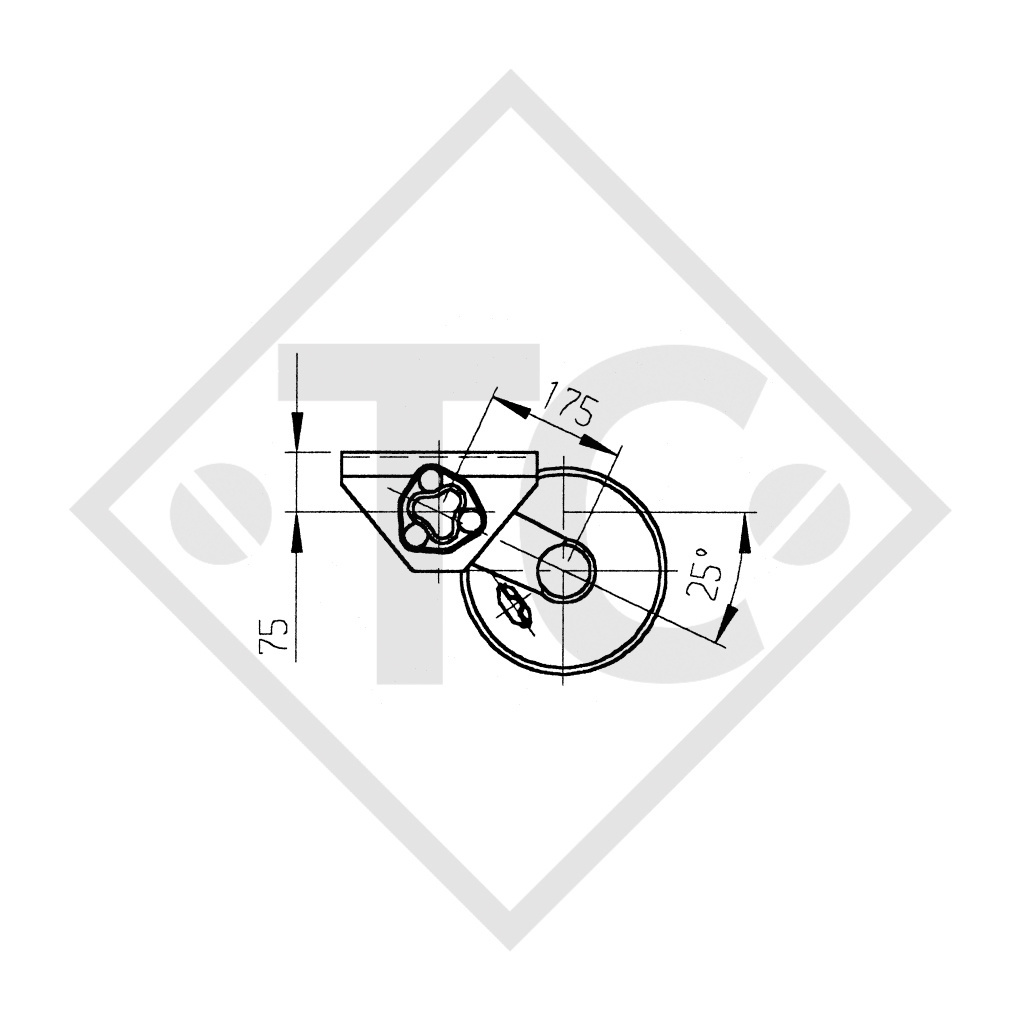

Swing arm position 25°

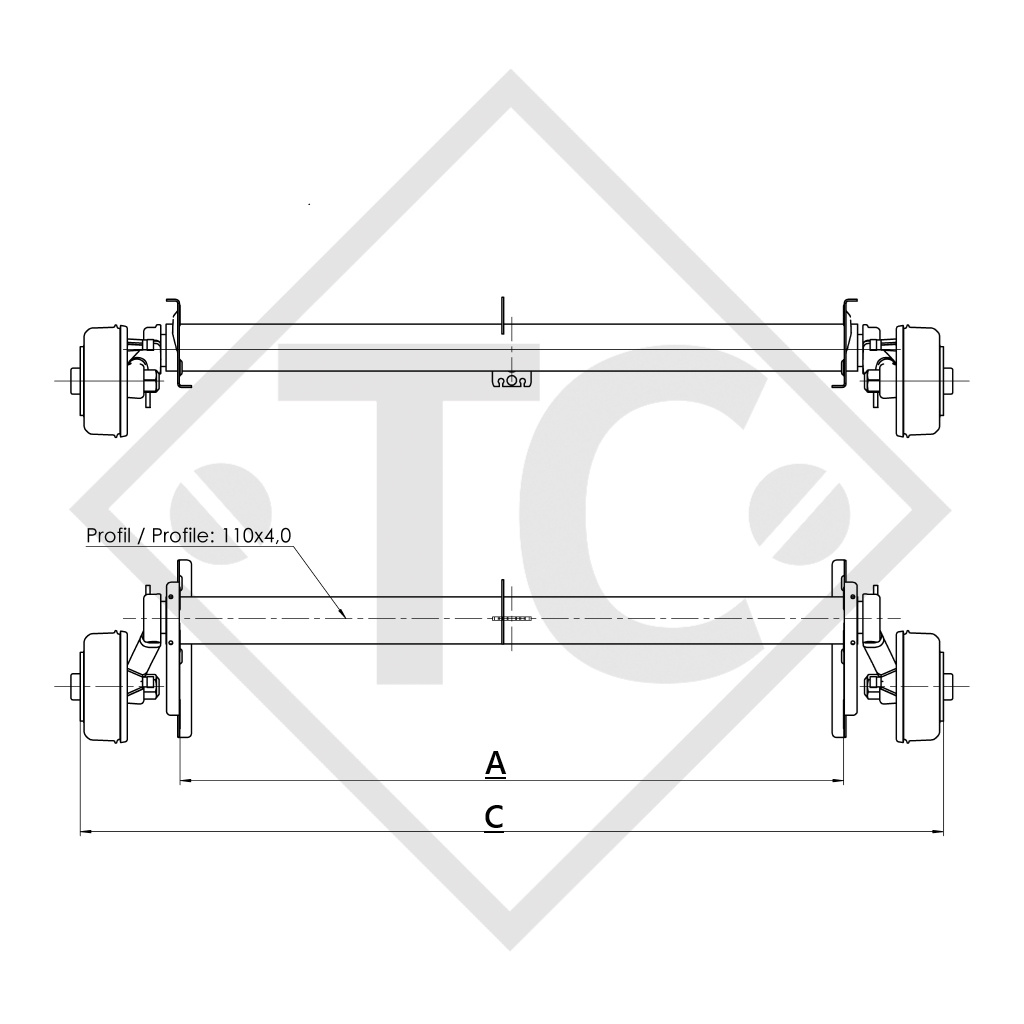

Axle profile 110mm

Original operating instructions
Replacement part identification number (ETI) 811136

TECHNOLOGY
Model: EURO1
Axle type: B 1800-9
Axle load: Single axle 1800kg
Axle load: Tandem axle 3500kg
Wheel brake: 2361
Suspension: Hexagonal rubber suspension

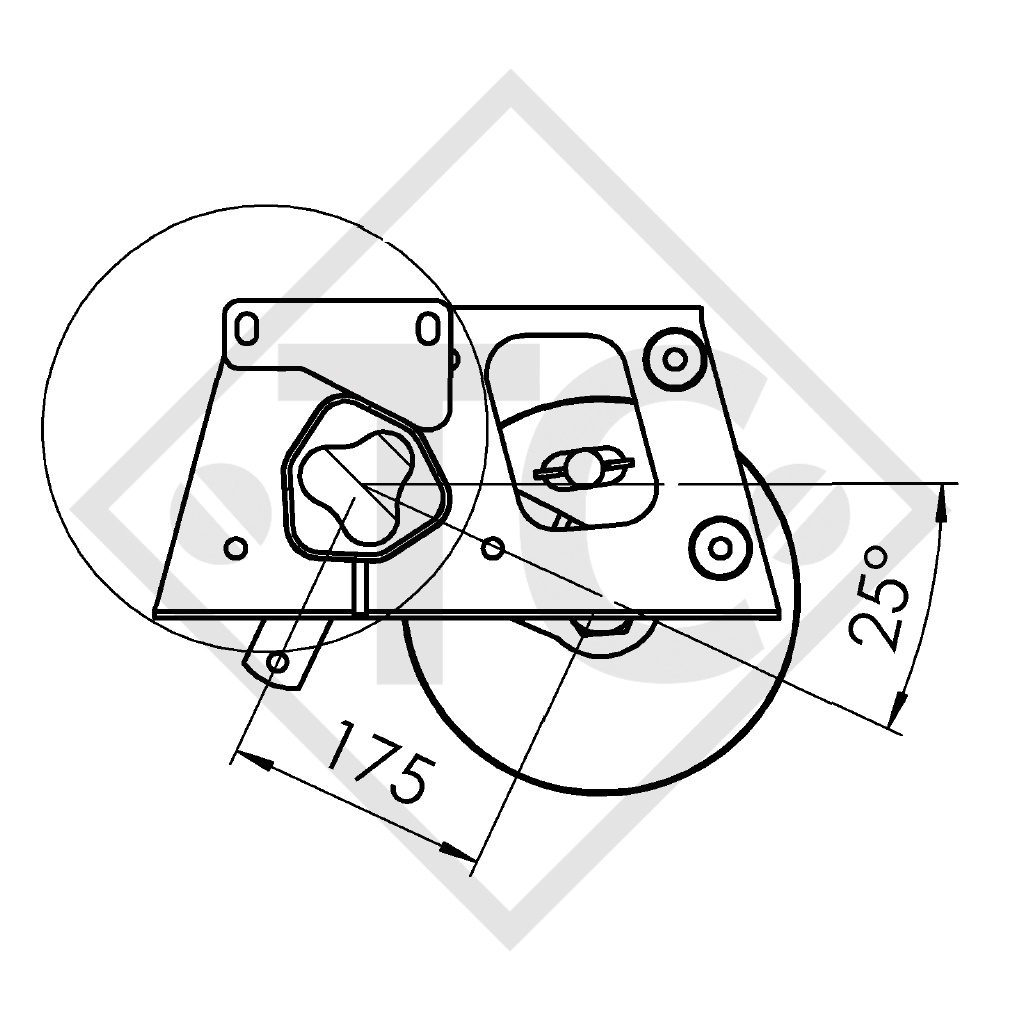

Swing arm length: 175mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 70mm

SCOPE OF DELIVERY
Axle with brake
Single axle adapter bracket welded on
Compensation profile for single axle supplied
Bowden cables loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

ACCESSORIES (not included in scope of delivery)
Shock absorber
