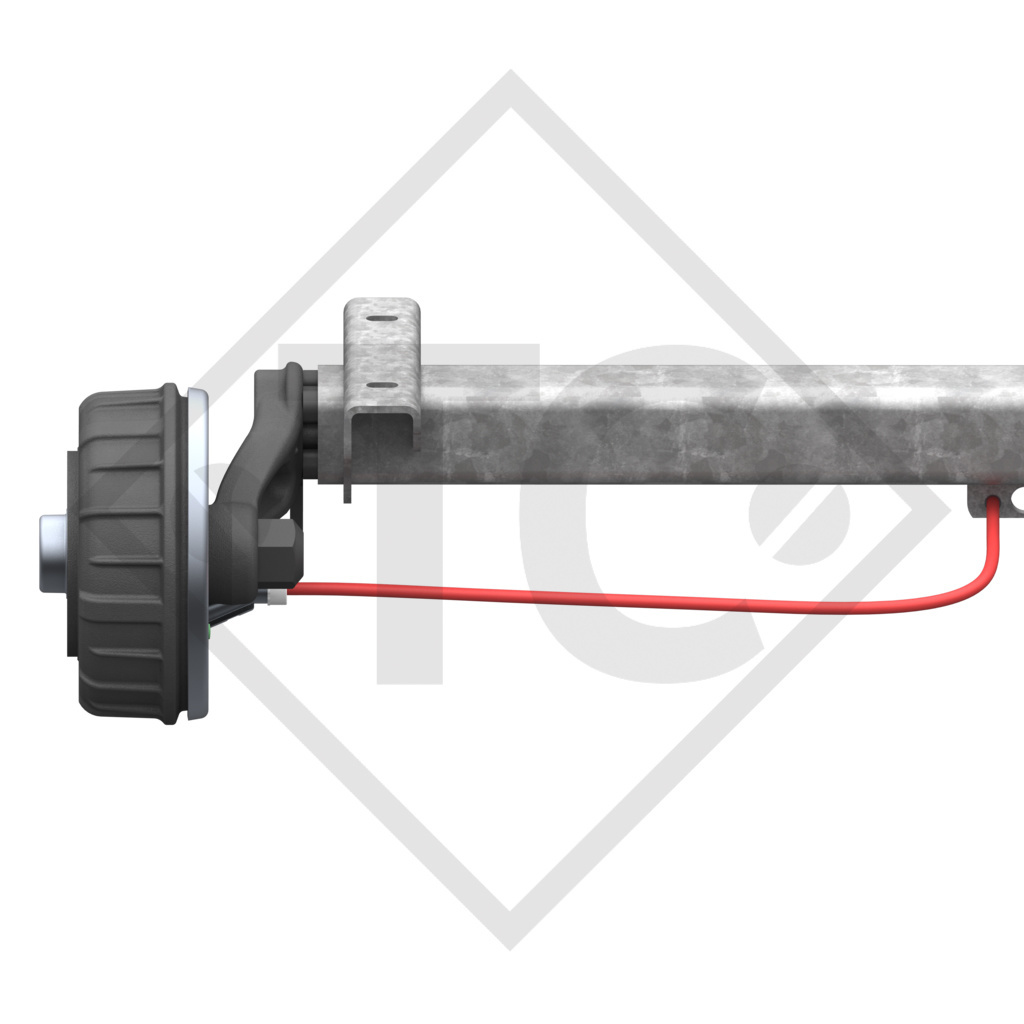

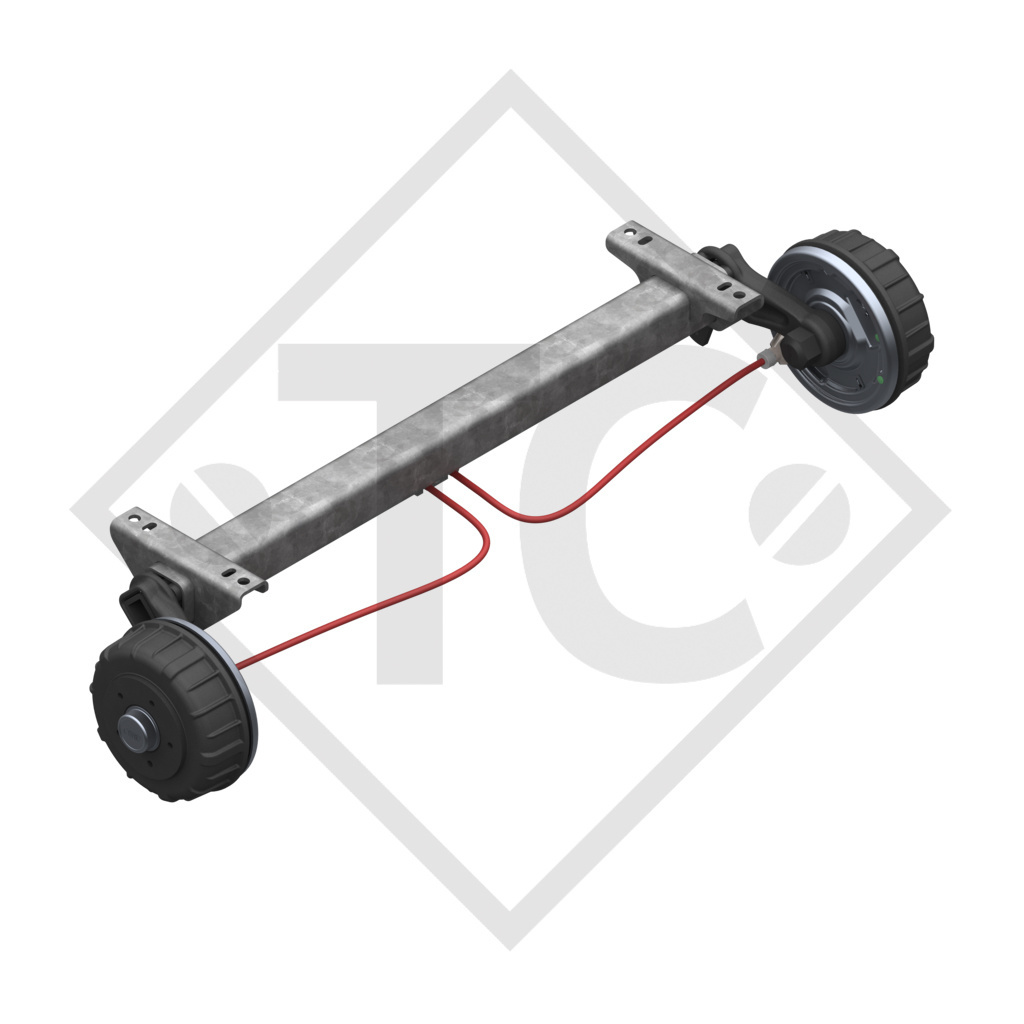

Home / CHASSIS PARTS / CHASSIS PARTS AL-KO / OVERRUN DEVICES / OVERRUN DEVICES SQUARE / OVERRUN DEVICE SQUARE, WITH DRAWBAR SECTION, SIDEWAYS SWIVELLING / SQUARE OVERRUN DEVICE, WITH SIDEWAYS SWIVELLING DRAWBAR SECTION TYPE 2,8 VB/1-C - K35-S TO 3500KG WITHOUT HITCH COMPONENT / Braked axle 1800kg BASIC axle type CB1800

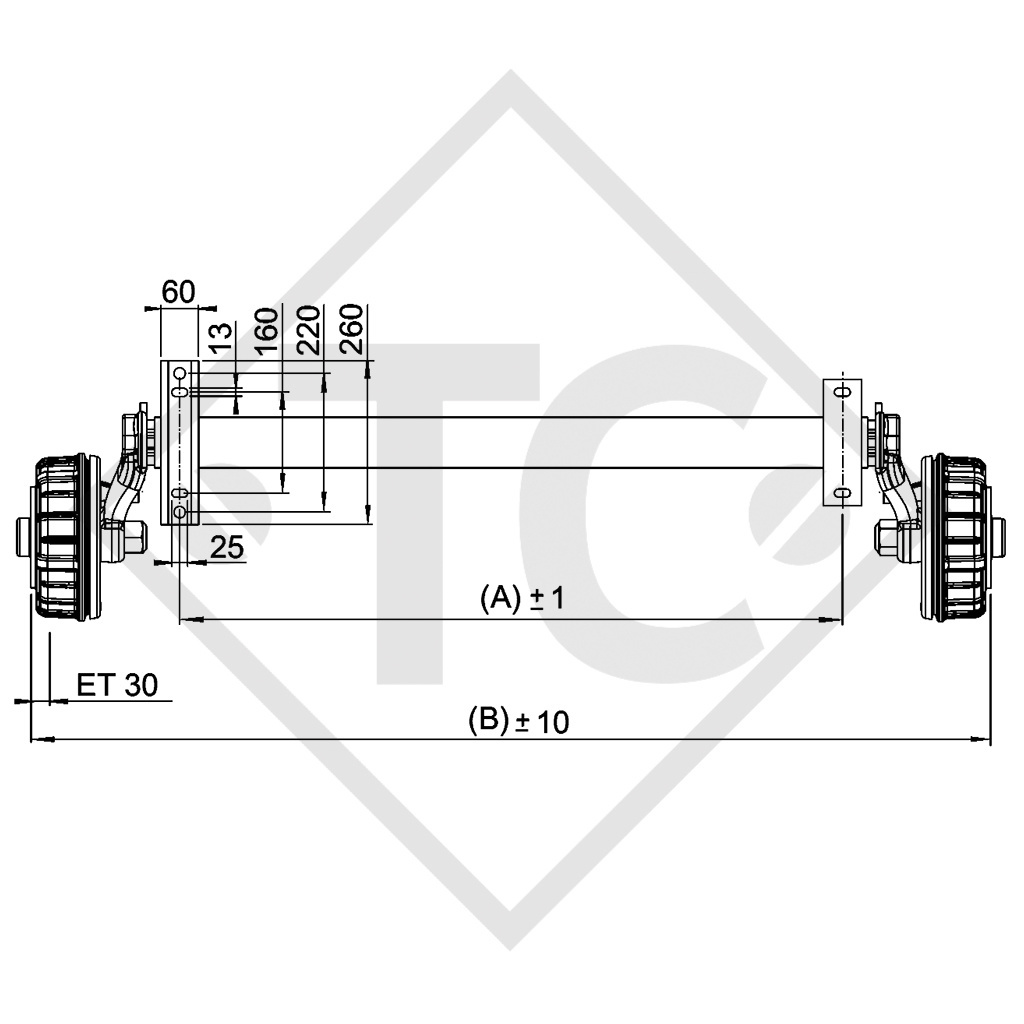

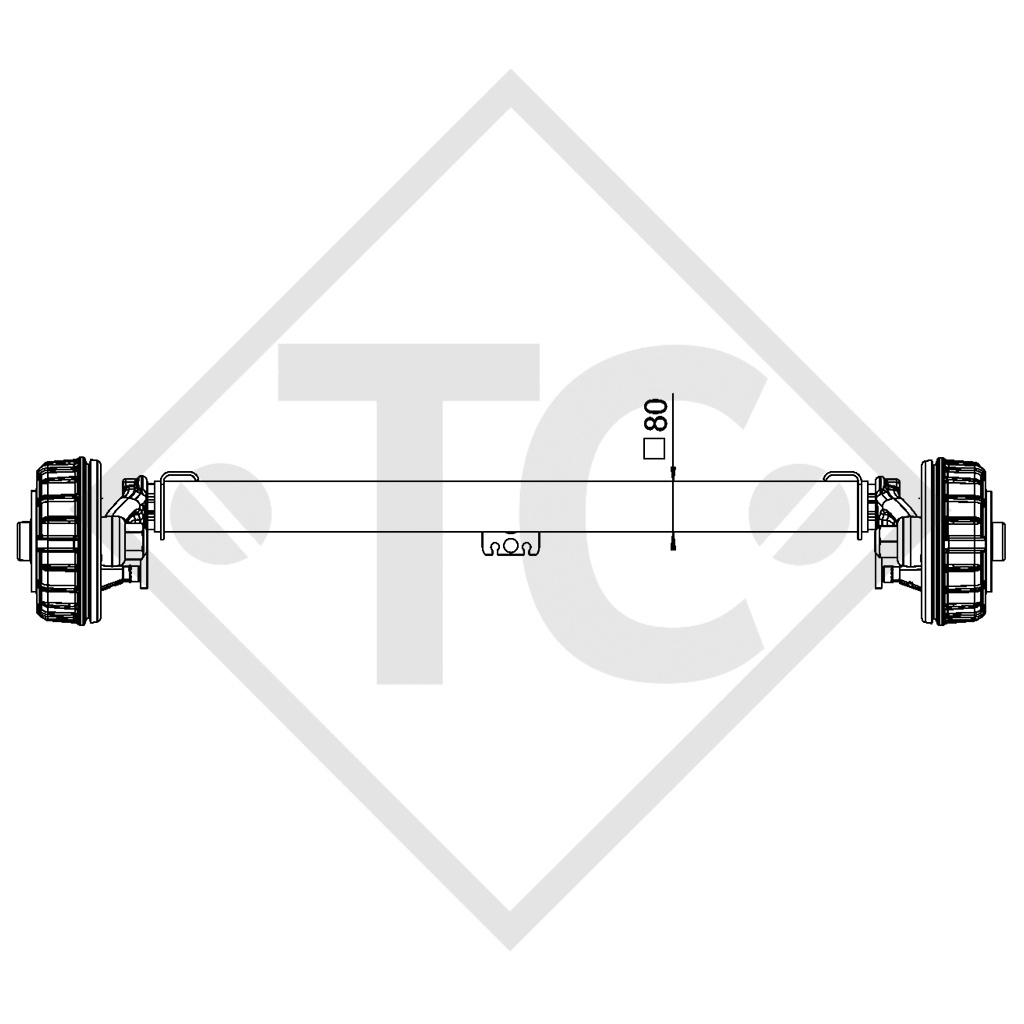

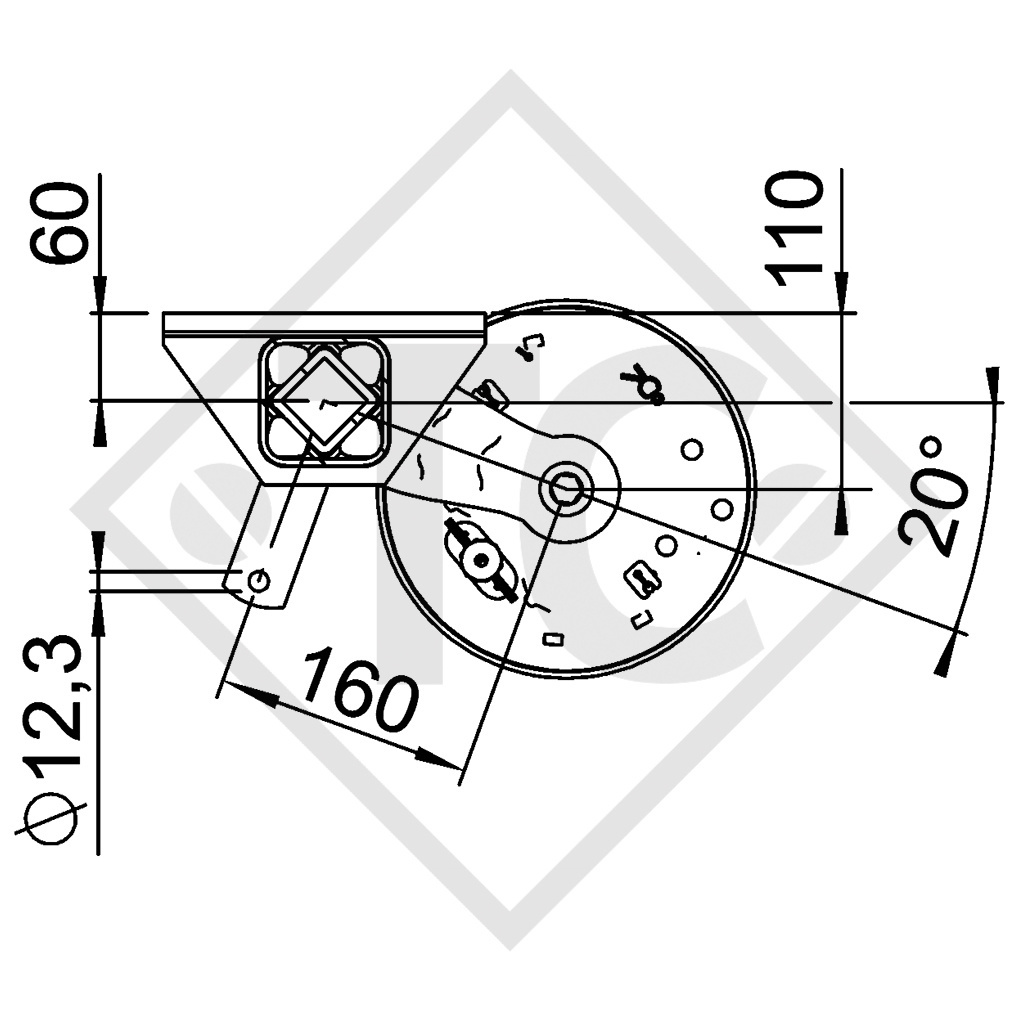

BC: dimension A 1900mm, OHF: dimension B 2390mm, wheel connection 112x5, wheel brake type 2361, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5. Read more...
Part no. 4023596
| BC (A) |
1900mm |
| OHF (B) |
2390mm |
| Model | BASIC |
| Axle type |
CB1800 |
| Axle load single axle | 1800kg |
| Axle load: Tandem axel | 3500kg |
| Wheel brake | 2361 |
| Suspension | Square rubber suspension |
| Swing arm |
160mm |
| Wheel connection |
112x5 |
| Wheel bearing |
Compact bearings |
| Centre hole rim |
min. 63mm |
Replacement part identification number (ETI) 811CB1800
SCOPE OF DELIVERY
Single axle adapter bracket welded on
Welded-on shock absorber brackets
Compensation profile for single axle supplied
Bowden cables loose
Wheel bolts loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
Axle link cataphoretically coated
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
