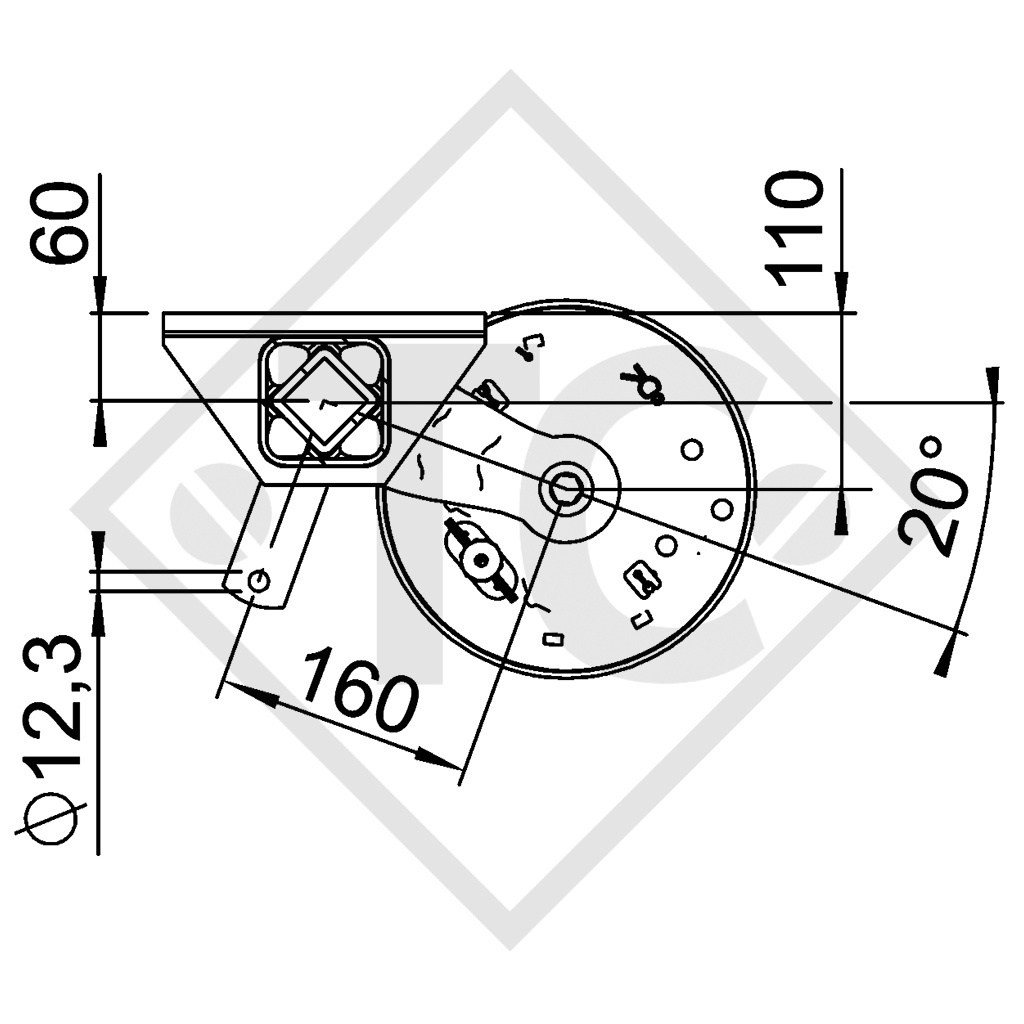

BC: dimension A 1500mm, OHF: dimension B 1990mm, wheel connection 112x5, wheel brake type 2361, offset (ET) 30mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:

Part no. 4023592

BC (A)
1500mm
OHF (B)
1990mm
Model BASIC
Axle type
CB1800
Axle load single axle 1800kg
Axle load: Tandem axel 3500kg
Wheel brake 2361
Suspension Square rubber suspension
Swing arm
160mm
Wheel connection
112x5
Wheel bearing
Compact bearings
Centre hole rim
min. 63mm



Replacement part identification number (ETI) 811CB1800

SCOPE OF DELIVERY
Single axle adapter bracket welded on
Welded-on shock absorber brackets
Compensation profile for single axle supplied
Bowden cables loose
Wheel bolts loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
Axle link cataphoretically coated
