BC: dimension AM 1150mm, OHF: dimension FM 1656mm, wheel connection 112x5, disk brake type WS 284, offset (ET) 35mm, ball-head wheel bolts M12x1.5. Read more...
| Part no. | WAPWAG180BS004 |
| Dimension AM |
1150mm |
| Dimension FM |
1656mm |
| Wheel connection | 112x5 |
Spare part list for wheel brake WS 284
Bowden cables
TECHNOLOGY
Model: WAG-B
Axle type: WAG 180 BS
Axle load: 1800kg
Suspension: Square rubber suspension

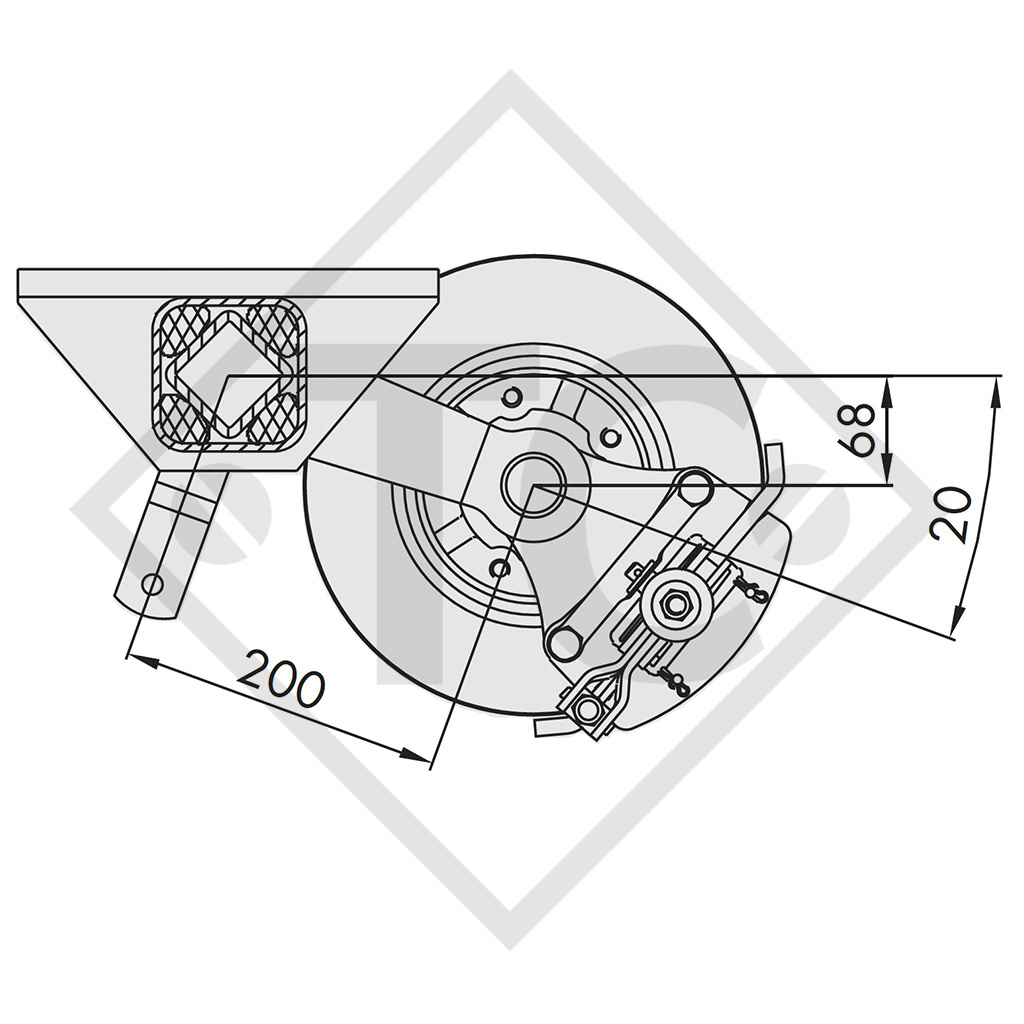

Swing arm length: 200mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle with wheel brake
Ball-head wheel bolts M12x1.5 loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
