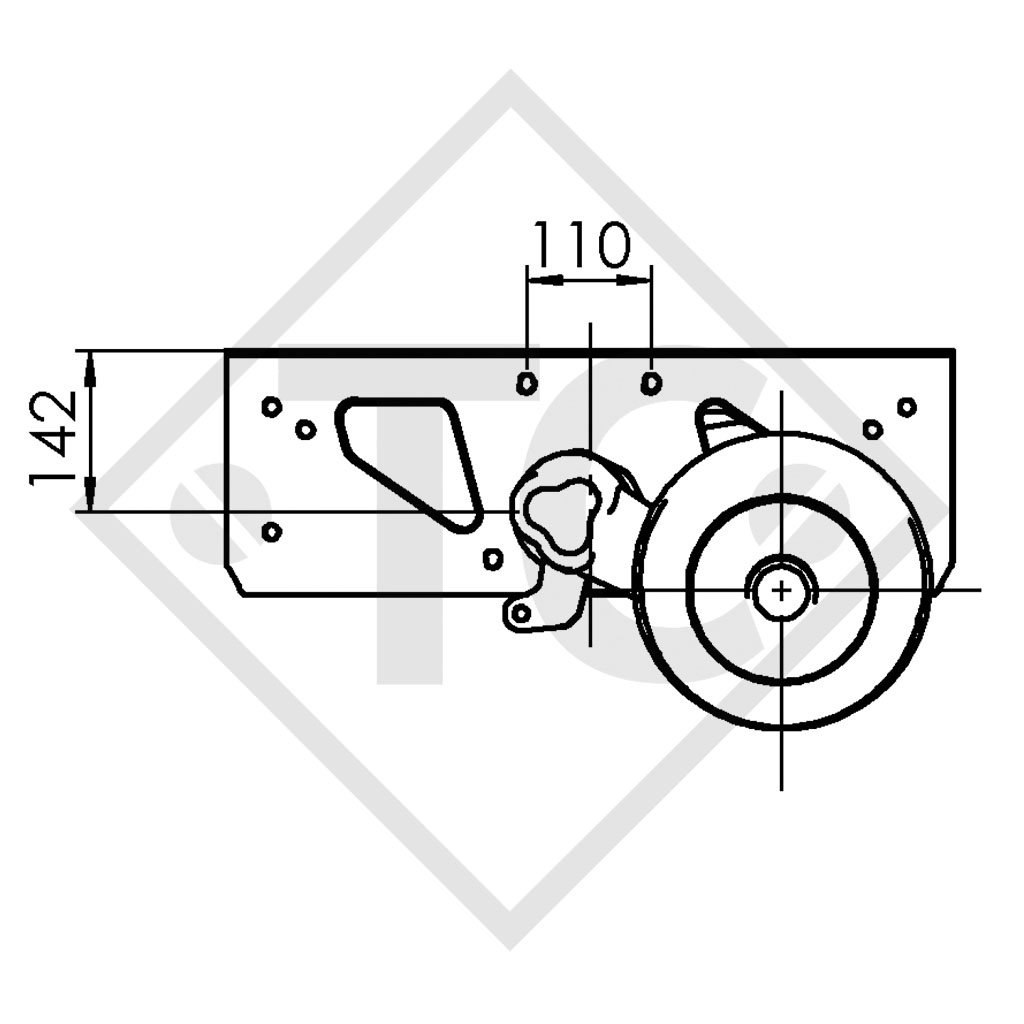

Home / Braked axle 1700kg EURO1 axle type DELTA SIN 14-3, ADRIA ALTEA 542 PK
BC: dimension A 1550mm, OHF: dimension C 2038mm, wheel connection 112x5, wheel brake type 2361, offset (ET) 30mm, swing arm position 0°, axle profile 97mm, ball-wheel bolts M12x1,5. Read more...
Part no. 1425512 (1528755)
BC: dimension A 1550mm
OHF: dimension C 2038mm
Wheel connection 112x5
Offset (ET) 30mm
Swing arm position
Axle profile 97mm
Original operating instructions
Replacement part identification number (ETI) 811136
TECHNOLOGY
Model: EURO1
Axle type: DELTA SIN 14-3
Axle load: Single axle 1700kg
Axle load: Tandem axle 3400kg
Wheel brake: 2361
Suspension: Hexagonal rubber suspension
Swing arm length:
Wheel bearing: Compact bearing
Rim centre hole: Min. 63mm
SCOPE OF DELIVERY
Axle with brake
Tandem axle adapter bracket welded on
Bowden cables and wheel bolts loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
