AL-KO Braked axle 1700kg EURO1 axle type DELTA SIN 14-3, FENDT 560

Part no. 1226407  (1521097)

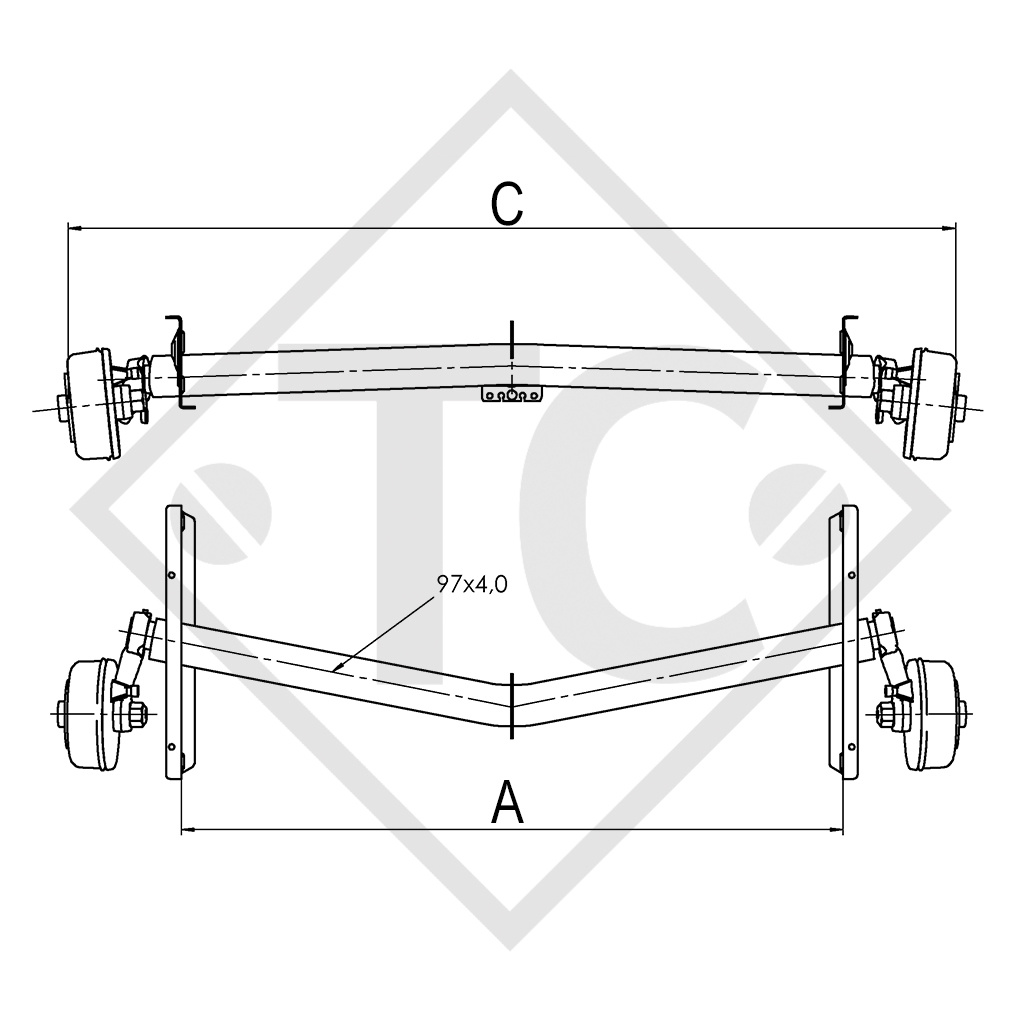

BC: dimension A 1770mm
OHF: dimension C 2280mm
Wheel connection 112x5
Offset (ET) 30mm
Swing arm position 0°
Axle profile 97mm

Original operating instructions
Replacement part identification number (ETI) 811136

TECHNOLOGY
Model: EURO1
Axle type: DELTA SIN 14-3
Axle load: Single axle 1700kg
Axle load: Tandem axle 3500kg
Wheel brake: 2361
Suspension: Hexagonal rubber suspension
Swing arm length: 185mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 63mm

SCOPE OF DELIVERY
Axle with brake

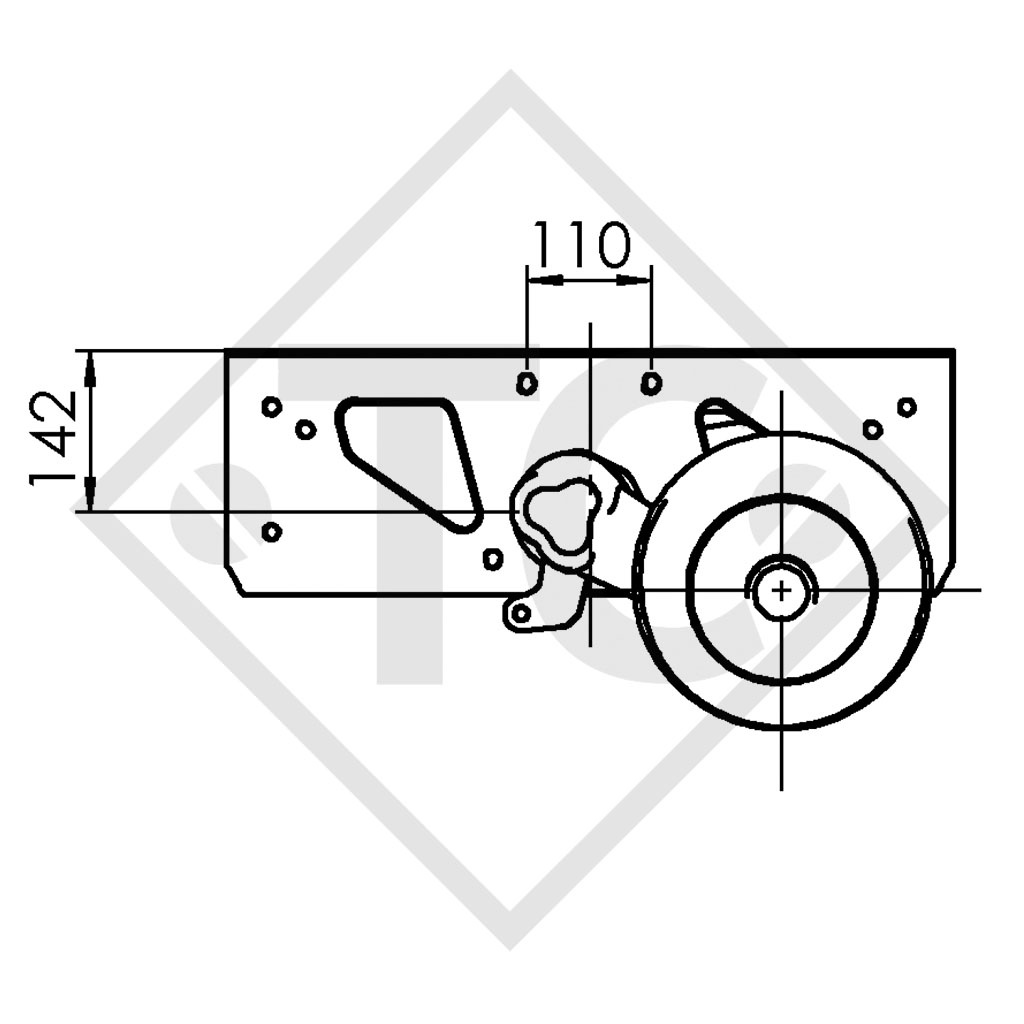

Tandem axle adapter bracket welded on
Bowden cables and wheel bolts loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

ACCESSORIES (not included in scope of delivery)
Shock absorber
