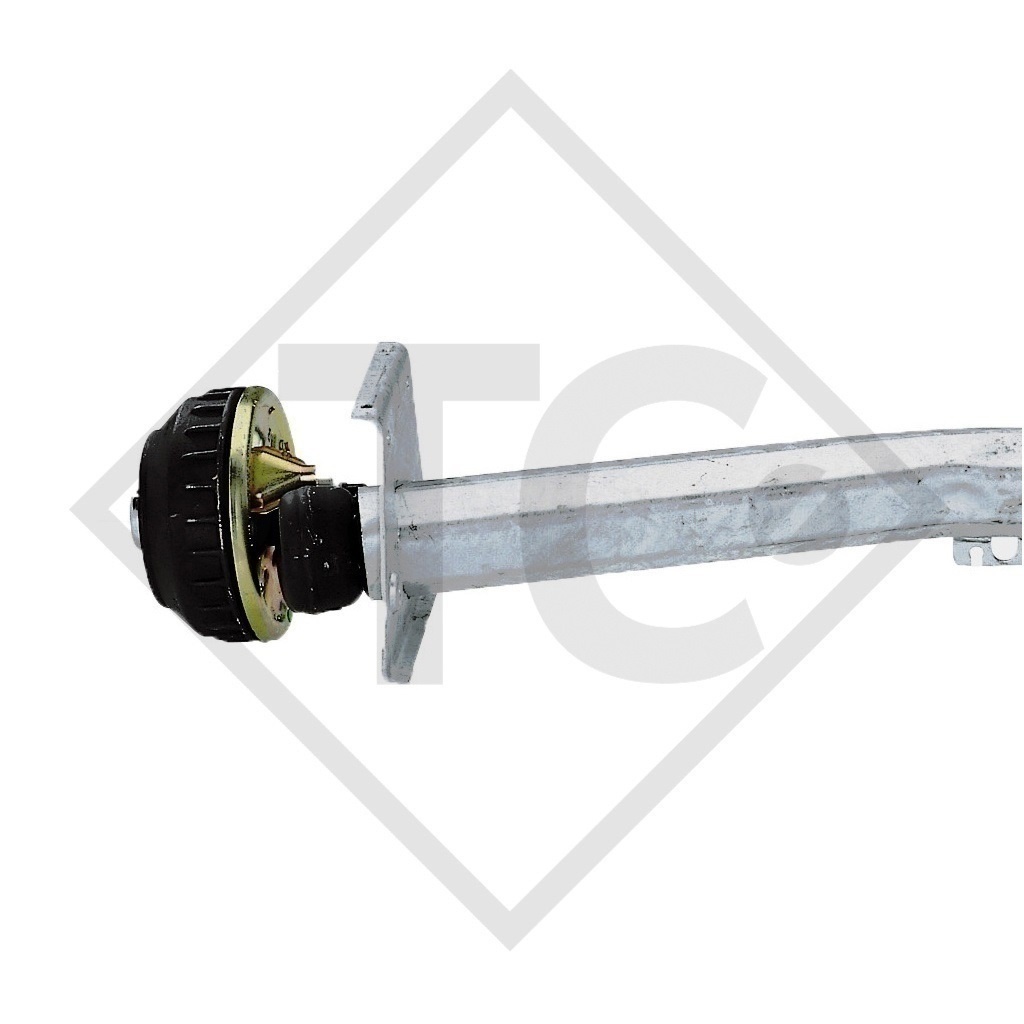

AL-KO Braked axle 1700kg EURO 1 axle type DELTA SIN 14-3 - Dethleffs E-2007/46

Part no. 1226032 (1520616)

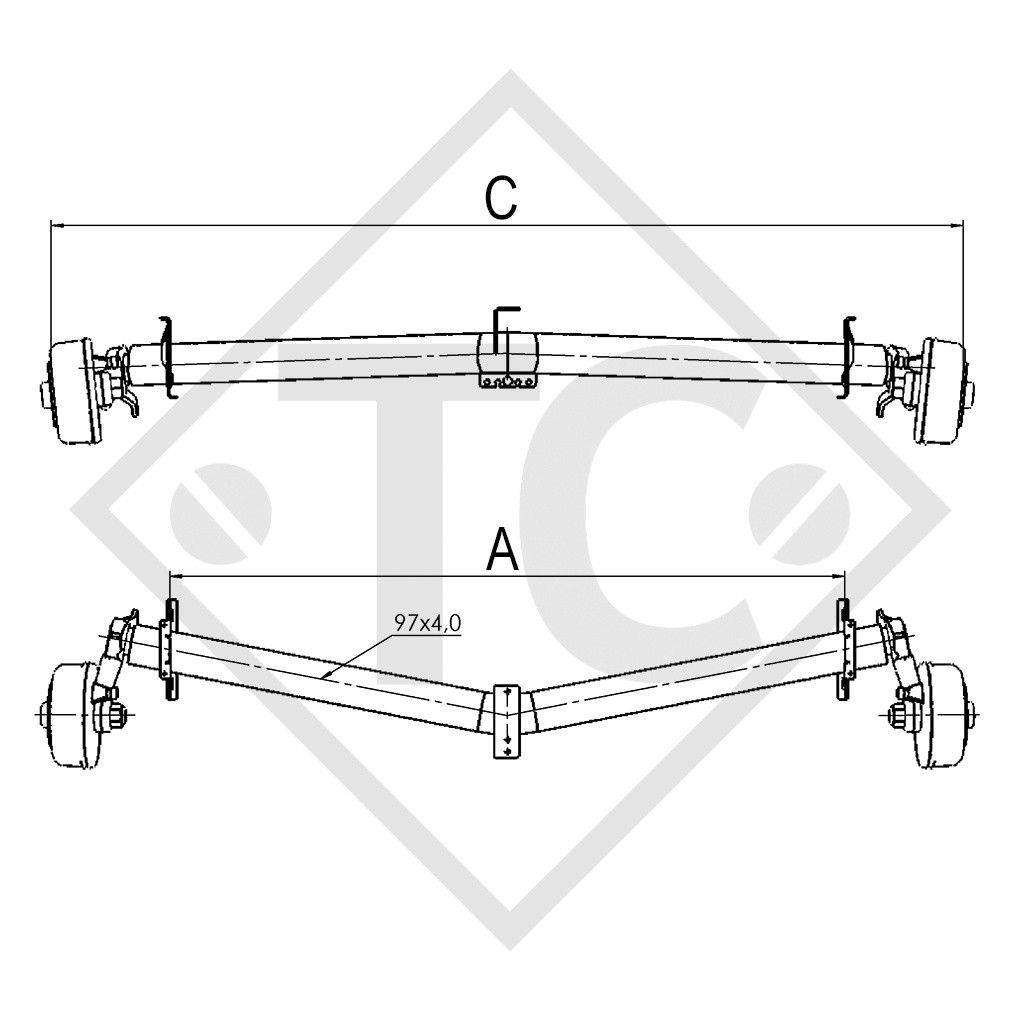

BC: dimension A 1480mm
OHF: dimension C 2070mm
Wheel connection 112x5
Offset (ET) 30mm

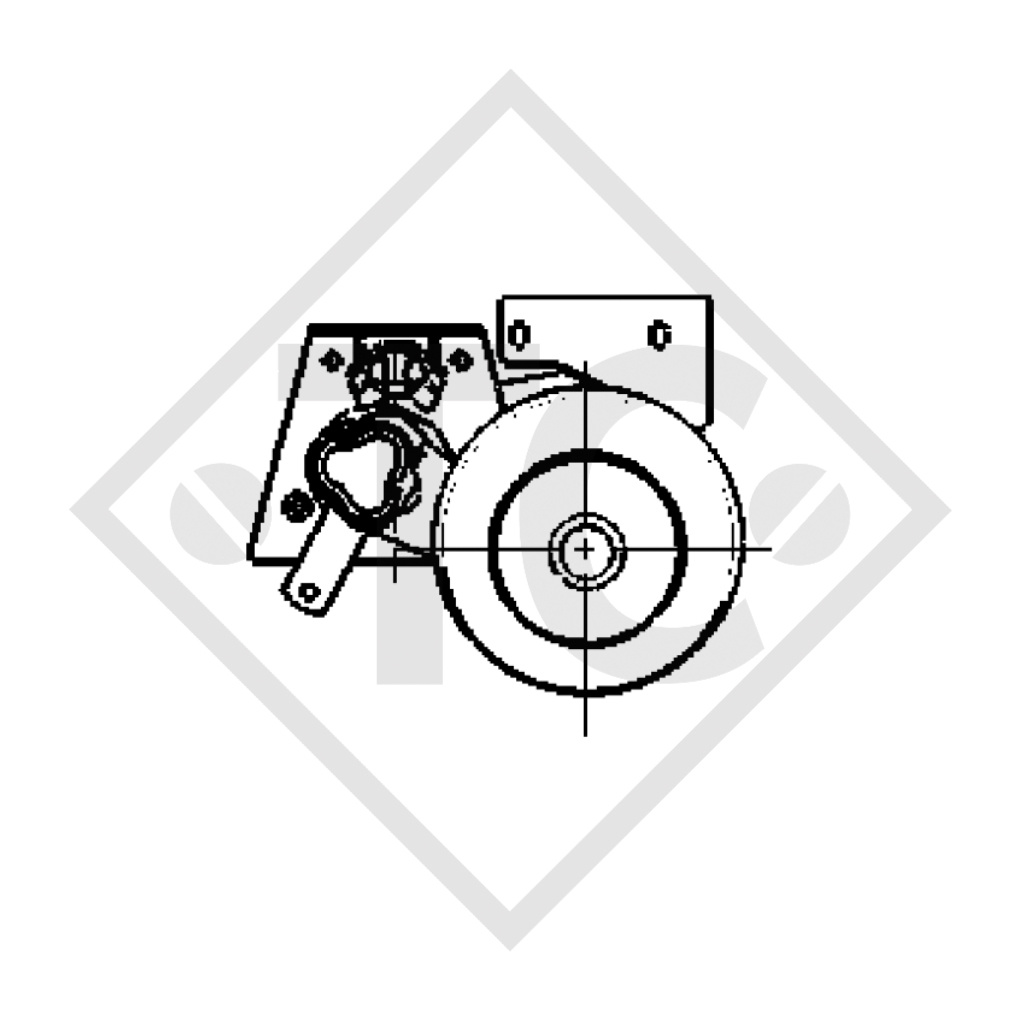

Swing arm position 15°
Axle profile 97mm

Original operating instructions
Replacement part identification number (ETI) 811136

TECHNOLOGY
Model: EURO1
Axle type: DELTA SIN 14-3
Axle load: Single axle 1700kg
Axle load: Tandem axle 3400kg
Wheel brake: 2361
Suspension: Hexagonal rubber suspension
Swing arm length: 185mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 63mm

SCOPE OF DELIVERY
Axle
Single axle adapter bracket welded on
Compensation profile for single axle supplied
Bowden cables loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

ACCESSORIES (not included in scope of delivery)

wheel bolts
Shock absorber
