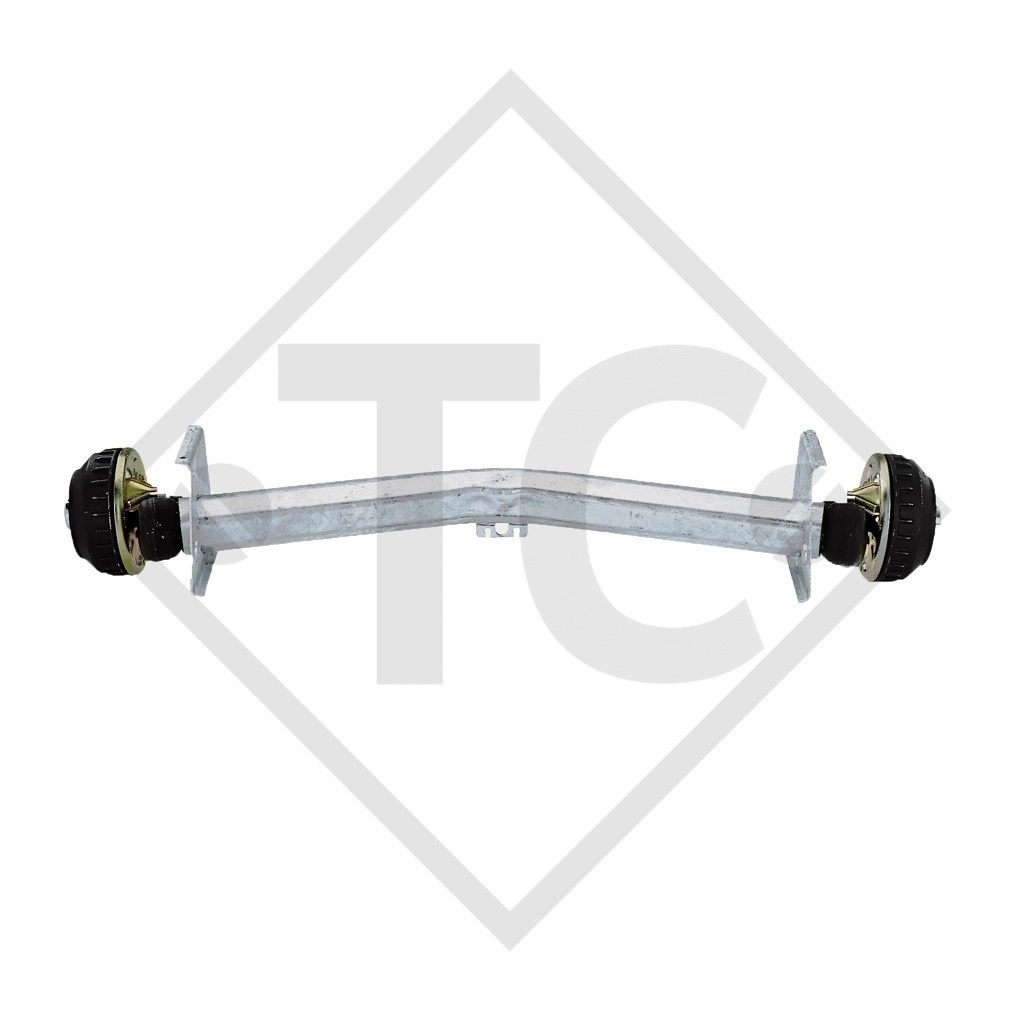

Home / Braked axle 1700kg EURO1 axle type DELTA SIN 14-3 with AAA (automatic adjustment of the brake pads), FENDT 515
BC: dimension A 1570mm, OHF: dimension C 2080mm, wheel connection 112x5, wheel brake type 2361 with AAA, offset (ET) 30mm, swing arm position 15°, axle profile 97mm. Read more...
Part no. 1424101 (1527643)

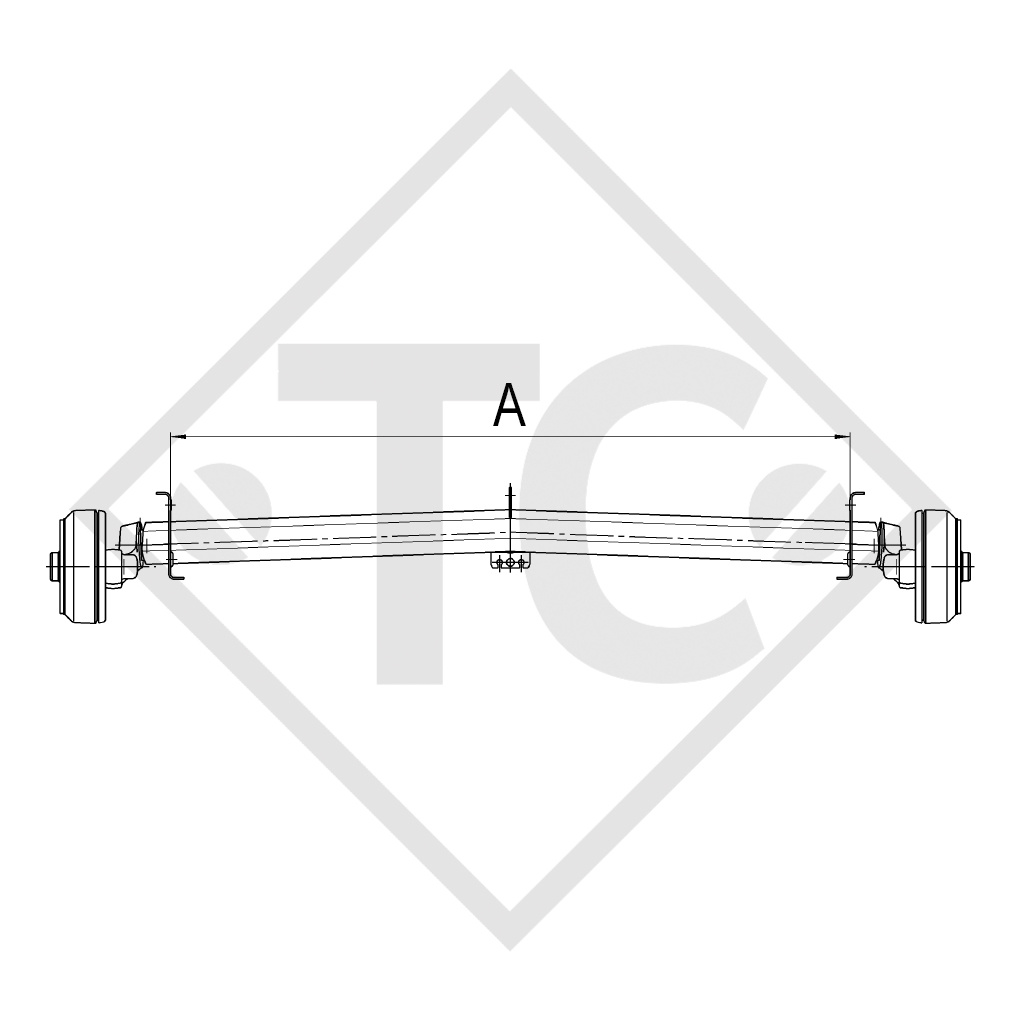

BC: dimension A 1570mm

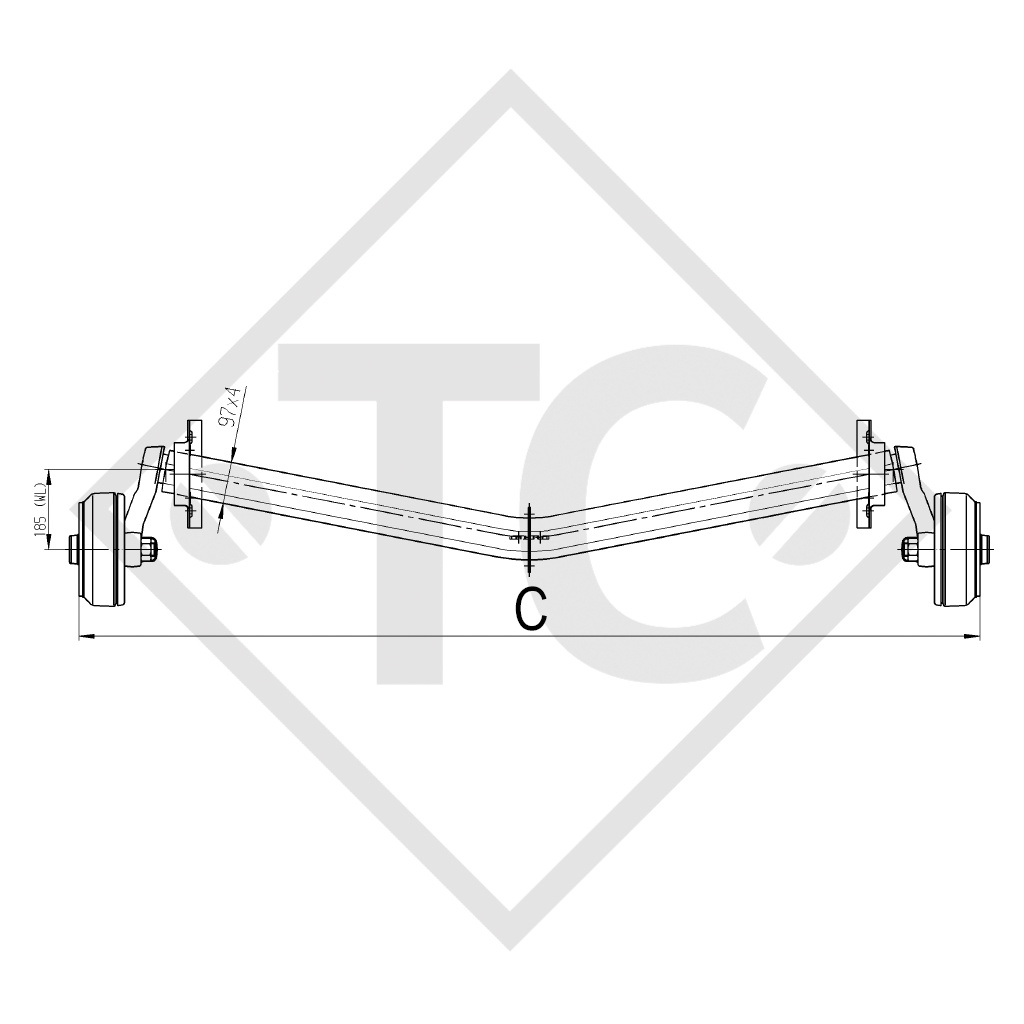

OHF: dimension C 2080mm
Wheel connection 112x5
Offset (ET) 30mm

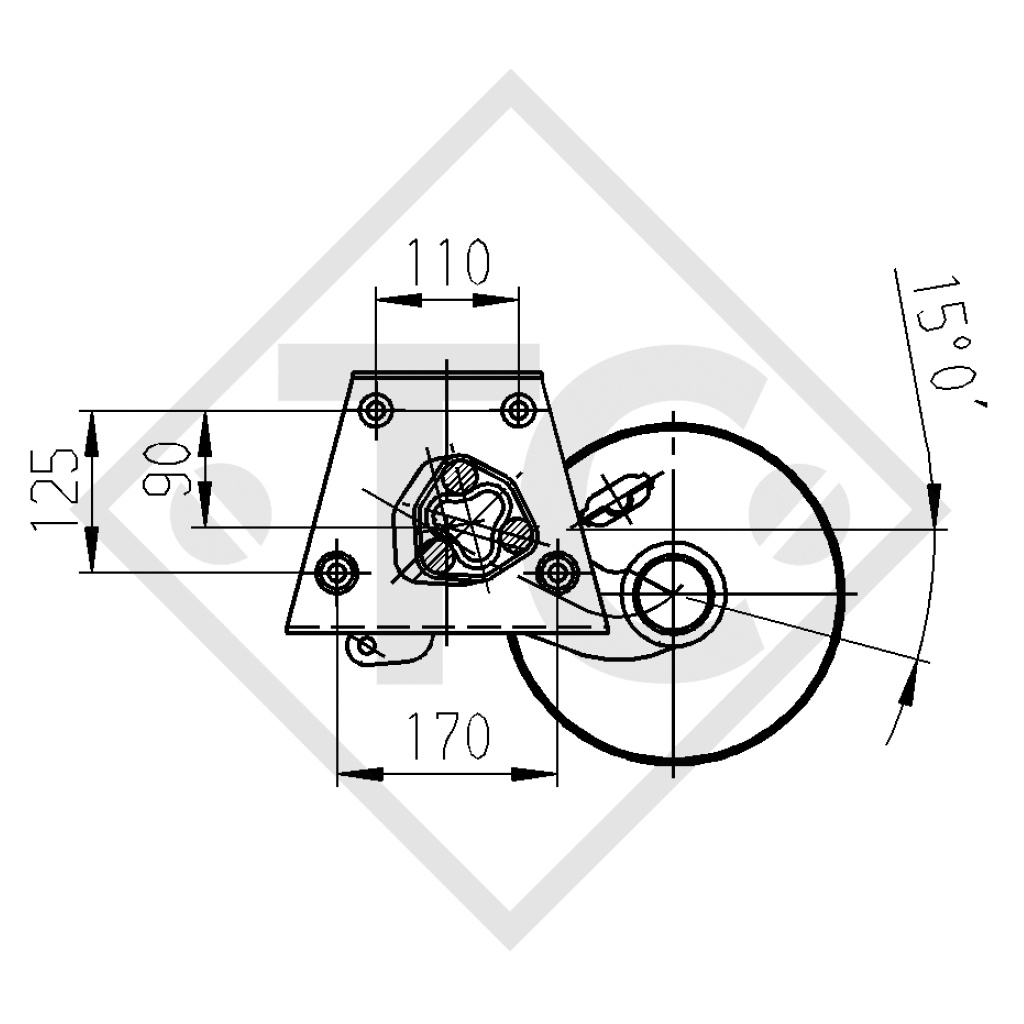

Swing arm position 15°
Axle profile 97mm
Original operating instructions
Replacement part identification number (ETI) 811731
TECHNOLOGY
Model: EURO1
Axle type: DELTA SIN 14-3
Axle load: Single axle 1700kg
Axle load: Tandem axle 3400kg

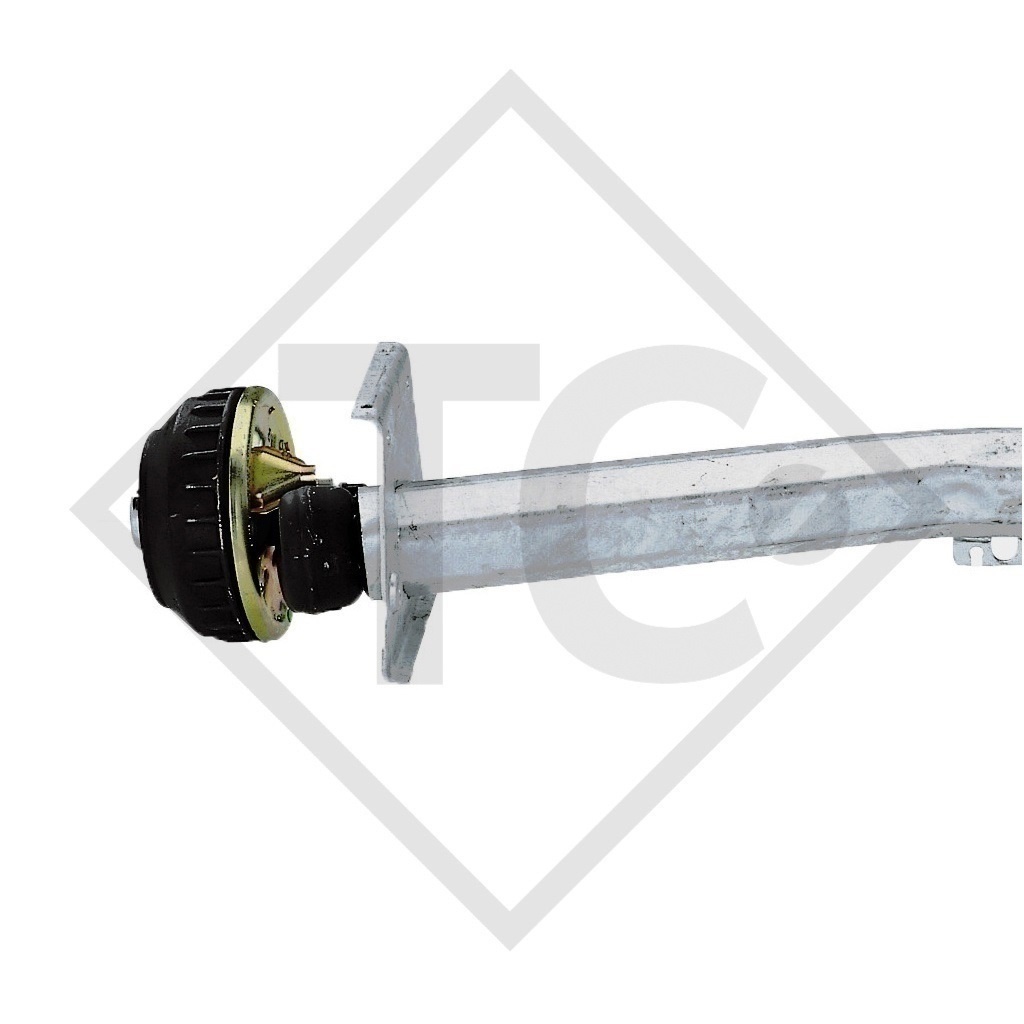

Wheel brake: 2361 with AAA (automatic adjustment of the brake pads)
Suspension: Hexagonal rubber suspension
Swing arm length: 185mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 63mm
SCOPE OF DELIVERY
Axle with brake
Single axle adapter bracket welded on
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
