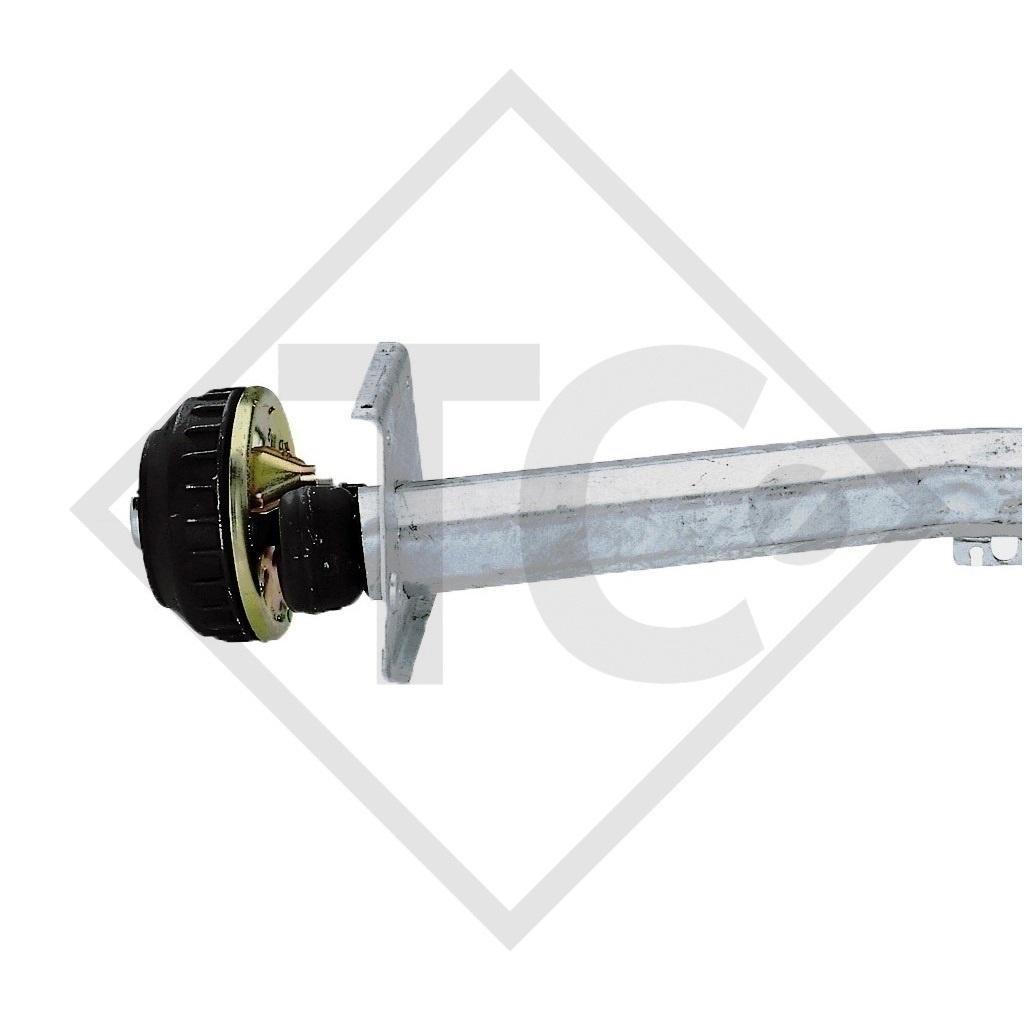

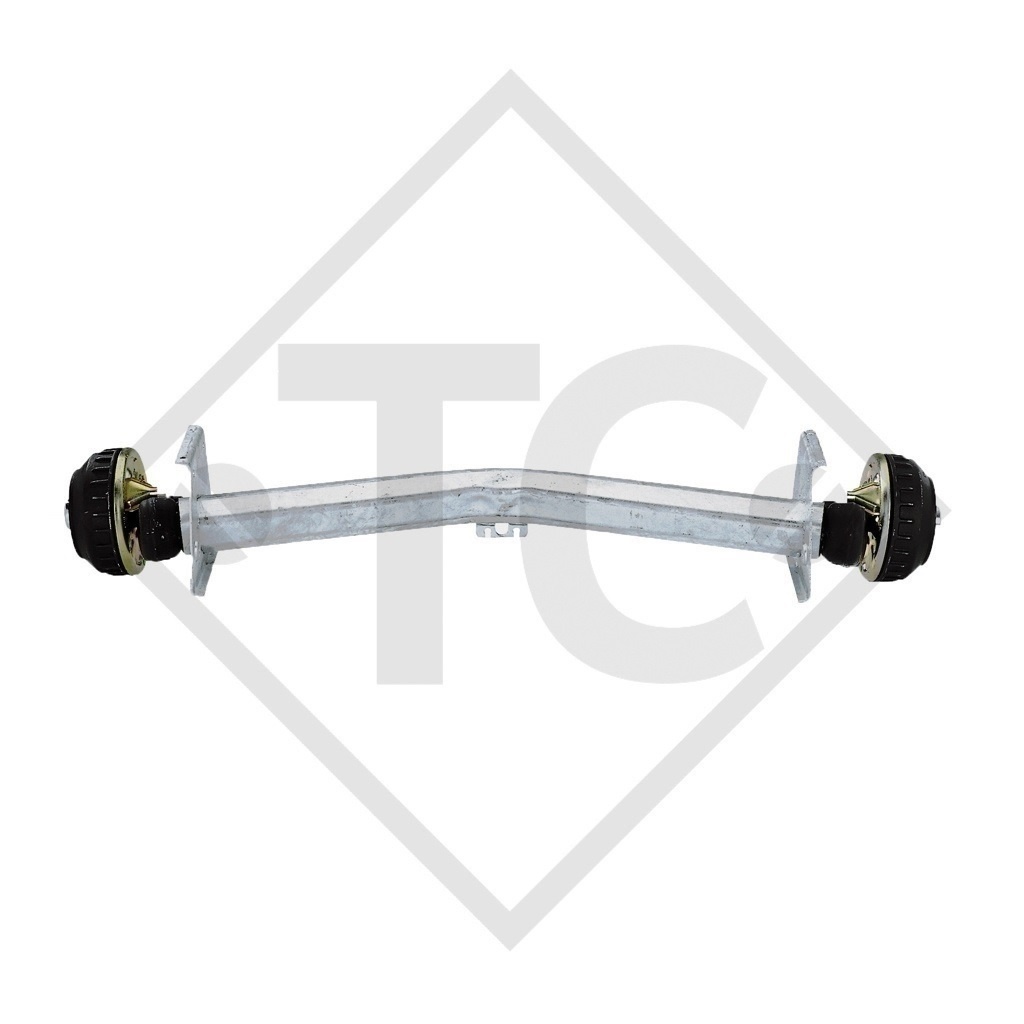

Home / Braked axle 1600kg EURO PLUS axle type DELTA SI-N 14-2 - Dethleffs camper
BC: dimension A 1680mm, OHF: dimension C 2270mm, wheel connection 112x5, wheel brake type 2361, offset (ET) 30mm, swing arm position 15°, axle profile 97mm, ball-head wheel bolts M12x1.5. Read more...
Part no. 1224234
BC: dimension A 1680mm
OHF: dimension C 2270mm
Wheel connection 112x5
Offset (ET) 30mm

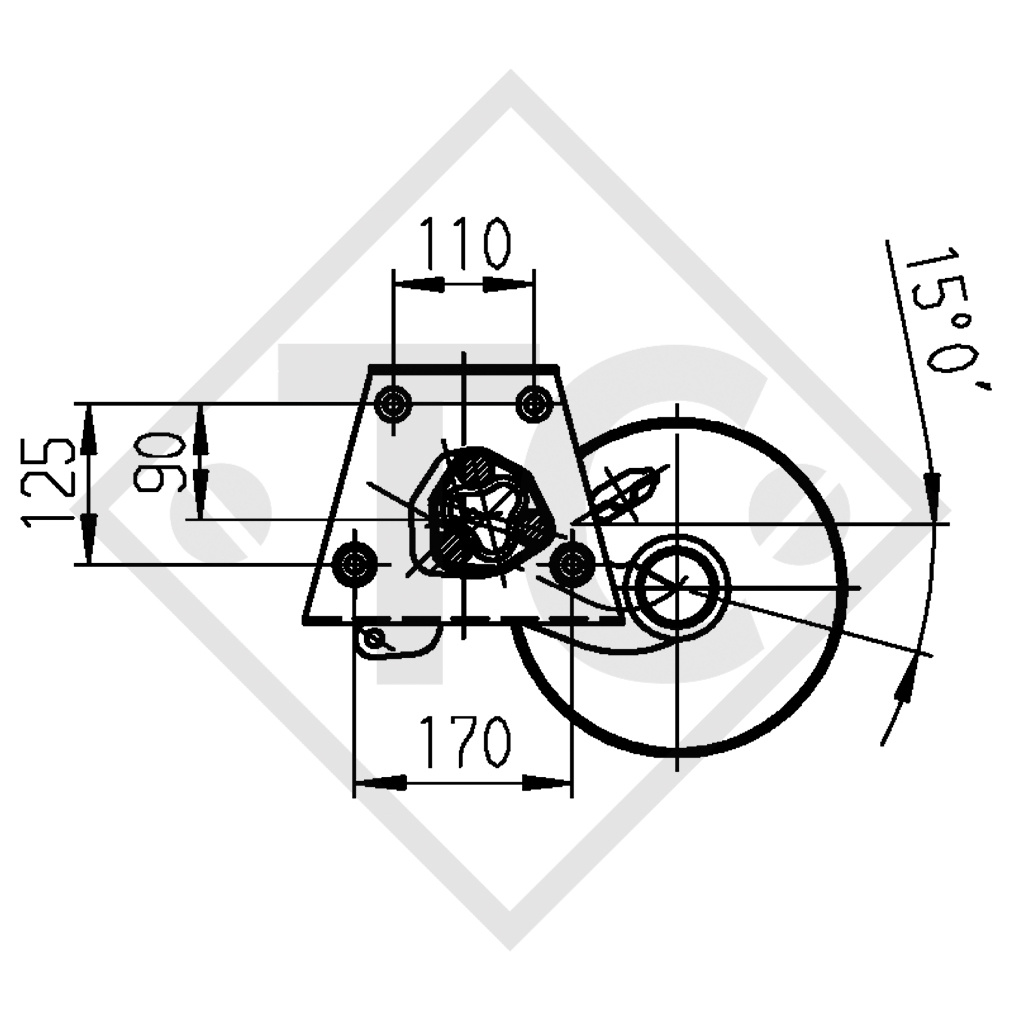

Swing arm position 15°
Axle profile 97mm
Original operating instructions
TECHNOLOGY
Model: EURO PLUS
Axle type: DELTA SIN 14-2
Axle load: Single axle 1600kg
Axle load: Tandem axle 3200kg
Wheel brake: 2361
Suspension: Hexagonal rubber suspension
Swing arm length: 185mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose
Tandem axle adapter bracket welded on
Compensation profile for single axle supplied
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
