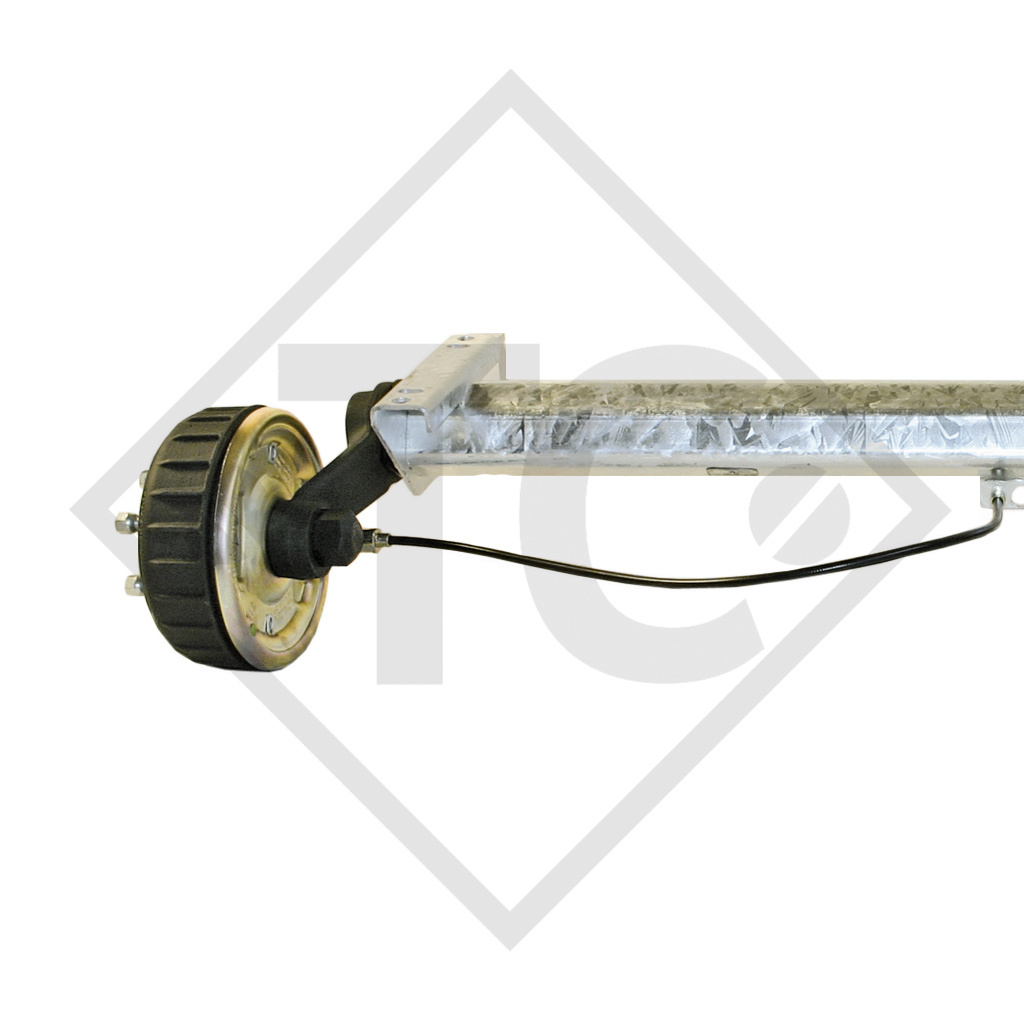

Home / Braked axle 1600kg EURO1 axle type B 1600-1 with top hat profile 130mm and AAA (automatic adjustment of the brake pads)
BC: dimension A 1580mm, OHF: dimension C 2050mm, wheel connection 112x5, wheel brake type 2361, offset (ET) 30mm, swing arm position 5°, axle profile 97mm, ball-head wheel bolts M12x1.5. Read more...
Part no. 20003001 (1322190)

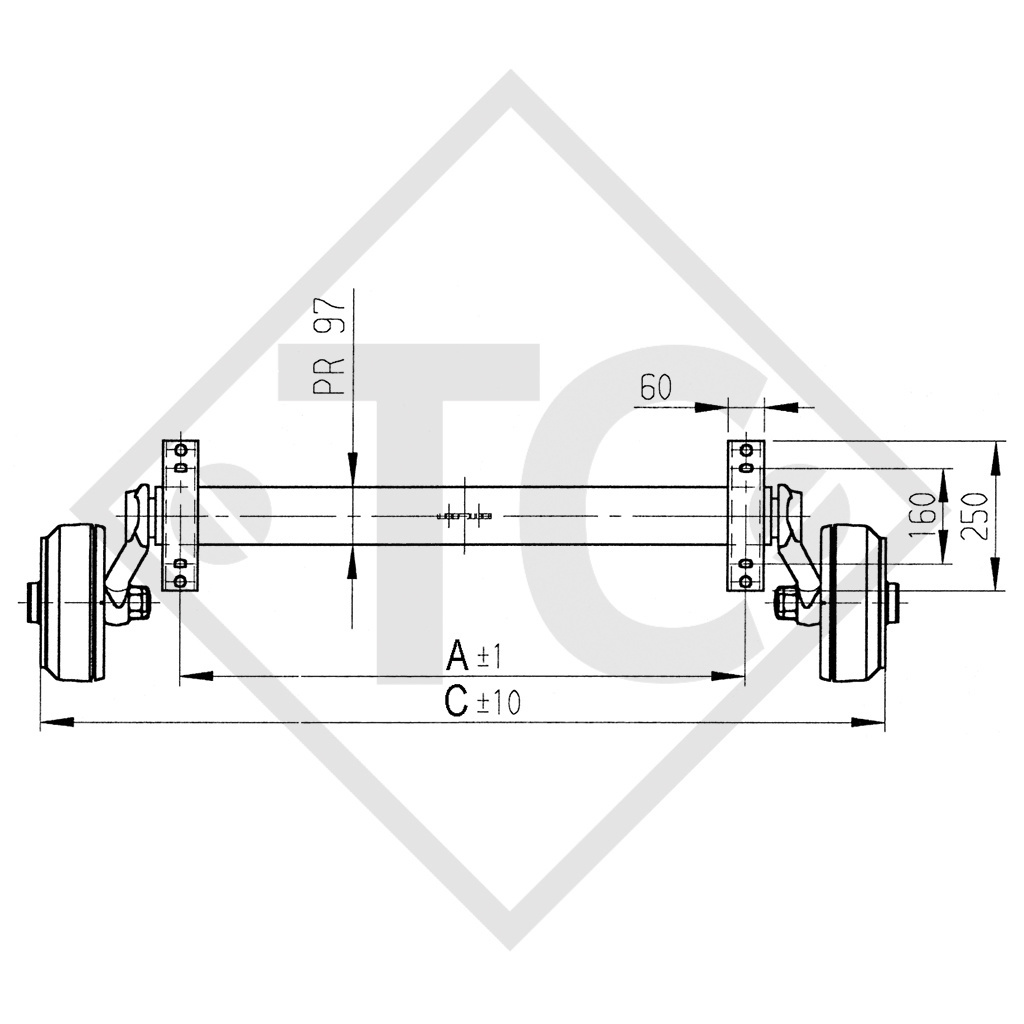

BC: dimension A 1580mm
OHF: dimension C 2050mm
Wheel connection 112x5

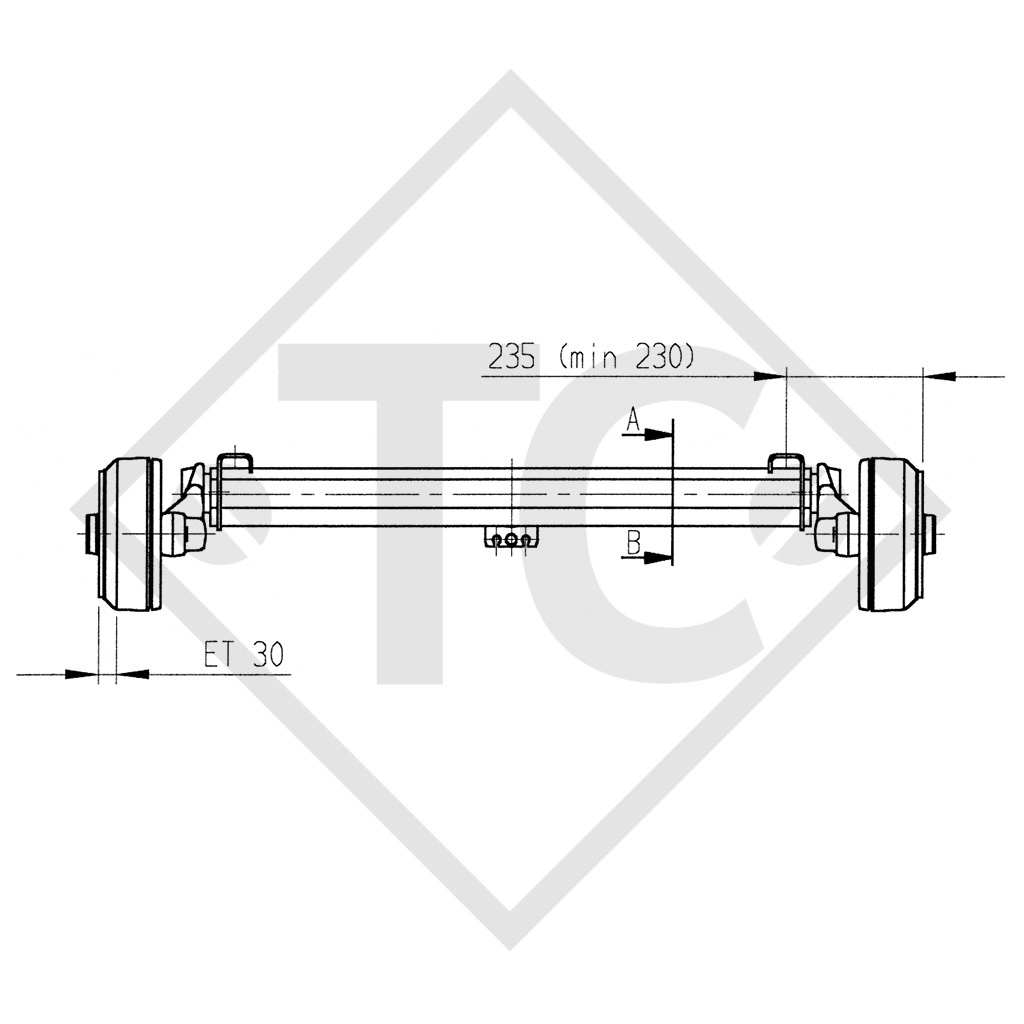

Offset (ET) 30mm

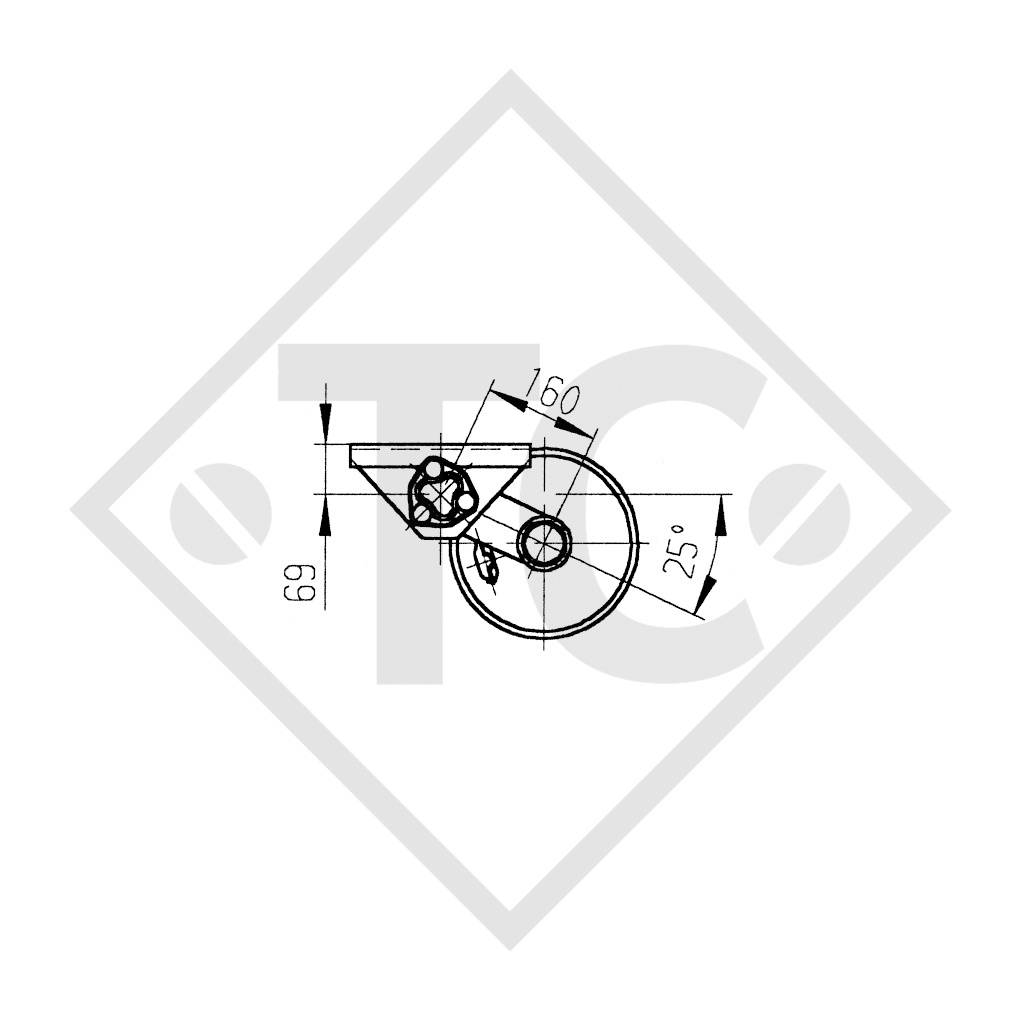

Swing arm position 5°
Axle profile 97mm
Original operating instructions
Replacement part identification number (ETI) 811136
TECHNOLOGY
Model: EURO1
Axle type: B 1600-1
Axle load: Single axle 1600kg
Axle load: Tandem axle 3200kg
Wheel brake: 2361 with AAA (automatic adjustment of the brake pads)
Suspension: Hexagonal rubber suspension
Swing arm length: 160mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 63mm
SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose
Single axle adapter bracket welded on
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
