Home / Braked axle 1300kg EURO1 axle type DELTA SIN 12 - TABBERT caravan

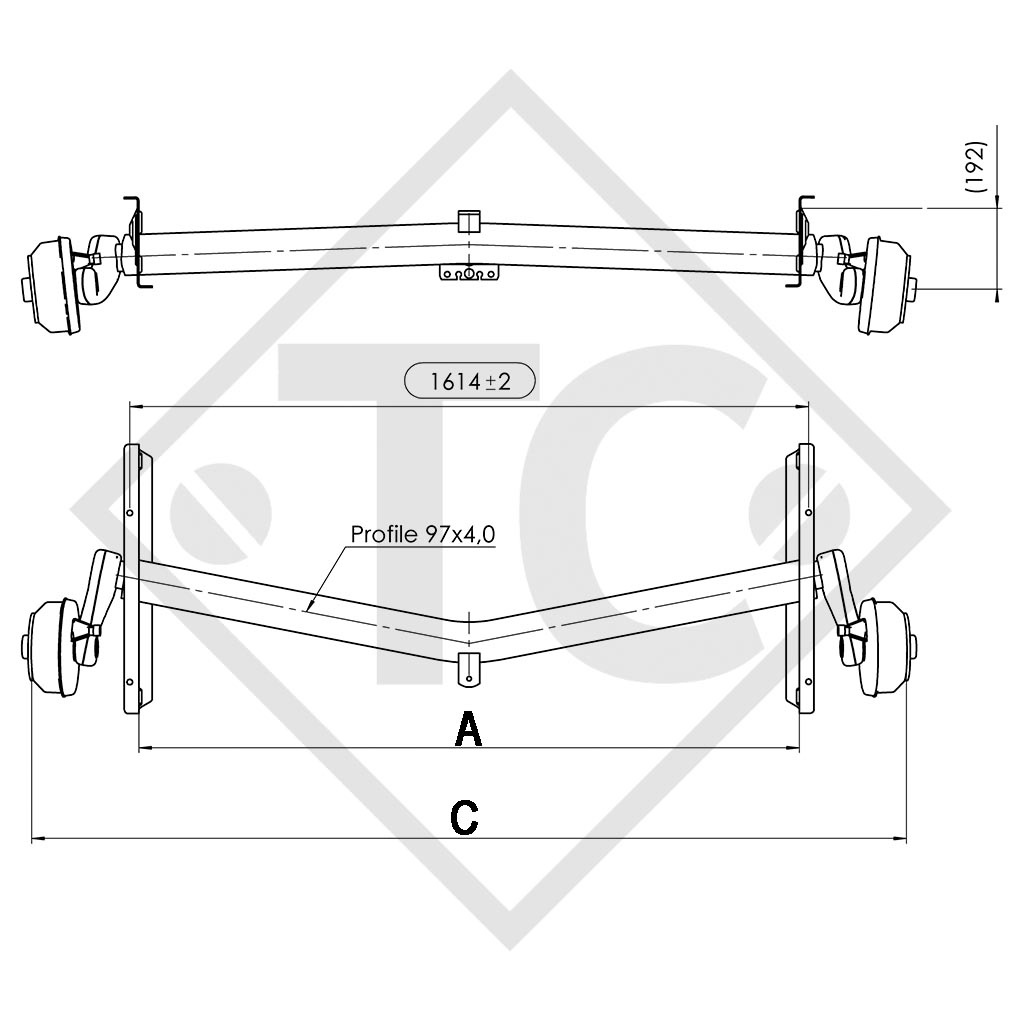

BC: dimension A 1580mm, OHF: dimension C 2090mm, wheel connection 112x5, wheel brake type 2051 vers. A, offset (ET) 30mm, swing arm position 16°, axle profile 97mm. Read more...
Part no. 1211446 (1320613)
BC: dimension A 1580mm
OHF: dimension C 2090mm
Wheel connection 112x5
Offset (ET) 30mm

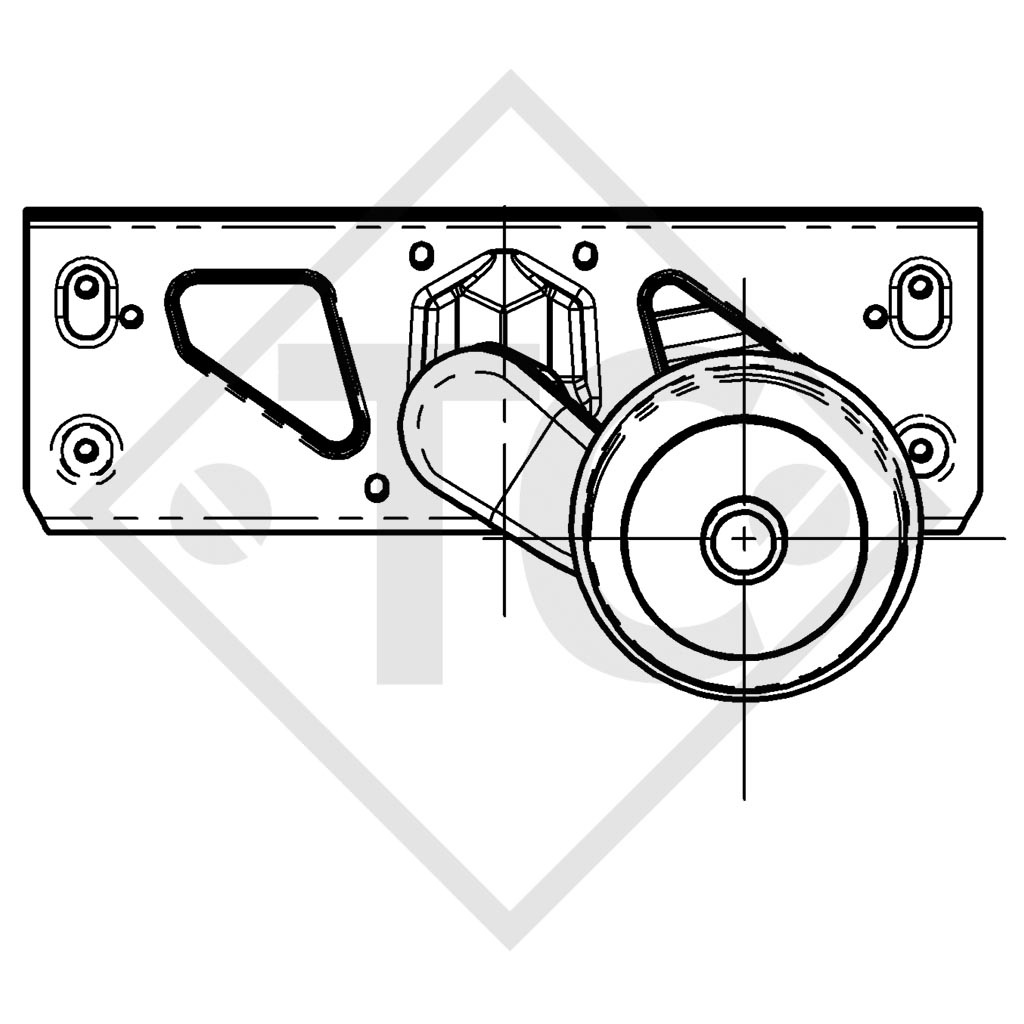

Swing arm position 16°
Axle profile 97mm
TECHNOLOGY
Model: EURO1
Axle type: DELTA SIN 12
Axle load: Single axle 1300kg
Axle load: Tandem axle 2600kg
Wheel brake: 2051 vers. A
Suspension: Hexagonal rubber suspension
Wheel bearing: Compact bearing
Rim centre hole: Min. 63mm
SCOPE OF DELIVERY
Axle with wheel brake and bowden cables
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
