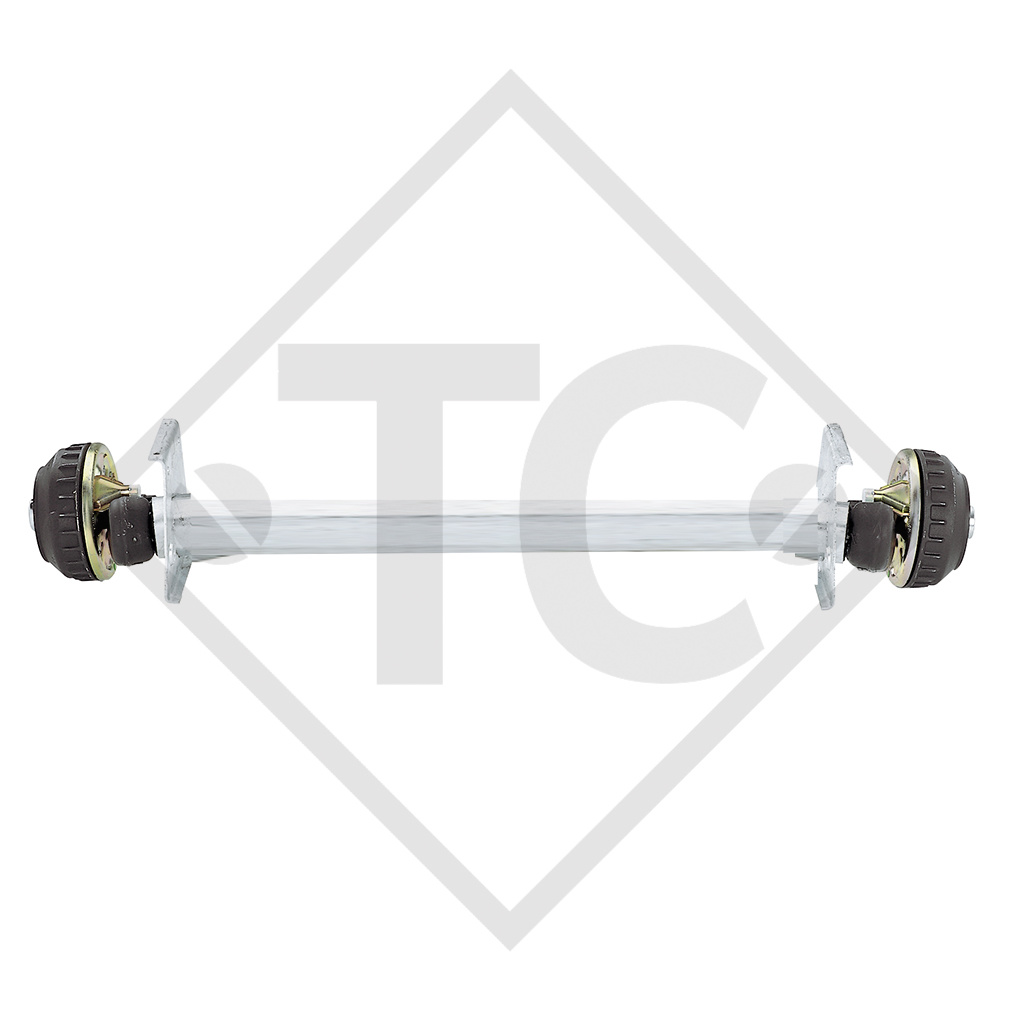

Home / Braked axle 1500kg EURO1 axle type B 1600-3, Hymer Eriba
BC: dimension A 1395mm, OHF: dimension C 1800mm, wheel connection 112x5, wheel brake type 2051 Ab, offset (ET) 30mm, swing arm position 5°, axle profile 97mm, ball-head wheel bolts M12x1.5. Read more...
Part no. 1523140

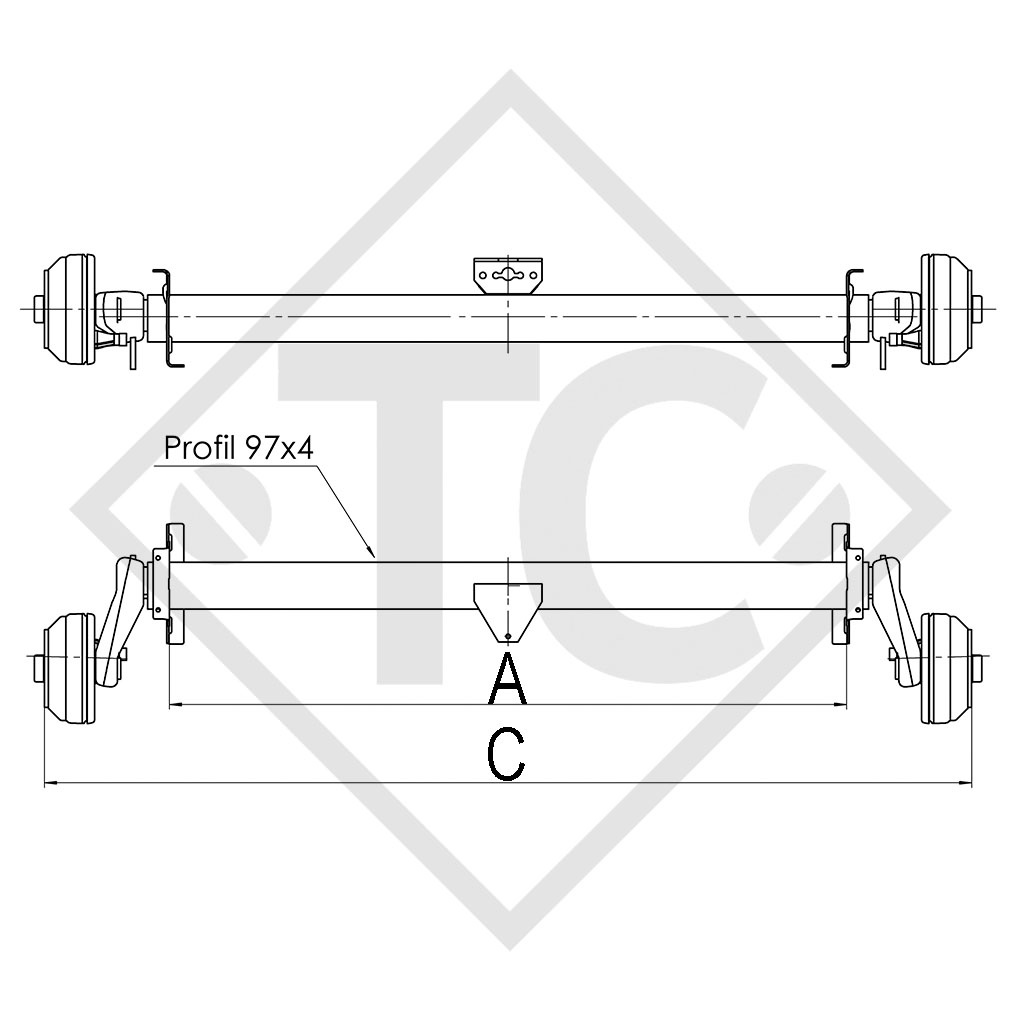

BC: dimension A 1395mm
OHF: dimension C 1910mm
Wheel connection 112x5
Offset (ET) 30mm
Swing arm position 25°
Axle profile 97mm
Original operating instructions
Replacement part identification number (ETI) 811268
TECHNOLOGY
Model: EURO1
Axle type: B 1600-3
Axle load: Single axle 1500kg
Axle load: Tandem axle 3000kg
Wheel brake: 2051 Ab
Suspension: Hexagonal rubber suspension
Swing arm length: 175mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle with wheel brake
Ball-head wheel bolts M12x1.5 loose
Single axle adapter bracket welded onto top hat profile
Compensation profile for single axle supplied
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
