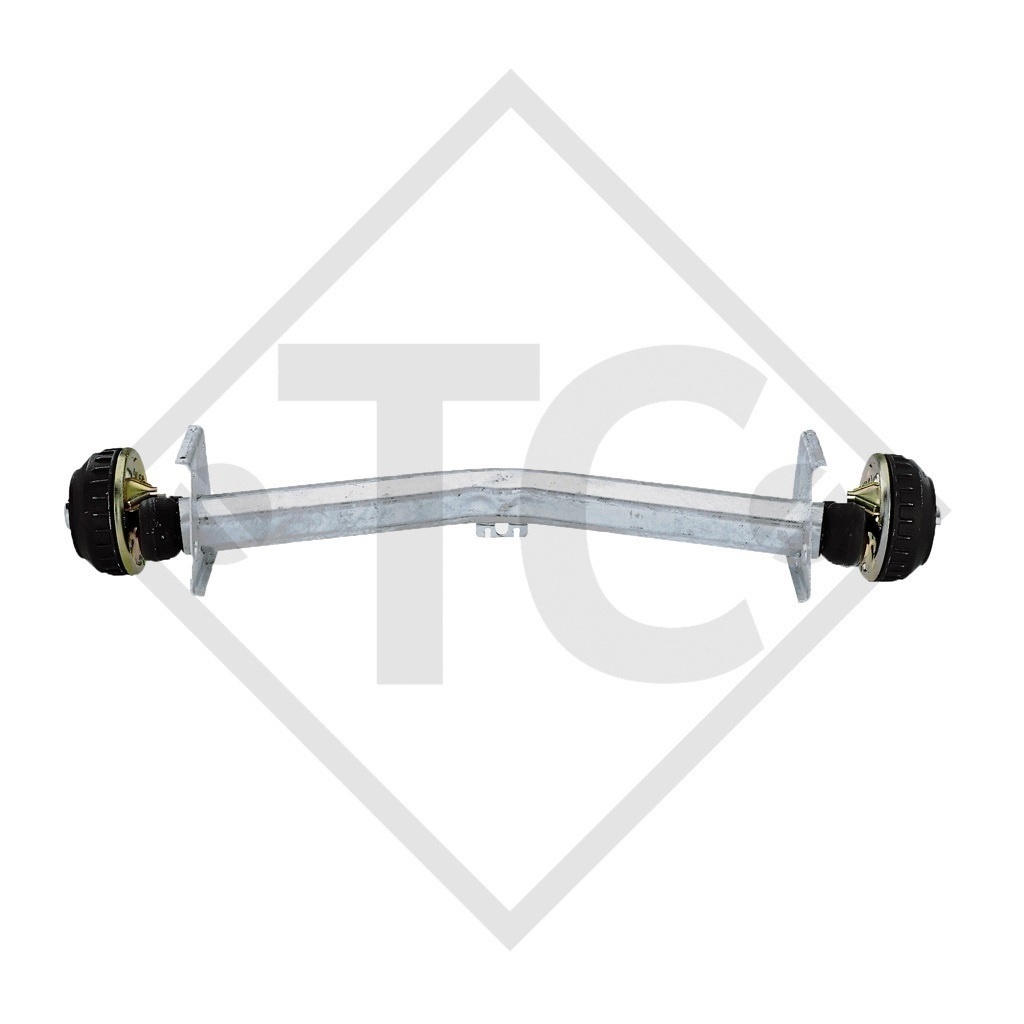

AL-KO Braked axle 1500kg EURO1 axle type B 1600-3 - KNAUS caravan

Part no. 1702274

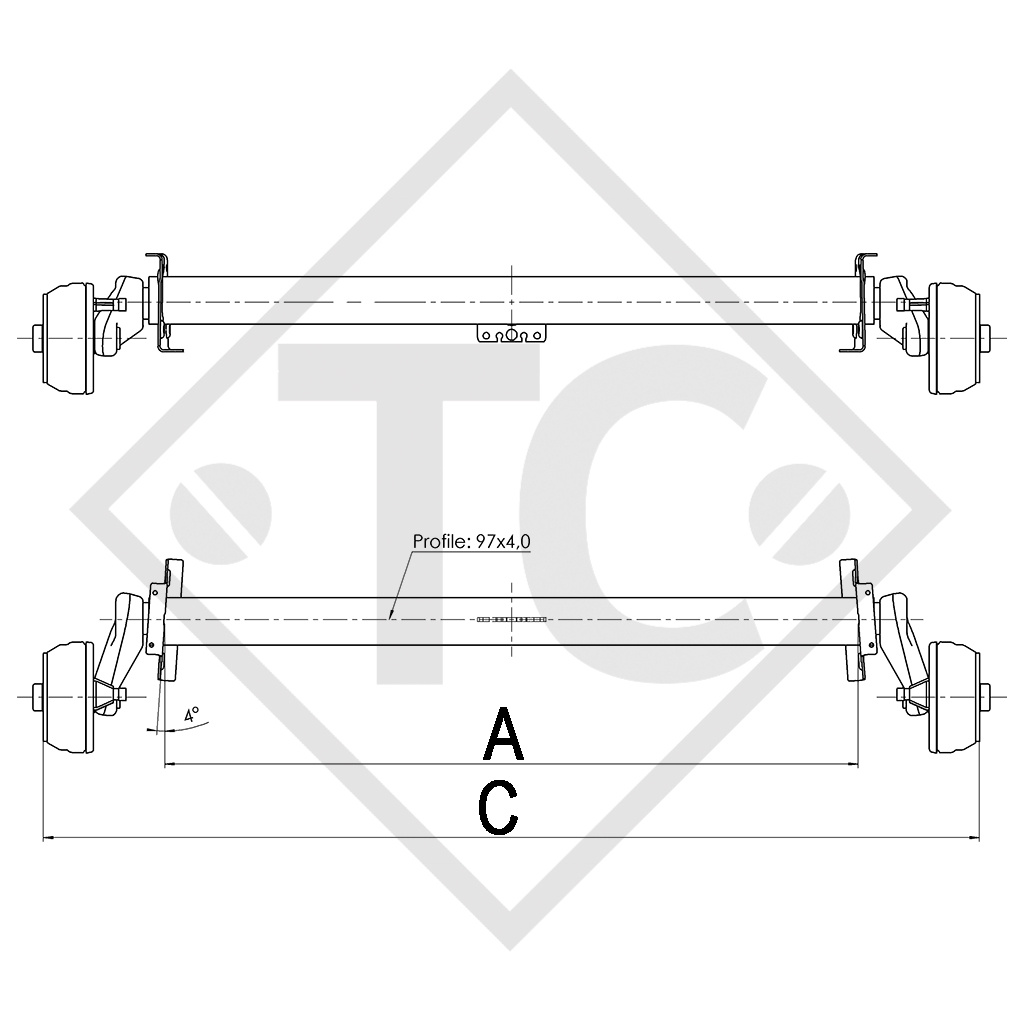

BC: dimension A 1415mm
OHF: dimension C 1910mm
Wheel connection 112x5
Offset (ET) 30mm

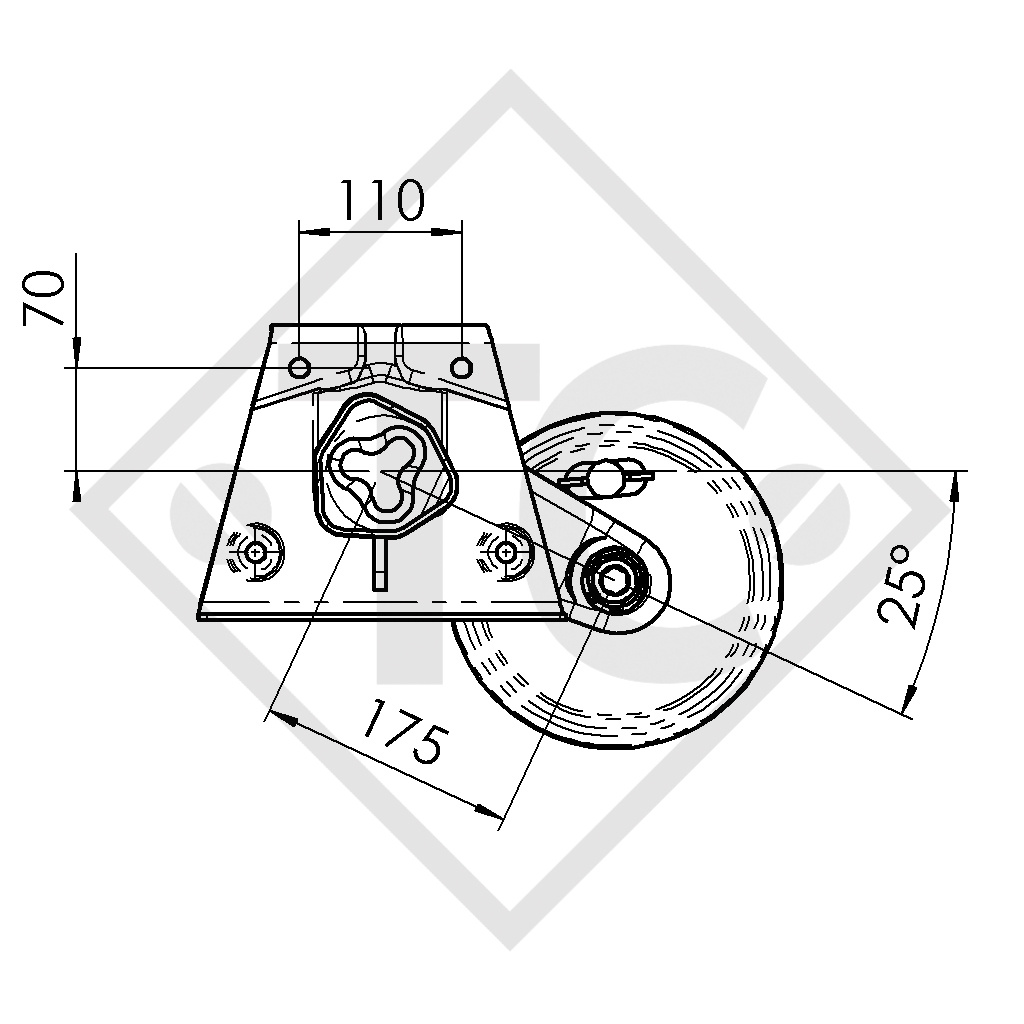

Swing arm position 25°
Axle profile 97mm

Original operating instructions
Replacement part identification number (ETI) 811268

TECHNOLOGY
Model: EURO1
Axle type: B 1600-3
Axle load: Single axle 1500kg
Axle load: Tandem axle 3000kg
Wheel brake: 2051 Ab
Suspension: Hexagonal rubber suspension
Swing arm length: 175mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
Axle with wheel brake + ball head wheel bolts M12x1,5

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

ACCESSORIES (not included in scope of delivery)
Shock absorber
