BC: dimension A 1360mm, OHF: dimension C 1675mm, wheel connection 112x5, wheel brake type 2051 Ab, offset (ET) 30mm, swing arm position 10°, axle profile 97mm. Read more...
Part no. 1940221

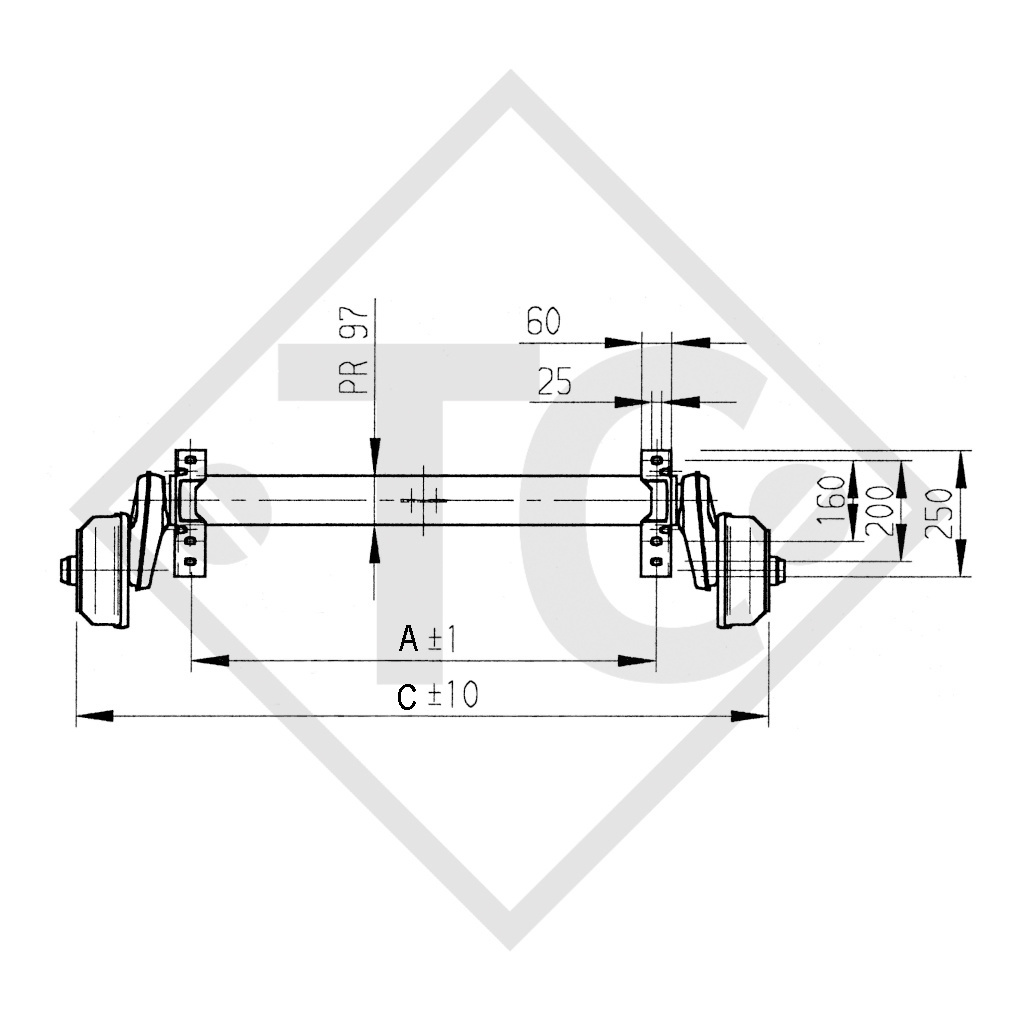

BC: dimension A 1360mm
OHF: dimension C 1675mm
Wheel connection 112x5

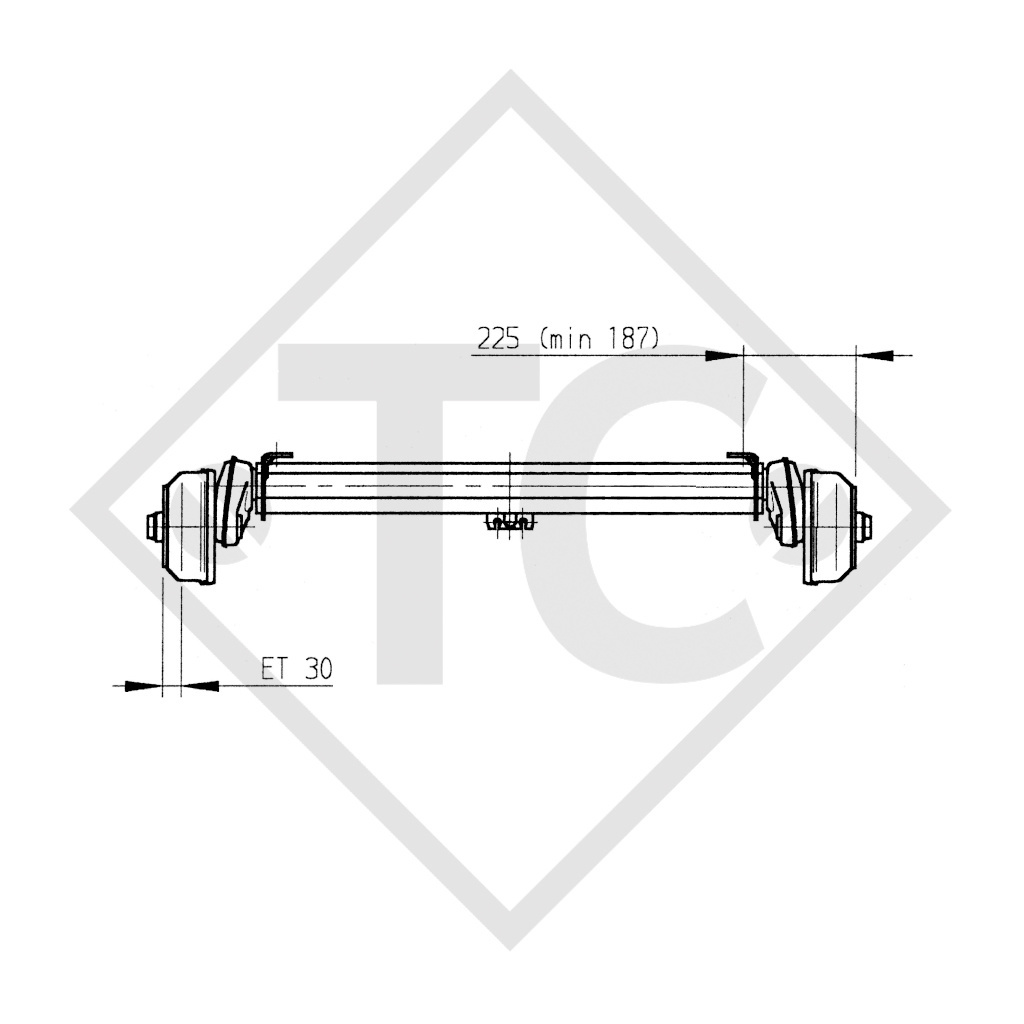

Offset (ET) 30mm
Swing arm position 10°
Axle profile 97mm
Original operating instructions
Replacement part identification number (ETI) 811268
TECHNOLOGY
Model: CL
Axle type: B 1600-3
Axle load: Single axle 1500kg
Axle load: Tandem axle 3000kg
Wheel brake: 2051 Ab
Suspension: Hexagonal rubber suspension
Swing arm length: 160mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle with wheel break
Holder for shock absorber
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
