AL-KO Braked axle 1500kg EURO1 axle type DELTA SIN 14-1

Part no. 1226257 (1520886)

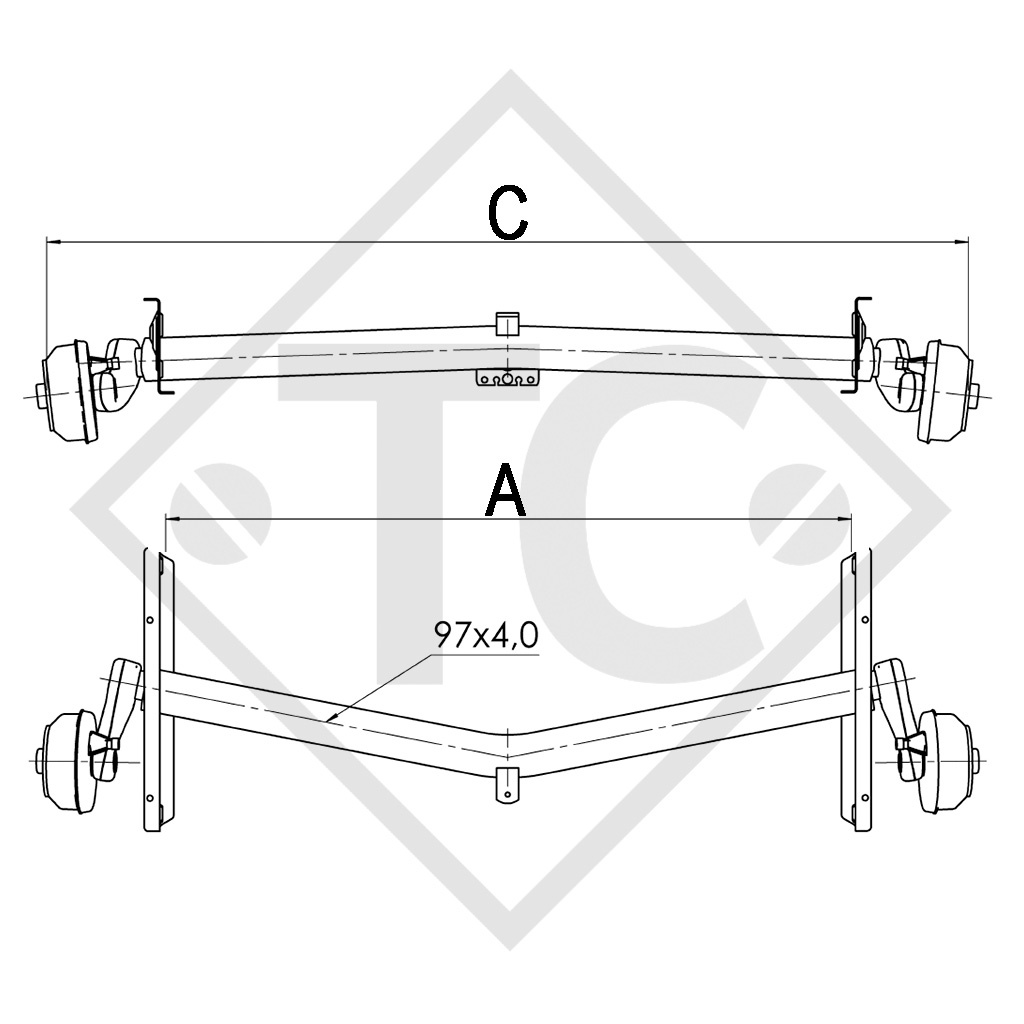

BC: dimension A 1570mm
OHF: dimension C 2080mm
Wheel connection 112x5
Offset (ET) 30mm
Swing arm position 0°
Axle profile 97mm

Original operating instructions
Replacement part identification number (ETI) 811942

TECHNOLOGY
Model: EURO1
Axle type: DELTA SIN 14-1
Axle load: Single axle 1500kg
Axle load: Tandem axle 3000kg
Wheel brake: 2051 vers. Ab
Suspension: Hexagonal rubber suspension
Wheel bearing: Compact bearing
Rim centre hole: Min. 63mm

SCOPE OF DELIVERY
Axle

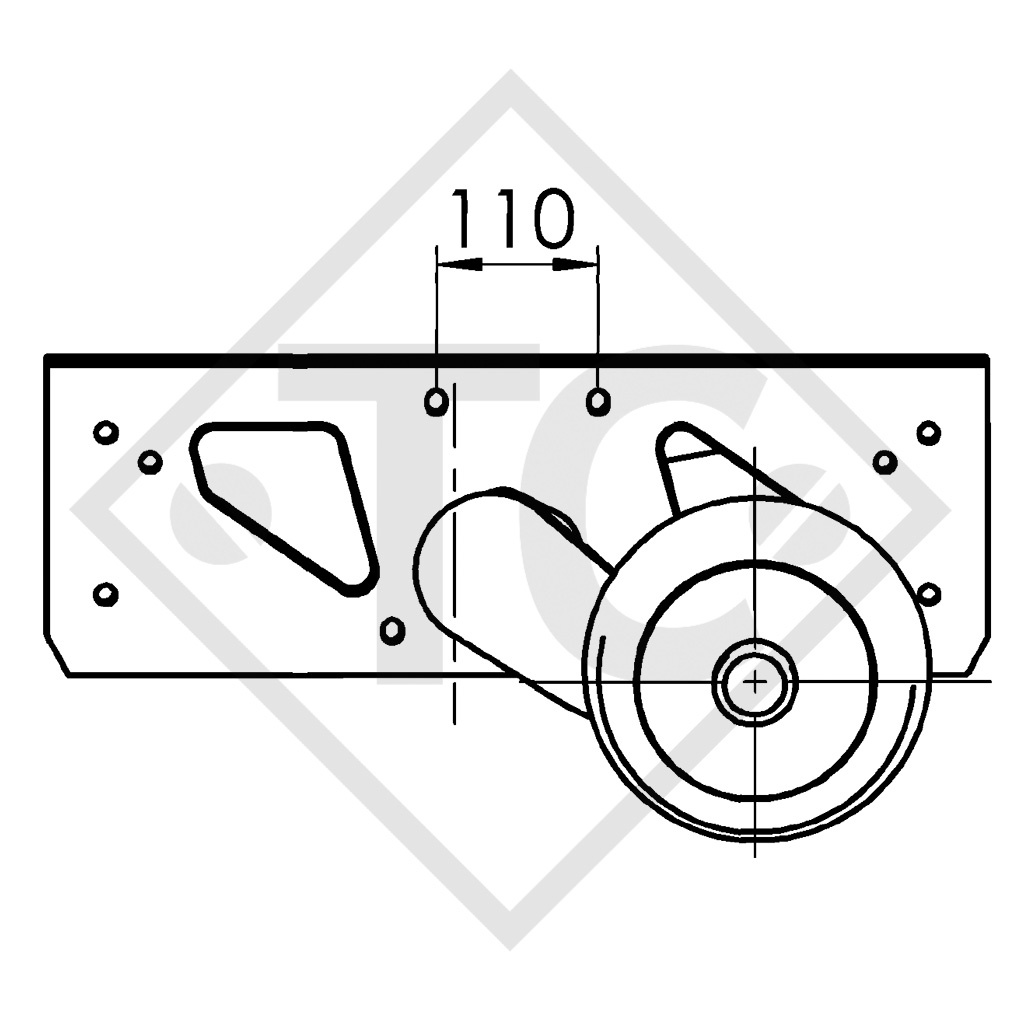

Tandem axle adapter bracket welded on
Bowden cables loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

ACCESSORIES (not included in scope of delivery)
Shock absorber
