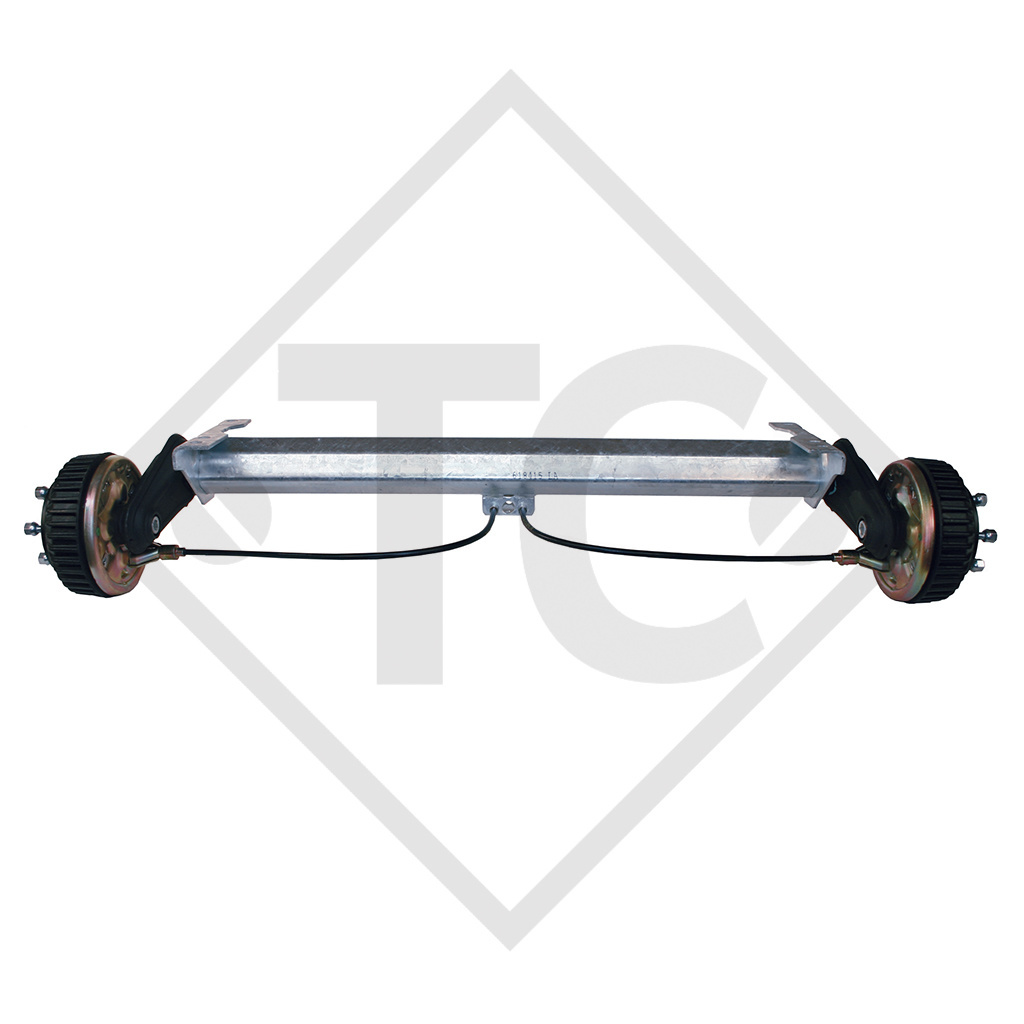

Home / Braked axle 1500kg EURO COMPACT axle type B 1600-3 - HEINEMANN
BC: dimension A 1900mm, OHF: dimension C 2350mm, wheel connection 112x5, wheel brake type 2051 Ab, offset (ET) 30mm, swing arm position 20°, axle profile 97mm. Read more...
Part no. 1324345 (1301696)

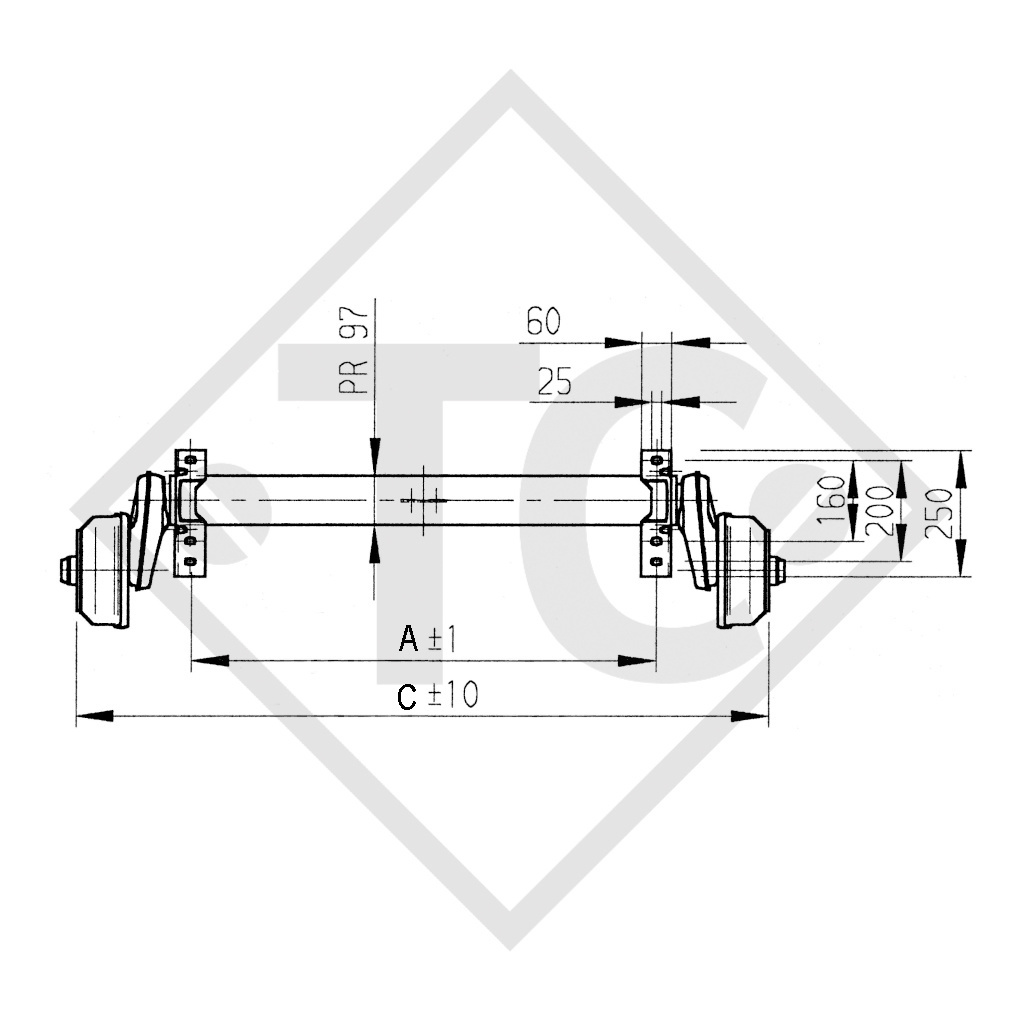

BC: dimension A 1900mm
OHF: dimension C 2350mm
Wheel connection 112x5

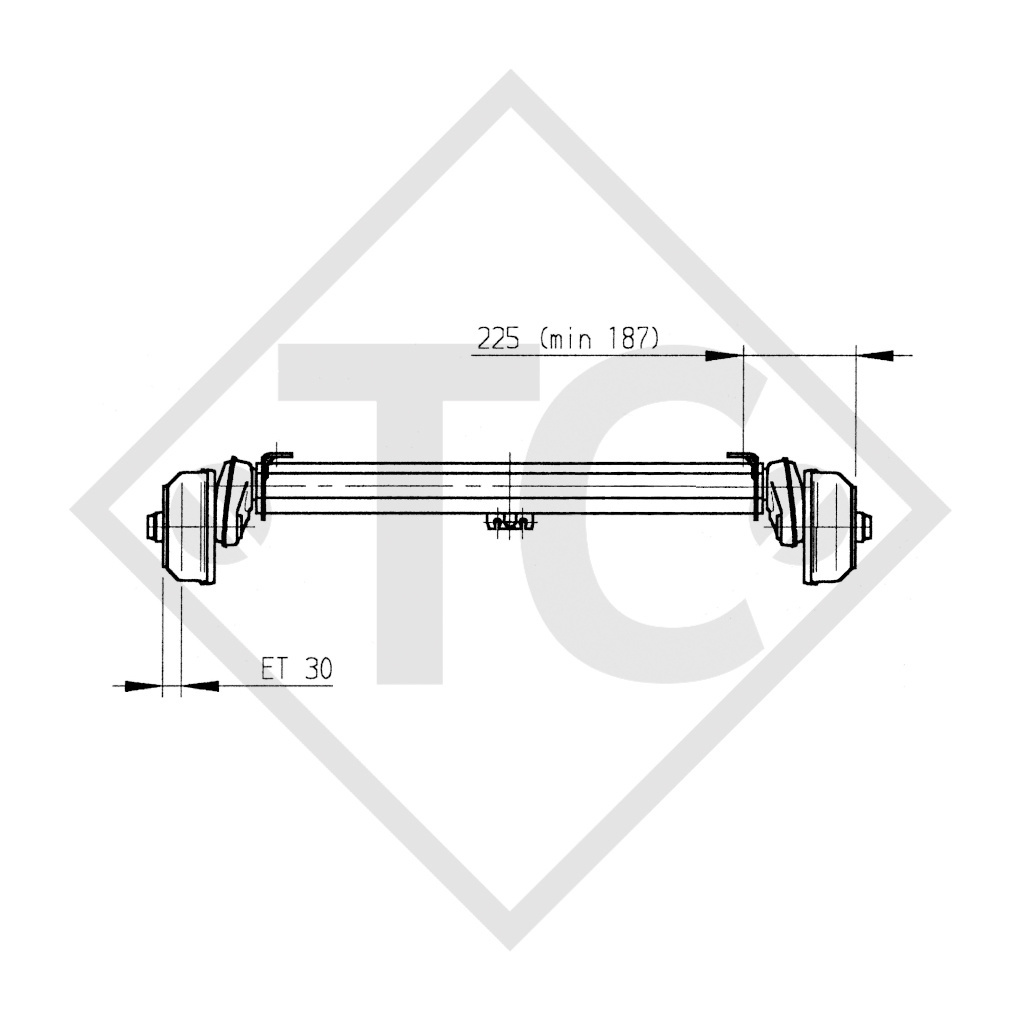

Offset (ET) 30mm
Swing arm position 20°
Axle profile 97mm
Original operating instructions
Replacement part identification number (ETI) 811268
TECHNOLOGY
Model: EURO COMPACT
Axle type: B 1600-3
Axle load: Single axle 1500kg
Axle load: Tandem axle 3000kg
Wheel brake: 2051 Ab
Suspension: Hexagonal rubber suspension
Swing arm length: 161.5mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Single axle adapter bracket welded on
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
