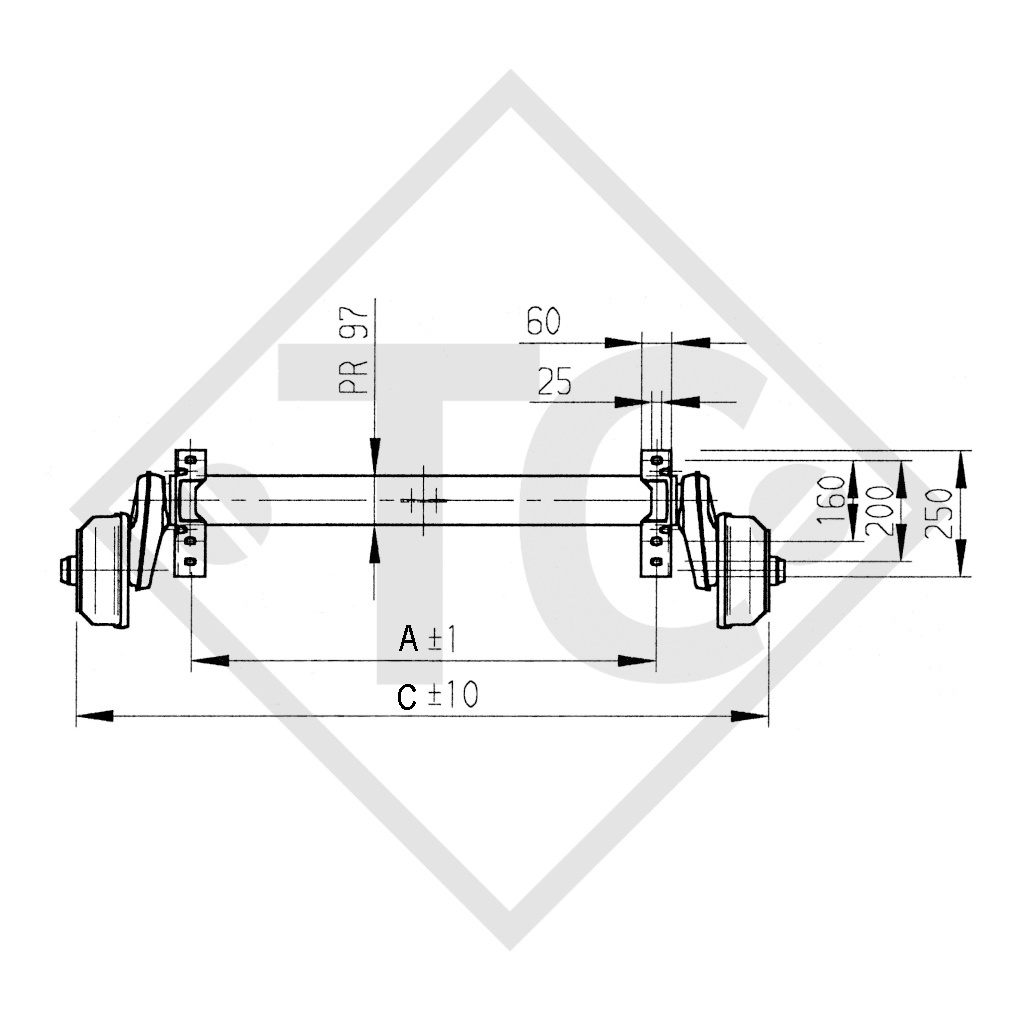

BC: dimension A 800mm, OHF: dimension C 1300mm, wheel connection 112x5, wheel brake type 2051 Ab, offset (ET) 30mm, swing arm position 25°, axle profile 97mm. Read more...
Part no. 1905772
BC: dimension A 800mm
OHF: dimension C 1300mm
Wheel connection 112x5
Offset (ET) 30mm
Swing arm position 25°
Axle profile 97mm
Original operating instructions
Replacement part identification number (ETI) OLD 811158
Replacement part identification number (ETI) NEW 811938
TECHNOLOGY
Model: BASIC
Axle type: B 1600-3
Axle load: Single axle 1500kg
Axle load: Tandem axle 3000kg
Wheel brake: 2051 Ab
Suspension: Hexagonal rubber suspension
Swing arm length: 160mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle with brake
Single axle adapter bracket welded on
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised
ACCESSORIES (not included in scope of delivery)
Shock absorber
