Braked axle 1500kg axle type B 1600-3, ADRIA AVIVA 495

Braked axle 1500kg EURO1 axle type B 1600-3, ADRIA AVIVA 495

BC: dimension A 1710mm, OHF: dimension C 2198mm, wheel connection 112x5, wheel brake type 2051 Ab, offset (ET) 30mm, swing arm position 25°, axle profile 97mm. Read more...

Wishlist: Add to comparison:

Price 1.177,90 EUR Incl. tax Excl. Shipping costs

Delivery time: approx. 20 working days (Mon-Fri). This item is ordered specially for you and is excluded from our returns policy. If you have any questions regarding this product please contact our sales team or send us an email to [email protected]

- +

Add to cart

Part no. 1226913

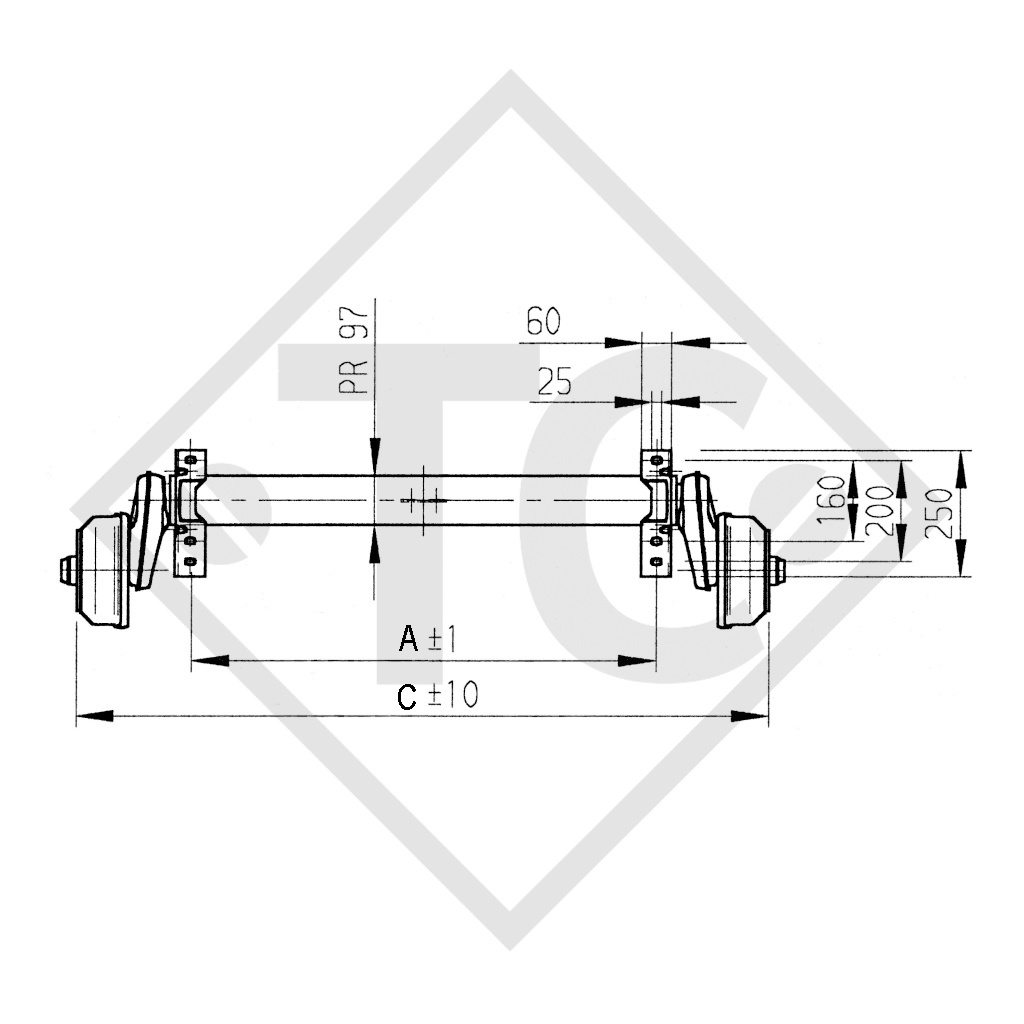

BC: dimension A 1710mm
OHF: dimension C 2198mm
Wheel connection 112x5

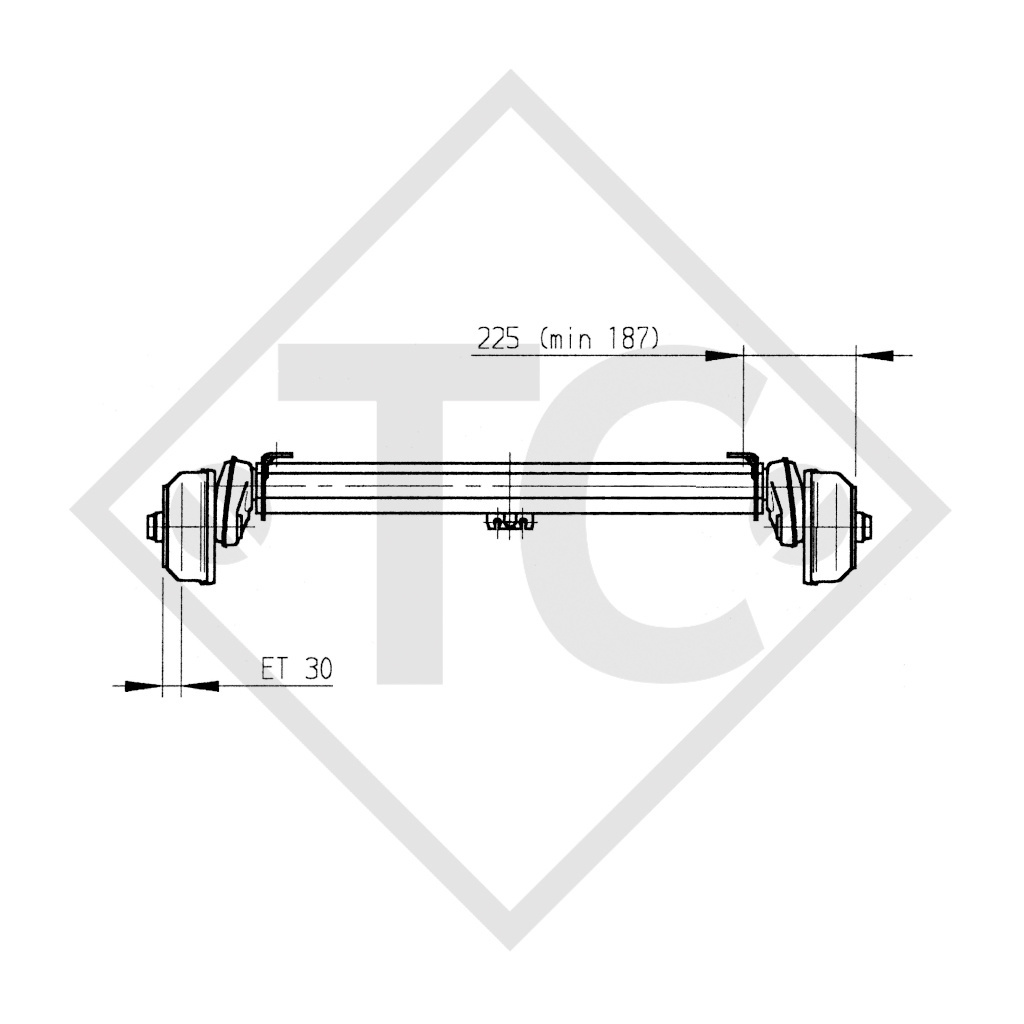

Offset (ET) 30mm

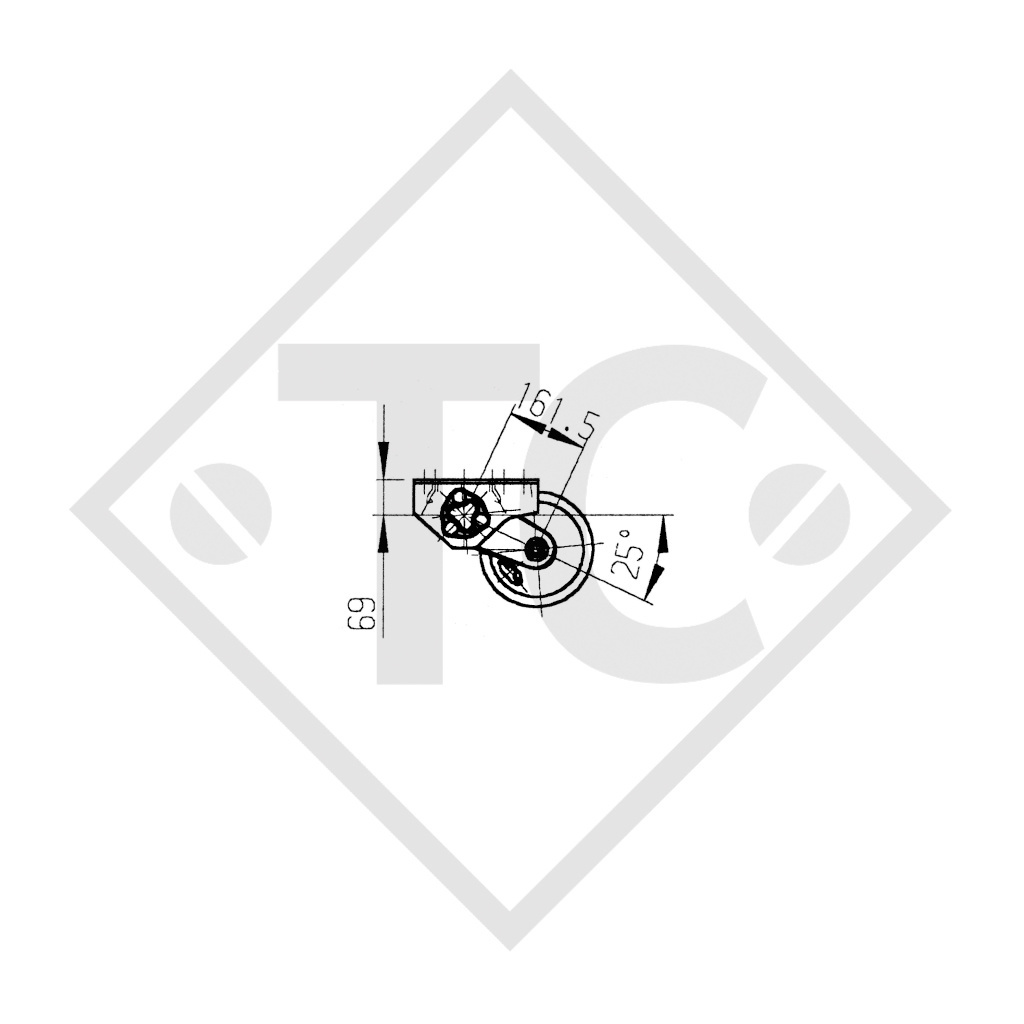

Swing arm position 25°
Axle profile 97mm

Original operating instructions
Replacement part identification number (ETI) 811268

TECHNOLOGY
Model: EURO1
Axle type: B 1600-3
Axle load: Single axle 1500kg
Axle load: Tandem axle 3000kg
Wheel brake: 2051 Ab
Suspension: Hexagonal rubber suspension
Swing arm length: 175mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
Axle
Single axle adapter bracket welded on
Compensation profile for single axle supplied
Bowden cables loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake galvanised

ACCESSORIES (not included in scope of delivery)
Shock absorber
