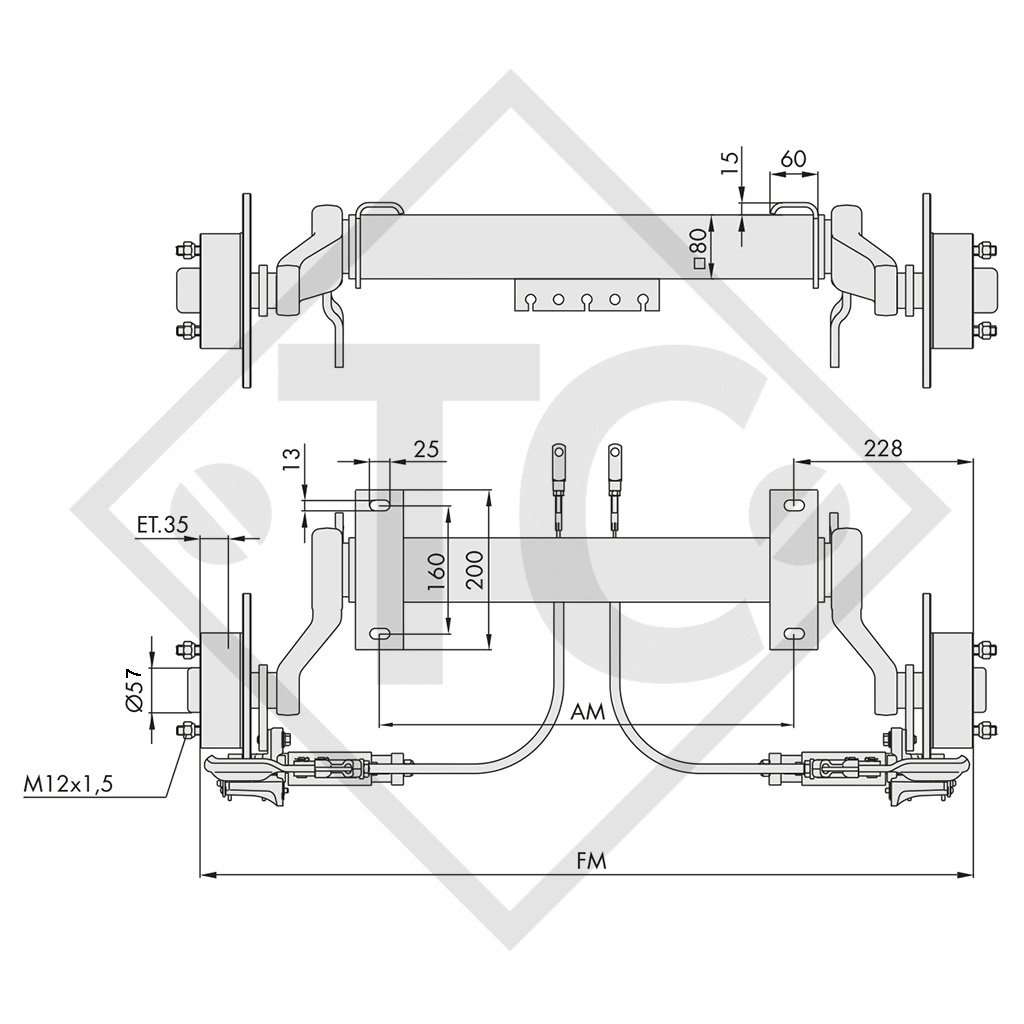

BC: dimension AM 1750mm, OHF: dimension FM 2206mm, wheel connection 112x5, disk brake type WS 245, offset (ET) 35mm, ball-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:
Part no. WAPWAG150BS020
Dimension AM
1750mm
Dimension FM
2206mm
Wheel connection 112x5



Spare part list for wheel brake WS 245
Bowden cables

TECHNOLOGY
Model: WAG-B
Axle type: WAG 150 BS
Axle load: 1500kg
Suspension: Square rubber suspension

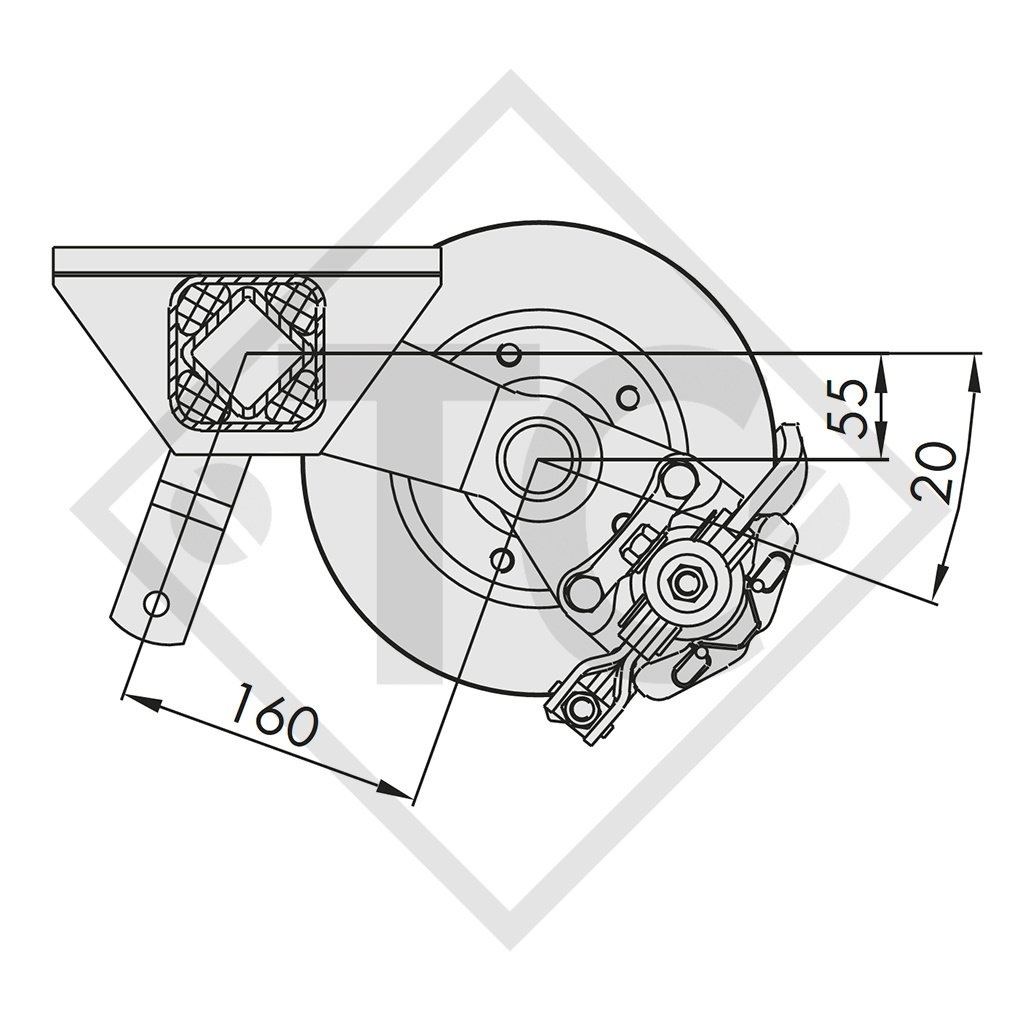

Swing arm length: 160mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm

SCOPE OF DELIVERY
Axle with wheel brake
Ball-head wheel bolts M12x1.5 loose

SURFACE TREATMENT
Axle profile hot-dip galvanised
