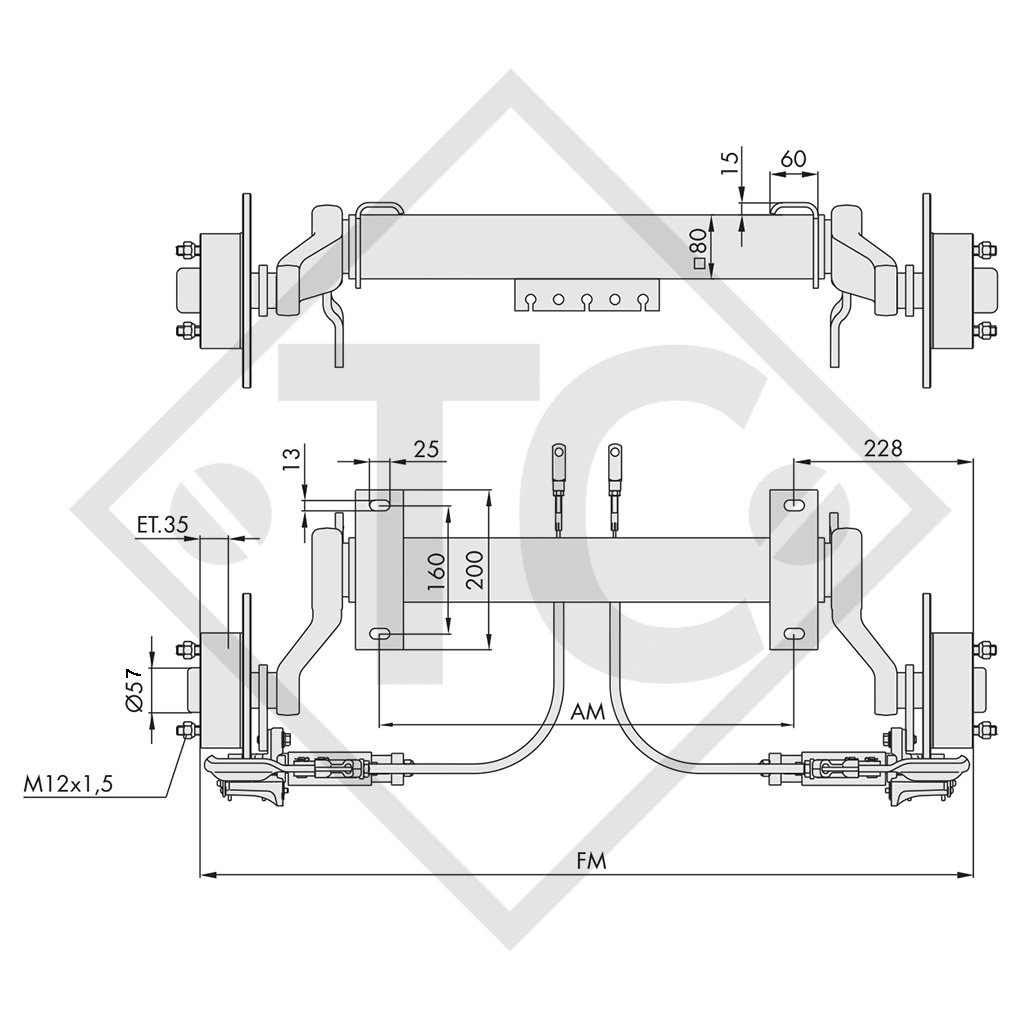

BC: dimension AM 1550mm, OHF: dimension FM 2006mm, wheel connection 112x5, disk brake type WS 245, offset (ET) 35mm, ball-head wheel bolts M12x1.5. Read more...
Part no. | WAPWAG150BS016 |
Dimension AM |
1550mm |
Dimension FM |
2006mm |
Wheel connection | 112x5 |
Spare part list for wheel brake WS 245
Bowden cables
TECHNOLOGY

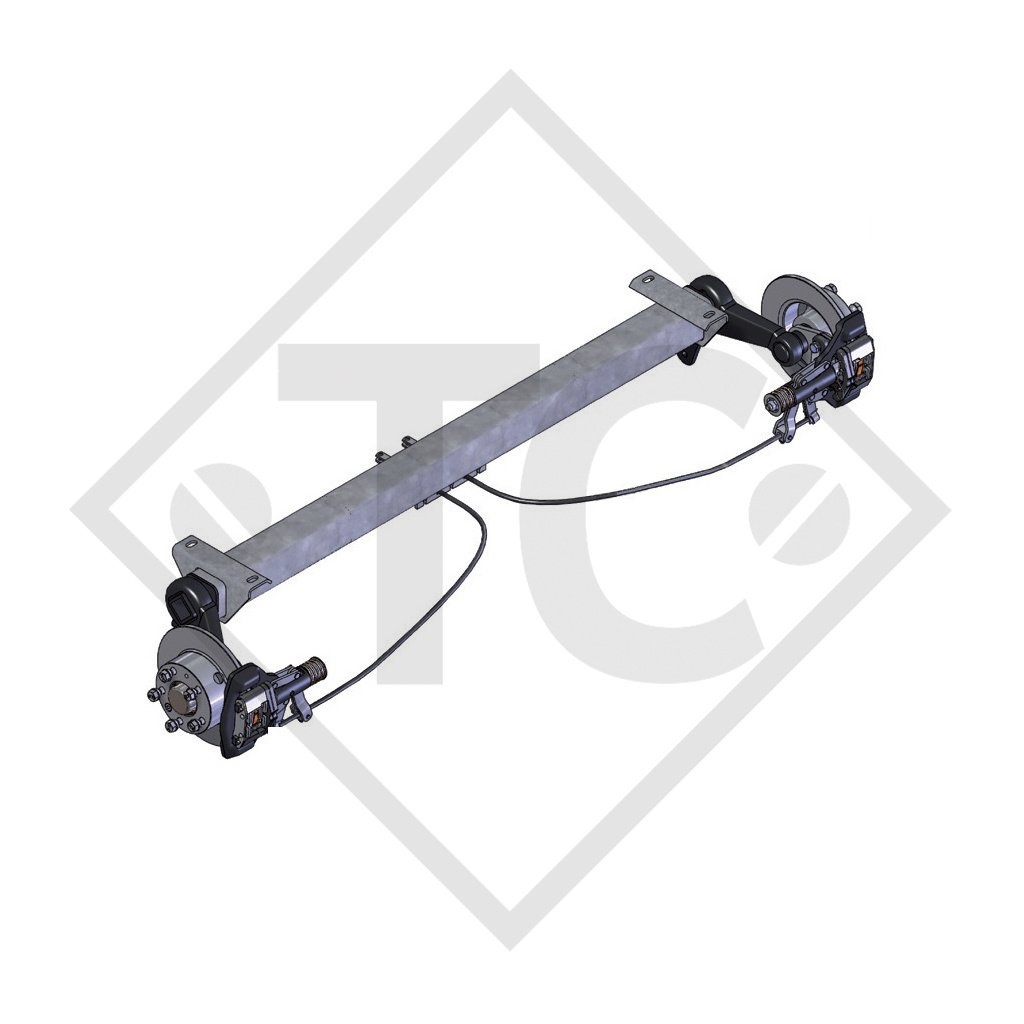

Model: WAG-B
Axle type: WAG 150 BS
Axle load: 1500kg
Suspension: Square rubber suspension

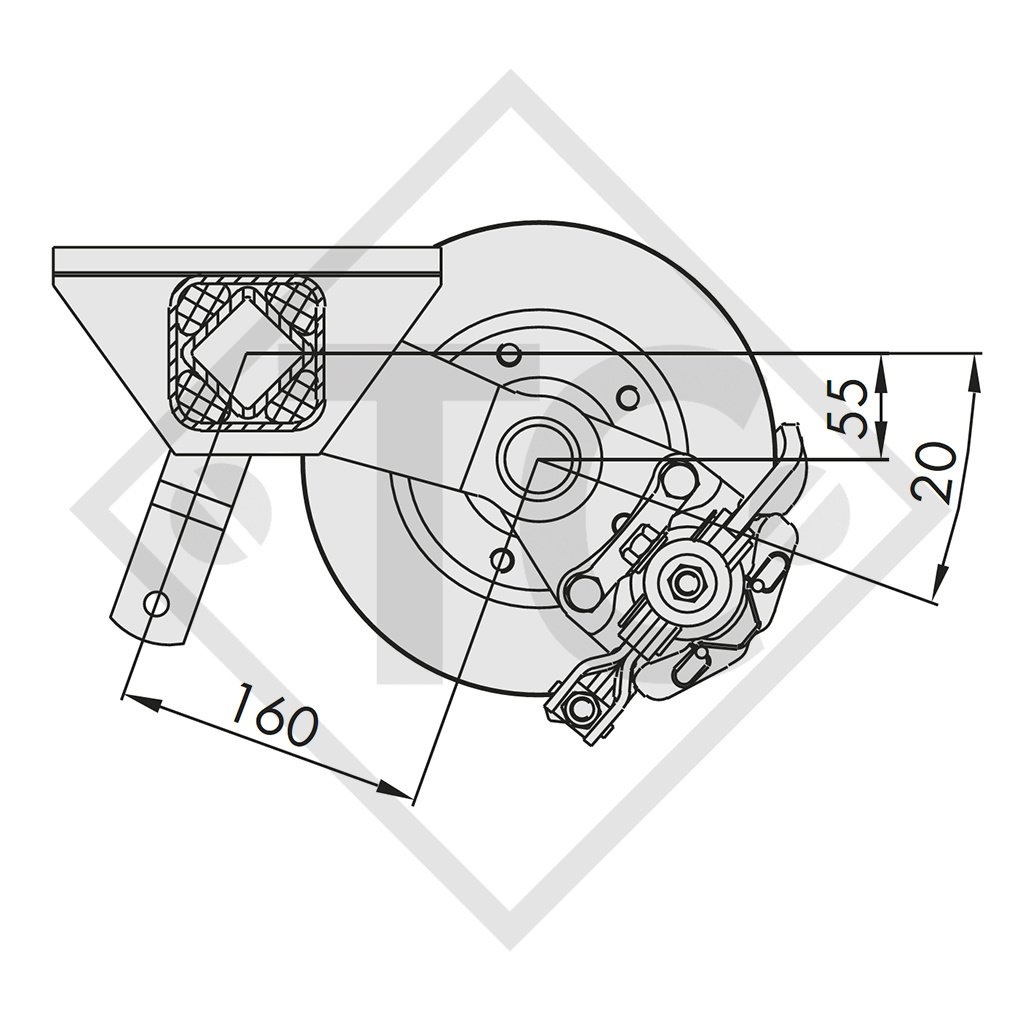

Swing arm length: 160mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle with wheel brake
Ball-head wheel bolts M12x1.5 loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
