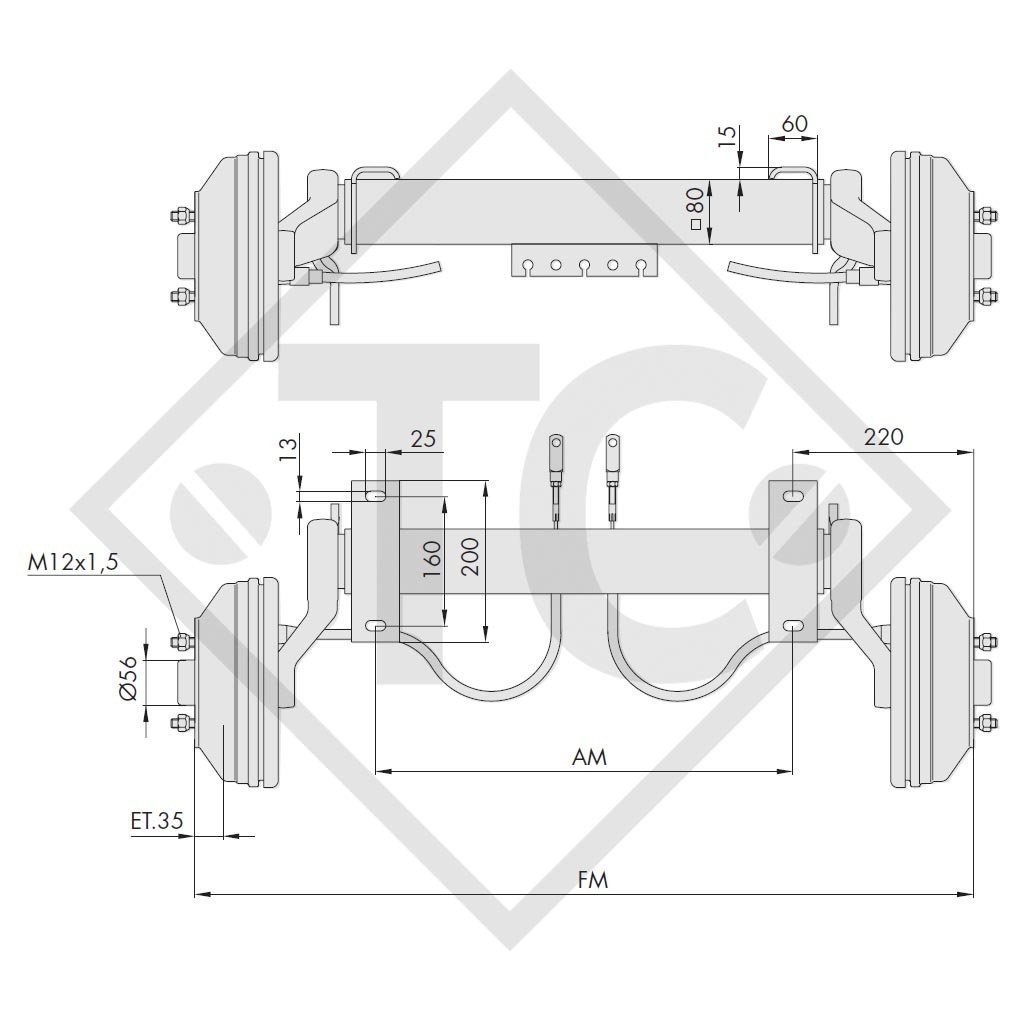

BC: dimension AM 1700mm, OHF: dimension FM 2140mm, wheel connection 112x5, wheel brake type W 234 RS, offset (ET) 35mm, ball-head wheel bolts M12x1.5. Read more...
Part no. | WAPWAG150B379 |
Dimension AM |
1700mm |
Dimension FM |
2140mm |
Wheel connection | 112x5 |
Spare part list for wheel brake W 234 RS
Bowden cables
TECHNOLOGY
Model: WAG-B
Axle type: WAG 150 B
Axle load: 1500kg

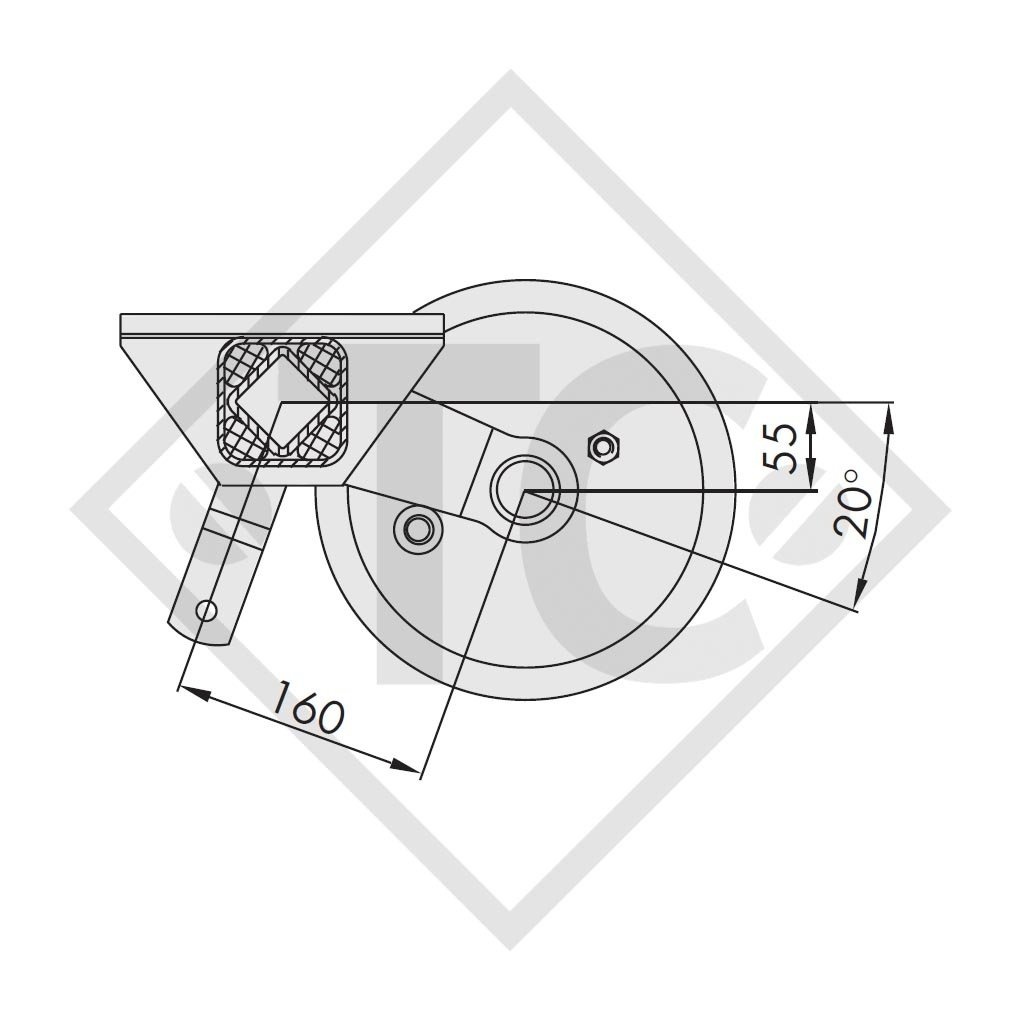

Suspension: Square rubber suspension
Swing arm length: 160mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 57mm
SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Here, you can find the catalogue page as a convenient PDF download.
You can also enter the part no. from the catalogue as a search term in our online store.
Simply send us a photo of your axle type plate, together with your address and telephone number to
[email protected]
|
