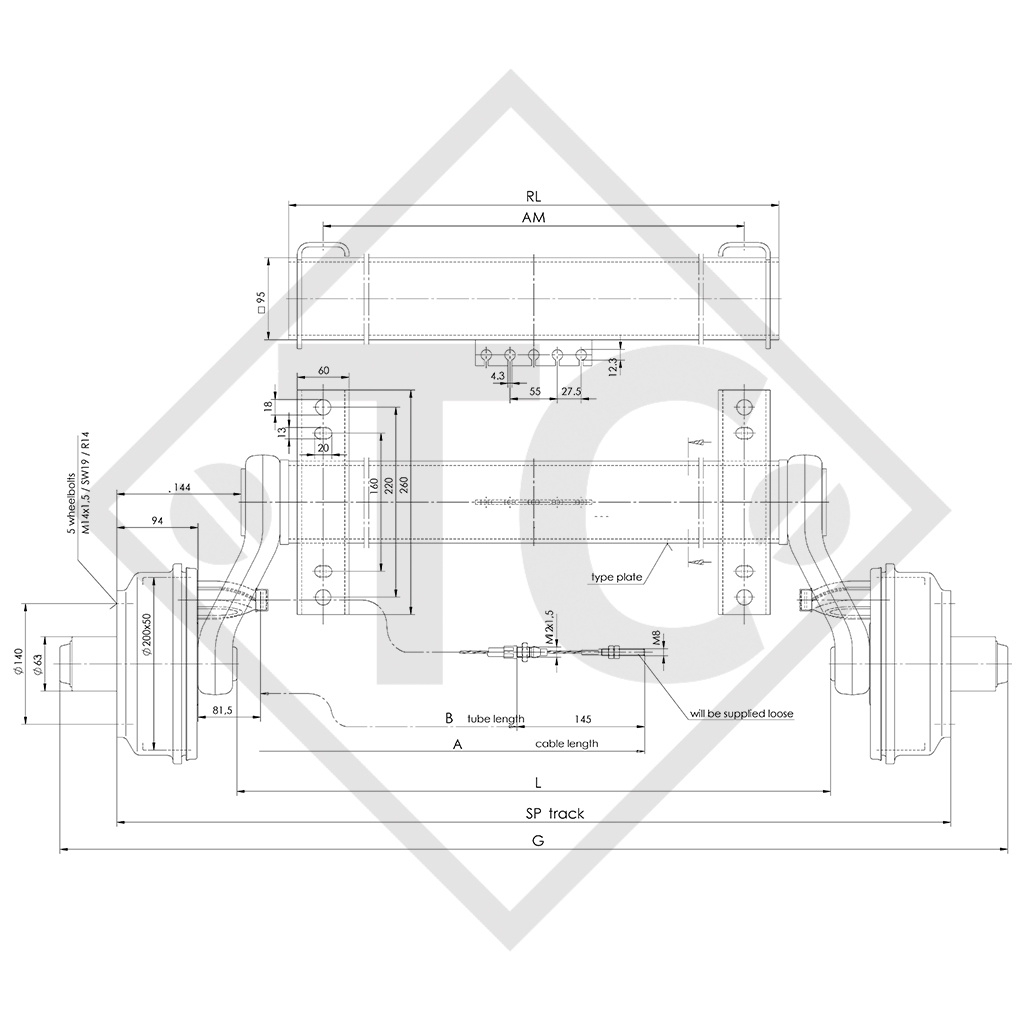

BPW Braked axle 1500kg axle type CS 1505, 46.27.358.262

Part no. OLD 46.27.358.262, 46.27.316.453 or 46.27.358.247
Part no. NEW 4024995 or 4024996

Original operating instructions
Replacement part identification number (ETI) OLD XX.XX.358.XXX

SCOPE OF DELIVERY
Axle with bowden cables
Welded-on shock absorber brackets
Wheel bolts M12x1.5

DETAILS

• Speed up to 140 km/h
• Drawbar connection: Clamping shells see Accessories
• Axle shock absorber see Accessories
• Wheel connections: 98x4, 130x4, 112x5, 120x5 on demand
• Special axle mounts and drawbar connections on demand
• Also available with watertight bearings
• Axle body fully hop-dip galvanised: Permanent surface protection
• Independent wheel suspension: Optimum compensation of uneven road surfaces
• Maintenance-free suspension: Lower maintenance costs
• Sturdy axle construction: Suitable for extreme loads such as off-road or construction sites
• Sturdy, maintenance-free spreadlever brakes with auto-reverse: Simple adjustment of the brake from outside the wheel, subsequent connection of the brake cables possible without removal of the brake drum
• Compact bearings (standard in the automotive industry): Maintenance-free, long service life, protected against dirt and water, lubricated for life with special grease
• Incl. shock absorber bracket
