BC: dimension A 1560mm, OHF: dimension C 1950mm, dimension H: 90mm, wheel connection 112x5, wheel brake type RB 520, offset (ET) 25-35mm, swing arm position 20°, axle profile 80mm, ball-head wheel bolts M12x1.5. Read more...
Part no. 21654

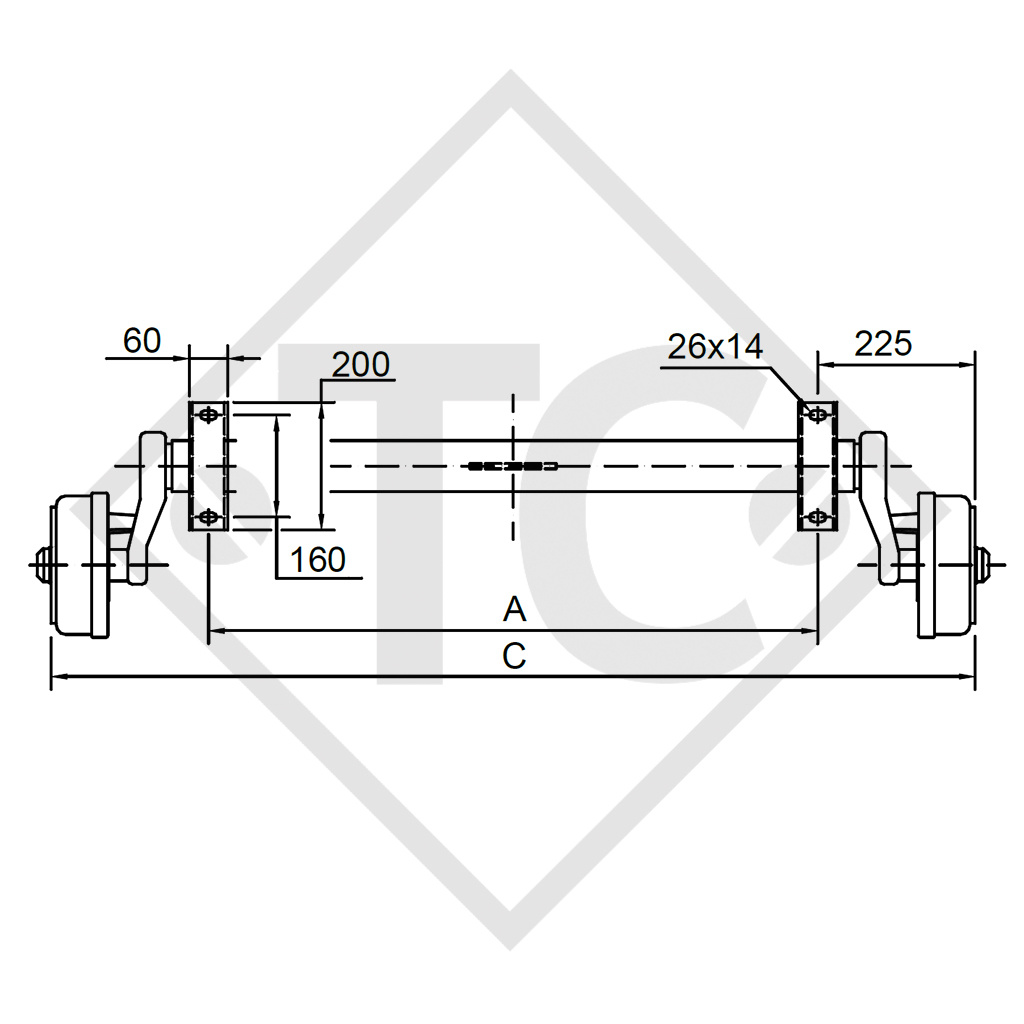

BC: dimension A 1560mm
OHF: dimension C 1950mm

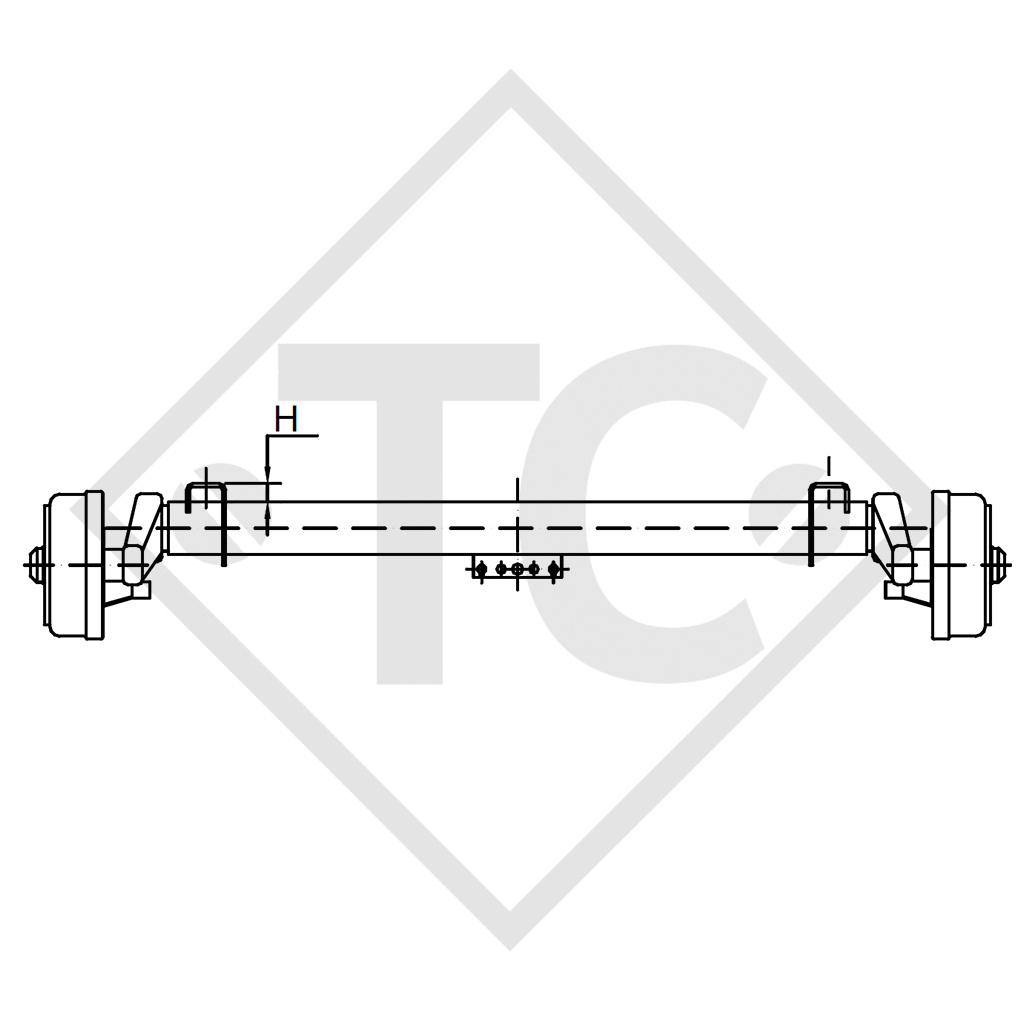

Dimension H: 90mm
Wheel connection 112x5
Offset (ET) 25-35mm

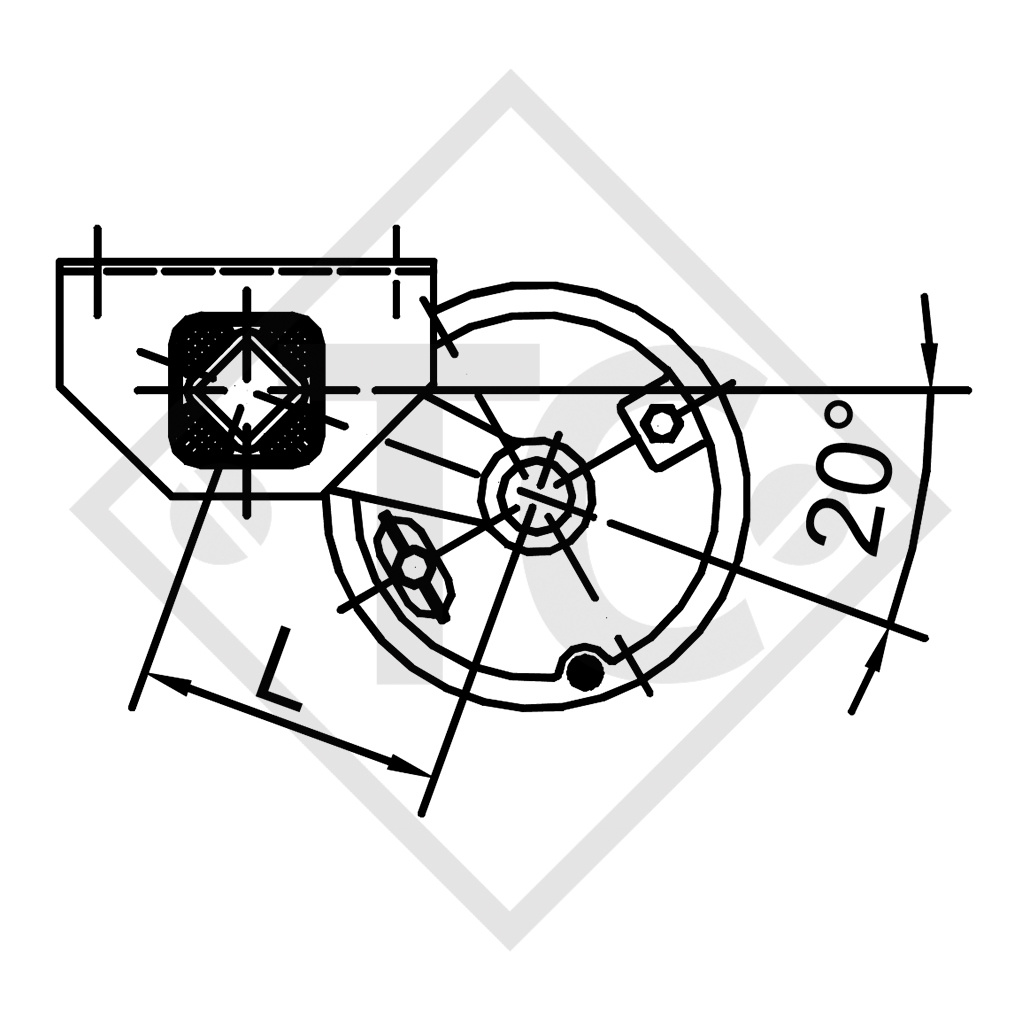

Swing arm position 20°
Axle profile 80mm
TECHNOLOGY

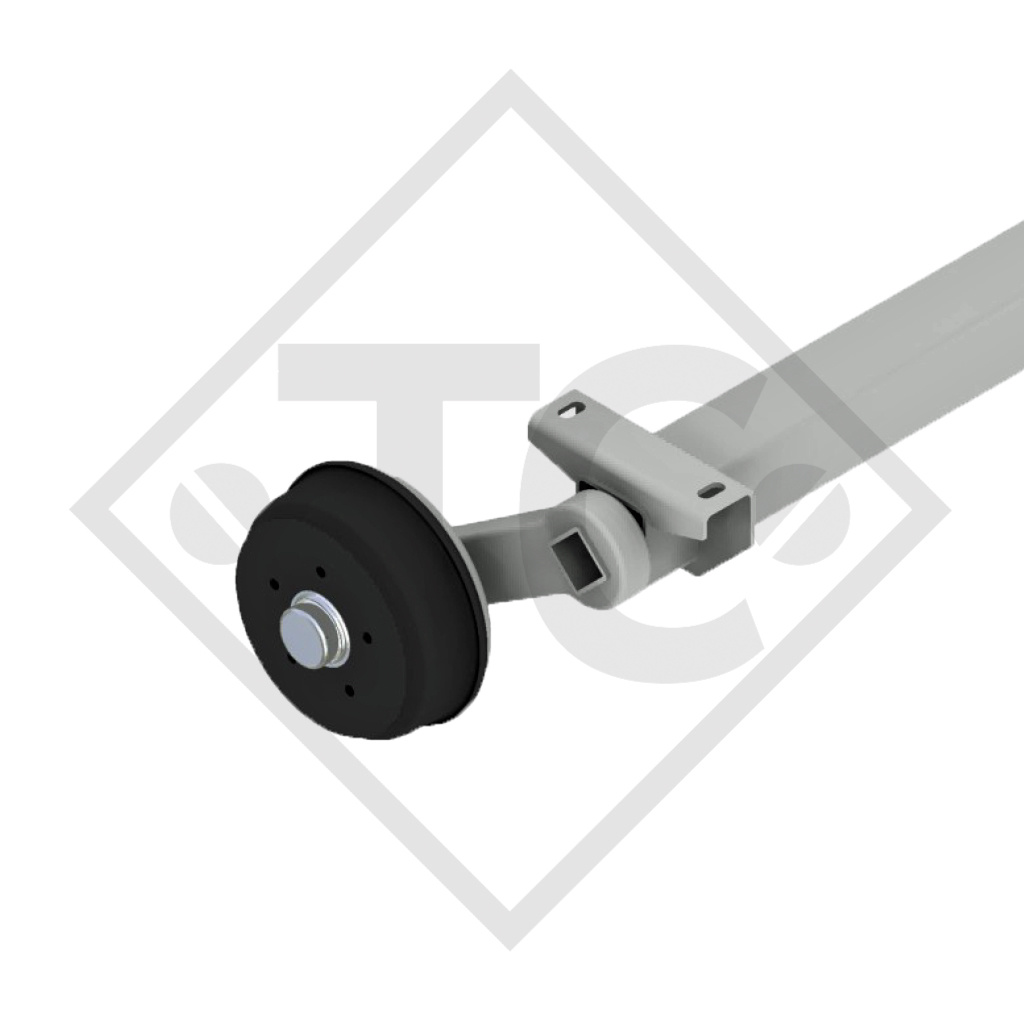

Axle type: SB14
Axle load: Single axle 1400kg
Axle load: Tandem axle 2800kg
Wheel brake: RB 520
Suspension: Square rubber suspension
Swing arm length (dimension L): 165mm
Wheel bearing: Compact bearing
Rim centre hole: Min. 64mm
SCOPE OF DELIVERY
Axle
Ball-head wheel bolts M12x1.5 loose
Single axle adapter bracket welded on
Compensation profile for single axle supplied
Bowden cables loose
SURFACE TREATMENT
Axle profile hot-dip galvanised
Wheel brake black-primed
