Home / Braked axle 1400kg axle type SB14, 45.25.379.907

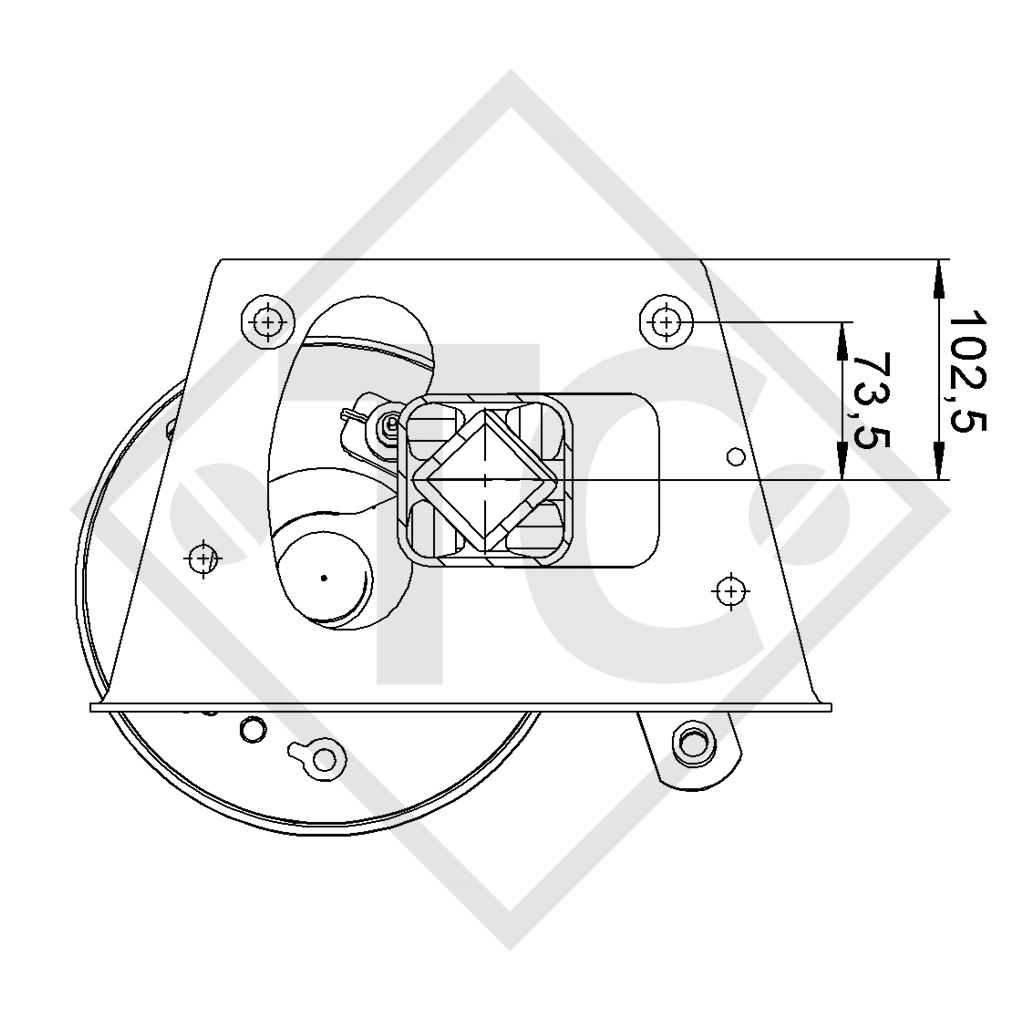

BC: dimension AM 1640mm, OHF: dimension FL 2110mm, wheel connection 112x5, wheel brake type RB520, offset (ET) 30mm, swing arm position 13°, axle profile 80mm, ball-head wheel bolts M12x1.5. Read more...

Wishlist: Add to comparison:

Product description

Part no. OLD 45.25.379.907 (4023192)
Part no. NEW 2024-129679

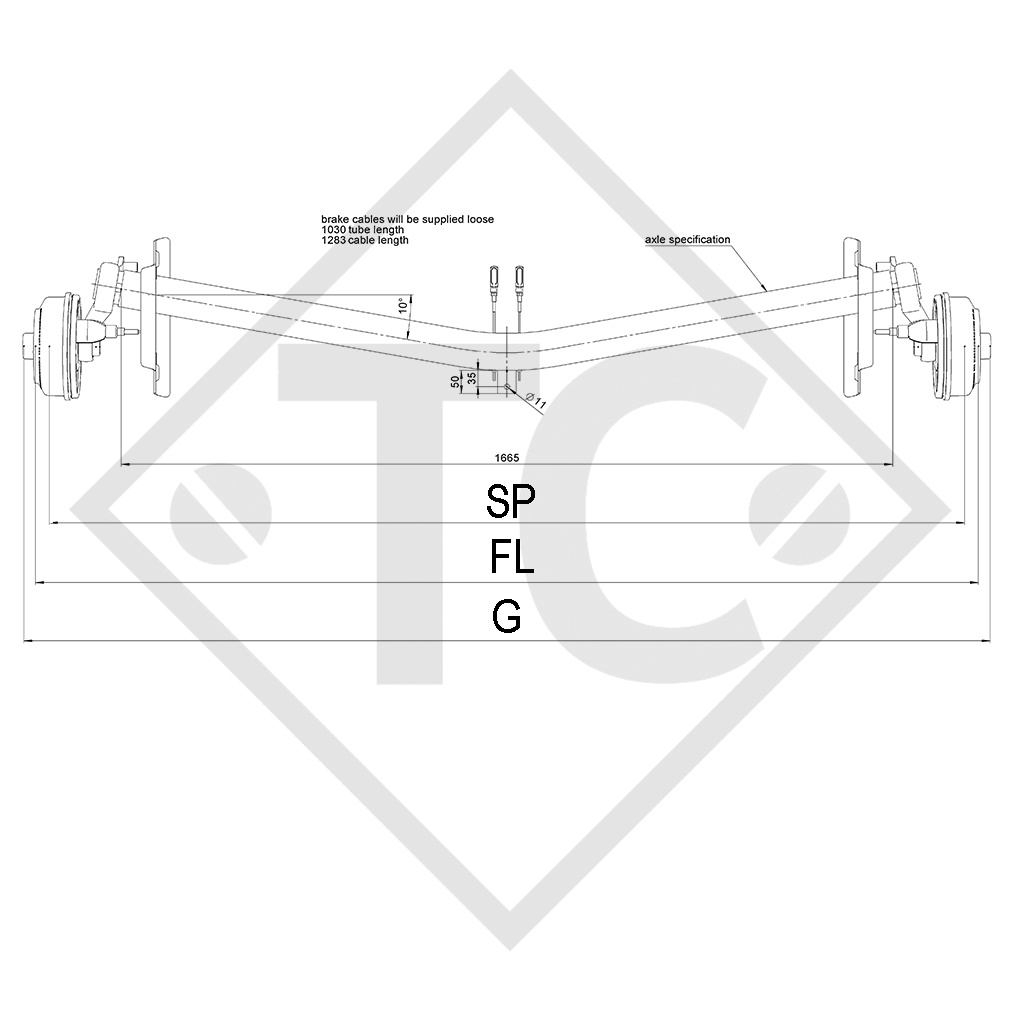

Dimension FL
 2110mm
Dimension SP
 2050mm

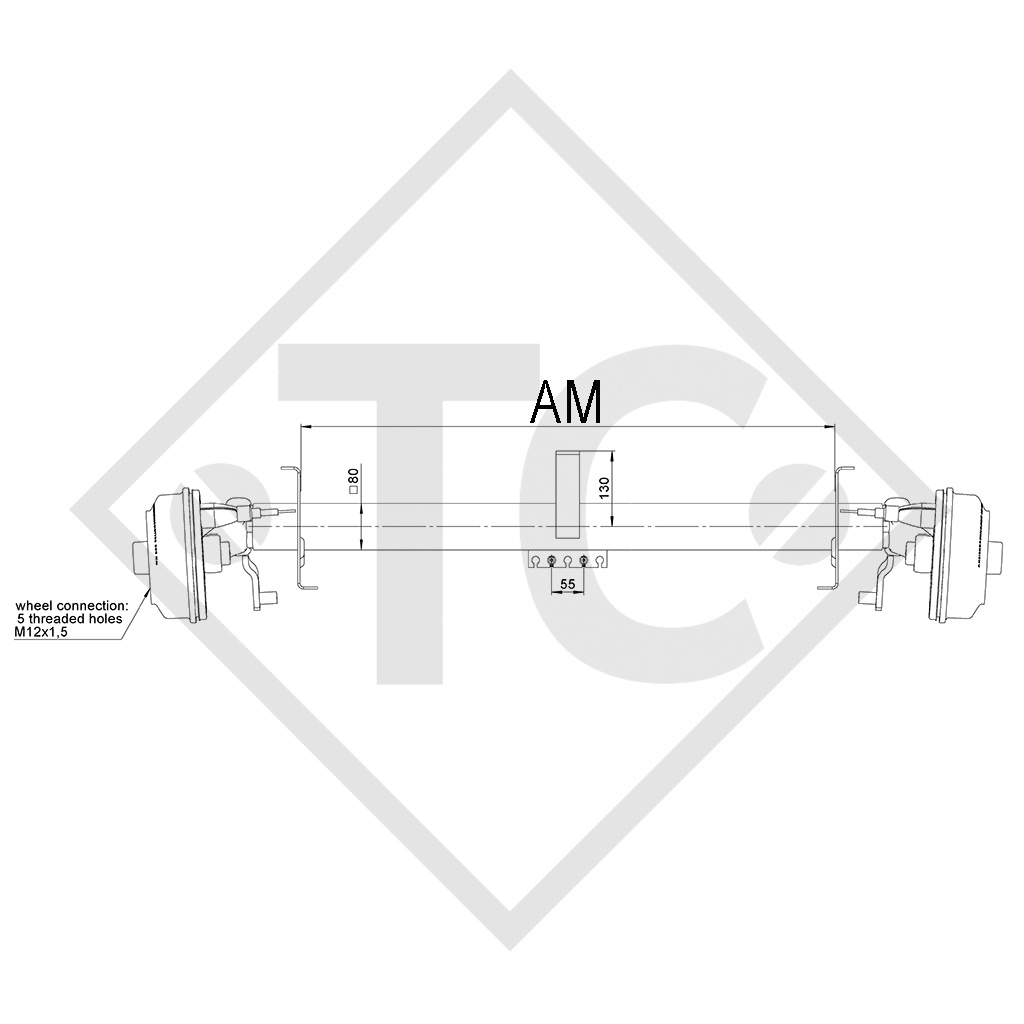

Dimension AM
 1640mm
Dimension L
 1832mm
Dimension G 2160mm
Model -
Axle type SB14
Axle load single axle 1400kg
Axle load: Tandem axel 2800kg
Wheel brake RB520
Suspension Square rubber suspension
Swing arm 165mm
Wheel connection 112x5
Wheel bearing Compact bearings
Centre hole rim min. 56.5mm



SCOPE OF DELIVERY
Axle incl. bowden cables loose
Welded-on shock absorber brackets
Ball-head wheel bolts M12x1.5 loose

DETAILS

  • Speed up to 140 km/h
  • Drawbar connection: Clamping shells see Accessories
  • Axle shock absorber see Accessories
  • Wheel connections: 120x5, 140x5 on demand
  • Special axle mounts and drawbar connections on demand
  • Also available with watertight bearings
  • Axle body fully hop-dip galvanised: Permanent surface protection
  • Independent wheel suspension: Optimum compensation of uneven road surfaces
  • Maintenance-free suspension: Lower maintenance costs
  • Sturdy axle construction: Suitable for extreme loads such as off-road or construction sites
  • Sturdy, maintenance-free spreadlever brakes with auto-reverse: Simple adjustment of the brake from outside the wheel, subsequent connection of the brake cables possible without removal of the brake drum
  • Compact bearings (standard in the automotive industry): Maintenance-free, long service life, protected against dirt and water, lubricated for life with special grease
  • Incl. shock absorber bracket
